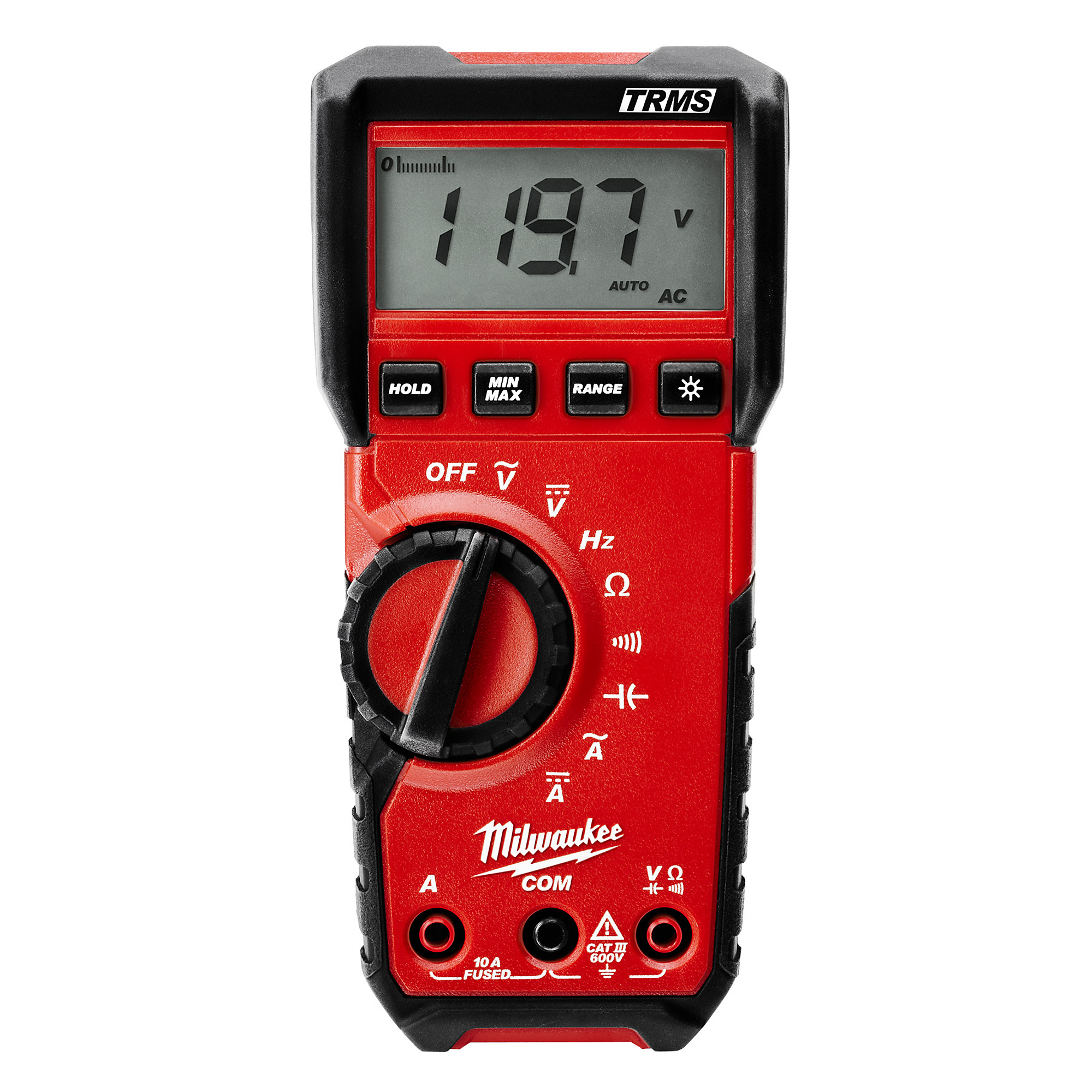

Milwaukee Digital Multimeter, True RMS, Model# 2216-20

Item# 17859
Milwaukee Digital Multimeter, True RMS, Model# 2216-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee Digital Multimeter, True RMS, Model# 2216-20

Click or Tap image to Zoom

$119.00

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • True RMS measurement to accurately measure all applications
  • CATIII 600V for increased safety in demanding electrical environments
  • AC voltage range of 6 millivolts to 600 Volts
  • DC voltage range of 600 millivolts to 600 Volts DC
  • Resistance measurement from 600 ohms to 40 Mohm

See full description

Complete Your Solution

  • Milwaukee Digital Multimeter, True RMS, Model# 2216-20
  • Milwaukee 6-in-1 Combination Pliers, Model# 48-22-3079
  • Milwaukee 4-Pc. Cushion-Grip Screwdriver Set, Model# MT200-4
Price for all three:

$179.94

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Milwaukee Digital Multimeter features a category III 600-volt rating for safety. The multimeter has a rugged over-molding for user grip and durability and is auto-ranging to millivolts. This meter provides audible- and visual alerts to let you know when voltage is present and features a wide voltage range to 600 volts AC or DC.

What's Included

    (1) Digital Multimeter (2216-20) (1) Electrical Test Lead Set (2) AA Batteries

Features + Benefits

  • True RMS measurement to accurately measure all applications
  • CATIII 600V for increased safety in demanding electrical environments
  • AC voltage range of 6 millivolts to 600 Volts
  • DC voltage range of 600 millivolts to 600 Volts DC
  • Resistance measurement from 600 ohms to 40 Mohm
  • Frequency measurement from 10Hz to 50 kilohertz
  • Detects continuity at less than 30 ohms
  • Current measurement to 10 Amps AC/DC
  • Hold function, min/max function and digital bar graph readout
  • Black on white display
  • Backlight for easier reading
  • Rugged overmolding for improved durability and user grip
  • Proprietary rail system for mounting accessories

Key Specs

AttributeSpecification

item#

17859

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1.39 LB
AttributeSpecification

Functions (qty.)

7

Low Battery Indicator

Yes

UL Listed

Yes

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. probes

    I have not seen or read anything about the probes, are they included?

    1. Most definitely included with unusually long wires, a plus for my use.

      Helpful?

    2. Yes

      Helpful?

    3. The unit includes one set of electrical test leads.

      Helpful?

  2. Where is this item manufactured

    1 answer

    1. This digital multimeter is manufactured in Taiwan.

      Helpful?

  3. The features state, resistance readings from 600 ohms to 40 meg.  Are you saying that I could not measure a 10 ohm or 50 ohm resistor?

    1 answer

    1. This multimeter is unable to measure ohms below 600 ohms. It could not measure a 10 or 50 ohm resistor.

      Helpful?

  4. Can this measure capacitance?

    1 answer

    1. This multimeter will measure Capacitance. The full function list is as follows(in order from top to bottom on the device dial); Voltage AC, Voltage DC, Hertz, Resistance, Continuity, Capacitance, Current AC, and Current DC.

      Helpful?
