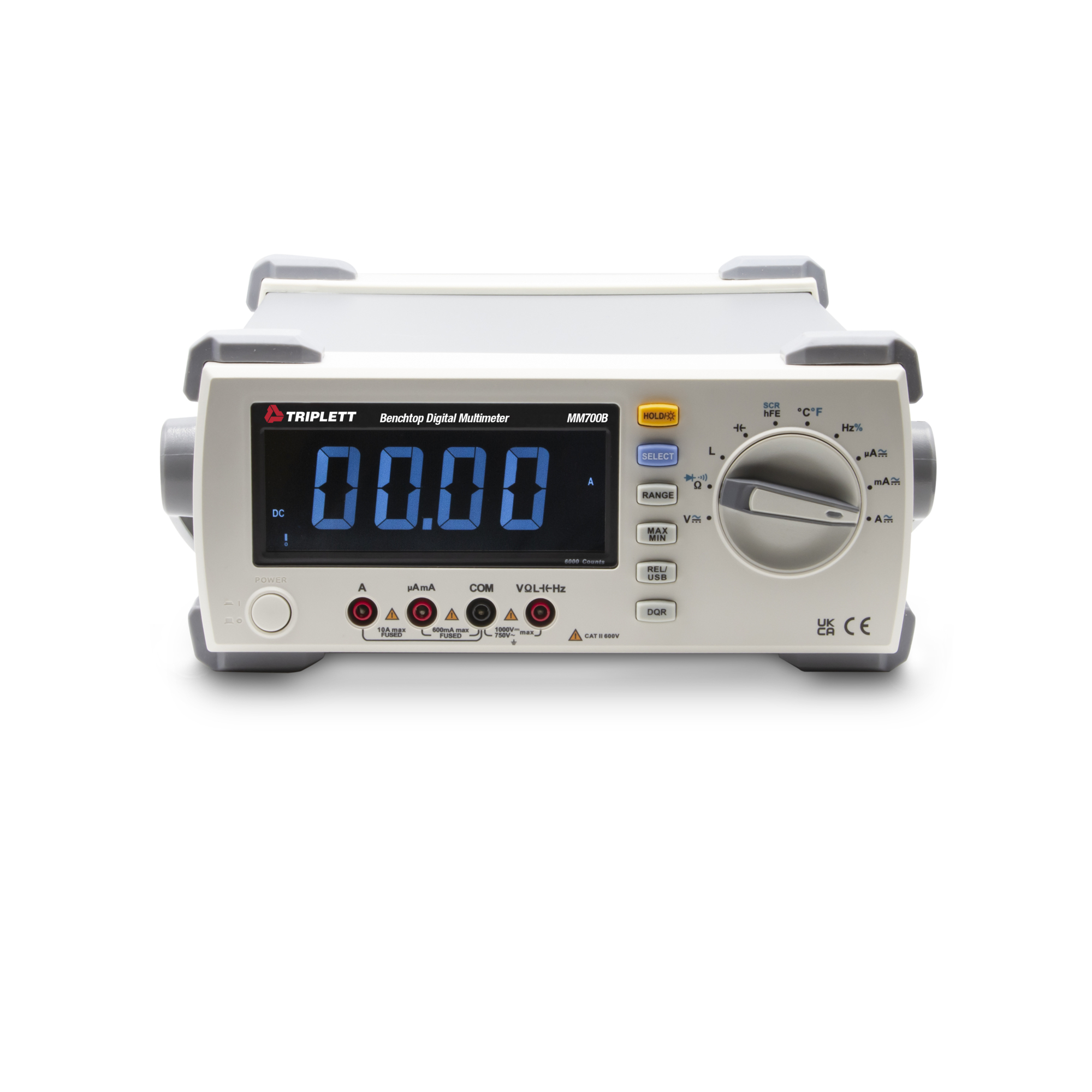

Triplett MM700B Benchtop Digital Multimeter

Item# 7065691
Triplett MM700B Benchtop Digital Multimeter

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett MM700B Benchtop Digital Multimeter

Click or Tap image to Zoom

$439.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • High Accuracy & Quick Response: AC powered TRMS Meter with a large LCD, ideal for all types of benchwork.
  • Comprehensive Measurement Range: Measures AC/DC voltage and current, µA current, resistance, temperature, capacitance, frequency, inductance, and duty cycle.
  • Multiple Testing Capabilities: Conduct diode, continuity, hFE, SCR, and equivalent resistance tests.
  • True RMS: Offers better accuracy when measuring non-sinusoidal or noisy waveforms.
  • 6000 Count LED Display: Equipped with a bar-graph, auto/manual ranging, Min/Max, Data Hold, and Relative mode.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model MM700B True RMS Benchtop Digital Multimeter is a versatile tool designed for various benchwork applications. This AC-powered TRMS meter offers superior accuracy and quick response, making it perfect for any task. It measures a range of parameters including AC/DC voltage and current, µA current, resistance, temperature, capacitance, frequency, inductance, and duty cycle. Moreover, it conducts diode, continuity, hFE, SCR, and equivalent resistance tests. With a 6000 count LED display complemented by a bar graph, auto/manual ranging, Min/Max, Data Hold, and Relative mode, the MM700B brings precision to your fingertips. It also includes a USB interface, allowing for up to 20,000 data groups recording, historical data access, and trend chart viewing. The MM700B complies with the CAT II 600V safety category and is cETLus listed. The package includes an AC power cord, test leads, alligator clip short test leads, a multifunction test socket, a Type K temperature probe, and a USB cable with software. Comes with a 1-year warranty for peace of mind.

What's Included

    (1) Benchtop Digital Multimeter

Features + Benefits

  • High Accuracy & Quick Response: AC powered TRMS Meter with a large LCD, ideal for all types of benchwork.
  • Comprehensive Measurement Range: Measures AC/DC voltage and current, µA current, resistance, temperature, capacitance, frequency, inductance, and duty cycle.
  • Multiple Testing Capabilities: Conduct diode, continuity, hFE, SCR, and equivalent resistance tests.
  • True RMS: Offers better accuracy when measuring non-sinusoidal or noisy waveforms.
  • 6000 Count LED Display: Equipped with a bar-graph, auto/manual ranging, Min/Max, Data Hold, and Relative mode.
  • Data Recording and Analysis: Records up to 20,000 data groups for historical data and trend chart viewing.
  • USB Interface: Enables remote viewing, control, and data analysis.
  • Safety Compliance: CAT II 600V safety category and cETLus listed.

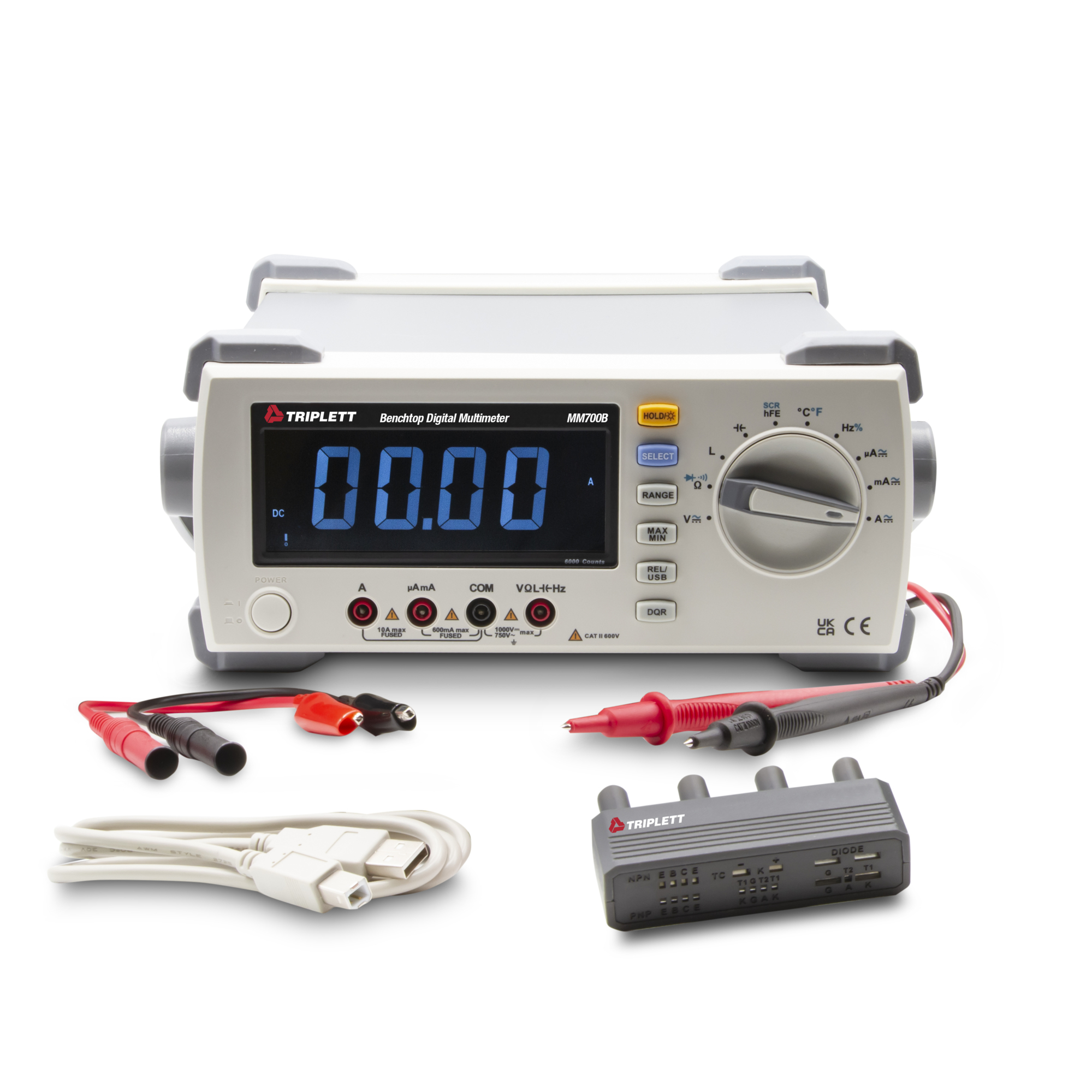

  • Includes AC power cord, test leads, alligator clip short test leads, multifunction test socket, Type K temperature probe and USB cable/software

Key Specs

AttributeSpecification

item#

7065691

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.5 LB

Functions (qty.)

15

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

750

Max. AC Amps

10

Max. DC Amps

10
AttributeSpecification

Max. Resistance

60

Battery Size

Other

Power Source

Corded

Live Circuit Detection

No

UL Listed

Yes

Calibration Certificate Included

No

Max. Ohms

60

Application

PC Board Testing and Repair, Product Design and Testing, Student Engineering and Electronics Labs

Includes

Includes AC power cord, test leads, alligator clip short test leads, multifunction test socket, Type K temperature probe and USB cable/software

Product Weight

1.5000 lb

Dimensions L x W x H (in.)

5.0 x 3.0 x 8.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
