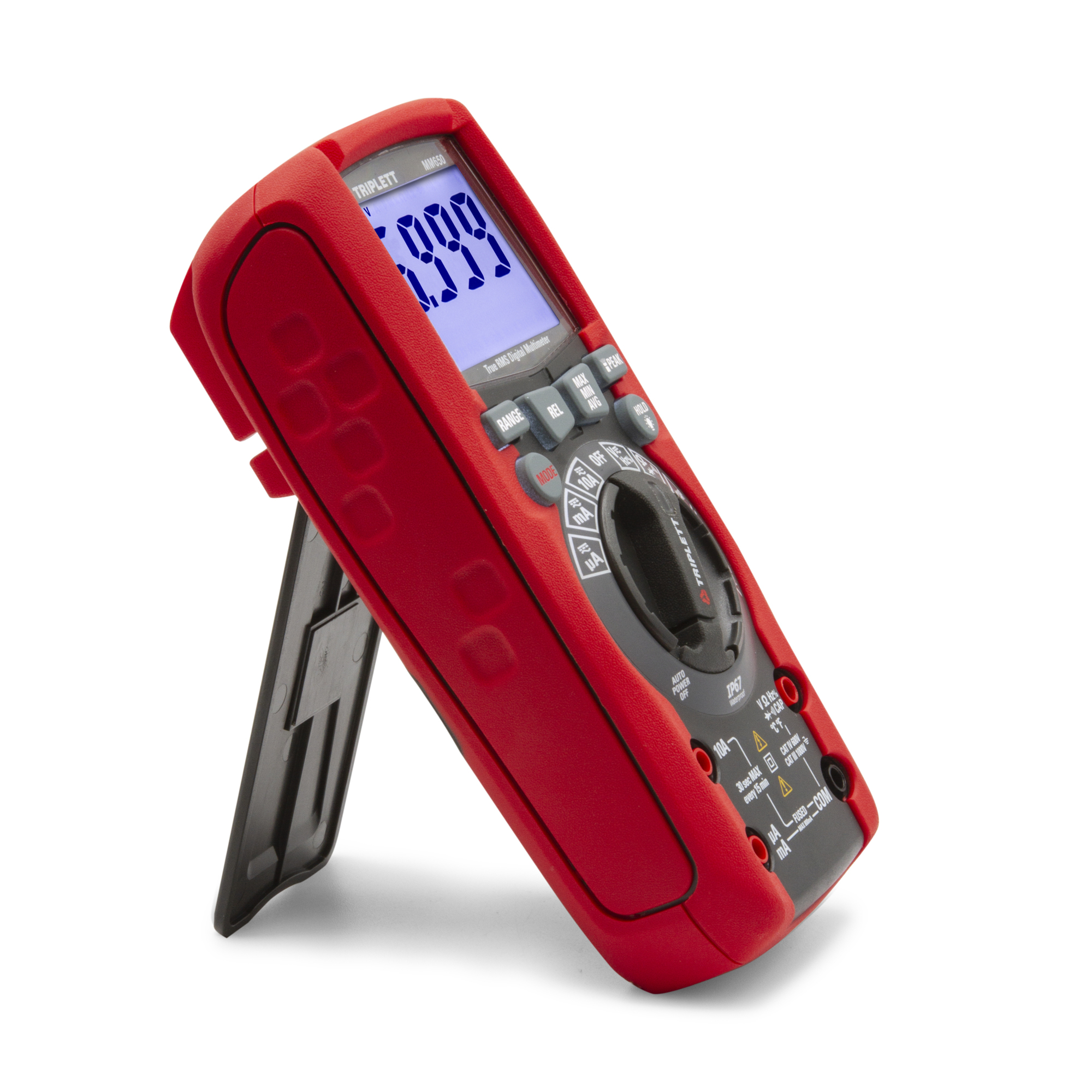

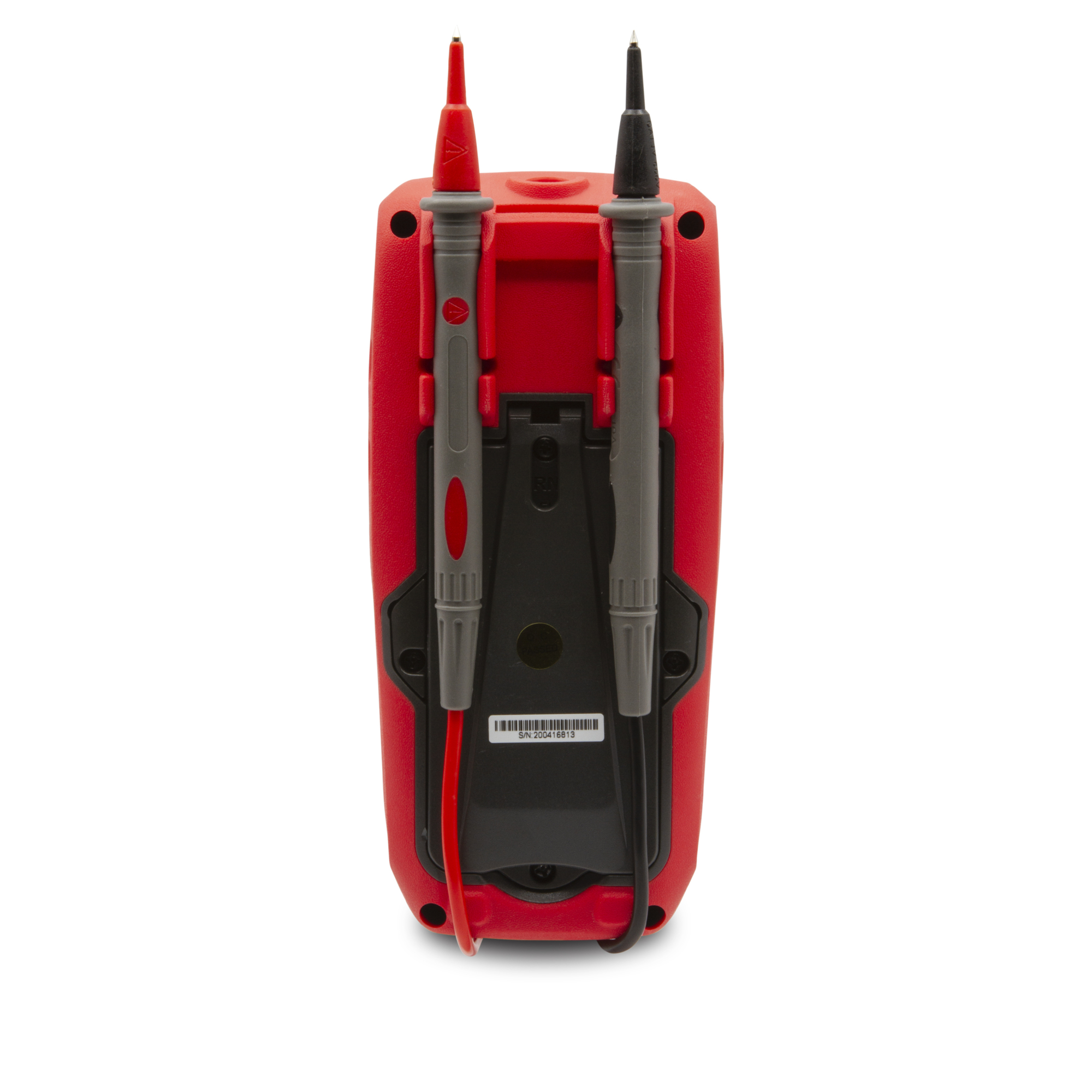

Triplett MM650 CAT IV TRMS Multimeter — Lo Z, 6000 Count, True RMS, IP67, Model# MM650

Item# 5851921
Triplett MM650 CAT IV TRMS Multimeter — Lo Z, 6000 Count, True RMS, IP67, Model# MM650

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett MM650 CAT IV TRMS Multimeter — Lo Z, 6000 Count, True RMS, IP67, Model# MM650

Click or Tap image to Zoom

$141.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Measures AC/DC Voltage and Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity
  • µA Current measurement
  • Low input impedance (Lo Z) mode for ACV/DCV measurements
  • Peak Hold

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett MM650 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC µA Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Additional features include 61-segment analog bargraph, backlit LCD, buttons and switch selector, Lo Z (impedance) mode for identifying ghost voltages, data hold, peak hold, relative mode, and a built-in flashlight. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design that is also waterproof (IP67). CAT IV 600V safety rating provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model MM650 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe, (4) AAA batteries, and carrying case. 3-year warranty.

What's Included

    (1) CAT IV TRMS Multimeter with Lo Z

Features + Benefits

  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Measures AC/DC Voltage and Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity
  • µA Current measurement
  • Low input impedance (Lo Z) mode for ACV/DCV measurements
  • Peak Hold
  • Backlit LCD, Buttons, and Switch Selector
  • Data Hold and Relative mode
  • Waterproof (IP67)
  • Built-in Flashlight
  • Includes test leads, temperature probe, (4) AAA batteries, and carrying case
  • Includes test leads, temperature probe, (4) AAA batteries, and carrying case

Key Specs

AttributeSpecification

item#

5851921

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.4 LB

Functions (qty.)

12

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

1000

Max. AC Amps

10

Max. DC Amps

10

Max. Resistance

60

Battery Size

AAA

Low Battery Indicator

Yes

Battery Type

AAA

Battery Included

Yes

Capacitance Range

6000µF

Frequency

10kHz
AttributeSpecification

Accuracy

0.005

Measures

Measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Capacitance, Frequency, Temperature, Continuity

Max. Temperature

1,400 °F

Case Included

Yes

Common Usage

Measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Capacitance, Frequency, Temperature, Continuity

Auto On/Off

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

No

UL Listed

Yes

Calibration Certificate Included

No

Max. Ohms

60

Material

Plastic

Application

Suited for use in all test environments, from occasional use in residential applications to everyday use by installers, home theater technicians, security technicians, electricians, HVAC technicians, and other professionals in the industry

Includes

Includes test leads, temperature probe, (4) AAA batteries, and carrying case

Product Weight

1.4000 lb

Dimensions L x W x H (in.)

5.25 x 2.4 x 10.1 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
