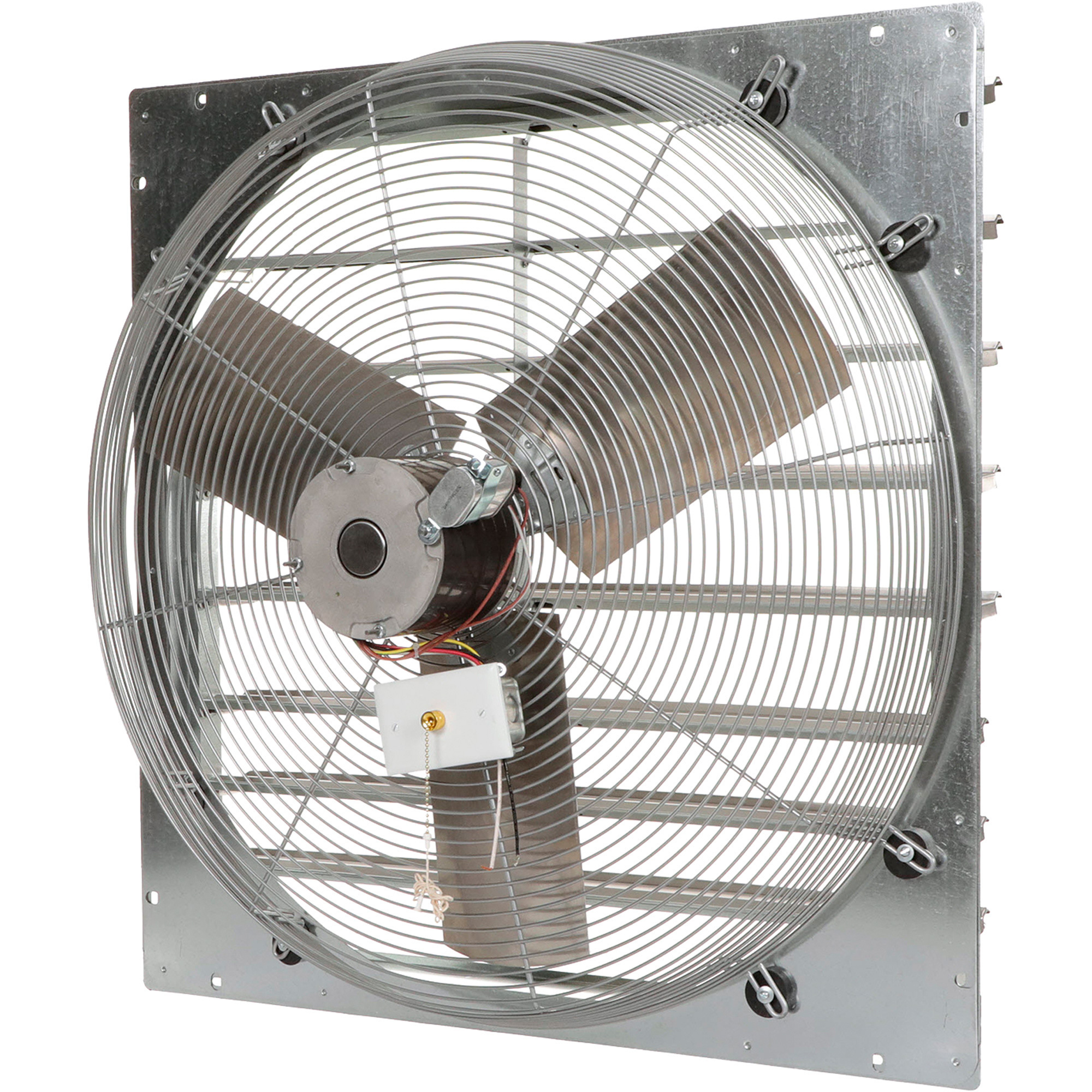

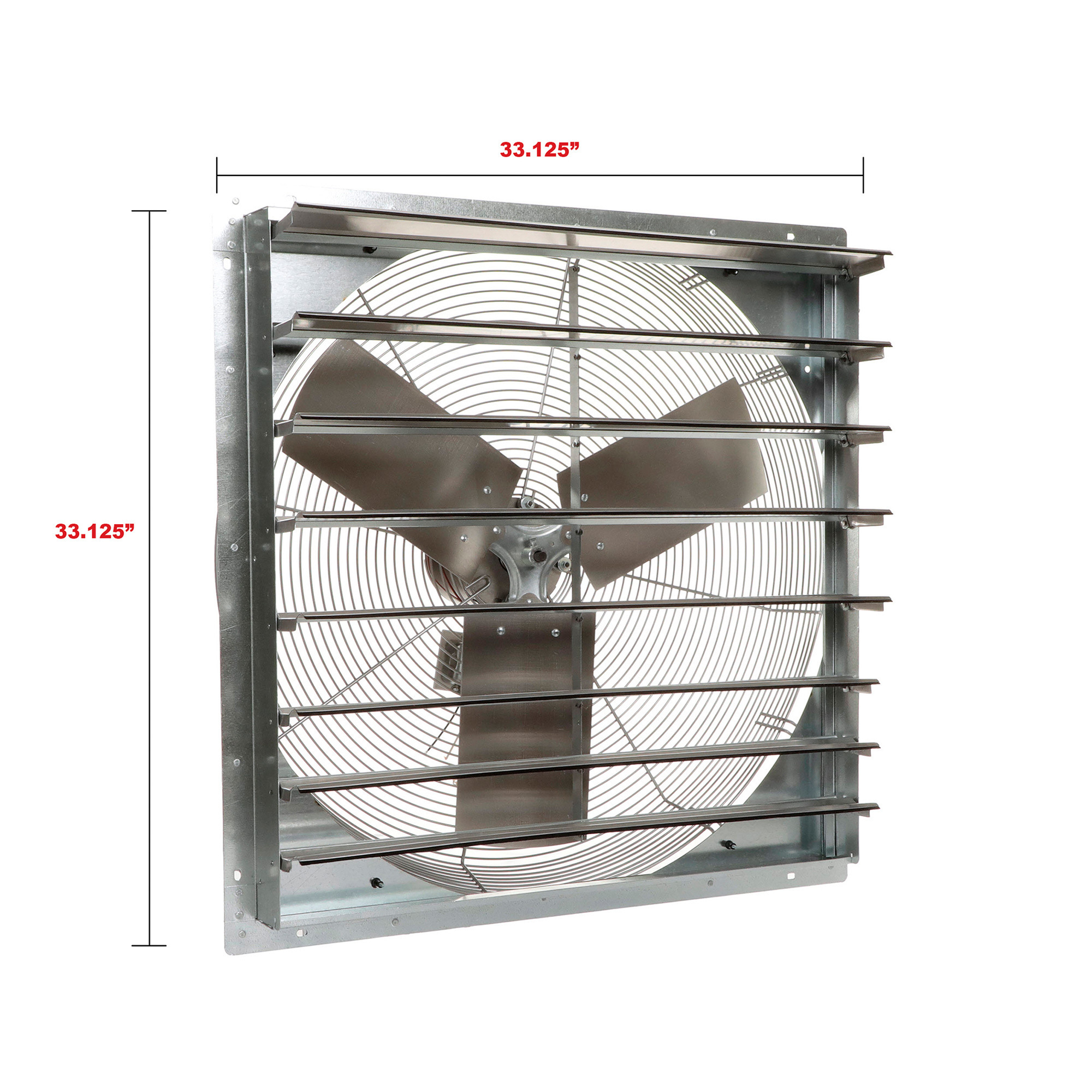

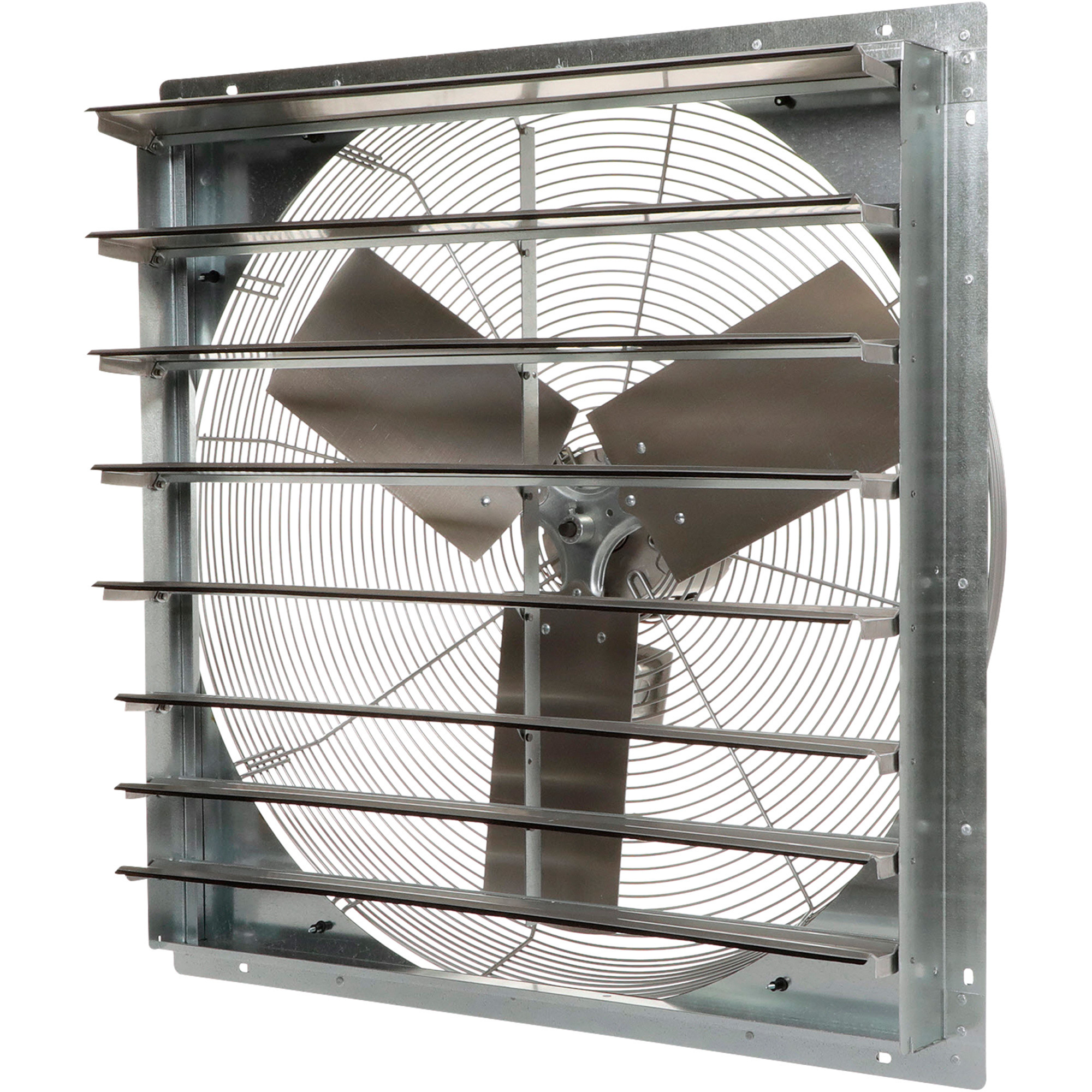

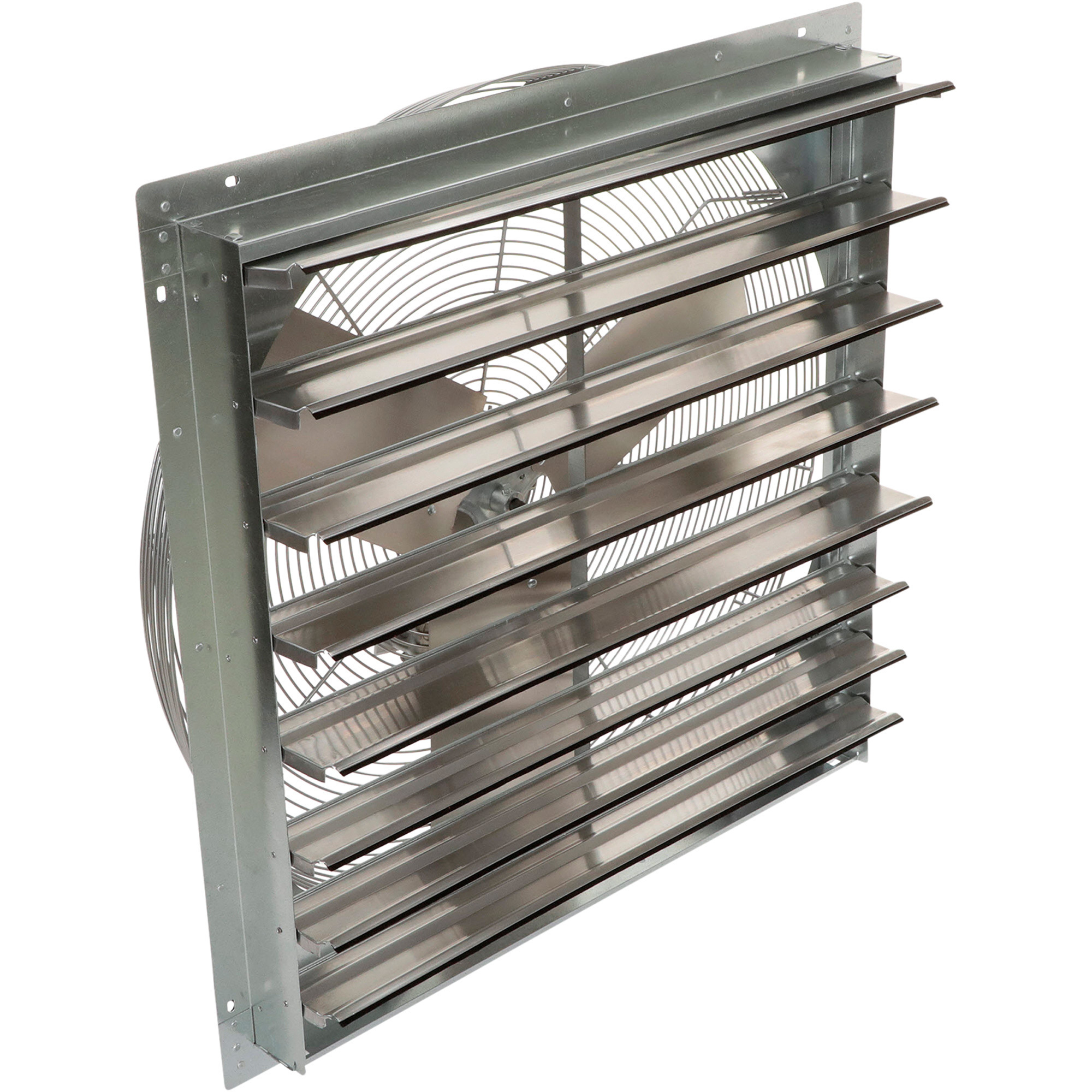

TPI Shutter-Mounted Direct Drive Exhaust Fan - 30in. Dia., 3950 CFM, 120V, Aluminum Blades, Model# CE-30-DS

Item# 255335
"TPI Shutter-Mounted Direct Drive Exhaust Fan - 30in. Dia., 3950 CFM, 120V, Aluminum Blades, Model# CE-30-DS"
TPI Shutter-Mounted Direct Drive Exhaust Fan - 30in. Dia., 3950 CFM, 120V, Aluminum Blades, Model# CE-30-DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Direct Drive Exhaust Fan - 30in. Dia., 3950 CFM, 120V, Aluminum Blades, Model# CE-30-DS

Click or Tap image to Zoom

$912.00

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Totally enclosed 2-speed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • Pull chain switch

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Can be installed from inside wall, eliminating need for external framing and shutter. Totally enclosed, 1 phase, 120V, permanently lubricated. For new or existing construction. Features pull chain switch, aluminum blades and steel spiral guards. Oversize shipping charge applies

What's Included

    (1) 2-speed motor (1) Pull chain (1) Junction box for direct wiring (1) Blade set (1) Fan guard (1) Shutter housing

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed 2-speed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • Pull chain switch
  • No cord-junction box provided for direct wiring
  • Aluminum blade
  • Steel spiral wire guards
  • 1/4 HP motor is 2-speed ball bearing permanent split capacitor
  • Rough-in hole size is 1/2in. larger than fan blade size
  • Shutter mounted fans install on inside wall and eliminate the need for external framing and shutter
  • Quiet operation makes it ideal for commercial environments
  • Aluminum blades are enclosed in a sturdy steel spiral wire guard
  • Adjustable shutters regulate flow of ventilation
  • Meets OSHA standards
  • UL listed

Key Specs

AttributeSpecification

item#

255335

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

51.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

30 in

Air Delivery

3,950 cfm

Volts

120

Speeds (qty.)

2

Horsepower

0.25 HP

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the max cfm rating on this fan

    1 answer

    1. The max CFM is 3,950.

      Helpful?

  2. Would this fan work in a 16'×12'×8' paint booth?

    1 answer

    1. A paint booth must be UL listed explosion proof and meet NFPA 70 standards. It would not be recommended for a paint booth application.

      Helpful?

  3. What is the rough cutout for this on the wall?

    1 answer

    1. Per the manufacturer manual, this requires a 31" diameter rough in circle.

      Helpful?

  4. installed on a metal building.

    is this fan easily sealed when installed on a corrugated metal building.

    1 answer

    1. You would frame in a rough opening for the mounting for this TPI fan so it can be mounted on the inside. You would use foam or caulk sealant between the rough opening and the corrugated metal for a better seal.

      Helpful?

  5. can a wall switch be installed to turn on / off?

    Pull chain is pretty inconvenient when installing fan in 18' gable?

    1 answer

    1. The fan could be wired to a wall switch.

      Helpful?

  6. Model # CE-30-DS , Is the fan motor totally enclosed ? What are the rough opening sizes ?

    1 answer

    1. The fan motor on the TPI Shutter-Mounted Direct Drive Exhaust Fan is totally enclosed. The rough-in opening needs to be 1/2 inch bigger than the fan blade itself, or 30-1/2 inches square.

      Helpful?

  7. Can the shutters be removed from 255335-1113?

    1 answer

    1. According to the manufacturer(TPI), the shutters are not designed to be removed and they would not recommend using the exhaust fan without them.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
