TPI Shutter-Mounted Direct Drive Exhaust Fan - 16in. dia., 2100 CFM, 3-Speed, Aluminum Blades, Model# CE-16-DS

Item# 255317
"TPI Shutter-Mounted Direct Drive Exhaust Fan - 16in. dia., 2100 CFM, 3-Speed, Aluminum Blades, Model# CE-16-DS"
TPI Shutter-Mounted Direct Drive Exhaust Fan - 16in. dia., 2100 CFM, 3-Speed, Aluminum Blades, Model# CE-16-DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Direct Drive Exhaust Fan - 16in. dia., 2100 CFM, 3-Speed, Aluminum Blades, Model# CE-16-DS

Click or Tap image to Zoom

$508.80

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • For new or existing construction
  • 3-speed, 2,100/1,900/1,700 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated

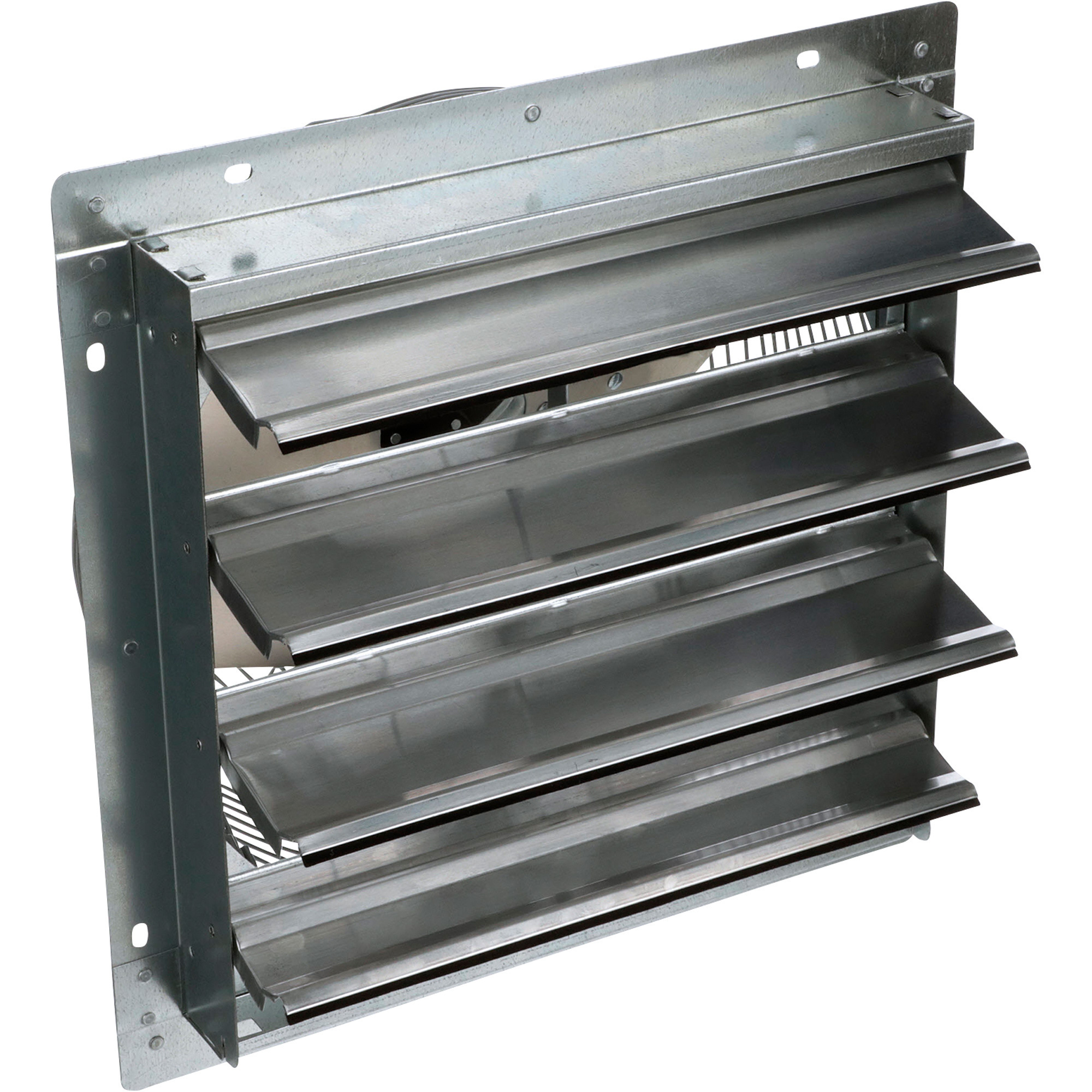

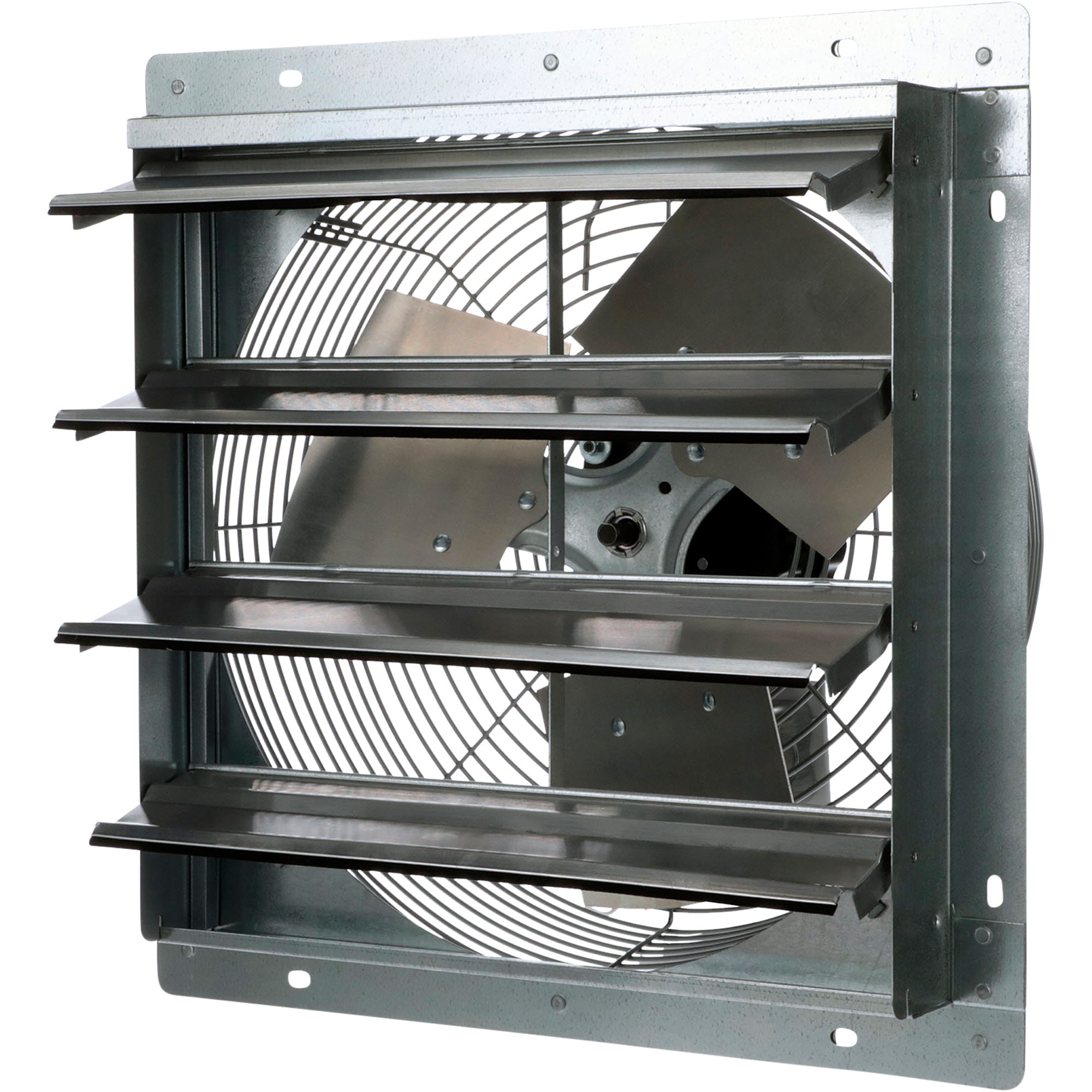

  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

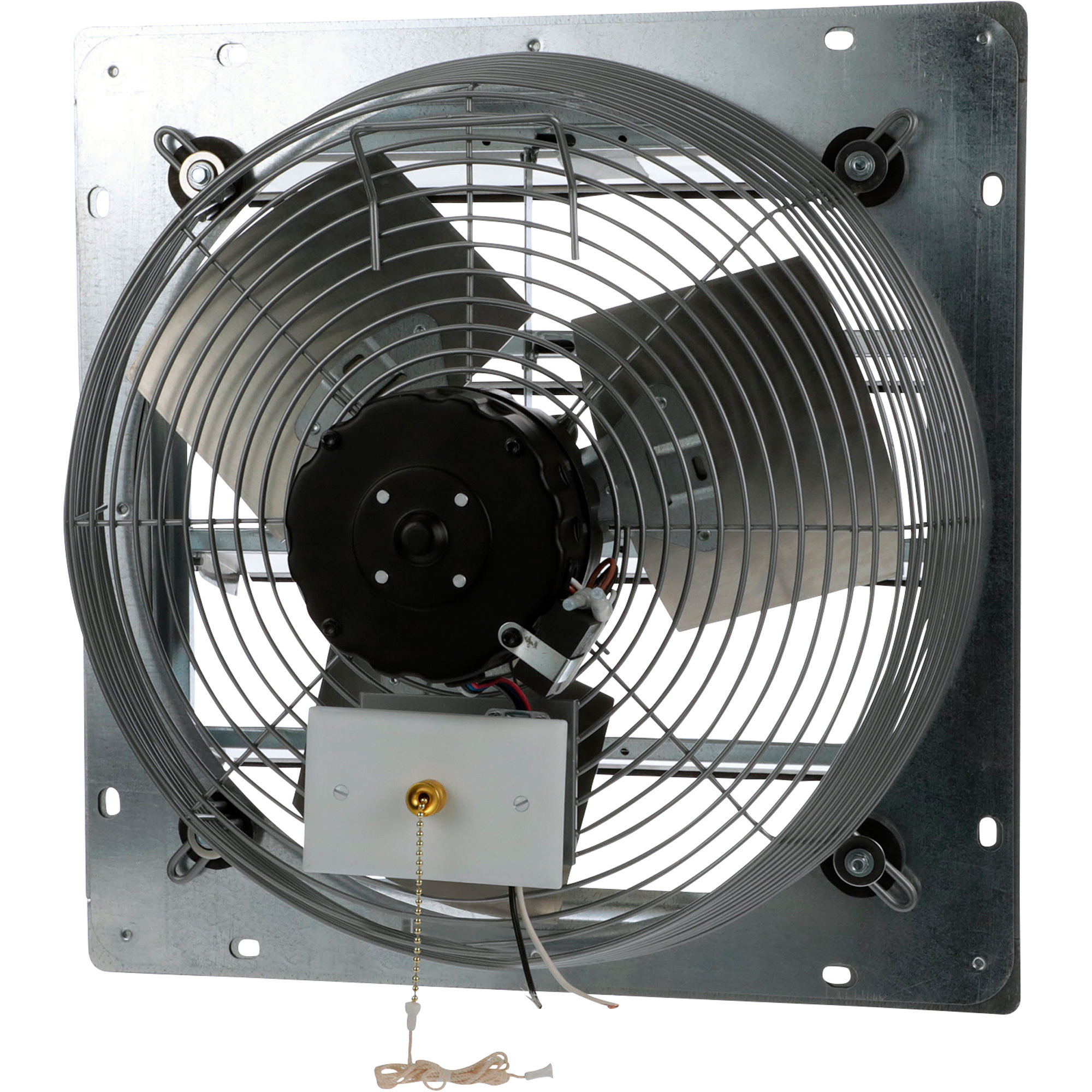

The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Can be installed from inside wall, eliminating the need for external framing and shutter. Totally enclosed 120V direct drive motor has 3 speeds and is permanently lubricated. Features pull chain switch, aluminum blades and steel spiral guards.

What's Included

    (1) Exhaust fan (1) Junction box

Downloads

Product Manual Product Manual2

Features + Benefits

  • For new or existing construction
  • 3-speed, 2,100/1,900/1,700 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • 1/8 HP 2.1 Amp motor has pull chain switch
  • Aluminum blades
  • Steel spiral wire guards
  • Includes junction box for hardwiring
  • Shutter mounted fans install on inside wall and eliminate the need for external framing and shutter
  • Quiet operation makes it ideal for commercial environments
  • Aluminum blades are enclosed in a sturdy steel spiral wire guard
  • Adjustable shutters regulate flow of ventilation
  • Meets OSHA standards
  • UL listed

Key Specs

AttributeSpecification

item#

255317

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

22.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

16 in

Air Delivery

2,100 cfm

Volts

120

Speeds (qty.)

3

Horsepower

0.12 HP

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Are the luvers operational and are they electric or opened by the air flow?

    1. I have one of these, they open by airflow and mine operates very smoothly

      Helpful?

    2. The shutters on this fan open and shut as a result of the air flowing through them.

      Helpful?

  2. Is this unit designed to exhaust HEAT/SMOKE

    Im planning on using this for my restaurant kitchen. Its about a 10x16 space. Sometimes the exhaust hood doesnt pull up all the smoke fast enough, and some smoke leaks out from under the hood and into the kitchen...will this fan placed on the wall blowing outside, will it be able to exhaust the excess smoke? Heat, it gets really hot in that kitchen. Is this fan designed to suck out the excess heat in the kitchen? Thank you

    1. I don't see any reason why it could not be used for that purpose. I used to work restaurants, so I know what you mean. There is no guard on this fan.

      Helpful?

    2. The fan does have 3 speeds. As long as the fan is turned on, it will help in exhausting the heat and smoke.

      Helpful?

  3. Installation beteen 2x6 studs

    How would CE-16-DS be intalled in wall with 2"x6" studs? Would the shutter be mounted on exterior separated from the fan assembly mounted on interior?

    1 answer

    1. This TPI exhaust fan would require a 18 1/4 x 18 1/4 inch rough opening. For mounting to wood structures, use 1/4” lag screws of appropriate length through each mounting hole. The shutter can be installed from the inside wall, eliminating the need for external framing or shutters.

      Helpful?

  4. what is the rough opening needed for the TPI Shutter-Mounted Direct Drive Exhaust Fan — 16in., Model# CE-16-DS ?

    1 answer

    1. This TPI exhaust fan would require a 18 1/4 x 18 1/4 inch rough opening.

      Helpful?

  5. Looking for an exhaust fan for a 35x45 metal building with 18' ceiling. Would this fan be big enough to exhaust this type of building ?

    1 answer

    1. This exhaust fan is to small for your particular application. For the building size that you listed you would need to purchase two of the fans that I will list below.

      Helpful?

  6. Motor maintenance-Shutter Maintenance

    Does the fan motor have any oil/grease maintenance spots?

    How are the shutters cleaned and oiled to keep them freely operating?

    1 answer

    1. The fan motor does not have any oil or grease maintenance spots. The shutters are can be cleaned by blowing them out with a air compressor. The shutters can be oiled by simply spraying WD-40 on the hinges.

      Helpful?

  7. What is the noise level of this fan at low and high speed?

    1 answer

    1. This fan only is listed at a high speed decibel rating of 74.

      Helpful?

  8. Can this unit be connected to a thermostat?

    1 answer

    1. Yes, this Exhaust Fan can be connected to a thermostat.

      Helpful?

  9. Can it be used in a wall with studs at 16inch center

    Does this fan seperate like the 12inch and if so any problem with using it in a wall with studs at 16inch center. I realize there will be a small amount of blinding on either side of the fan but i can live with this for the extra cfm over a 12inch.

    1 answer

    1. The mounting dimension required for the 16" fan is 18.25" square. The fan does separate like the 12 inch fan.

      Helpful?

  10. remote mount a speed controller

    if the fan is going to be mounted high up in a shop, can the 3 speed controller be mounted at hand level? or do you sell a seperate controller? i plan on hardwiring an o/off switch at switch height and would like to have a dial or speed conttroller instead of getting a long chain. is this possible?

    1 answer

    1. The 3 speed switch can be placed at arms level to control this unit.
