Tie Down 10in. Disc Brake Kit, Model# 82101

Item# 124968

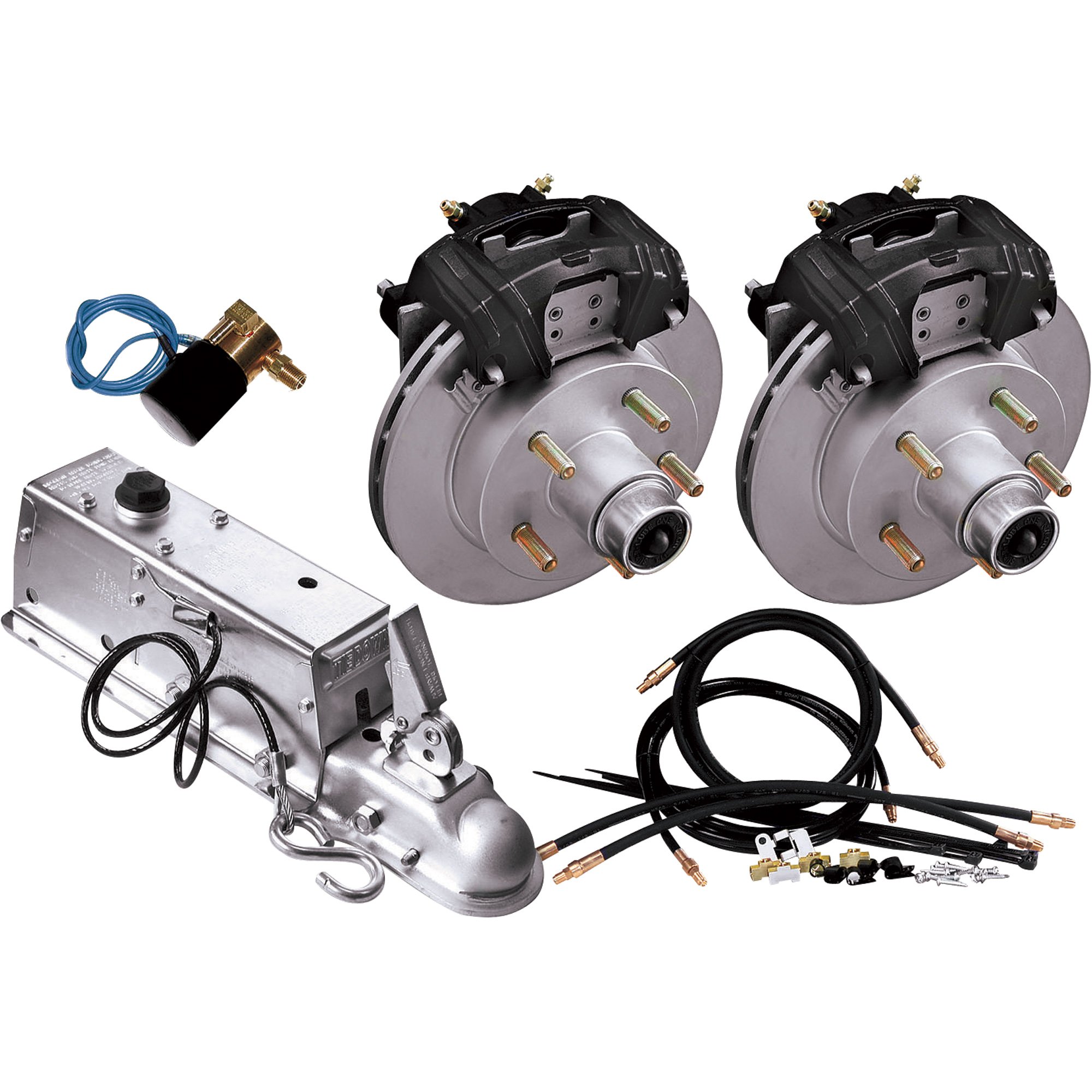

Tie Down 10in. Disc Brake Kit, Model# 82101

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tie Down 10in. Disc Brake Kit, Model# 82101

Click or Tap image to Zoom

  • GalvX-coated rotors for corrosion resistance
  • Marine-grade aluminum calipers with stainless steel pistons and slider pins
  • 6600-lb. capacity disc brake actuator features cast ball clamp and oversized aluminum master cylinder
  • Preassembled with backflow-style reverse lockout solenoid
  • Extended latch lever

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Replace your trailers drum brakes with vented rotor disc brakes for faster stopping power. Kit comes with everything you need. GalvX-coated rotors resist corrosion. U.S.A.

Features + Benefits

  • GalvX-coated rotors for corrosion resistance
  • Marine-grade aluminum calipers with stainless steel pistons and slider pins
  • 6600-lb. capacity disc brake actuator features cast ball clamp and oversized aluminum master cylinder
  • Preassembled with backflow-style reverse lockout solenoid
  • Extended latch lever
  • Exterior emergency safety cable lock and release
  • Vinyl-coated coiled emergency stop cable
  • Safety lock pin with backup position
  • Includes pair of GalvX-coated vented rotor disc brakes, plus Item#s 128205, 128230 & 124966
  • Includes two 18in. DOT flex hoses, one 76in. DOT flex hose, one 240in. PSI hose, five cable ties, two union T connectors, two T clamps, four cable clamps and eight self-tapping screws
  • Not for 13in. wheels
  • DOT 3 brake fluid not included

Key Specs

AttributeSpecification

item#

124968

Brand

Tie Down

Manufacturer's Warranty

12 months parts / 12 months labor
AttributeSpecification

Ship Weight

69.6 LB

Brake Type

Hydraulic

Brake Lines

Included

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Is this kit concidered surge brakes?

    1. Yes, this is a "surge brake" system!

      Helpful?

    2. The Tie Down Disc Brake Kit would be considered "surge brakes". It is entirely self contained, requiring no electrical, hydraulic or other connection. The forward inertia developed when the tow vehicle slows will automatically activate the brakes.

      Helpful?

  2. No Trailer Brakes now

    I have a 19 foot boat with single axle trailer "no brakes". Can I install this kit on my trailer to add brakes or is there more items needed?

    Thanks Denny

    1. This is the kit you need! Some drilling and trailer fitting might be required.

      Helpful?

    2. This is a complete kit. No other pieces would need to be purchased. However, you must verify that the bearings are the correct size and the bolt holes match.

      Helpful?

  3. does this brake system have a breakaway feature?

    1. Yes! The breakaway cable is included!

      Helpful?

    2. There is a breakaway cable feature on the actuator. Should the trailer become disengaged the actuator will brake and lock.

      Helpful?

  4. spindle stubs included?

    if not are they available?

    1 answer

    1. Spindle stubs are not included with this product. I have listed a few different options for spindle hubs that Northern offers below.

      Helpful?

  5. Can the 2" hitch ball receiver be replaced by a 2 5/16" hitch ball receiver?

    1 answer

    1. The actuator is designed to fit a 2" trailer ball. The item is not designed for another size receiver.

      Helpful?

  6. What size tounge does the controller bolt onto?

    1 answer

    1. This will bolt onto a 3" tongue.

      Helpful?

  7. Will it fit my trailer?

    I have an Aluma Trailer Model # 6810H. It has a Dexter Torsion Axle # 121589747 with Dexter Hubs. The brakes for this trailer are: The hub/drum is a Dexter # K08-247-94, The LH brake is a K23-026-00, and the RH brake is a K23-027-00.

    1 answer

    1. Yes, this kit will fit your Aluma trailer. The bearing sizes are the same (1 3/8" inner and 1 1/16 outer) and the tongue with matches the size of the coupler.

      Helpful?

  8. which of your controllers would you recommend for the 10"disc brake trailer kit?

    1 answer

    1. This kit does not require a brake controller. because it is a hydraulic surge brake system it is the forward motion of the trailer that activates the braking not an external electric brake box controller as would be used for an electric trailer brake system.

      Helpful?

  9. What do I need to put brakes on both axles?

    1 answer

    1. With this type of application, a tandem trailer braking system, the first order of business is to find out what the maximum total amount of weight you will be towing at any given time. This means adding the weight of the trailer, the cargo, and anything else...the total weight of what you are towing.

      Once you find out the total weight you will want to be sure the actuator (this is the box portion attached to the coupler) can handle the weight you are going to be towing. With the hydraulic brake kit that you are referring to it can only handle 6600 pounds, so if you are towing more this kit will not work.

      If what you are towing is under the 6600 pounds, this will work and to purchase additional brakes you will want to contact the manufacturer direct at phone number 1-404-344-0000.

      So here is the answer to your question finally, I spoke with the manufacturer and you are going to want to purchase an additional brake line kit, and two additional brake assemblies but currently we do not offer the tandem trailer additional items by themselves.

      Helpful?

  10. What size hitch ball?

    What size is the trailer hitch?

    1 answer

    1. The hitch ball size is a 2" and the capacity is 6600 pounds.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
