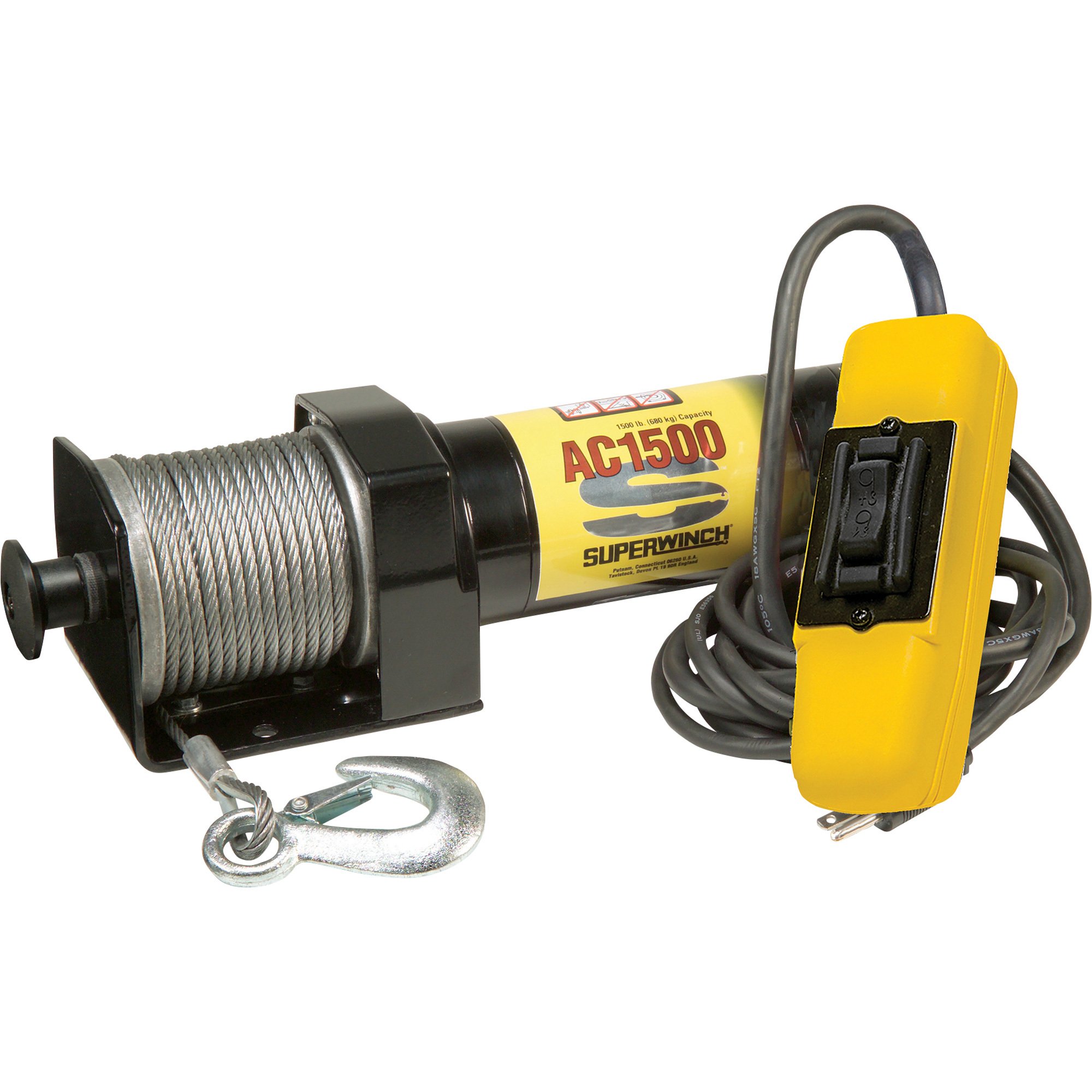

Superwinch 110 Volt AC Powered Electric Utility Winch — 1,500-Lb. Capacity, Galvanized Wire Rope, Model# AC1500

Item# 14108
Superwinch 110 Volt AC Powered Electric Utility Winch — 1,500-Lb. Capacity, Galvanized Wire Rope, Model# AC1500
Superwinch 110 Volt AC Powered Electric Utility Winch — 1,500-Lb. Capacity, Galvanized Wire Rope, Model# AC1500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Superwinch 110 Volt AC Powered Electric Utility Winch — 1,500-Lb. Capacity, Galvanized Wire Rope, Model# AC1500

Click or Tap image to Zoom

  • Cable tension plate
  • Includes hand-saver strap and mounting hardware
  • Powers load IN and OUT
  • Includes freespooling clutch for fast wire rope payout
  • High efficiency low amp draw motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Superwinch AC1500 Utility Winch is your choice when AC power is the only option. Features an all-steel planetary geartrain, mechanical and dynamic brake, and circuit breaker protection with pushbutton reset. U.S.A.

What's Included

  • (1) Winch with 35ft. wire rope
  • (1) 6ft. remote control
  • (1) Mounting hardware kit

Downloads

Product Manual

Features + Benefits

  • Cable tension plate
  • Includes hand-saver strap and mounting hardware
  • Powers load IN and OUT
  • Includes freespooling clutch for fast wire rope payout
  • High efficiency low amp draw motor
  • Draws only 10 amps at max. load
  • Operates on standard house current
  • Easy to use 6ft. control pendant

Key Specs

AttributeSpecification

item#

14108

Brand

Superwinch

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

18.2 LB

Horsepower

0.6 HP

Capacity (Line Pull)

1,500 lb

Gear Type

Planetary

Line Speed

7.2 ft./min.
AttributeSpecification

Gear Ratio

123:1

Rope Length

35 ft

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Remote

Yes

Remote Cord Length

6 ft

Freespooling

Yes

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is it suitable for wet locations?

    1 answer

    1. With the design of this Superwinch it is not to be used in wet locations.

      Helpful?

  2. What is the bolt size for the bolt holes?

    I'm custom mounting this. What size are the 2 bolt holes? How big is that plate and are the holes recessed at all? Thanks.

    1 answer

    1. Bolt hole size: 3/8''
      Holes recessed: No
      Mounting plate dimensions: 3'' x 4''

      Helpful?
