The line speed is as follows: 10.5 ft./min at no load, 8.3 ft./min at 375 lbs., 6.4 ft./min at 750 lbs., 5.2 ft./min at 1125 lbs. and 4.2 ft./min at 1500 lbs.
Ironton AC-Powered Electric Winch, 1500-Lb. Capacity, Steel Wire Rope

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Order today to get this price.
Shipping:
Available now
$19.99 Same DayStore Pickup:
3 in stock at Fredericksburg VA - Pickup in under 1 hr

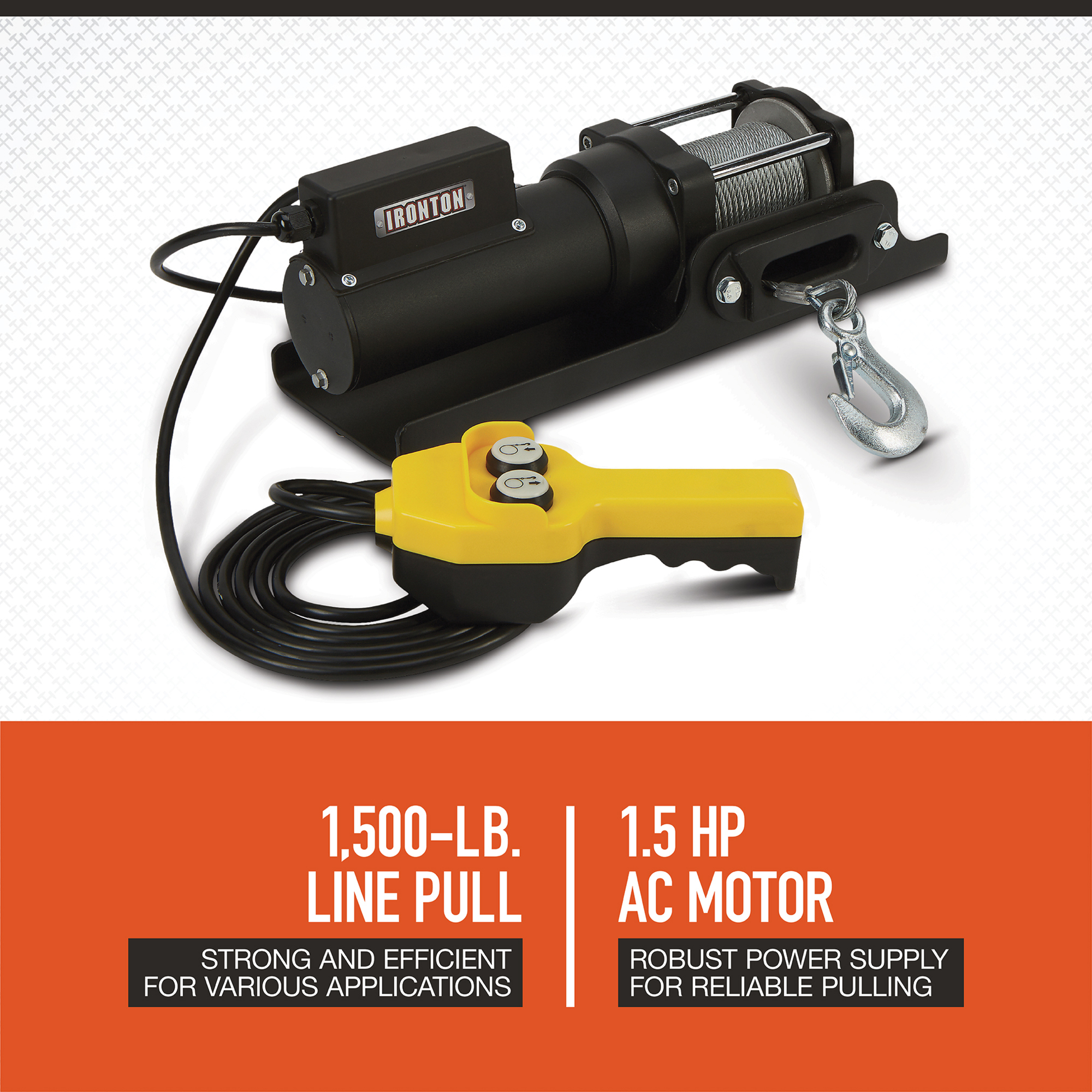

- 120 Volt, 1.5 HP motor delivers 1,500-lb. rated line pull
- Strong 5/32in. dia. x 35ft.L aircraft-grade galvanized steel wire winch rope with hook
- Planetary gears with 153:1 gear ratio and 10 ft./min. line speed

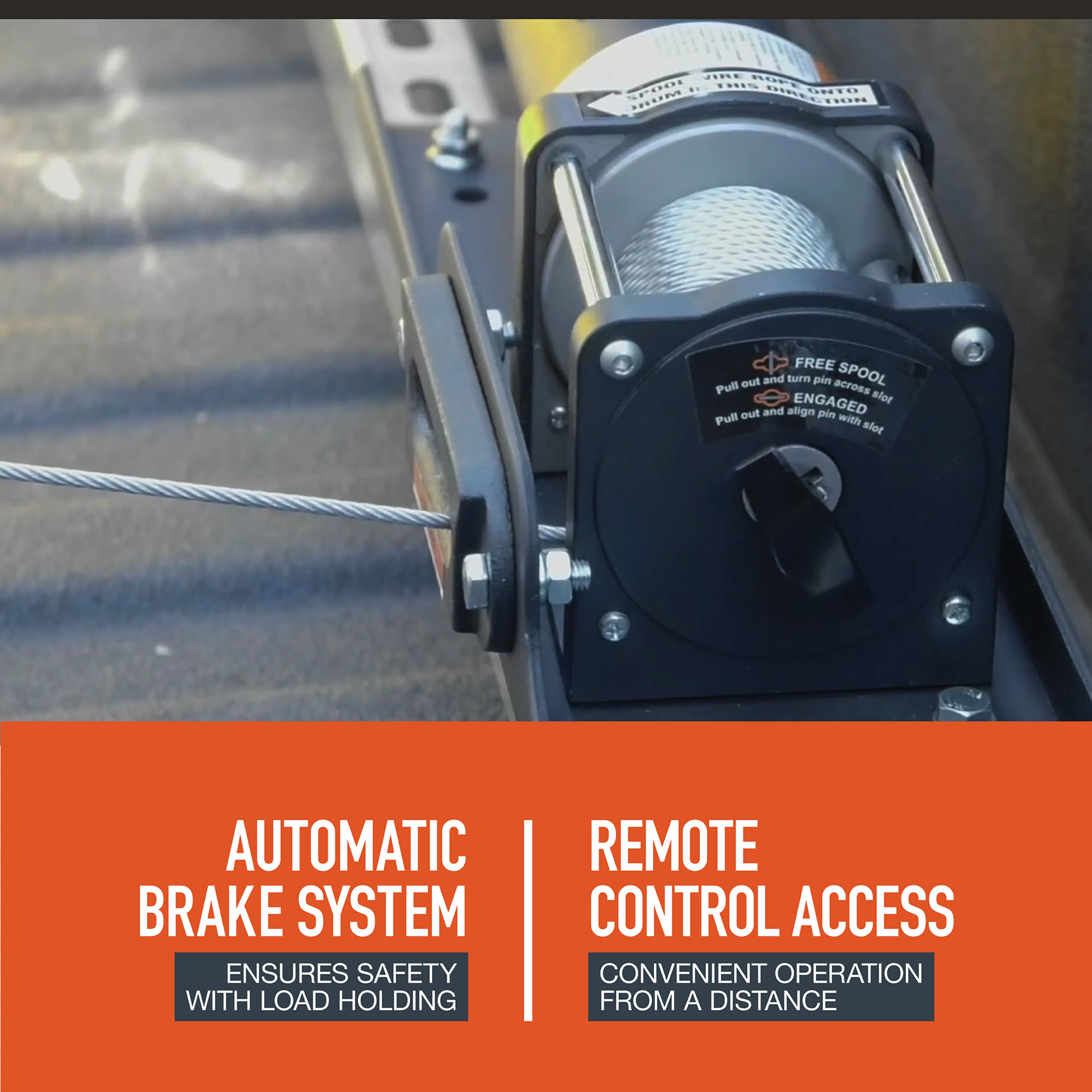

- Automatic braking system with automatic load holding plus freespooling capabilities
- IP55 waterproof rated for all-weather performance
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Winch (1) 35ft. wire rope with hook (1) Mounting plate
Downloads

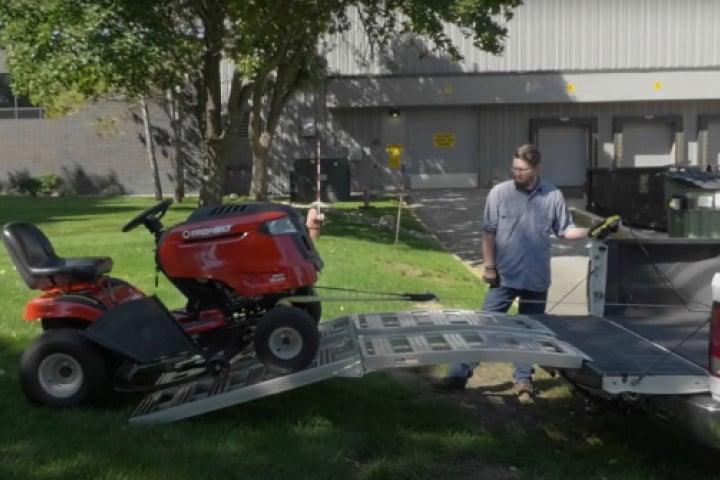

VERSATILE USE
Ideal for garages, shops, boating or landscaping, this winch is designed for pulling heavy loads with ease, ENHANCING PRODUCTIVITY and REDUCING MANUAL EFFORT

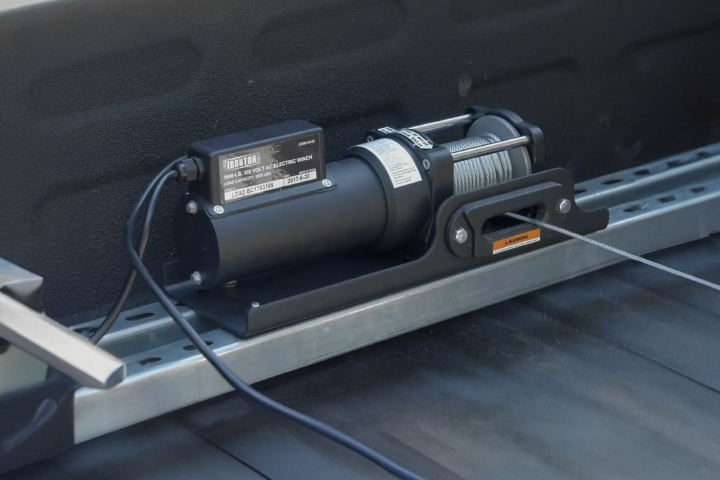

COMPACT DESIGN
Its COMPACT FRAME and POWERFUL CAPABILITIES make it an excellent choice for space-constrained environments

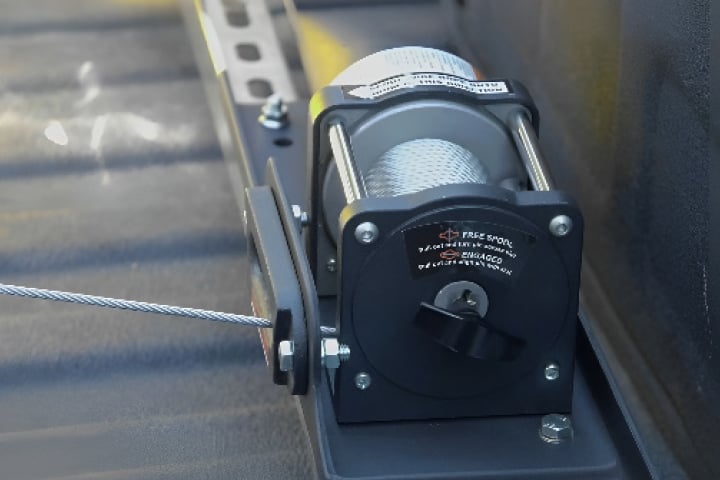

RELIABLE PERFORMANCE
The WINCH’S MOTOR and gearing are optimized for QUIET and DEPENDABLE OPERATION, even under heavy load conditions
Features + Benefits
- 120 Volt, 1.5 HP motor delivers 1,500-lb. rated line pull
- Strong 5/32in. dia. x 35ft.L aircraft-grade galvanized steel wire winch rope with hook
- Planetary gears with 153:1 gear ratio and 10 ft./min. line speed
- Automatic braking system with automatic load holding plus freespooling capabilities
- IP55 waterproof rated for all-weather performance
- 9.6ft. corded switch for remote operation
- Includes hawse fairlead and mounting hardware
Key Specs
| Attribute | Specification |
|---|---|
item# | 4995893 |
Brand | Ironton |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 27.0 LB |
Horsepower | 1.5 HP |
Capacity (Line Pull) | 1,500 lb |
Volts | 120 |
Max. Amps | 10 |
Application | Multiple |
Gear Type | Planetary |
Line Speed | 10 ft./min. |
Gear Ratio | 153:1 |
Rope Length | 35 ft |
| Attribute | Specification |
|---|---|
Rope Diameter | 5/32 in |
Rope Material | Galvanized Steel |
Brake Type | Motor |
Remote | Yes |
Remote Cord Length | 9.6 ft |
Automatic Load Holding | Yes |
Freespooling | Yes |
Fairlead Type | Hawse |
Underwater Use | No |
Mounting Hardware Included | Yes |
Dimensions L x W x H (in.) | 15.0 x 5.0 x 6.0 in |
Product Weight | 25.0000 lb |
Reviews
Questions & Answers
Questions
-
· 8 months ago
Is the speed of 10 ft/min at full load or with no load on the motor?
1 answer-
IrontonExpert12· 8 months ago
Helpful?
-
-
· a year ago
who makes ironton winches? I need parts
1 answer-
IrontonExpert12· a year ago
This Ironton winch is manufactured to our specifications for us by Ningbo Lianda Winch Co Ltd. Currently, there are no parts available.
Helpful?
-
-
· 2 years ago
Will this winch pull a car horizontally inside a garage?
1 answer-
IrontonExpert12· a year ago
This winch is only designed to pull horizontally. It has a 1,500 lb. capacity.
Helpful?
-
-
· 2 years ago
Is there a wireless remote that will work with this model?
1 answer-
IrontonExpert11· 2 years ago
A wireless remote is not available for this electric winch.
Helpful?
-
-
· 2 years ago
What is the rated duty cycle for this AC-powered winch?
1 answer-
IrontonExpert11· 2 years ago
The duty cycle on the winch will be 1:5. This means that the winch can be used for one minute and cooled down 5 minutes at full load.
Helpful?
-
-
· 2 years ago
can this be mounted to a wall?
1 answer-
IrontonExpert12· 2 years ago
This winch could be secured to a wall for pulling applications as long as it is not mounted overhead or used for lifting.
Helpful?
-
-
· 2 years ago
What is the total spool capacity of wire rope? I know it depends on the size, but let's say 5/32 like it comes with, or 3/16 would be better. I know it's provided with 35ft but that does not necessarily equate to the full spool capacity. Thanks.
1 answer-
IrontonExpert12· 2 years ago
It is not recommended to use a different cable size with this winch or to extend the length of the included cable. Due to liability reasons and usability reasons, we can only recommend that the winch is used with the included 35' cable as designed.
Helpful?
-
-
· 2 years ago
The tension plate (Part #15 on diagram) that keeps the wire rope in place needs replacement. It is not under warranty. Can I order a new tension plate?
1 answer-
IrontonExpert12· 2 years ago
Currently, we do not have parts available separately.
Helpful?
-
-
· 2 years ago
How many WATTS of power needed ? Very important question to know ‼️‼️
1 answer-
IrontonExpert12· 2 years ago
This winch would consume up to 1,200 watts at the maximum amperage.
Helpful?
-
-
· 3 years ago
Is the unit capable of using the 120 volt ac plug power from late model pickups built in by manufacturer///,,,
1 answer-
IrontonExpert12· 2 years ago
This winch does includes an 8.2' long power cord with a 3-prong plug for 120V.
Helpful?
-
