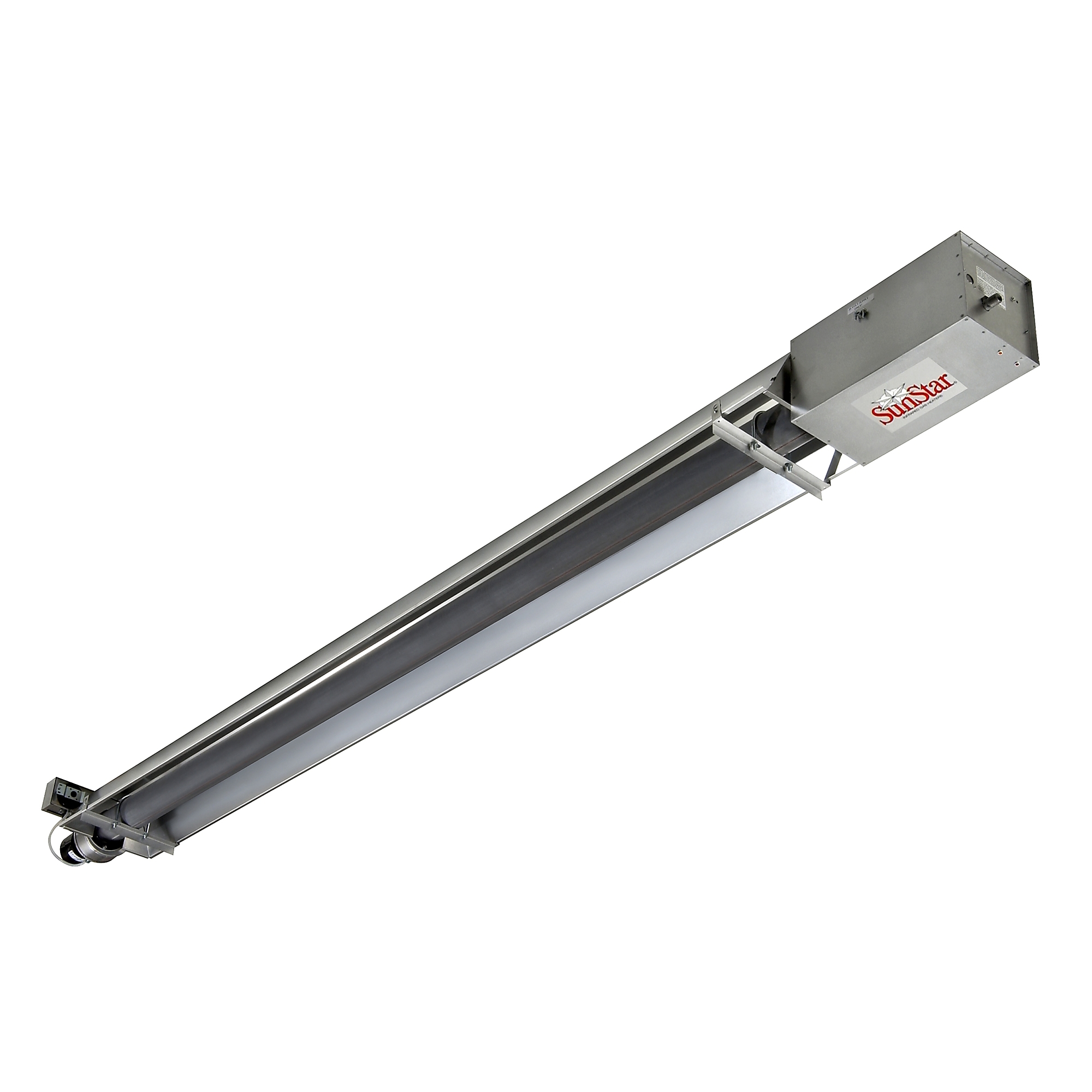

SunStar, Straight Vacuum Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SIS75-20-N5

Item# 4745085
SunStar, Straight Vacuum Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SIS75-20-N5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar, Straight Vacuum Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SIS75-20-N5

Click or Tap image to Zoom

$1176.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 20 Foot Emitter Tube Length. Pull Through System-Vacuum system utilizing a draft inducer that pulls the products of combustion through combustion chamber for increased radiant efficiency and greater safety.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube for more uniform energy distribution.
  • Standard Constuction hot rolled emitter tubes. Standard 4" flue and 4" outside combustion air supply to the control box in contaminated environments.
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 60in. below and 24in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar, Straight Vacuum Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SIS75-20-N5
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
  • SunStar Heating Products Exhaust Hood for SIR Series Heaters, Model# 42924000
  • SunStar Heating Products Combustion Air Cap, 4in., Model# 41000020
Price for all four:

$1310.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar's Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that's right for you, view the Heat Loss Estimating Chart for proper model and heater selection.

What's Included

    (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors

Features + Benefits

  • 20 Foot Emitter Tube Length. Pull Through System-Vacuum system utilizing a draft inducer that pulls the products of combustion through combustion chamber for increased radiant efficiency and greater safety.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube for more uniform energy distribution.
  • Standard Constuction hot rolled emitter tubes. Standard 4" flue and 4" outside combustion air supply to the control box in contaminated environments.
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 60in. below and 24in. from the sides of the heater

Key Specs

AttributeSpecification

item#

4745085

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

126.0 LB

Heat Output

75,000 Btu/hour

Heat Type

Infrared

Heating Capability

1,000 ft²
AttributeSpecification

Blower Included

Yes

Amps

3

Thermostat Included

No

Volts

120

Product Weight

100.8000 lb

Dimensions L x W x H (in.)

240.0 x 13.0 x 8.0 in

Reviews

Questions & Answers

Questions

  1. can i add on to the length of the tube heater

    1 answer

    1. You can add to the length of the tube heater. It allows for lengths up to 50 feet by adding extension sections.
