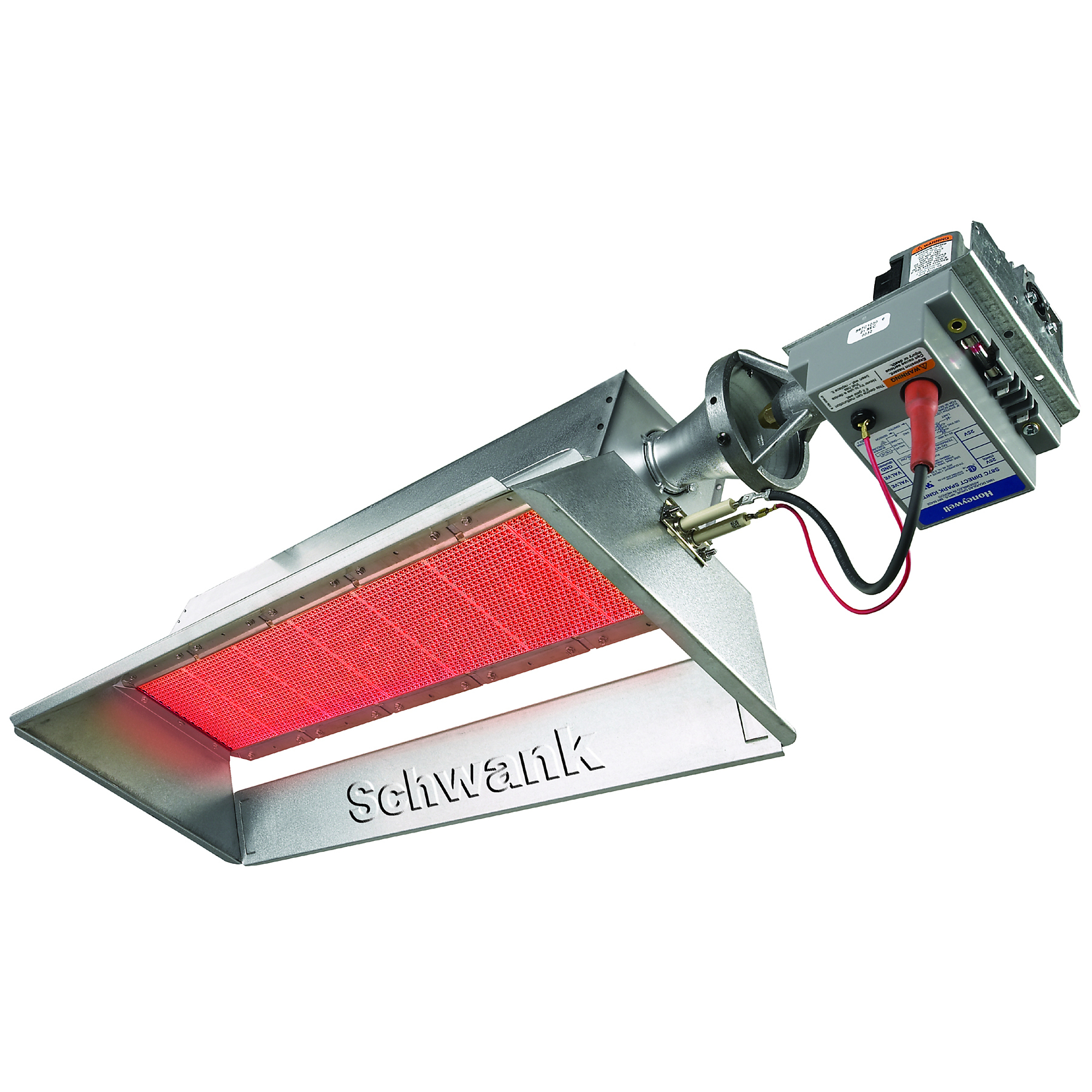

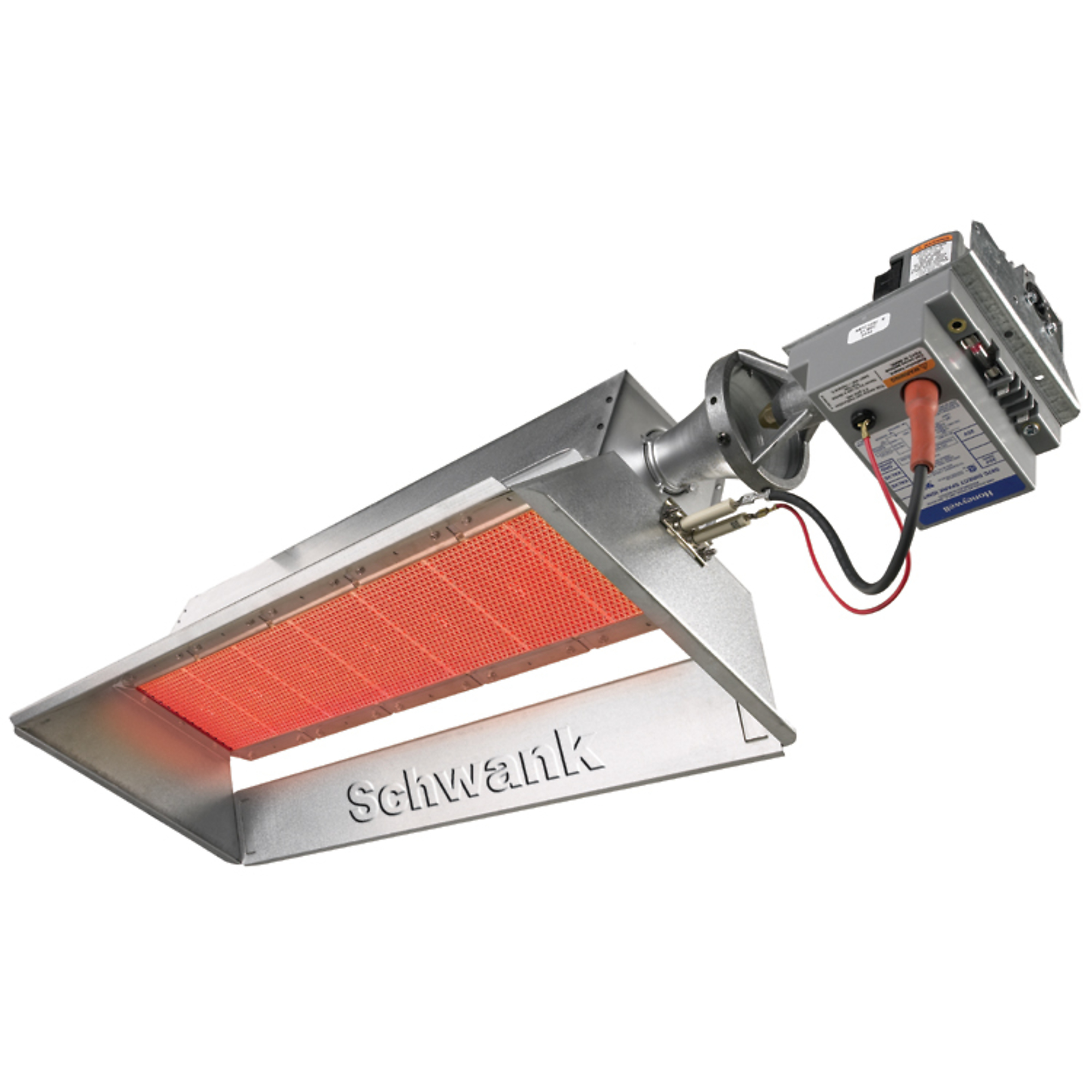

Schwank High Intensity Infrared Heater - 100,000 BTU, Natural Gas, Infrared Heat, 24V Ignition, Model# EC-00100-NG

Item# 6214894
Schwank High Intensity Infrared Heater - 100,000 BTU, Natural Gas, Infrared Heat, 24V Ignition, Model# EC-00100-NG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Schwank High Intensity Infrared Heater - 100,000 BTU, Natural Gas, Infrared Heat, 24V Ignition, Model# EC-00100-NG

Click or Tap image to Zoom

$942.14

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Mounting Height of 12' to 70'
  • Length 72"
  • BTU/h: 100000
  • Fuel: NG
  • Voltage: 24V

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Schwank High Intensity IR Heater: 50000 Btuh Input; NG; 24Vac Ignition and Gas Control

What's Included

    (1) High Intensity Ceramic Infrared Heater

Downloads

Product Manual Product Manual2

Features + Benefits

  • Mounting Height of 12' to 70'
  • Length 72"
  • BTU/h: 100000
  • Fuel: NG
  • Voltage: 24V
  • Burner: Single
  • Reflector: Double-wall to raise efficiency and allows smaller clearances
  • Material: Aluminum cold-bonded clad steel burner housing
  • Patented Infrared Ceramic Tile
  • Quick ramp up in 2 minutes

Key Specs

AttributeSpecification

item#

6214894

Brand

Schwank

Manufacturer's Warranty

2 year limited warranty

Ship Weight

42.0 LB

Heat Output

100,000 Btu/hour

Heat Type

Infrared

Needs Direct Venting

Yes

Blower Included

No
AttributeSpecification

Thermostat Included

No

Remote Included

No

Volts

24

Oxygen Depletion Sensor

No

Hardwired

No

Product Weight

37.0000 lb

Dimensions L x W x H (in.)

72.0 x 15.0 x 13.0 in
