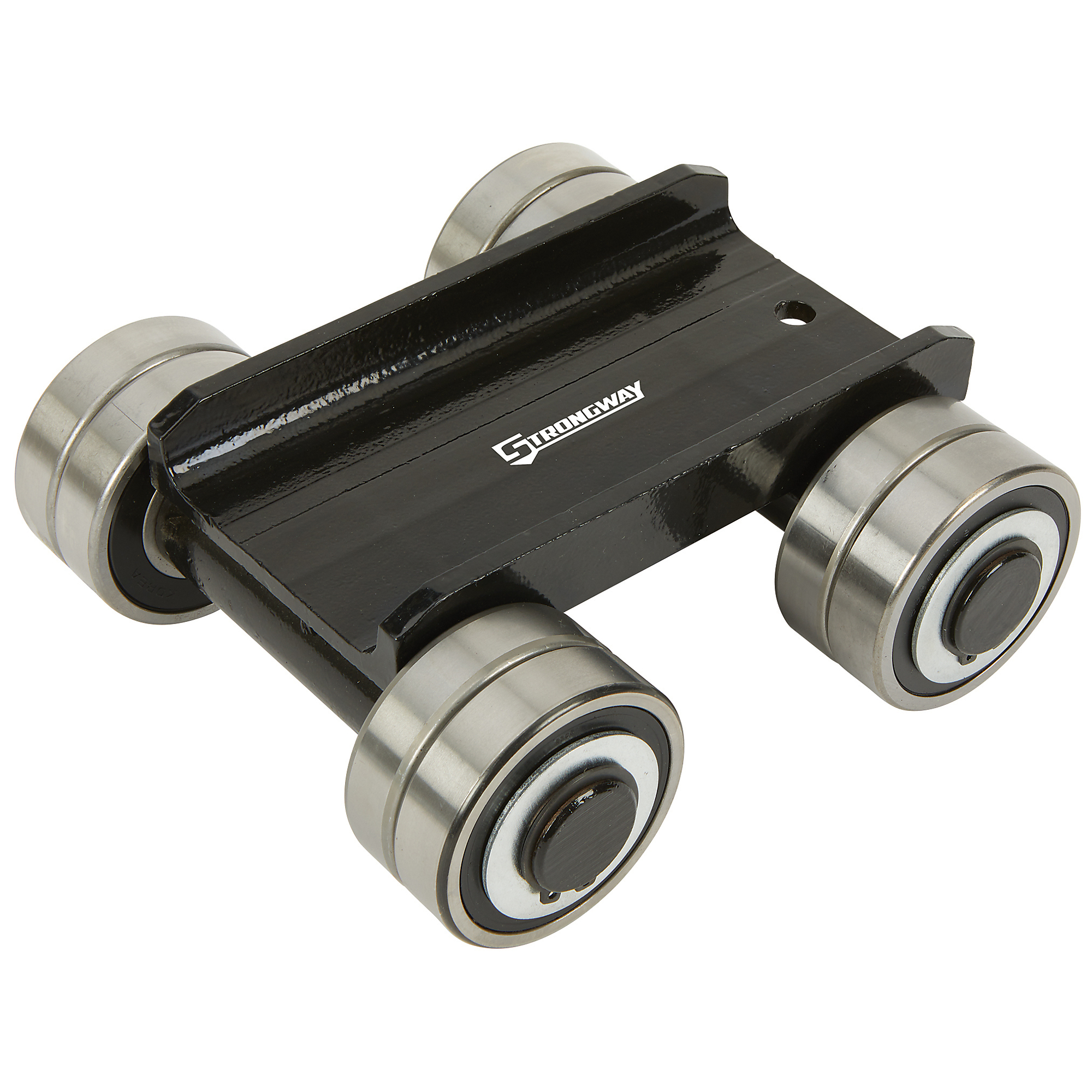

Strongway Machinery Skate, 3300-Lb. Capacity, 8 Steel Wheels

Item# 5000042
Strongway Machinery Skate, 3300-Lb. Capacity, 8 Steel Wheels

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Machinery Skate, 3300-Lb. Capacity, 8 Steel Wheels

Click or Tap image to Zoom

$69.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 08/28/26

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Thickened steel plate construction with heavy bearing capacity
  • Refined steel wheels for wear resistance
  • Small and portable
  • Wheels set up to move in straight lines
  • Great for moving heavy equipment and machinery

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Strongway Machinery Skate, 3300-Lb. Capacity, 8 Steel Wheels
  • Ironton Nonwoven Moving Blanket, 80in.L x 72in.W, Blue
  • Ironton Work Gloves with Split Cowhide Palm, 12 Pairs, Gray, One Size
Price for all three:

$108.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Strongway Machinery Skate offers stable and efficient movement for smaller industrial machines and components. Designed with heavy-gauge steel and 8 precision steel wheels, it provides even weight distribution up to 3,300 lbs. and consistent rolling on concrete or epoxy floors. Its compact, low-profile design fits easily under equipment with minimal clearance. Built for durability and balance, the Strongway Machinery Skate is ideal for assembly lines, machine shops and repair facilities.

What's Included

    (1) Strongway 3,300-Lb. Machinery Skate

Downloads

Product Manual

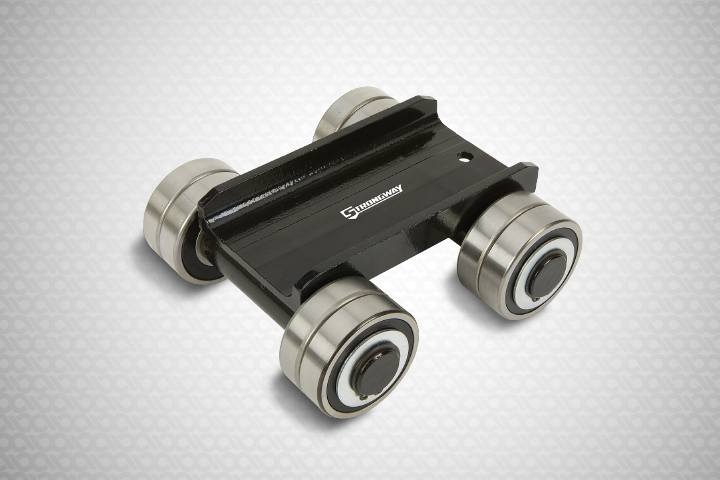

HEAVY-DUTY SUPPORT

The strongway machinery skate is engineered to facilitate the safe and efficient movement of up to 3,300 LBS. Its ROBUST STEEL PLATE construction ensures that even the heaviest loads can be handled with ease

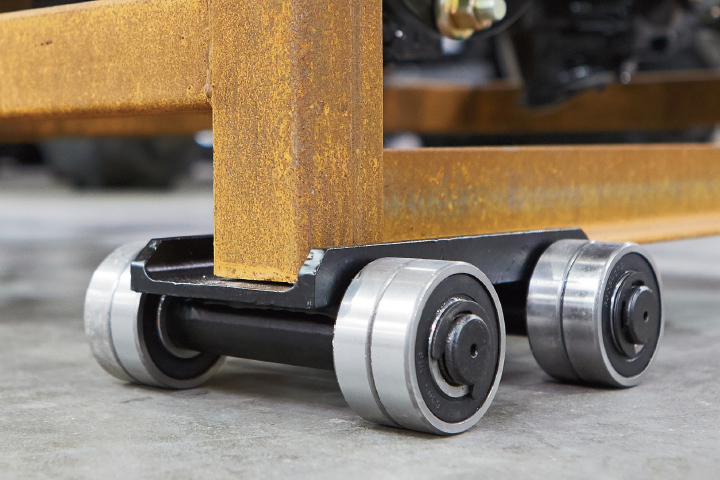

STREAMLINED TRANSPORTATION

Designed to travel in straight lines, the SKATE’S WHEEL CONFIGURATION eliminates complications in navigation, making it easier to control and MANEUVER HEAVY EQUIPMENT through tight spaces

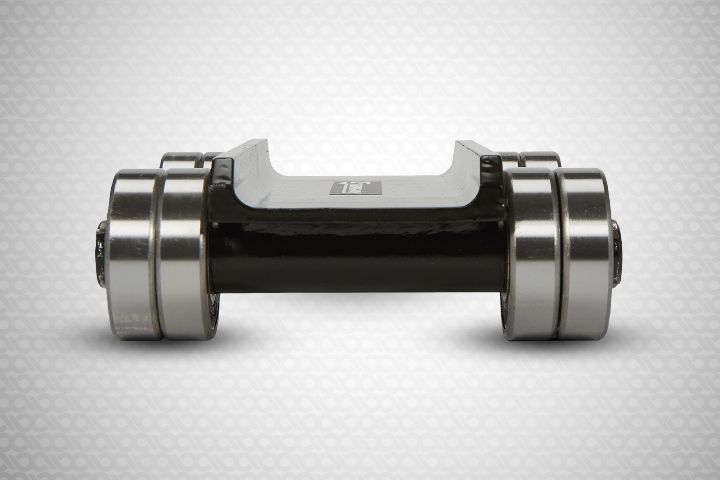

LONG-LASTING WHEEL DESIGN

DOUBLE REFINED STEEL WHEELS offer EXCEPTIONAL RESISTANCE TO WEAR and ABRASION, ensuring that the skate can withstand repeated use over time without degradation

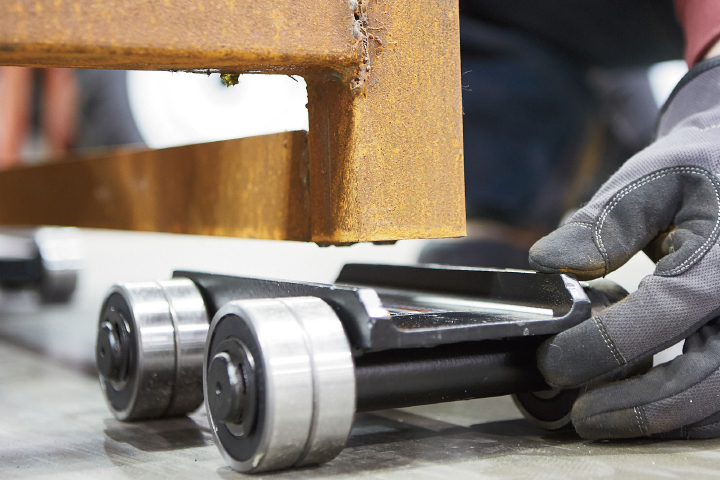

PORTABLE EFFICIENCY

Despite its HEAVY-DUTY CAPABILITIES, this machinery skate’s compact size enhances its portability, allowing operators to easily transport it to and from jobsites without requiring SIGNIFICANT STORAGE SPACE

Features + Benefits

  • Thickened steel plate construction with heavy bearing capacity
  • Refined steel wheels for wear resistance
  • Small and portable
  • Wheels set up to move in straight lines
  • Great for moving heavy equipment and machinery

Key Specs

AttributeSpecification

item#

5000042

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.76 LB

Load Capacity

3,300 lb

Wheels (qty.)

8

Wheel Material

Steel

360 Degree Rotation

No

Single, Pair, or Set

Single

Wheel Diameter

2.83 in
AttributeSpecification

Wheel Width

0.75 in

Base Length

8 in

Base Width

7.4 in

Base Height

3.1 in

Length

8.07 in

Material

Steel

Compatible With Item Number(s)

52417

Product Weight

14.6600 lb

Dimensions L x W x H (in.)

8.07 x 7.48 x 3.15 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. 4 skates or 1 skate

    It looks as though if you wanted to move a machine without the worry of it tipping over you might want to use 4 machinery skates...NO/Yes ???

    1. I know this is years old, but I wanted to answer this question.

      No, you typically want to use (3) skates and not (4).  It is called a triangle of stability and machinery movers rely on (3) skates to make sure weight is always on the skates.  It you use (4), you need to tie/attached all skates to the machine so when a corner get light, the skate stays under the machine.  No floor/surface is perfectly flat.  With (4) skates the machine will literally leave a skate behind at some point during the move then regain weight on that corner and drop to the ground. This is much less likely to happen with (3) skates, but you still need to watch. (2) skate wide, typically on the heavy side & (1) skate centered on the lighter side

      Cut pieces of plywood narrow enough to fit into the “tray” the plywood needs to be a little bit thicker than the height of the sides on these skates.

      Helpful?

    2. yes , one on each corner is best

      Helpful?

    3. I would recommend 4 skates or more depending on size and weight for stability.

      Helpful?

    4. Yes you are correct if you are concerned. I am using them for moving long heavy pieces of material. So I have two and it's great for that

      Helpful?

    5. Depending on the size and weight of the machinery you're moving, you may need to use more than one skate (one placed under each corner of the machine being moved is the most common choice).

      Helpful?

    6. The number of skates to use on any specific machine would be assessed on the spot. There are many variables to take into account, weight, length, width and suitable locations for a skate to be placed underneath without damaging the machinery. It is completely probable that even more than 4 skates would be recommended to move large machinery. Consult your on sight supervision if in doubt.

      Helpful?

  2. If I have four of these under a heavy piece of equipment, HOW do I turn this equipment since all wheels want to go strainght??

    1. I used low profile toe jacks to raise equipment and adjust skate as needed. Still less expense than most steering stakes and you have the jack for other options

      Helpful?

    2. When using this sort of Skate maneuvering machinery into position can require readjustment of the position of the skates as needed. This might seem like hassle but it is a far better deal than not completing the job.

      Helpful?

    3. These machinery skates are designed only to go in a straight line.

      Helpful?

  3. Are these skates sold individually?

    1. yes

      Helpful?

    2. This machinery skate is sold individually.

      Helpful?

  4. st # 52417 is width of 7" include the wheels or craddle width?

    if total width is 7" what is cradle width?

    1. outside of flanges is 3-15/16" and inside of flanges is 3-1/4". There is a radius at the bottom of the flanges, so the flat area is more like 2-3/4" or so. Looks like they started with a structural steel C-channel and cut it down, if that helps. We sometimes add a piece of 2x4 that we ripped to width as a spacer. You can also use scrap steel blocks, etc.

      Helpful?

    2. The cradle width is 3 7/8".

      Helpful?

  5. Do the wheels have ball bearings

    1 answer

    1. The wheels of this machinery skate do have ball bearings.

      Helpful?

  6. Do you have dimensions for this skate! Ie wheel diameter height off floor etc

    1 answer

    1. This machinery skate is 8.07in. long, 7.48in. wide and 3.15in. high overall. The wheel diameter is 2.83in.

      Helpful?

  7. What is the axle diameter and length?

    1 answer

    1. The inner portion of the axle measures 4.1" (104mm) with a 1.4" (35mm) diameter. The two outer portions of the axle measure 1.8" (45mm) long each with a 1.2" (30mm) diameter. The overall length of the axle is 7.7" (194mm).

      Helpful?

  8. Craddle with question, again.

    I know cradle width has been asked previously, but its still not clear what the width is of the flat area, i.e. not including inside radius at the bottom corners. Will a 3" x 3" OD structural steel square tube fit flat on the cradle or will it hit the radius corners before bottoming out?

    1 answer

    1. The internal channel has an overall width of 3.28". The flat, bottom section of the channel, before it starts to curve on the side, measures 2.71". A 3" x 3" OD structural tube would not fit on the flat, bottom section.

      Helpful?
