Strongway 8-Ton Long Ram Hydraulic Jack, Single Piston, Flat Base

Item# 46267
"Strongway 8-Ton Long Ram Hydraulic Jack, Single Piston, Flat Base"
Strongway 8-Ton Long Ram Hydraulic Jack, Single Piston, Flat Base

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway 8-Ton Long Ram Hydraulic Jack, Single Piston, Flat Base

Click or Tap image to Zoom

$99.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 06/29/26

  • Store Pickup:

    Not available - online only
  • Constructed of high-grade polished steel and built to exacting standards for quality and durability
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt resistant for easy cleanup
  • Rugged 4-15/16in. x 4-17/32in. flat base provides strength and stability
  • High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life

See full description

Complete Your Solution

  • Strongway 8-Ton Long Ram Hydraulic Jack, Single Piston, Flat Base
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$101.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

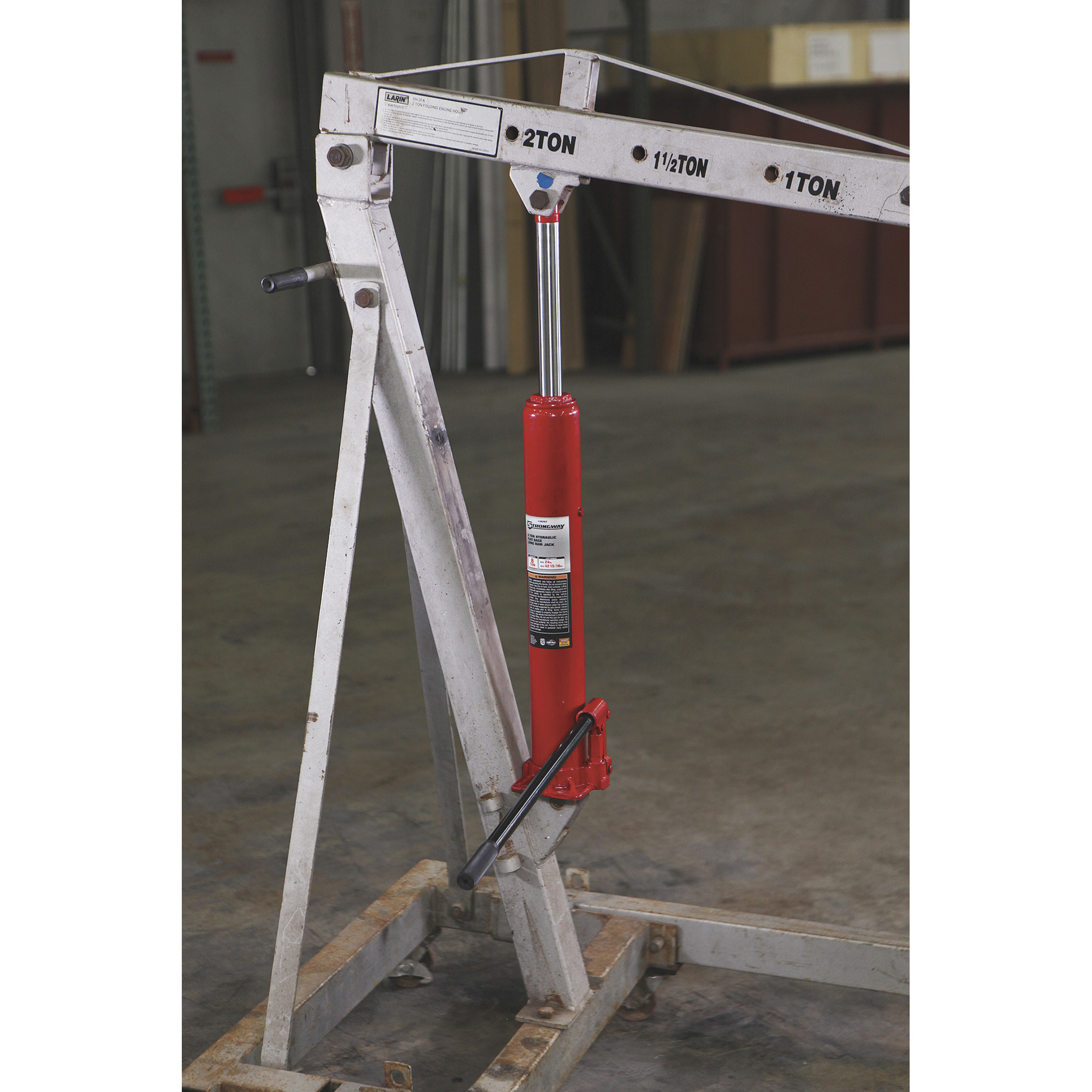

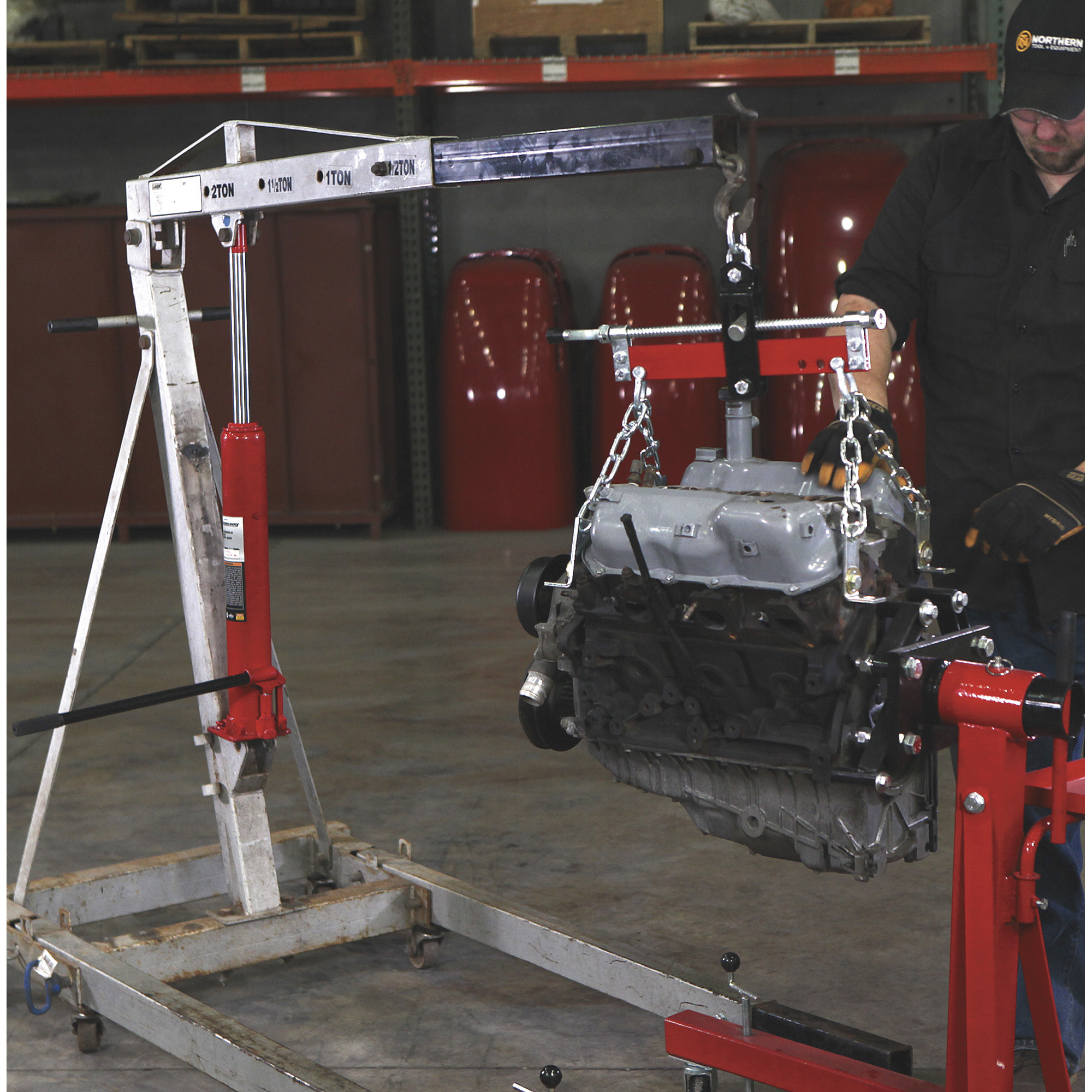

This single-piston Strongway 8-Ton Long Ram Hydraulic Jack is the ideal replacement jack for use on hydraulic cranes, engine hoists and a wide variety of applications. Mounts directly onto shop cranes and features a slow release function while providing a long 24in.–42-15/16in. lift range. 100% factory vertical load tested for reliability and safety. The Strongway 8-Ton Long Ram Hydraulic Jack is for vertical use only. Meets ASME PALD 2009 standard.

What's Included

    (1) Strongway 8-Ton Long Ram Hydraulic Jack (1) Handle

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Constructed of high-grade polished steel and built to exacting standards for quality and durability
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt resistant for easy cleanup
  • Rugged 4-15/16in. x 4-17/32in. flat base provides strength and stability
  • High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
  • Piston ram is treated and polished to resist skiving
  • Piston ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
  • Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
  • Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°–105°F
  • Includes lift handle for easy operation
  • Built in ISO-certified facilities and engineered using the same systems as aerospace technologies and the automotive OEM sector
  • Meets ASME PALD 2009 standard

Key Specs

AttributeSpecification

item#

46267

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

24.0 LB

Lift Capacity

8 Tons
AttributeSpecification

Max. Lift Height

42.937 in

Min. Lift Height

24 in

Base Dimensions

4.9 in

Pistons (qty.)

1

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Are there bolt holes in the bottom for mounting?

    1. No

      Helpful?

    2. No, we drilled our own. It is a soft cast on the bottom. Drilling was quick and easy.

      Helpful?

    3. This long ram jack does not have bolt holes on the bottom for mounting.

      Helpful?

  2. Can I use this jack to jack up a farm tractor(6800-8500lbs)? Is there a cradle attachment for the top of the cylinder? Thanks!

    1 answer

    1. This jack is intended to be used as a replacement for cranes, hoists and other similar applications. It does have the capacity to support 6800-8500 lbs.; however, there is no cradle attachment for the top of this cylinder to provide a safe platform for this application.

      Helpful?

  3. what is the diameter of the piston

    1 answer

    1. The piston ram is 1.2" in diameter.

      Helpful?

  4. what is the lift in inches per stroke

    1 answer

    1. The lift will be 0.113 inches per stroke.

      Helpful?

  5. What is the diameter of the hole in the end of the ram (upper attach point)?

    1 answer

    1. The hole in the top of the ram is 0.65" in diameter.

      Helpful?

  6. Can the ram on this jack be drilled, so a pin or bolt can be installed to prevent ram from collapsing completely if pressure is lost?

    1 answer

    1. The ram on this jack cannot be drilled. Doing so could weaken the structural integrity of the ram and be a safety hazard. It would also void the warranty.

      Helpful?

  7. Where is the serial number located on the #46267 model of the 8-ton long ram jack?

    1 answer

    1. The serial number is printed on the label sticker.

      Helpful?

  8. What is the diameter of the shaft/contact point?

    Due to surface irregularities in the item we are intending to lift, we would like to fabricate a custom lifting cradle to slip on the end on the piston shaft.

    1 answer

    1. The jack features a ram diameter of 1.2".

      Helpful?

  9. what is the overall dimension of the cylinder housing

    1 answer

    1. The dimensions of this cylinder are 4.92" L x 4.92" W x 24" H.

      Helpful?
