Strongway 8-Ton Long Ram Hydraulic Jack, Double Piston, Clevis Base, 24-3/4in.–44-1/16in. Lift Range

Item# 46217
"Strongway 8-Ton Long Ram Hydraulic Jack, Double Piston, Clevis Base"
Top Seller
Strongway 8-Ton Long Ram Hydraulic Jack, Double Piston, Clevis Base, 24-3/4in.–44-1/16in. Lift Range

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway 8-Ton Long Ram Hydraulic Jack, Double Piston, Clevis Base, 24-3/4in.–44-1/16in. Lift Range

Click or Tap image to Zoom

$99.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 8-Ton Capacity: Designed for lifting on shop cranes and engine hoists
  • 24-3/4in.–44-1/16in. Lift Range: Provides extended reach across lifting tasks
  • Clevis-Style Base: 4-11/64in. x 5in. base mounts to compatible equipment; 17mm dia. top and bottom clevis holes
  • Double-Piston Design: Supports faster extension for quick positioning without load
  • Hydraulic System Performance: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

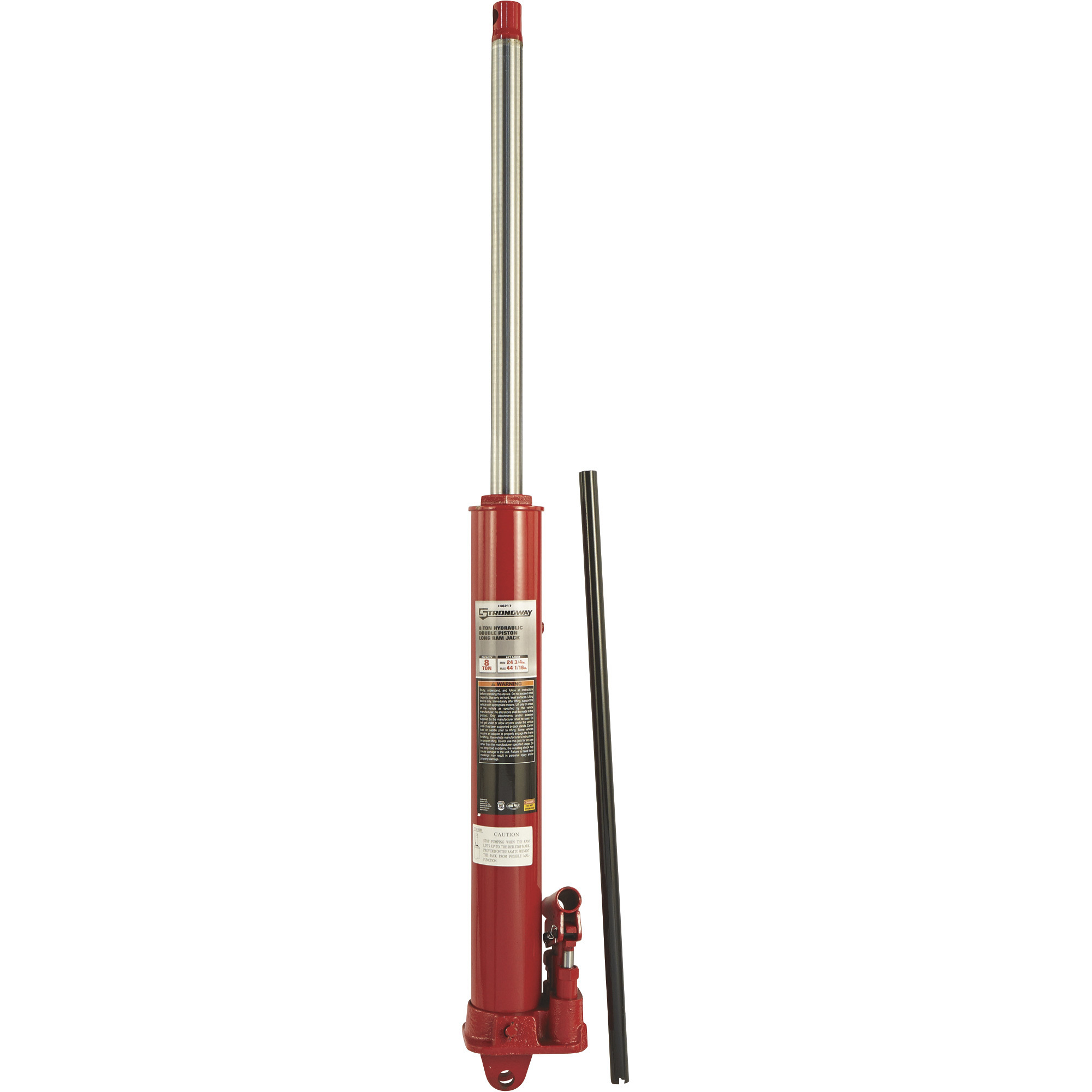

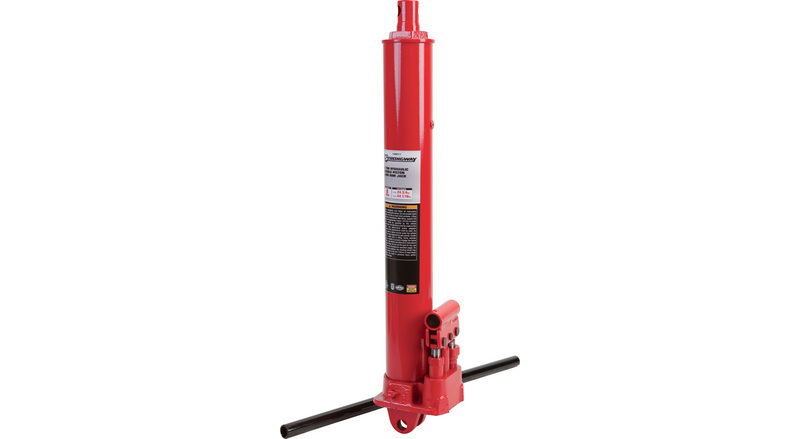

The Strongway 8-Ton Long Ram Hydraulic Jack is a double-piston replacement jack designed for hydraulic cranes, engine hoists and shop lifting applications with a 24-3/4in.–44-1/16in. lift range for extended reach. The clevis-style base mounts directly to compatible equipment for secure installation, while the slow-release function supports controlled lowering. Double-piston construction allows quick positioning without load to improve setup efficiency. Constructed of high-grade polished steel with a lead-free, oil-, grease- and dirt-resistant finish, this jack is built for durability and long-term use. The hydraulic system features a large-diameter steel cylinder to reduce operating pressure and wear, along with a polished piston ram and polyurethane sealing system to maintain load control and prevent drift. Designed for vertical use only, the Strongway 8-Ton Long Ram Hydraulic Jack meets ASME PALD 2009 standards for reliable lifting performance.

What's Included

    (1) Strongway 8-Ton Long Ram Hydraulic Jack (1) Handle

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 8-Ton Capacity: Designed for lifting on shop cranes and engine hoists
  • 24-3/4in.–44-1/16in. Lift Range: Provides extended reach across lifting tasks
  • Clevis-Style Base: 4-11/64in. x 5in. base mounts to compatible equipment; 17mm dia. top and bottom clevis holes
  • Double-Piston Design: Supports faster extension for quick positioning without load
  • Hydraulic System Performance: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
  • Controlled Release + Lift Handle: Smooth lowering with handle for controlled lifting and positioning
  • Wide Operating Range: Hydraulic oil supports operation from 40°F to 105°F with corrosion resistance
  • High-Grade Steel + Coated Finish: Polished steel with lead-free coating resists oil, grease, dirt and corrosion
  • Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PALD 2009 requirements

Key Specs

AttributeSpecification

item#

46217

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

34.4 LB

Lift Capacity

8 Tons
AttributeSpecification

Max. Lift Height

44.88 in

Min. Lift Height

25.98 in

Base Dimensions

4.17 in

Pistons (qty.)

2

Reviews

Questions & Answers

60 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Is an extra seal kit available?

    I would like to purchase this RAM but only if a replacement seal kit is available. Is it? What is the part number and cost?

    Also, I notice in the video that the pump only goes up when the handle is pushed down but it has a twin pump. Usually with twin pumps it will raise in both up and down active with the handle. Is the video correct and if so, why is their a double pump? Thanks.

    1. Replacement parts for this long ram hydraulic jack would be available directly through the manufacturer, Torin Inc. On a double acting piston when you pull the handle up and push it down, the piston will go up on both strokes. When it reaches a load of 440 pounds then it will only go up on a handle down stroke.

      Helpful?

    2. The parts would be available through our Customer Service department at 1-800-657-0516. You may contact them for part number, price and availability. On a Double acting piston when you pull the handle up and push it down the piston will go up on both strokes When the reaches a load of 440 pounds then it will only go up on a handle down stroke.

      Helpful?

  2. I wanted to know the specifications of the ram shaft (wall thickness mostly, seems the diameter is 1-1/4")

    1 answer

    1. The piston ram is solid and has a 1.38" diameter.

      Helpful?

  3. Is this double stroke (pumps up and down with each stroke)?

    1 answer

    1. This is a double acting piston. When you pull the handle up and push it down, the piston will go up on both strokes until it hits your load. Then it will only go up on a handle down stroke.

      Helpful?

  4. Does this unit Work sideways?

    1 answer

    1. This jack can be used vertically or angled to 3 degrees from the vertical position. It should not be laid all the way down.

      Helpful?

  5. What is the overall length when fully retracted and what is the eye to eye measurement when fully retracted? Thanks

    1 answer

    1. When fully retracted, the hole to hole length is 25", and the item length is 26.18". When fully extended, the hole to hole length is 44.09", and the item length is 45.28".

      Helpful?

  6. What is clevis pin hole Dia? Dia of ram shaft ?

    1 answer

    1. The clevis pin hole diameter is 11/16". The diameter of the ram is 1-1/4".

      Helpful?

  7. I can't find dimensions for this jack, even in the user manual. I'd like to know the overall length of the jack compressed and the diameter of holes top/bottom for mounting.

    1 answer

    1. The length of the jack when compressed is 24-3/4". The clevis hole diameter is 11/16".

      Helpful?

  8. What size are the eyelets for the clevis pins

    1 answer

    1. The clevis pin size is 11/16" (17mm) diameter.

      Helpful?

  9. Where is this product made?

    1 answer

    1. This item is manufactured in China.

      Helpful?
