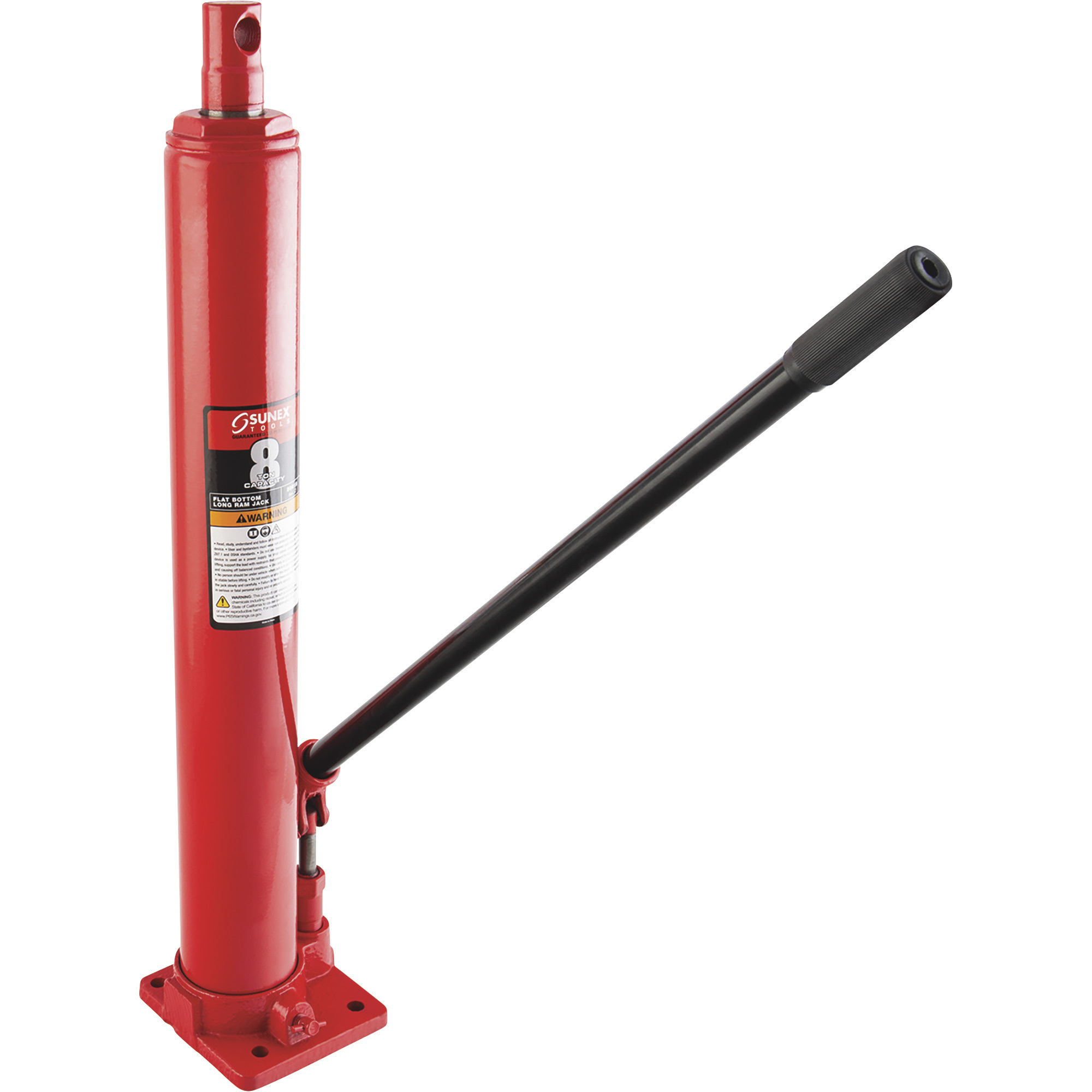

Sunex Tools Heavy-Duty Long Ram Jack — 8-Ton Capacity, RapidRise Hydraulic System, Model# 5081B

Item# 109181
"Sunex Tools Heavy-Duty Long Ram Jack — 8-Ton Capacity, RapidRise Hydraulic System, Model# 5081B"
Sunex Tools Heavy-Duty Long Ram Jack — 8-Ton Capacity, RapidRise Hydraulic System, Model# 5081B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sunex Tools Heavy-Duty Long Ram Jack — 8-Ton Capacity, RapidRise Hydraulic System, Model# 5081B

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • RapidRise hydraulic system and pivoting base raises the ram twice as fast as a standard jack
  • Ductile iron base for added strength
  • Electrostatic paint for rust prevention
  • Larger ram diameters to withstand side loads
  • Hydraulic bypass system prevents over extension of ram

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Sunex Heavy-Duty Long Ram Jack is great for farm and IEM applications in manufacturing or engine cranes and handling equipment requiring long hydraulic stroke. RapidRise hydraulic system and pivoting base raises the ram twice as fast as a standard jack.

What's Included

    (1) Heavy-duty long ram jack

Features + Benefits

  • RapidRise hydraulic system and pivoting base raises the ram twice as fast as a standard jack
  • Ductile iron base for added strength
  • Electrostatic paint for rust prevention
  • Larger ram diameters to withstand side loads
  • Hydraulic bypass system prevents over extension of ram
  • Can be converted to a pivot base by using the Model 5085 pivot base adaptor (sold separately)

Key Specs

AttributeSpecification

item#

109181

Brand

Sunex Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

31.0 LB

Lift Capacity

8 Tons

Max. Lift Height

43.9 in
AttributeSpecification

Min. Lift Height

25 in

Base Dimensions

7.13 in

Pistons (qty.)

1

Product Weight

31 lb

Dimensions L x W x H (in.)

23.75 x 5.63 x 7.13 in

Reviews

Questions & Answers

117 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

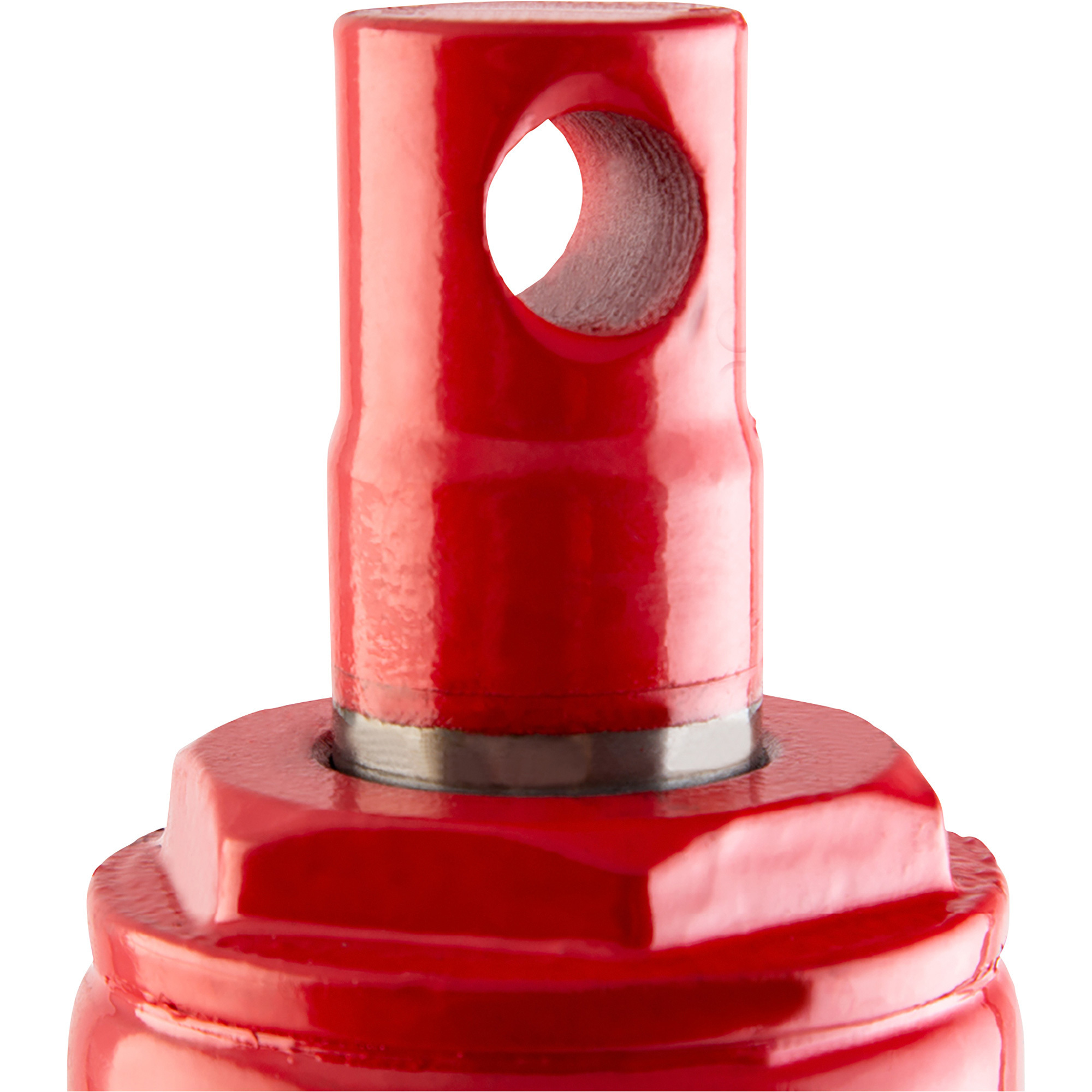

  1. what is the rod pin diameter for sunex 5081B

    1 answer

    1. Diameter of the Tip of the Ram: 32mm

      Diameter of the Ram: 33.88mm

      Diameter of Pin Hole: 17.10mm

      Helpful?

  2. Are rebuild kits available for this jack?

    1 answer

    1. Replacement parts would be available through the manufacturer.

      Helpful?

  3. What is the diameter of the piston in the Sunex 5081B long ram jack. Description just says it is larger than some... I am needing to replace an old jack with a 1 3/8" piston , and with a larger base such as the 5081B.

    1 answer

    1. The diameter of the shaft is 1 1/4". The base dimension is 16.9" x 16.9".

      Helpful?

  4. Can this jack work at 45 degrees or more? To lift the boom on a small crane. John

    1 answer

    1. The jack is designed to be used in an upright position only. It is not recommended that the item be used in a 45 degree angle or any another position.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
