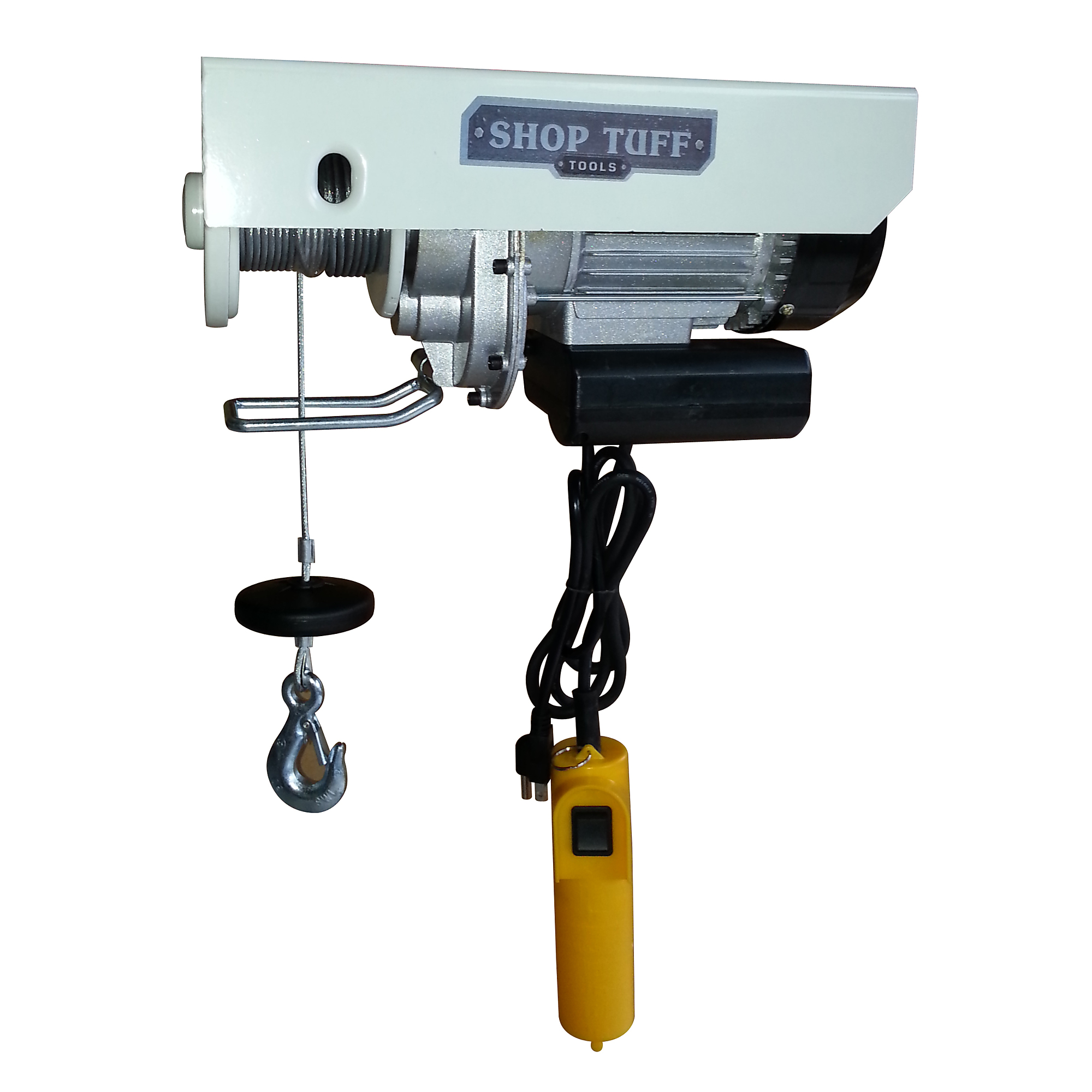

Shop Tuff Electric Cable Hoist - 550-Lb. Single Line, 1100-Lb. Double Line, 39ft. Anti-Twist Cable, 1 3/4 HP, Model# STF-5511EH

Item# 5116985
"Shop Tuff Electric Cable Hoist - 550-Lb. Single Line, 1100-Lb. Double Line, 39ft. Anti-Twist Cable, 1 3/4 HP, Model# STF-5511EH"
Shop Tuff Electric Cable Hoist - 550-Lb. Single Line, 1100-Lb. Double Line, 39ft. Anti-Twist Cable, 1 3/4 HP, Model# STF-5511EH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Tuff Electric Cable Hoist - 550-Lb. Single Line, 1100-Lb. Double Line, 39ft. Anti-Twist Cable, 1 3/4 HP, Model# STF-5511EH

Click or Tap image to Zoom

$248.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Easily and safely take care of all of your lifting needs with Shop Tuff’s Electric Hoist; powerfully takes care of all of your lifting needs with a 110 volt, 1 ¾ HP motor
  • The Hoist has a single-line capacity of 550 lbs and a double-line capacity of 1100 lbs; The 5/32 inch cable length is 39 ft, and the single line has a lift height of 36 ft, while the double line has a lift height of 18 ft
  • Has safety features such as the anti-twist cable, long cords, hand-held control, brake, height limit switch and the powerful, yet safe, motor; transports easily and weighs only 38 lbs
  • Durable, reliable, and smooth-working this hoist can handle all of your lifting projects; from engines, tables, and lawn mowers to deer, theater props, and small boats, this hoist handles it all
  • Includes the hand-held control with its 5 ft cord as well as the mounting hardware for the universal mount and the snatch block for double line pull;

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Shop Tuff Electric Cable Hoist - 550-Lb. Single Line, 1100-Lb. Double Line, 39ft. Anti-Twist Cable, 1 3/4 HP, Model# STF-5511EH
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Strongway Manual Push Trolley, 1/2-Ton, 1100-Lb. Capacity, Adjustable Width, ANSI/ASME Certified
Price for all four:

$358.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Shop Tuff brings you another reliable product with the Shop Tuff Electric Cable Hoist. This Electric Hoist is the Tuff solution to lifting all of your heavy projects. From engines, tables, and lawn mowers to deer, theater props, and small boats, this Electric Hoist is perfect for any lifting job! Features such as the 5/32in., anti-twist cable, long cords, hand-held control, and powerful, yet safe, motor ensure the safety of operators and add convenience to your lifting experience. The powerful, 1 3/4 HP motor has a built-in thermal protection to prevent overheating, but also has a 10-minute duty cycle and its gears are constructed of 45-lb. steel for amazing strength that you can count on. In addition, the motor has a metal cover that protects the motor. This Electric Hoist has a compact design and weighs only 38 lbs so that you can take it to where the job is. The dual capacities make this hoist even more versatile as this hoist can be fitted with a double line to increase the weight capacity. With a single line the capacity of this unit is 550 lbs, but a double line gives this unit a greater capacity of 1100 lbs! The 39ft. cable, that lifts to 36ft. (single line) and 18ft. (double line), is long and durable enough to aid you with a wide variety of lifting tasks. The hand-held control even has a long cord of 5ft. long to ensure that the operator is a safe distance from the lifting process. While the hoist does require power to operate, it holds the load, wherever the load may be, without needing power, adding yet another safety feature to this Electric Hoist. Other safety features include the brake, to stop loads suddenly, and the height limit switch. The universal mount with the included brackets allows the user to easily mount this system in a variety of different places, so you can use it wherever the job is. This system is built to cover a wide range of lifting needs and will help you get the job done, easily and safely!

What's Included

    (1) Eletric Cable Hoist

Features + Benefits

  • Easily and safely take care of all of your lifting needs with Shop Tuff’s Electric Hoist; powerfully takes care of all of your lifting needs with a 110 volt, 1 ¾ HP motor
  • The Hoist has a single-line capacity of 550 lbs and a double-line capacity of 1100 lbs; The 5/32 inch cable length is 39 ft, and the single line has a lift height of 36 ft, while the double line has a lift height of 18 ft
  • Has safety features such as the anti-twist cable, long cords, hand-held control, brake, height limit switch and the powerful, yet safe, motor; transports easily and weighs only 38 lbs
  • Durable, reliable, and smooth-working this hoist can handle all of your lifting projects; from engines, tables, and lawn mowers to deer, theater props, and small boats, this hoist handles it all
  • Includes the hand-held control with its 5 ft cord as well as the mounting hardware for the universal mount and the snatch block for double line pull;
  • 1 year limited Manufacturer’s warranty

Key Specs

AttributeSpecification

item#

5116985

Brand

Shop Tuff

Manufacturer's Warranty

1 year limited warranty

Ship Weight

39.0 LB

Amps

10

Single Line Lift Capacity

550 lb

Double Line Lift Capacity

1,100 lb

Single Line Lift Height

36 ft

Double Line Lift Height

18 ft
AttributeSpecification

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

39 ft

Cable Diameter

0.156 in

Duty Cycle

10 min

Phase

Single-phase

Horsepower

1.75 HP

Product Weight

39.0000 lb

Dimensions L x W x H (in.)

16.25 x 10.0 x 6.5 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What type of mounting brackets come with it? Could it be mounted to a 6x6?

    1 answer

    1. The hoist will come with two U-brackets to mount it to a pole or beam. It would not mount to a 6 x 6 beam. You would need to make sure what you mount it to would be able to hold 4 times the weight capacity of the winch.

      Helpful?

  2. how would this unit mount to the ceiling and what would be needed for mounting

    1 answer

    1. The hoist would need to be mounted securely to a beam or steel pipe with the included mounting brackets.
