Bannon Compact Electric Cable Hoist, 1100-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase

Item# 54293
Top Seller
Bannon Compact Electric Cable Hoist, 1100-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bannon Compact Electric Cable Hoist, 1100-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase

Click or Tap image to Zoom

$1299.99

Buy 2 or more at $1195.99 ea.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Lightweight, compact design is easy to install
  • Can be operated on standard domestic power supply
  • 25% duty cycle for tough jobs without excess motor stress
  • Galvanized wire rope includes 360° saddle hook
  • Includes both an upper and a lower limit switch for safety

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Bannon Compact Electric Cable Hoist, 1100-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase
  • Strongway Quick Install Trolley with Lift Eye, 2200-Lb. Capacity, Fits Flange Width 2-15/16in.–5-1/8in.
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all four:

$1460.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Bannon Compact Electric Cable Hoist is lightweight, compact and easy to install. It can be operated on a standard domestic power supply. 25% duty cycle performs tough jobs without excess stress on the motor. Galvanized wire rope includes safety latch. This unit features both an upper and a lower limit switch for additional safety. When the rope touches the limit arm, pulling is automatically stopped. A sensing arm automatically stops the motor if rope is underwound. Brakes are dynamic and mechanically ratcheted. Double ratchet pawl design provides instant safe stopping. 360° saddle hook. 98ft. x 0.24in. rope. 3,306-lb. line pull. 26.2–39.3 FPM line speed. 22.9ft. power cord.

What's Included

    (1) Electric cable hoist

Downloads

Product Manual
Play Item Video

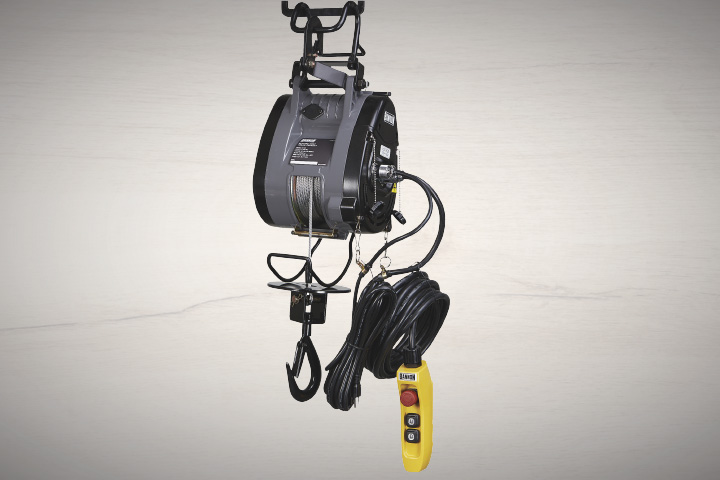

CONVENIENT AND USER-FRIENDLY

Its COMPACT DESIGN allows for straightforward installation, while operation through a standard domestic power outlet makes it highly accessible in diverse settings

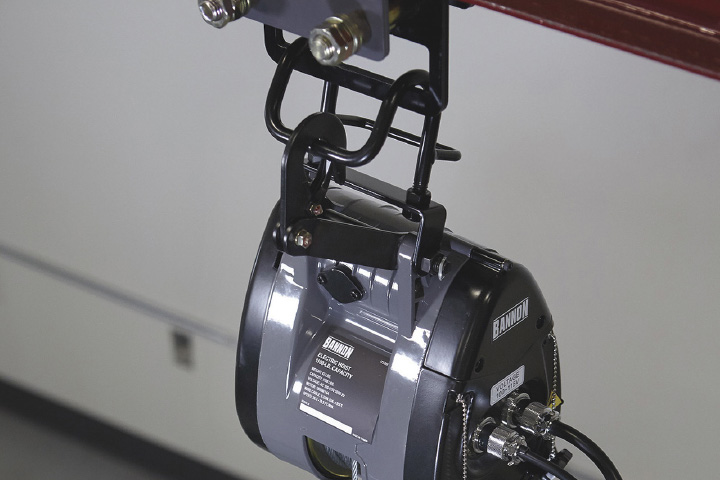

DURABLE CONSTRUCTION

Featuring a robust galvanized wire rope with a 360° SADDLE HOOK, this hoist is prepared to tackle heavy loads with RELIABILITY AND STABILITY

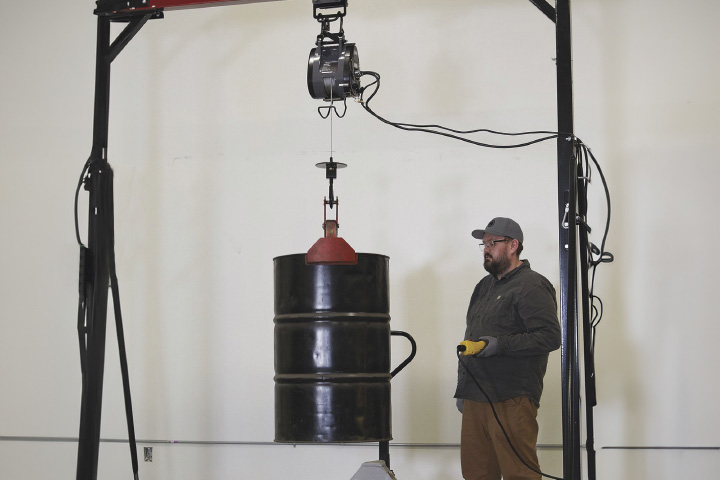

EFFICIENT LIFTING SOLUTION

The Bannon Compact ELECTRIC CABLE HOIST is designed to enhance operational efficiency with its HIGH-CAPACITY LIFTING CAPABILITY and fast line speeds, suitable for a wide range of applications from construction sites to warehouses

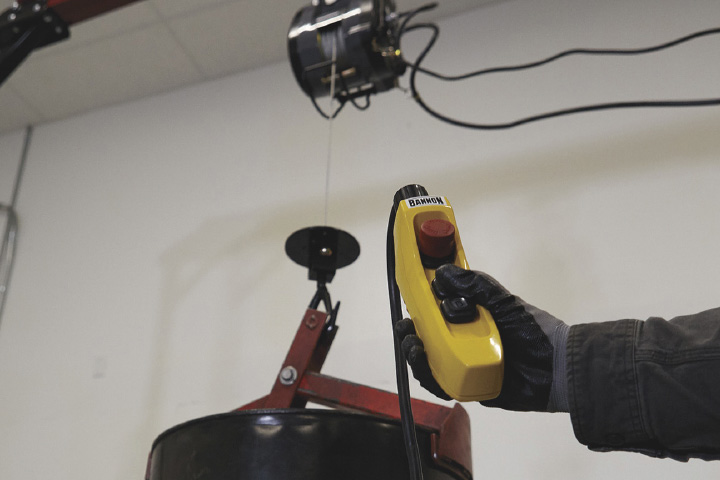

ADVANCED SAFETY MECHANISMS

This hoist is built with critical safety features, including DUAL LIMIT SWITCHES and an UNDERWOUND ROPE SENSOR, ensuring maximum safety during use by preventing mechanical overruns

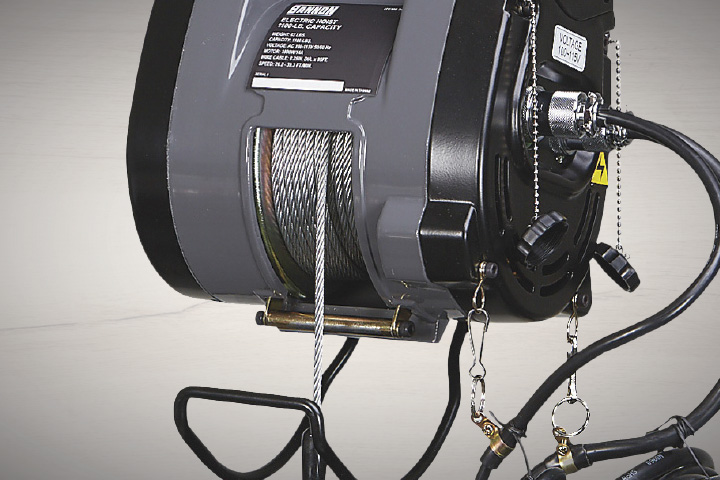

VERSATILE USE

With its significant line pull and EXTENSIVE ROPE LENGTH, this hoist is incredibly versatile for lifting tasks, ensuring performance even under demanding conditions

Features + Benefits

  • Lightweight, compact design is easy to install
  • Can be operated on standard domestic power supply

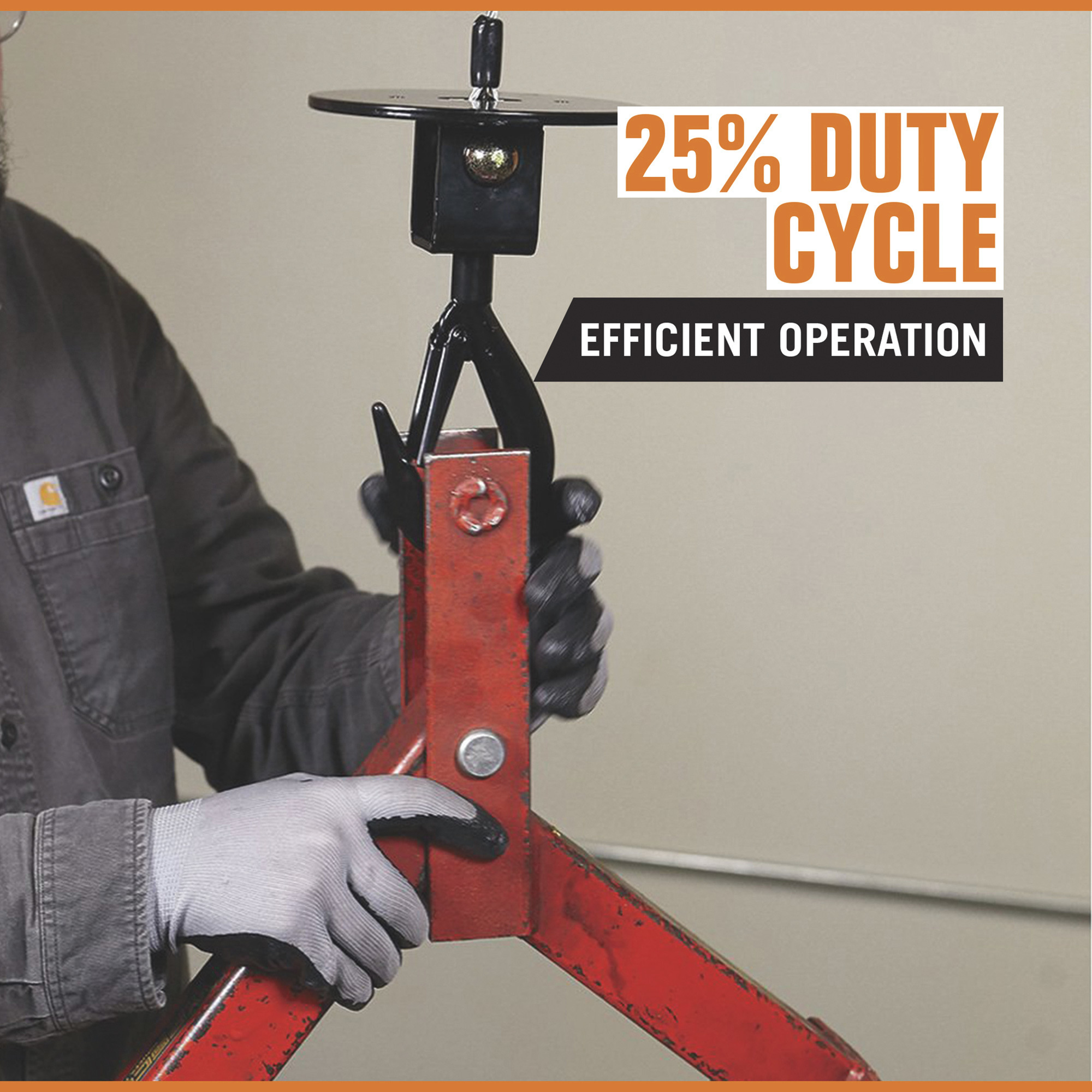

  • 25% duty cycle for tough jobs without excess motor stress
  • Galvanized wire rope includes 360° saddle hook
  • Includes both an upper and a lower limit switch for safety
  • Sensor arm stops motor if rope is underwound
  • Motor brakes are electromagnetic; gear brakes are mechanical
  • Double ratchet pawl design provides instant, safe stopping
  • 98ft. x 0.24in. rope
  • 3306-lb. line pull
  • 26.2–39.3 FPM line speed

Key Specs

AttributeSpecification

item#

54293

Brand

Bannon

Manufacturer's Warranty

2 year limited warranty

Ship Weight

77.2 LB

Single Line Lift Capacity

1,100 lb

Single Line Lift Height

98 ft
AttributeSpecification

Single Line Lift Speed

39.3 ft./min.

Double Line Lift Speed

26.2 ft./min.

Cable Length

98 ft

Cable Diameter

0.25 in

Product Weight

lb

Dimensions L x W x H (in.)

17.75 x 17.32 x 14.95 in

Reviews

Questions & Answers

28 Reviews This action will navigate to reviews.

Questions

1–10 of 50 Questions
Sort by:

  1. will this function properly if hung by the hook on top attached to a fixed anchor point, or a rope anchor? Or is a level rod needed for mounting?

    Originally posted on "Bannon Compact Electric Cable Hoist, 500-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase"

    1. the manufacture recommends that it be hung on a level rod. We have used it in an Eye-bolt with good results. I would not recommend hanging it from a rope anchor however.

      Helpful?

    2. The hoist is designed to be hung or mounted on a stable bar or bracket.

      Helpful?

  2. Where can I get parts for hoist

    1 answer

    1. Parts for this hoist can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      For assistance with part numbers, please contact our Sales Department at 1.800.221.0516.

      Helpful?

  3. How many pounds this tool weight?

    1 answer

    1. This hoist weighs approximately 77 lbs.

      Helpful?

  4. Is this water resistant? Can it be left Hanging outside?

    1 answer

    1. This hoist is not rated for outdoor used. It should not be exposed to rain or wet conditions.

      Helpful?

  5. Does Bannon make a wireless remote option for this hoist?

    1 answer

    1. A wireless remote is not available for this winch.

      Helpful?

  6. Does this have brake pads, and if so how long will they last, and can they be replaced?

    1 answer

    1. This hoist is equipped with a brake disc instead of a brake pad. The lifetime of parts is dependent on many variables. The replacement disc, part #BN54293.31, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  7. What is the motor amperage to run this?  I need to see if my inverter will run it

    1 answer
    Originally posted on "Bannon Compact Electric Cable Hoist, 500-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase"

    1. The maximum draw is 13 amps.

      Helpful?

  8. How long is the remote cable

    1 answer
    Originally posted on "Bannon Compact Electric Cable Hoist — 660-Lb. Capacity, 95ft. Lift, 110 Volts, 1 Phase"

    1. The remote cable is 22' 2'' long.

      Helpful?

  9. Where can I get replacement control button for this hoist?

    1 answer

    1. The replacement button cord assembly is part number BN54293-67. We no longer sell parts through Northern Tool. To order, please contact our sister company Jack's Small Engine at 877-737-2787.

      Helpful?

  10. What is the overall measurement of this hoist with cables and connecting apparatus fully retracted?

    1 answer

    1. When the hoist is fully retracted, the overall length is 29.53" from the top of the saddle hook to the bottom of the lifting hook.

      Helpful?
