OZ Lifting Products Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000

Item# 105155
"OZ Lifting Products Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000"
OZ Lifting Products Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding

See full description

Complete Your Solution

  • OZ Lifting Products Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000

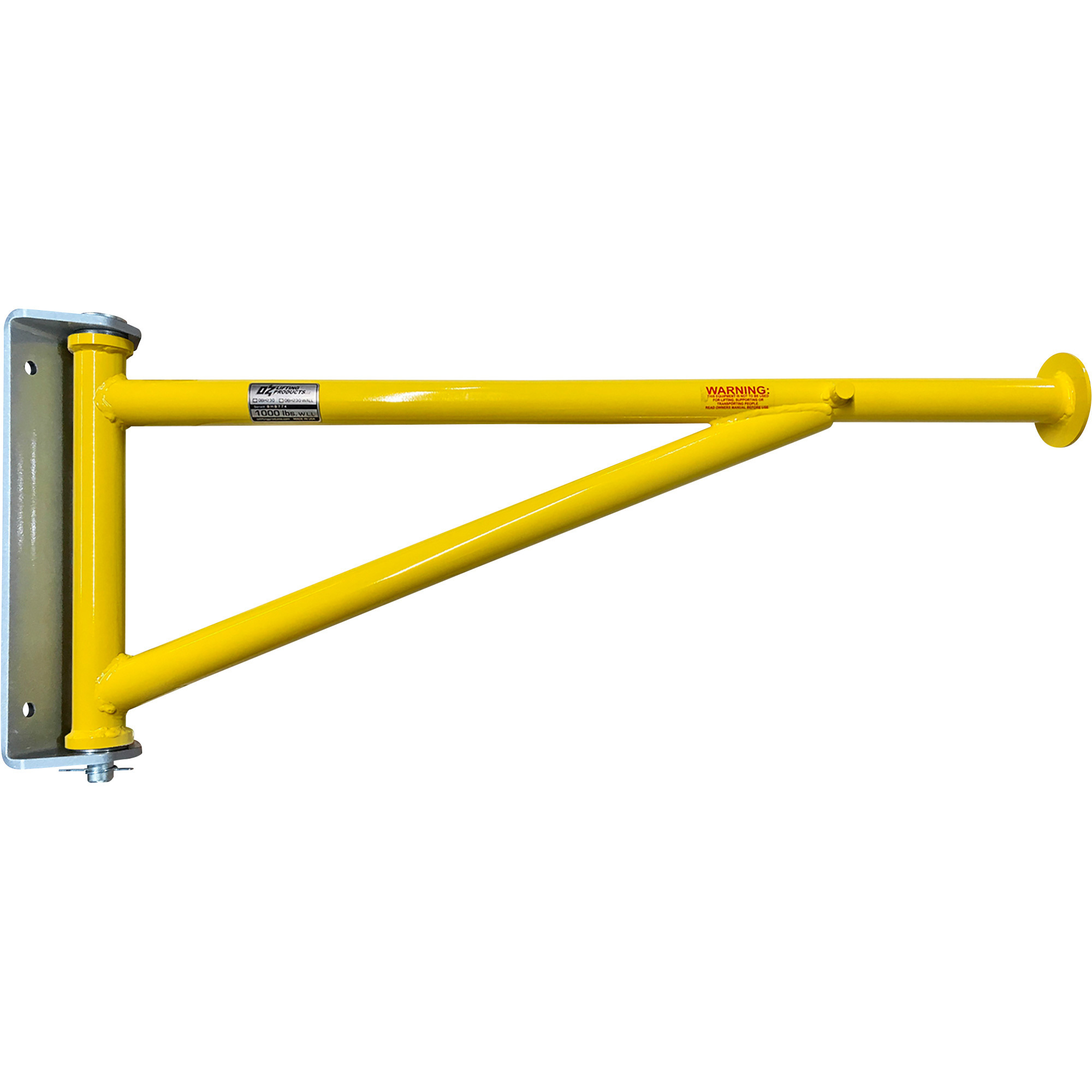

  • OZ Lifting Products Wall Mount Arm Bracket, 1000-Lb. Capacity, Model# OBH230-WALL
  • OZ Lifting Products Pipe-Mounting Arm for Builder's Hoists, 1000-Lb. Capacity, Model# OBH230
Price for all three:

$2369.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Electric Builder's Hoist provides 90ft. of lift at 37 FPM. It can be operated on a standard domestic power supply. Dynamic and mechanical brake provides instant and safe braking. This unit features both an upper and a lower limit switch for additional safety. The galvanized wire rope includes a 360° weighted hook with a safety-latch. It features quick-release power control and 25% duty cycle performs tough jobs without excess stress on the motor.

What's Included

    (1) Electric builder's hoist

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate

Key Specs

AttributeSpecification

item#

105155

Brand

OZ Lifting Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

84.0 LB

Amps

15.5

Single Line Lift Capacity

1,000 lb

Single Line Lift Height

90 ft

Single Line Lift Speed

37 ft./min.
AttributeSpecification

Cable Length

90 ft

Cable Diameter

0.25 in

Duty Cycle

15 min

Phase

Single-phase

Horsepower

2.41 HP

Product Weight

73.0000 lb

Dimensions L x W x H (in.)

28.5 x 10.5 x 12.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Electric Builder's Hoist, 1000-Lb. Capacity Single Line, 90ft. Lift, Model# OBH1000 Can the speed be adjusted to go slower?

    1 answer

    1. The lifting speed is 37 feet per min. There is not an option to adjust the speed.

      Helpful?

  2. Can it be attached using only the hook? For example, hanging it from a rigging shackle.

    1 answer

    1. The builder's hoist is designed to be attached to a beam clamp, scaffold pipe mounting bracket or a wall mounting bracket arm. If hanging from a rigging shackle, it must be the right type of shackle. You would need to check with the manufacturer for type and safety requirements.

      Helpful?

  3. can a remote control be installed so you can ride with the lift?

    1 answer

    1. A remote control could not be installed on the hoist for you to ride with the lift.

      Helpful?

  4. how long is the power cord and how long is the control cable?

    1 answer

    1. The power cord is 15 ft long and the control cable is 65 ft long.

      Helpful?

  5. Is this product weather proof? I need a hoist that I can store and use outdoors.

    1 answer

    1. This hoist is not weather proof. At this time, we do not offer any electric hoists designed to be stored outside or exposed to the elements.

      Helpful?

  6. which floor mounted jib crane should i get to go with this?

    1 answer

    1. The recommended floor mount jib crane would be item 103142.

      Helpful?

  7. Can the obh1000, 1,000lb rated hoist be used with a snatch block to double the load capacity? i.e., double the load and half the height

    1 answer

    1. This hoist cannot be used with a snatch block to increase the load capacity.

      Helpful?

  8. How long is the control pendant cable ?

    1 answer

    1. This OZ hoist is equipped with a 65 foot pendant cable.

      Helpful?
