Shop Fox 16 1/2in. Dovetail Machine, 1 HP, 1 PH, 110/220V, Model# W1805

Item# 83107
Top Seller

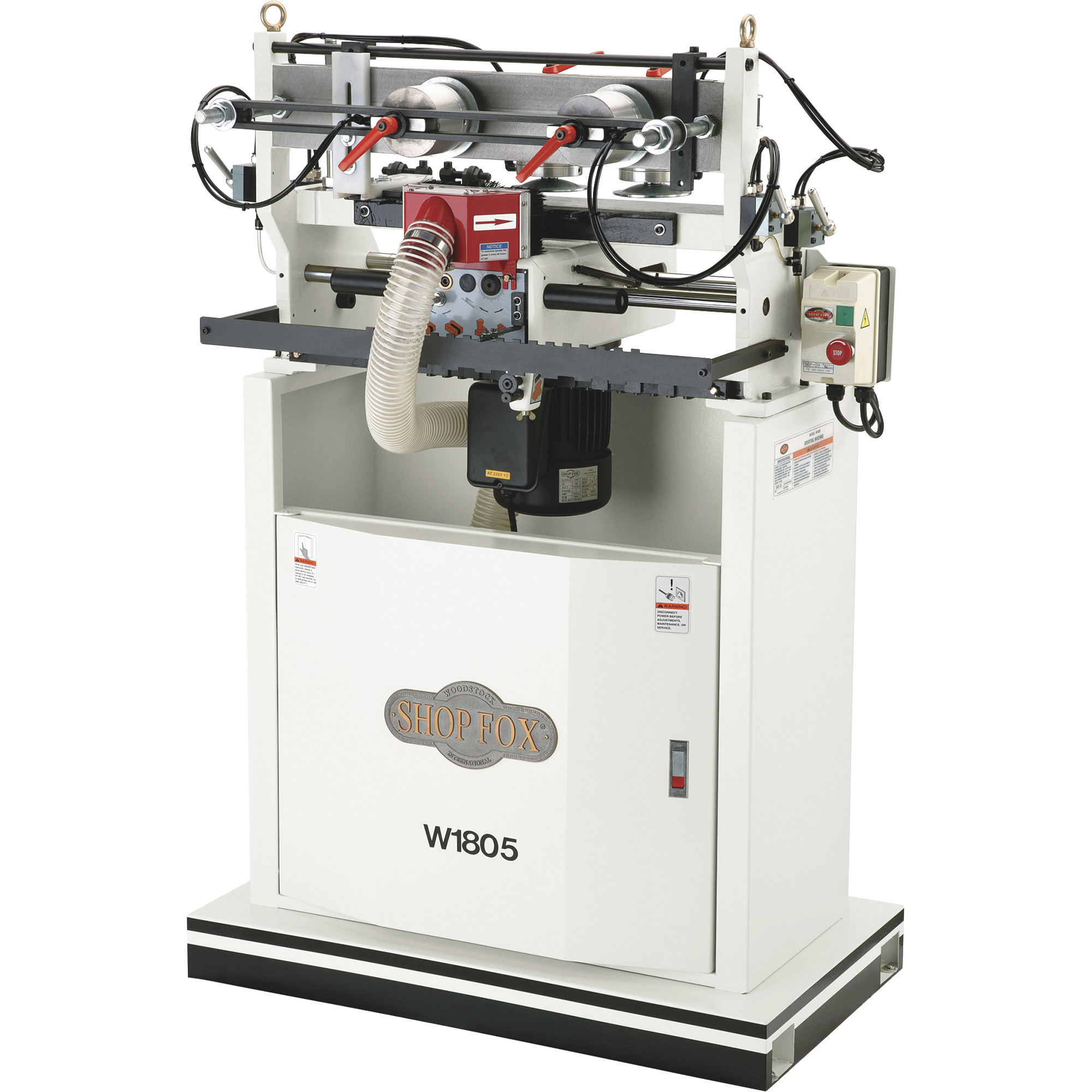

Shop Fox 16 1/2in. Dovetail Machine, 1 HP, 1 PH, 110/220V, Model# W1805

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox 16 1/2in. Dovetail Machine, 1 HP, 1 PH, 110/220V, Model# W1805

Click or Tap image to Zoom

$5775.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 1 HP, 110V/220V, prewired 220V, single-phase
  • 24in. x 7 3/4in. table
  • 46 7/16in. floor to table height
  • 35 5/8in.W x 56 7/8in.H x 26 1/2in.D overall
  • 1 spindle

See full description

Complete Your Solution

  • Shop Fox 16 1/2in. Dovetail Machine, 1 HP, 1 PH, 110/220V, Model# W1805
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$5834.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

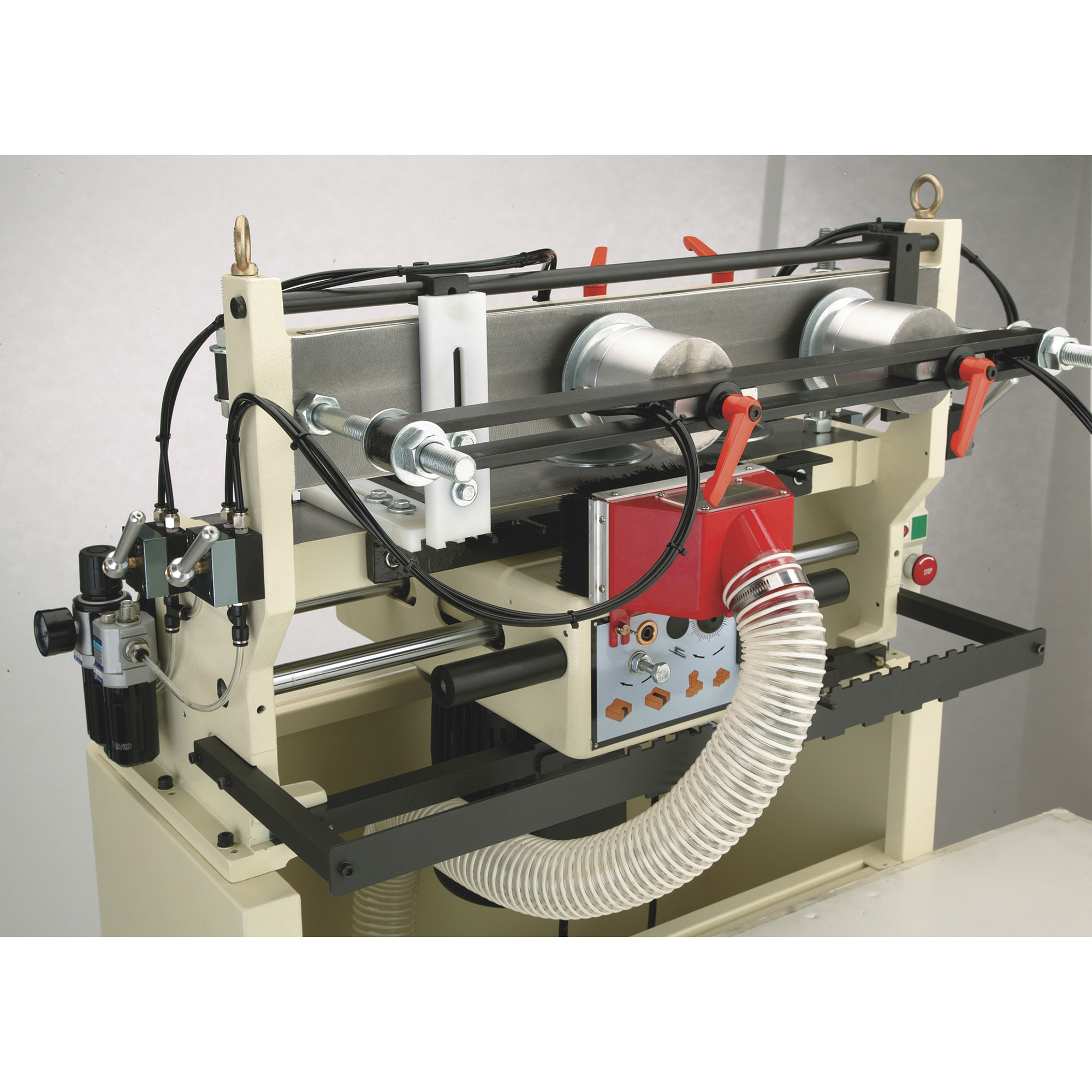

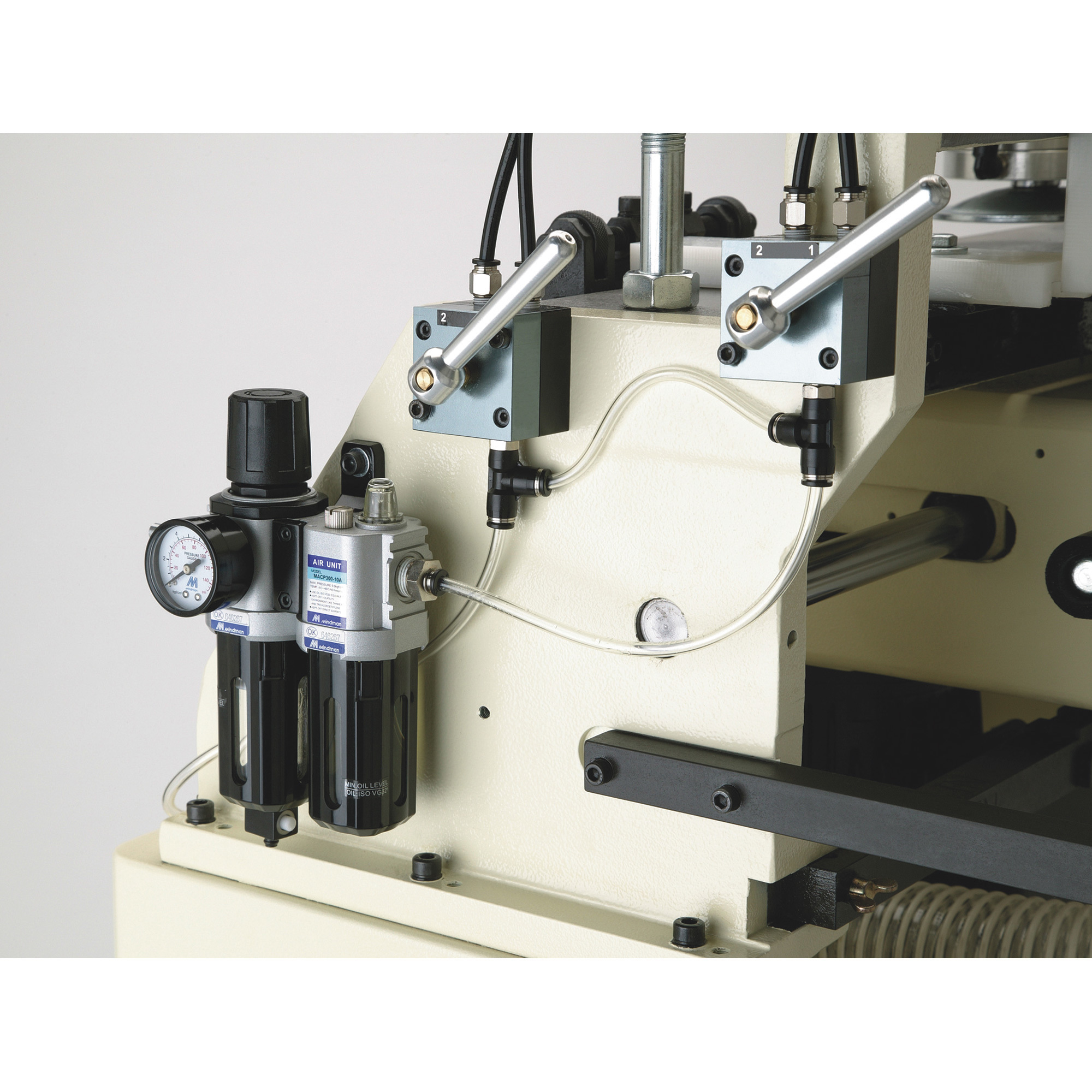

The Shop Fox 16 1/2in. Dovetail Machine is a luxury unit that creates strong and attractive half-blind dovetails in no time. Instead of cam-lock clamps, this machine features pneumatic clamps that are faster and easier to use, a larger workpiece capacity, and a magnetic switch with thermal overload protection. The motor is pre-wired for 220V, and inverted so vertical workpieces are inserted/removed from above rather than below, which makes it easier and more ergonomic to operate.

What's Included

    (1) Shop Fox 16 1/2in. Dovetail Machine, 1 HP, 1 PH, 110/220V, Model# W1805

Downloads

Product Manual

Features + Benefits

  • 1 HP, 110V/220V, prewired 220V, single-phase
  • 24in. x 7 3/4in. table
  • 46 7/16in. floor to table height
  • 35 5/8in.W x 56 7/8in.H x 26 1/2in.D overall
  • 1 spindle
  • 18,500 RPM spindle speed

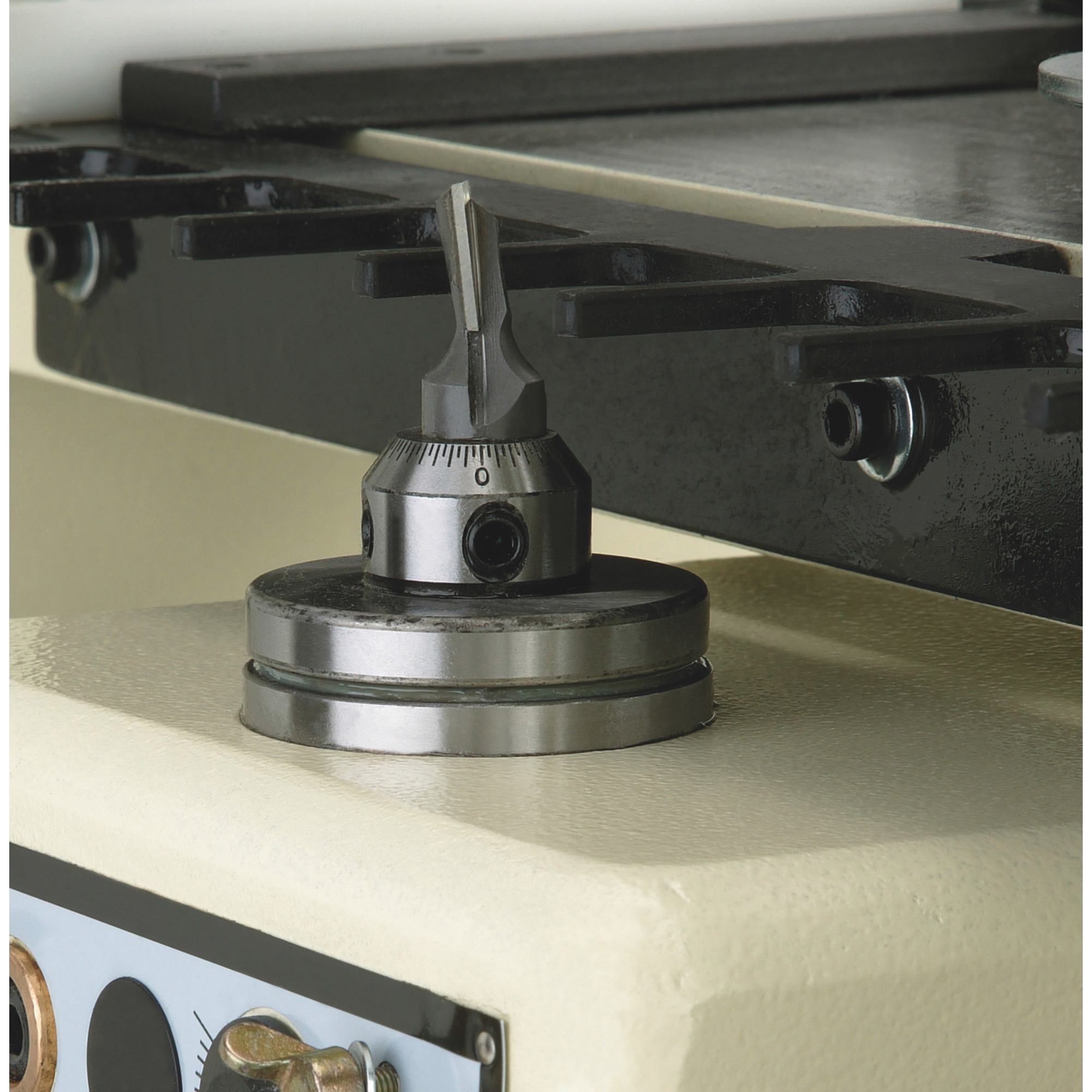

  • Dovetail bit: 10° angle x 5/8in. left-hand
  • Dovetail templates: 1in., 1 1/2in., 2in., 2 1/2in.
  • Dovetail bit shank: 1/2in.
  • Max. dovetail height: 3/4in.
  • Min. dovetail height: 3/16in.
  • Max. stock thickness: 2 3/8in.
  • Min. stock thickness: 13/32in.
  • Max. stock size: 59in.L x 16 1/2in.W
  • Min. stock size: 7 7/8in.L x 2 3/8in.W

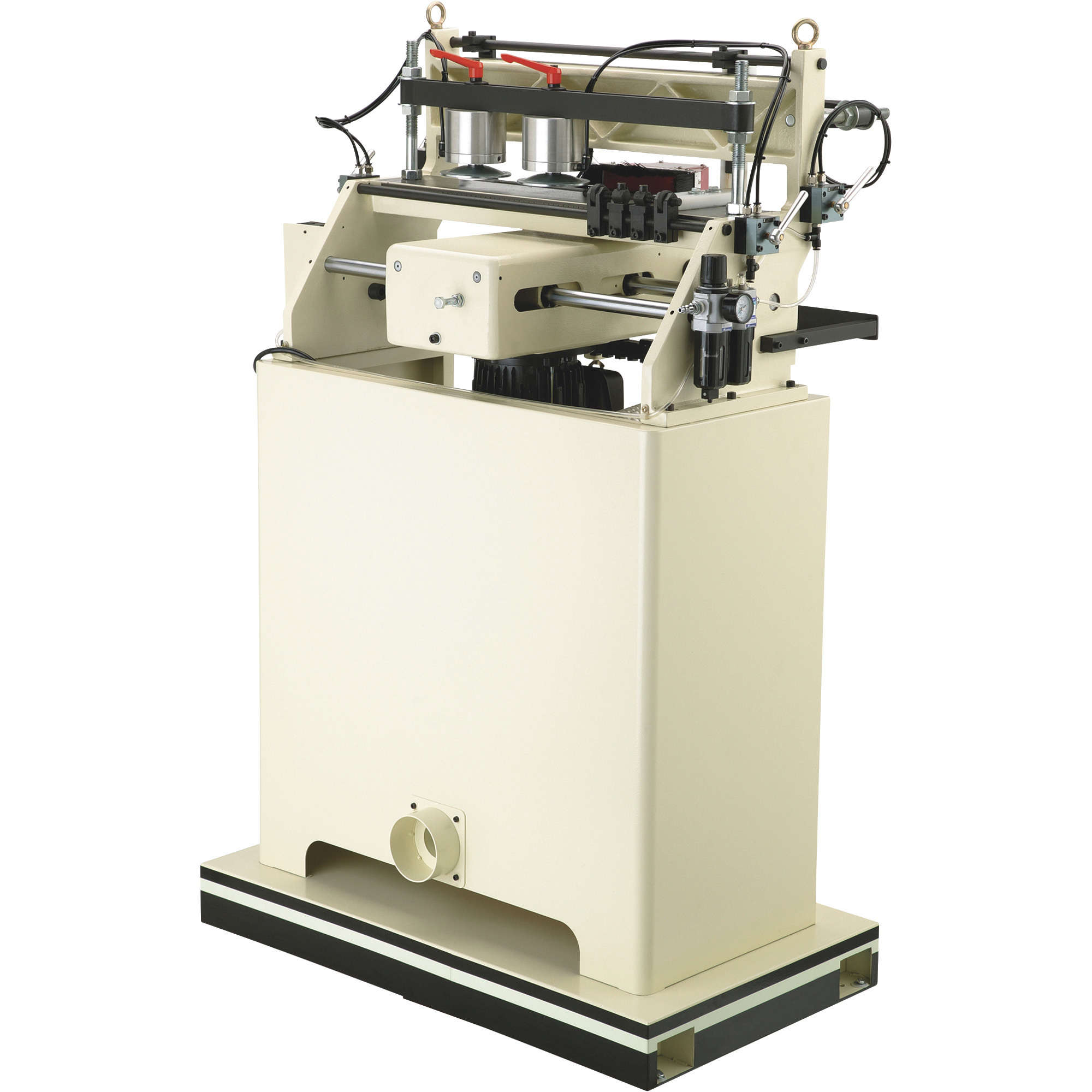

  • 4in. dust port
  • Precision-milled cast-iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened-and-ground chrome steel slide ways

Key Specs

AttributeSpecification

item#

83107

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

539.0 LB

Max. RPM

18,500
AttributeSpecification

Product Type

Dovetail Machine

Horsepower

1

Volts

110/220

Product Weight

539.0000 lb

Dimensions L x W x H (in.)

35.625 x 26.5 x 56.87 in

Reviews

Questions & Answers

Questions

  1. Is this unit manual or automatic?

    1 answer

    1. This dovetail machine is manual.
