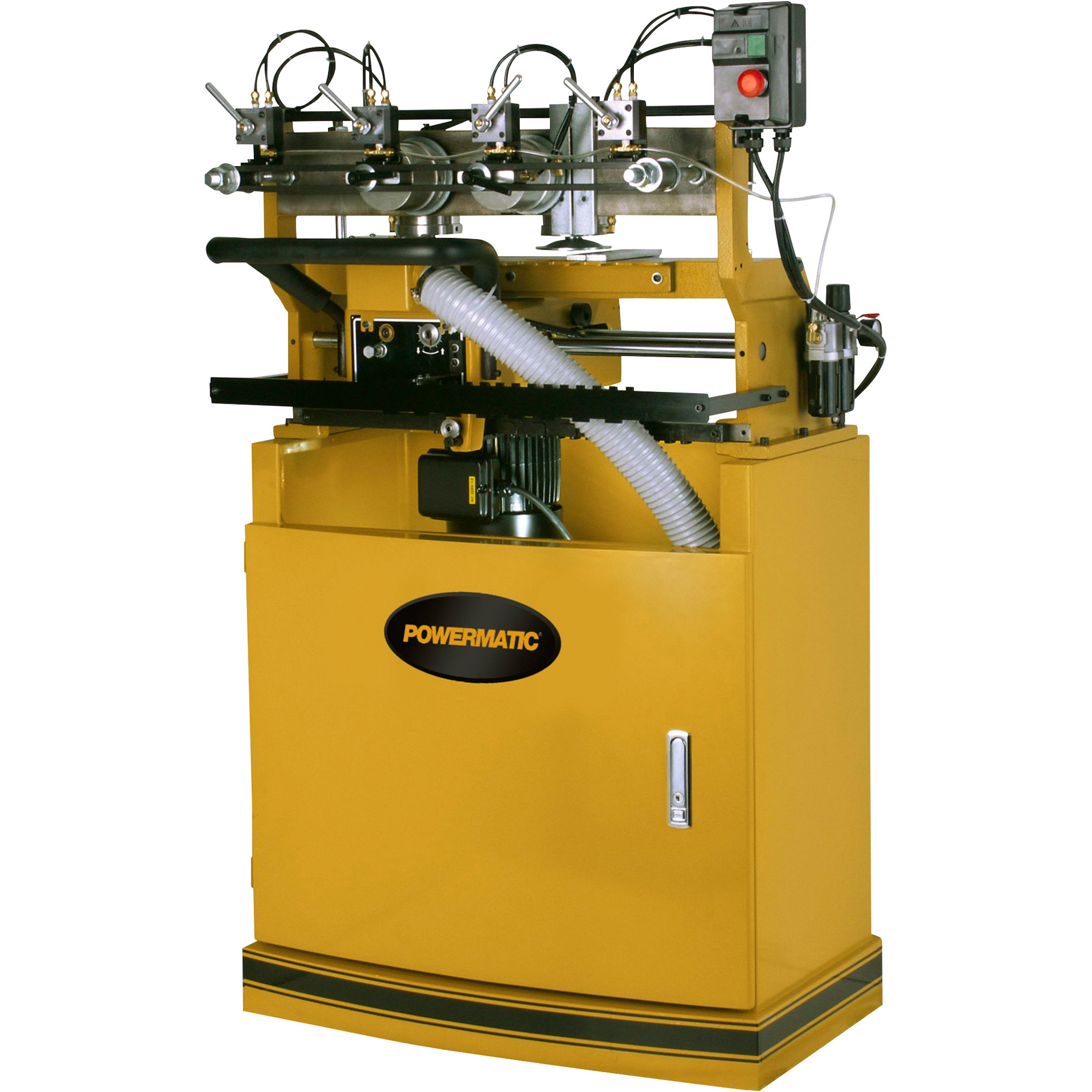

Powermatic Dovetailer, 1 HP, 1PH, 230V, Model# DT65

Item# 84928
Powermatic Dovetailer, 1 HP, 1PH, 230V, Model# DT65

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Dovetailer, 1 HP, 1PH, 230V, Model# DT65

Click or Tap image to Zoom

$9347.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Used to cut the most popular joints of drawer construction
  • Four centerlines - 1in., 1 1/2in., 2in. and 2 1/2in. - create a custom appearance

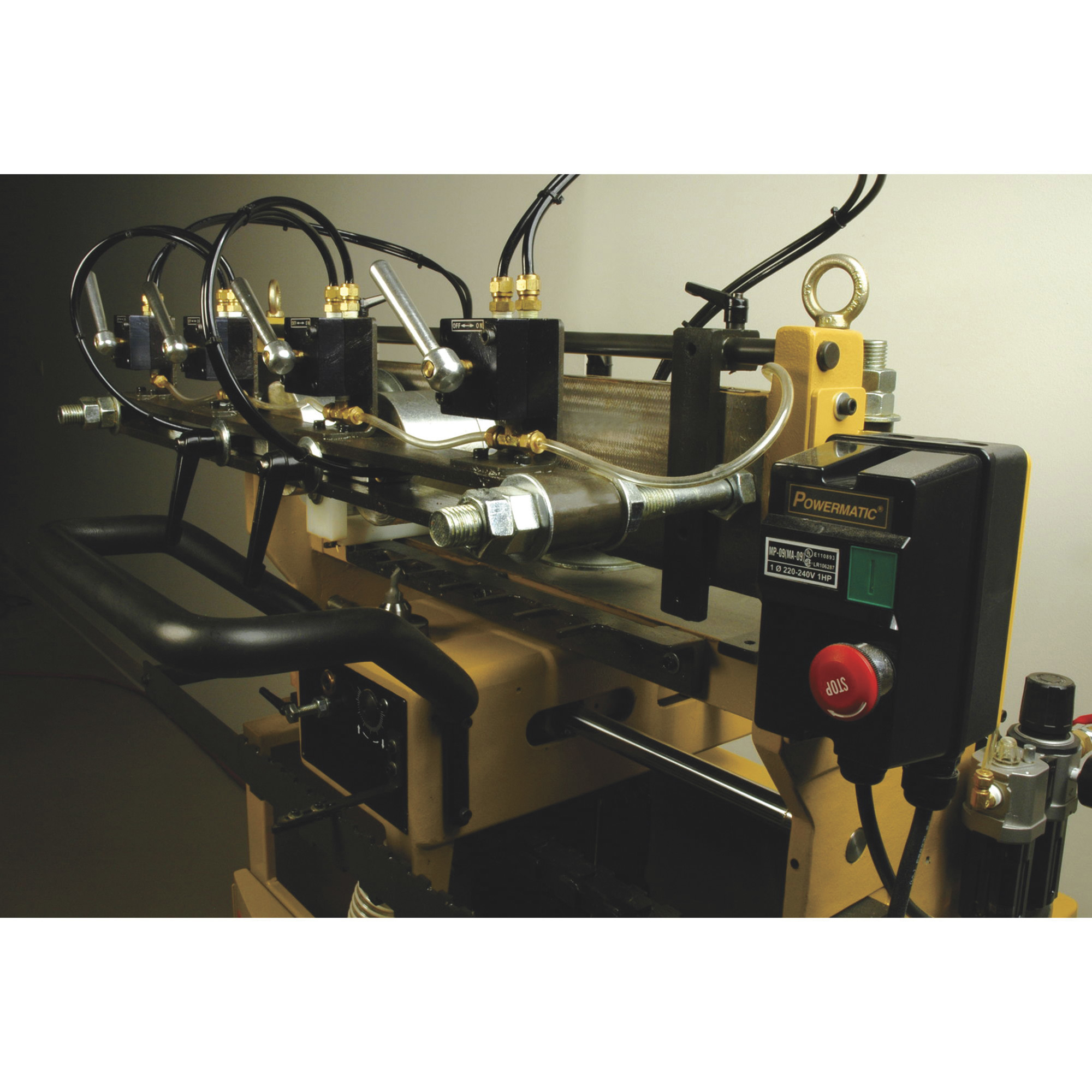

  • Pneumatic clamping provides quick locking and unlocking of the workpiece

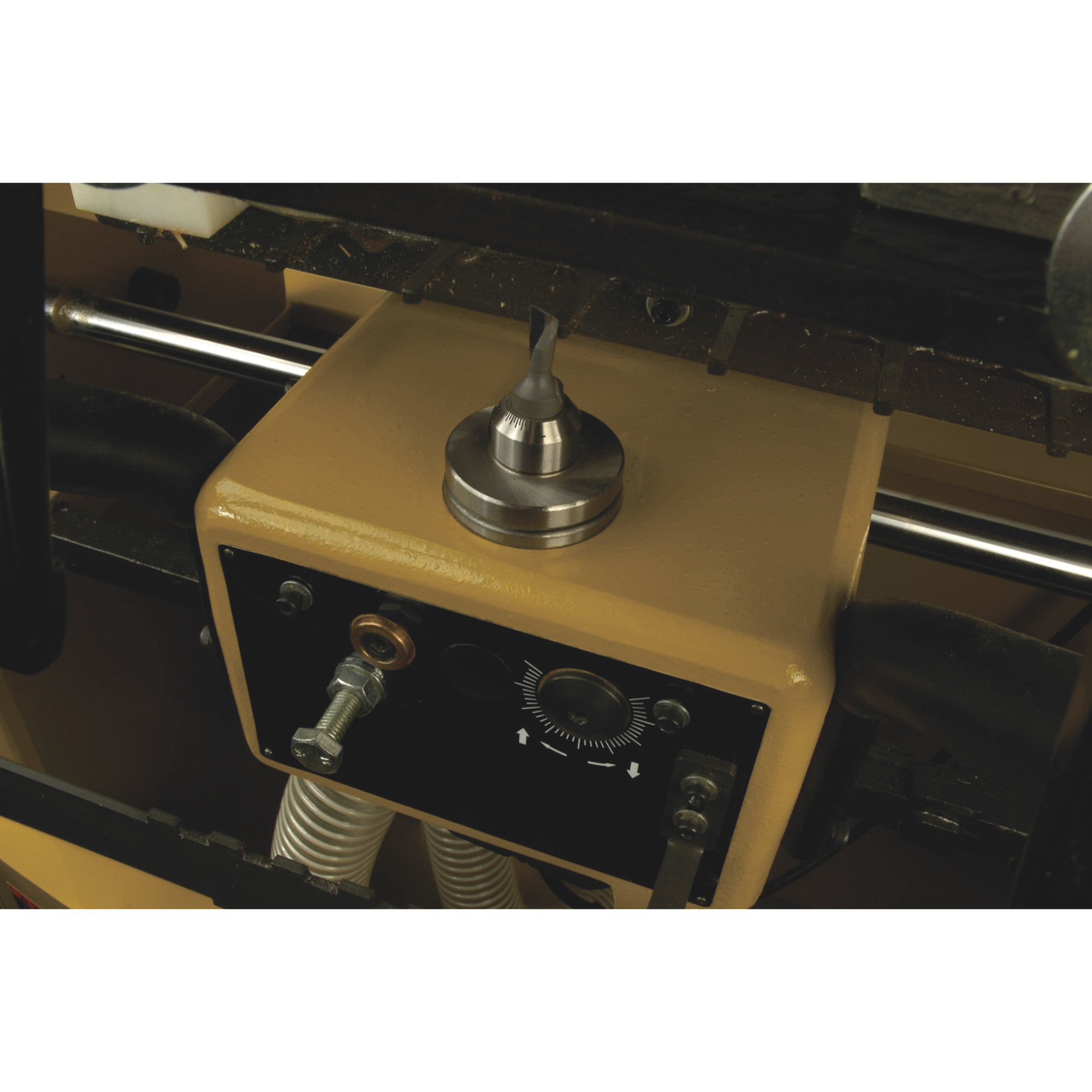

  • Eccentric spindle collet for resharpened cuttersSpring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16in. to 3/4in. accommodates different cutting depths and board thicknesses

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Dovetailer, 1 HP, 1PH, 230V, Model# DT65
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all three:

$9397.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1 HP, 230V, 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1in., 1 1/2in., 2in., and 2 1/2in. centerlines. The use of different dovetail centerlines gives a unique custom appearance.

What's Included

    (1) Powermatic Dovetailer, 1 HP, 1PH, 230V, Model# DT65

Features + Benefits

  • Used to cut the most popular joints of drawer construction
  • Four centerlines - 1in., 1 1/2in., 2in. and 2 1/2in. - create a custom appearance
  • Pneumatic clamping provides quick locking and unlocking of the workpiece
  • Eccentric spindle collet for resharpened cuttersSpring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16in. to 3/4in. accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup

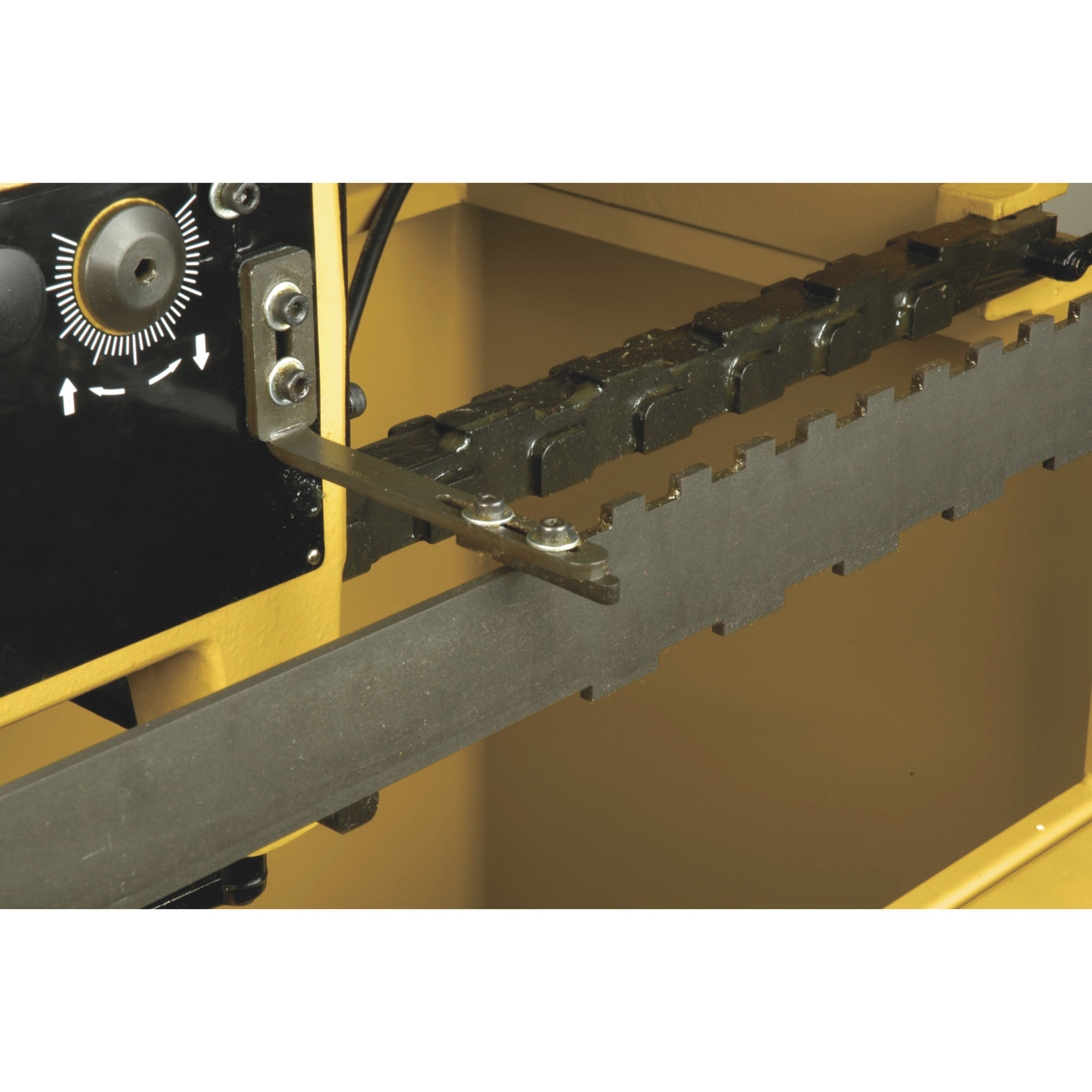

  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability
  • 1 HP motor transfers plenty of power via the drive belt to the spindle
  • Magnetic starter for safety
  • Four-sided template
  • Workstops
  • Tool kit
  • Dovetail bit
  • Dust chute with hose

Key Specs

AttributeSpecification

item#

84928

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

510.0 LB

Product Type

Dovetail Machine
AttributeSpecification

Horsepower

1

Volts

230

Phase

Single-phase

Product Weight

510.0000 lb

Dimensions L x W x H (in.)

37.0 x 44.0 x 63.0 in

Reviews

Questions & Answers

Questions

  1. is this machine manual or automatic

    1 answer

    1. Each lever on the Powermatic Dovetailer will be manual.
