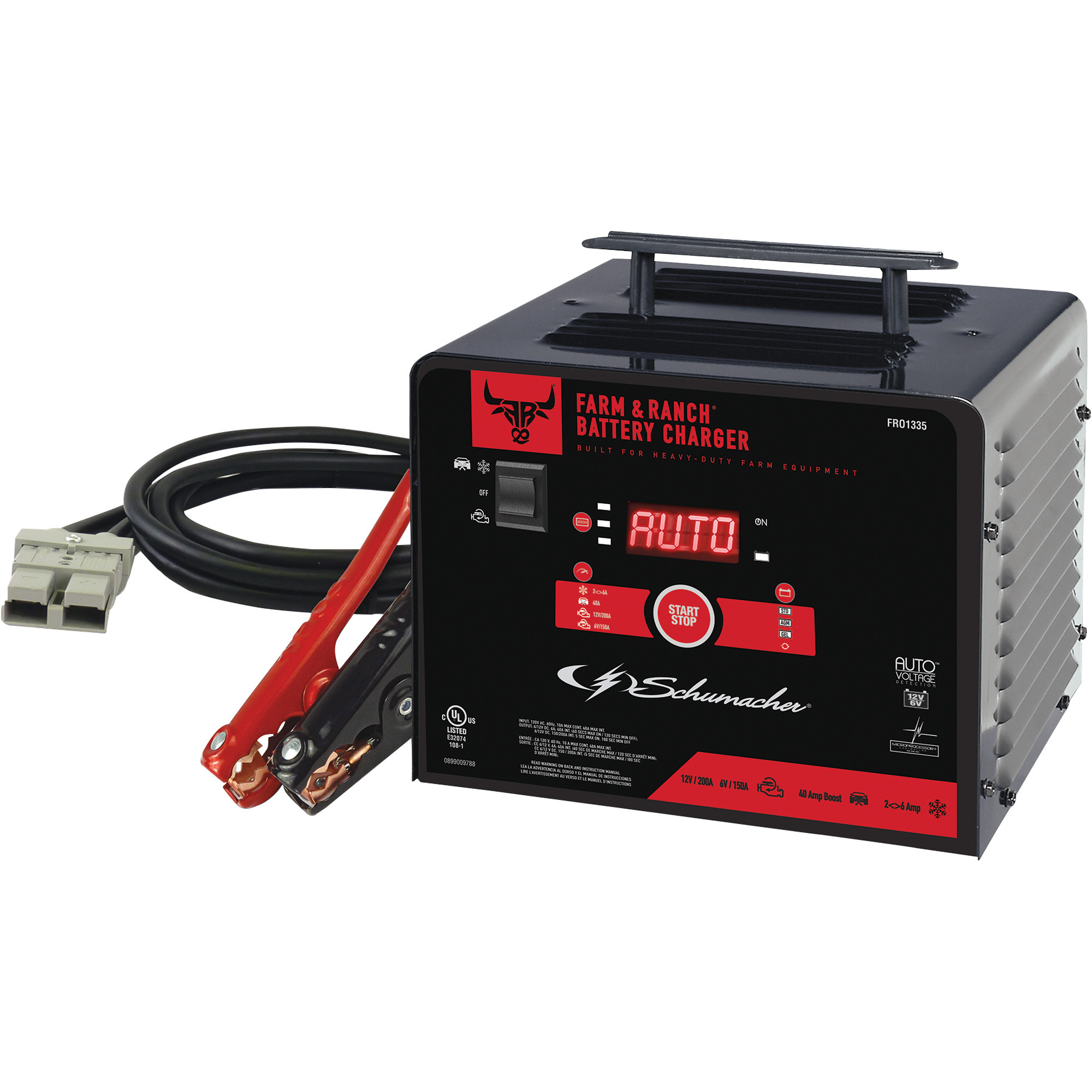

Schumacher Farm and Ranch Fully Automatic Battery Charger, 6/12 Volt, 200 Amp, Model# FRO1335

Item# 81696
"Schumacher Farm and Ranch Fully Automatic Battery Charger, 6/12 Volt, 200 Amp, Model# FRO1335"
Schumacher Farm and Ranch Fully Automatic Battery Charger, 6/12 Volt, 200 Amp, Model# FRO1335

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Schumacher Farm and Ranch Fully Automatic Battery Charger, 6/12 Volt, 200 Amp, Model# FRO1335

Click or Tap image to Zoom

  • 125/200 Amp engine start is powerful enough for SUVs, trucks and large engines
  • 40 Amp boost rate quickly brings deeply discharged battery back to life
  • Delivers 6-2 Amp trickle/maintenance charge
  • Energy-efficient design with easy-to-use scrolling digital display, LED indicators and pushbutton controls
  • Easy Start/Stop interface

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Schumacher Farm and Ranch Battery Charger is built for heavy-duty farm equipment. The powerful 6/12 Volt, 200 Amp design is perfect for engine starting and charging robust batteries. Offers 200 Amp (12V) and 125 Amp (6V) Engine Start, 40 Amp Boost, and 6-2 Amp Charge/Maintenance rates. Plus, quick-connectors with a 12ft. reach make it easy to hook up to the battery. Works with 6V and 12V Standard, AGM or Gel batteries. UL, ULC, BC safety certifications. DOE compliant.

What's Included

    (1) Farm and Ranch battery charger (1) Quick-connect clamp assembly

Features + Benefits

  • 125/200 Amp engine start is powerful enough for SUVs, trucks and large engines
  • 40 Amp boost rate quickly brings deeply discharged battery back to life
  • Delivers 6-2 Amp trickle/maintenance charge
  • Energy-efficient design with easy-to-use scrolling digital display, LED indicators and pushbutton controls
  • Easy Start/Stop interface
  • 6-ga. output cables with 12ft. cable reach
  • Microprocessor-controlled design automatically adjusts amperage rate to charge and maintain batteries
  • Multi-stage charging provides added precision, safety and battery life
  • Float mode monitoring maintains optimum battery charge
  • Auto voltage detection and reverse hook-up protection for safety

Key Specs

AttributeSpecification

item#

81696

Brand

Schumacher

Manufacturer's Warranty

1 year limited warranty

Ship Weight

27.4 LB

Volts

12

Max. Amps

200

Settings (qty.)

2

Charger Type

Automatic
AttributeSpecification

Cable Length

12 ft

Wheeled

No

Cable Gauge

6

Overcharge Protection

Yes

Polarity Reversal Protection

Yes

Case Material

Steel

Product Weight

27.5900 lb

Dimensions L x W x H (in.)

10.75 x 12.5 x 14.0 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Does this plug into a regular 110V outlet?

    The picture shows a wire coming from the charger with a connector. What does that wire go to?

    1. the power cord and the charger cord plugs into back of charger,and yes it is 110 a/c volts

      Helpful?

    2. This battery charger is for use on a 120 volt circuit and has a grounded plug.

      Helpful?

  2. How do I get it from being stuck off a hundred amp how do I get it to turn down

    1 answer

    1. You will need to press the rate selection button to select the charge options. Once you have chosen the rate selection, you then will push the start/stop button.

      Helpful?

  3. Can it be used for jump star to a battery

    1 answer

    1. The battery charger could be used to jump start a battery.

      Helpful?

  4. Will this charger drain down battery when ac supply turned off

    1 answer

    1. The battery charger would not drain the battery when the AC supply is turned off.

      Helpful?

  5. settings. snowflake and engine selection???

    1 answer

    1. The snowflake is 2<>6A. This is used for charging small and large batteries.

      The engine selections are the 200A ENGINE START (12V) and 150A ENGINE START (6V). They provide amperage for cranking an engine with a weak or run-down battery.

      Helpful?

  6. where was it made

    1 answer

    1. This battery charger is made in Taiwan.

      Helpful?

  7. how many amps does it draw

    1 answer

    1. The battery charger would have a maximum amp draw of 10 amps.

      Helpful?

  8. Will this charge 8v deep cycle batteries?

    1 answer

    1. The model FRO1335 will not charge 8 volt deep cycle batteries.

      Helpful?

  9. Ive got six deep cycle 12v batteries. Can this charge them all in series? So 72 volts?

    1 answer

    1. This battery charger cannot charge multiple batteries at one time.

      Helpful?

  10. Where is this product made ? And where are the internal components made ?

    1 answer

    1. This Schumacher battery charger and its internal components are manufactured in Mexico.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
