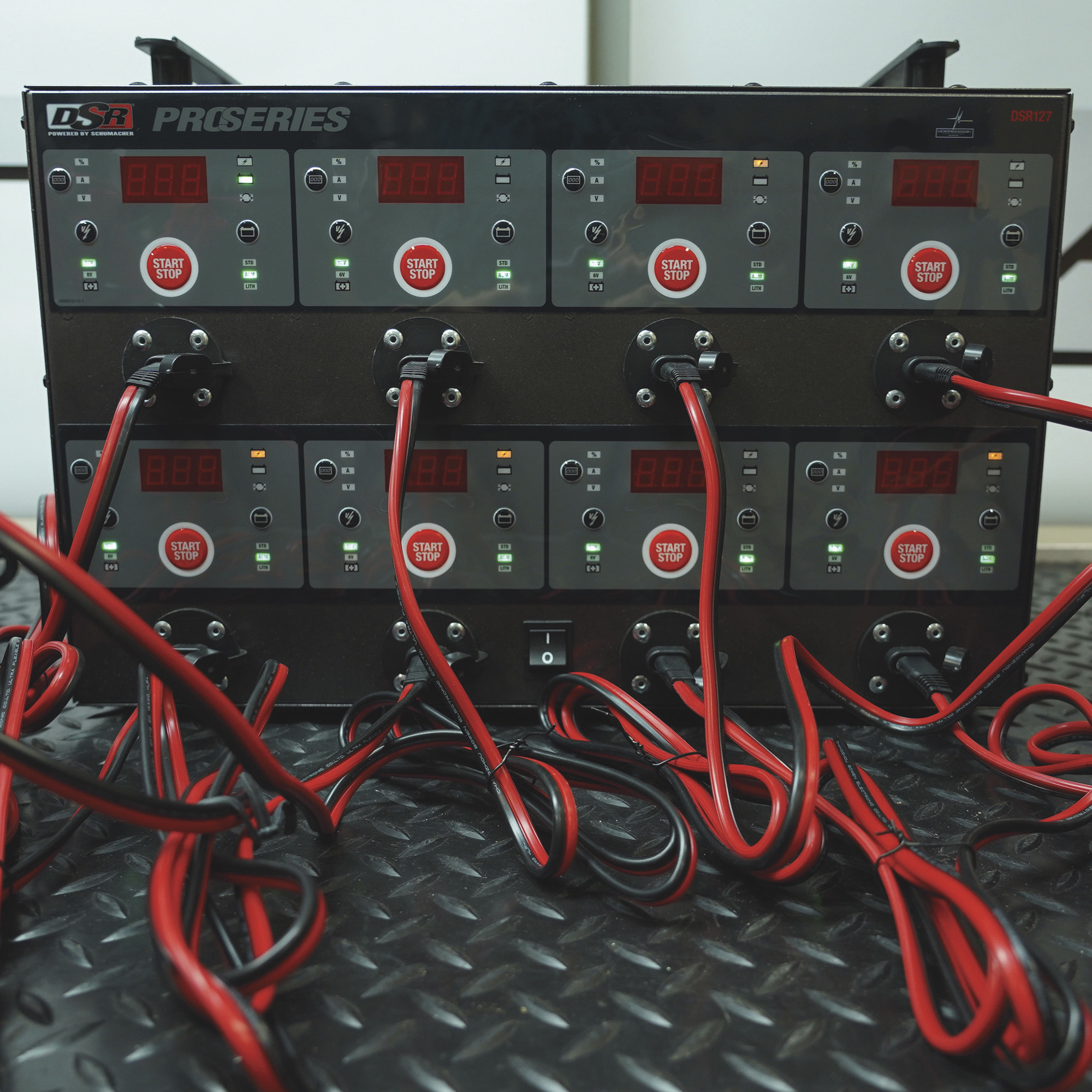

DSR ProSeries 8-Bank Charging Station, 6/12 Volt, 12 Amp, Model# DSR127

Item# 81693
DSR ProSeries 8-Bank Charging Station, 6/12 Volt, 12 Amp, Model# DSR127

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DSR ProSeries 8-Bank Charging Station, 6/12 Volt, 12 Amp, Model# DSR127

Click or Tap image to Zoom

$799.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Automatically adjusts from 5 to 12 Amp output per bank
  • Charges 6V and 12V Standard, AGM, Gel, deep-cycle and LFePO4 batteries
  • 8 independent, fully automatic, microprocessor-controlled charging banks
  • 8 detachable 6ft.L cables with 75 Amp, color-coded clamps
  • Separate digital display for each bank keeps you informed

See full description

Complete Your Solution

  • DSR ProSeries 8-Bank Charging Station, 6/12 Volt, 12 Amp, Model# DSR127
  • Ironton Hearing Protection Earmuffs with AM/FM Radio and MP3, 25dB NRR
  • Dize Poly Tarp, Blue, 8ft. x 15ft., Model# PT0815
Price for all three:

$832.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 6/12V DSR ProSeries 8-Bank Charging Station enables you to charge up to 8in.dependent 6V and 12V batteries simultaneously. Each bank is completely automatic with a microprocessor to prevent overcharging, reverse polarity and short circuits. You can even revive severely discharged 12V batteries with the recovery setting. DOE compliant.

What's Included

    (1) 8-bank charging station

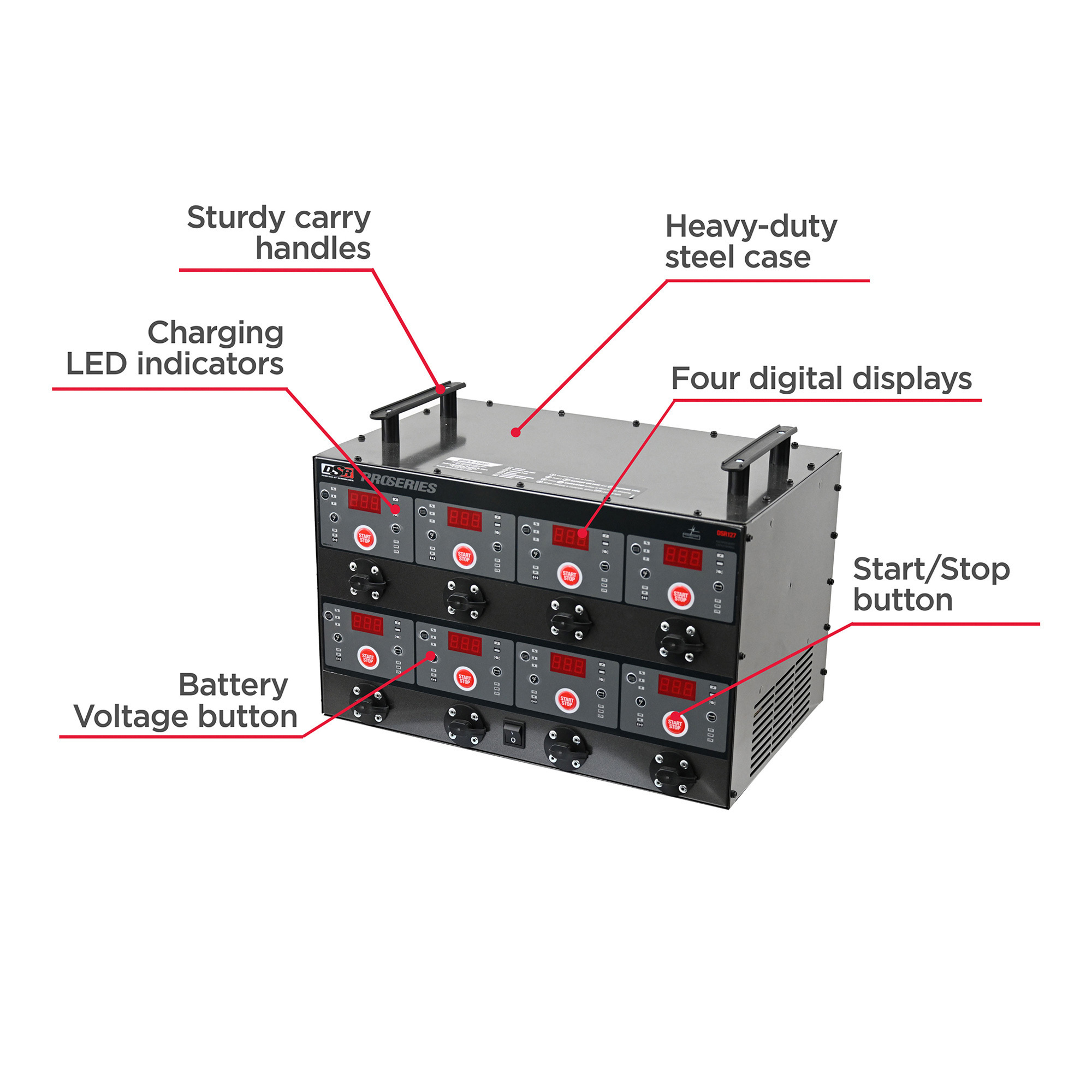

Features + Benefits

  • Automatically adjusts from 5 to 12 Amp output per bank
  • Charges 6V and 12V Standard, AGM, Gel, deep-cycle and LFePO4 batteries
  • 8 independent, fully automatic, microprocessor-controlled charging banks
  • 8 detachable 6ft.L cables with 75 Amp, color-coded clamps
  • Separate digital display for each bank keeps you informed
  • Heavy-duty steel case is built to last
  • Multi-stage charging algorithm

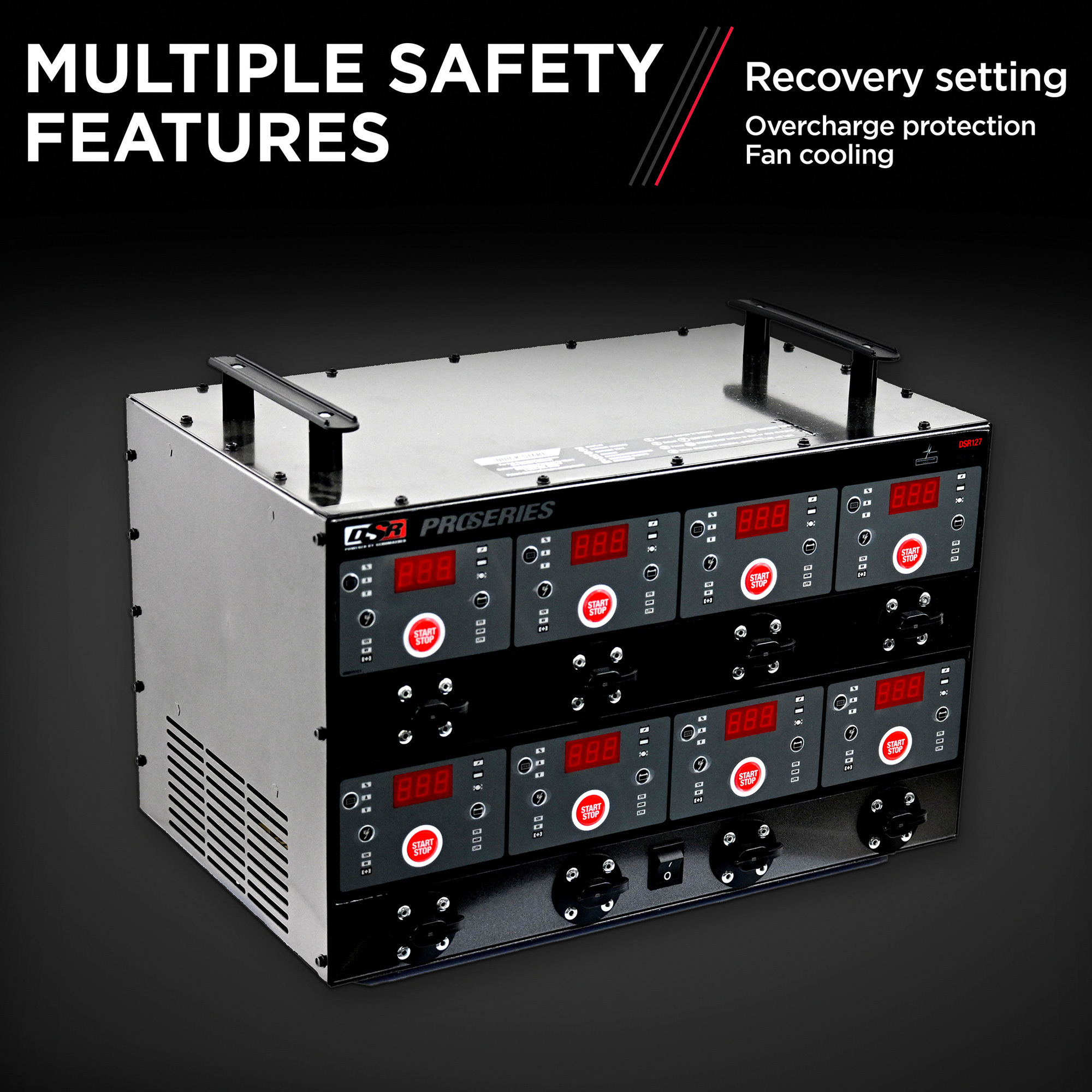

  • Safe-start, reverse polarity and short circuit protection
  • Overcharge protection
  • Thermal runaway protection
  • Recovery mode for sulfated Standard and AGM batteries
  • Easy Start/Stop button
  • Fan-cooled for dependability and peak performance

Key Specs

AttributeSpecification

item#

81693

Brand

DSR

Manufacturer's Warranty

1 year limited warranty

Ship Weight

40.11 LB

Volts

12

Settings (qty.)

2

Charger Type

Automatic

Cable Length

6 ft
AttributeSpecification

Wheeled

No

Amp Charge Rate

12

Overcharge Protection

Yes

Charges Multiple Batteries

Yes

Polarity Reversal Protection

Yes

Case Material

Steel

Product Weight

40.1100 lb

Dimensions L x W x H (in.)

23.75 x 17.0 x 15.25 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. is the charging bank powered by 120 volt power?

    1 answer

    1. This charging bank is powered by standard 120V AC household power.

      Helpful?

  2. how can you operate this charger

    1 answer

    1. The included battery leads would be attached to the battery to be charged and then plugged in to one of the open charging banks. The control panel for the charging bank in use would then be used to start and stop the charging process.

      Helpful?

  3. Does this have a trickle charge setting on it?

    1 answer

    1. The charging station does not have a trickle charge option.

      Helpful?

  4. does it test the battery after charging?

    1 answer

    1. It does not test the battery after. It will display the battery voltage when charging. If there is an issue with the battery, a code would be displayed.

      Helpful?

  5. do you have extensions for the battery charging cables

    1 answer

    1. We would not have extensions for the battery charging cables.

      Helpful?
