Rigid Hitch, Pair of 4-Lug Hub/Spindle End Units, Fits 1.5in Square Tube, Spindles for 1 Inch ID Bearings, 1250lb Capacity Per Hub, Model# AKSQ-200044

Item# 6972943
"Rigid Hitch, Pair of 4-Lug Hub/Spindle End Units, Fits 1.5in Square Tube, Spindles for 1 Inch ID Bearings, 1250lb Capacity Per Hub, Model# AKSQ-200044"
Rigid Hitch, Pair of 4-Lug Hub/Spindle End Units, Fits 1.5in Square Tube, Spindles for 1 Inch ID Bearings, 1250lb Capacity Per Hub, Model# AKSQ-200044

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, Pair of 4-Lug Hub/Spindle End Units, Fits 1.5in Square Tube, Spindles for 1 Inch ID Bearings, 1250lb Capacity Per Hub, Model# AKSQ-200044

Click or Tap image to Zoom

$139.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Hubs have a 4-bolt pattern on 4 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.

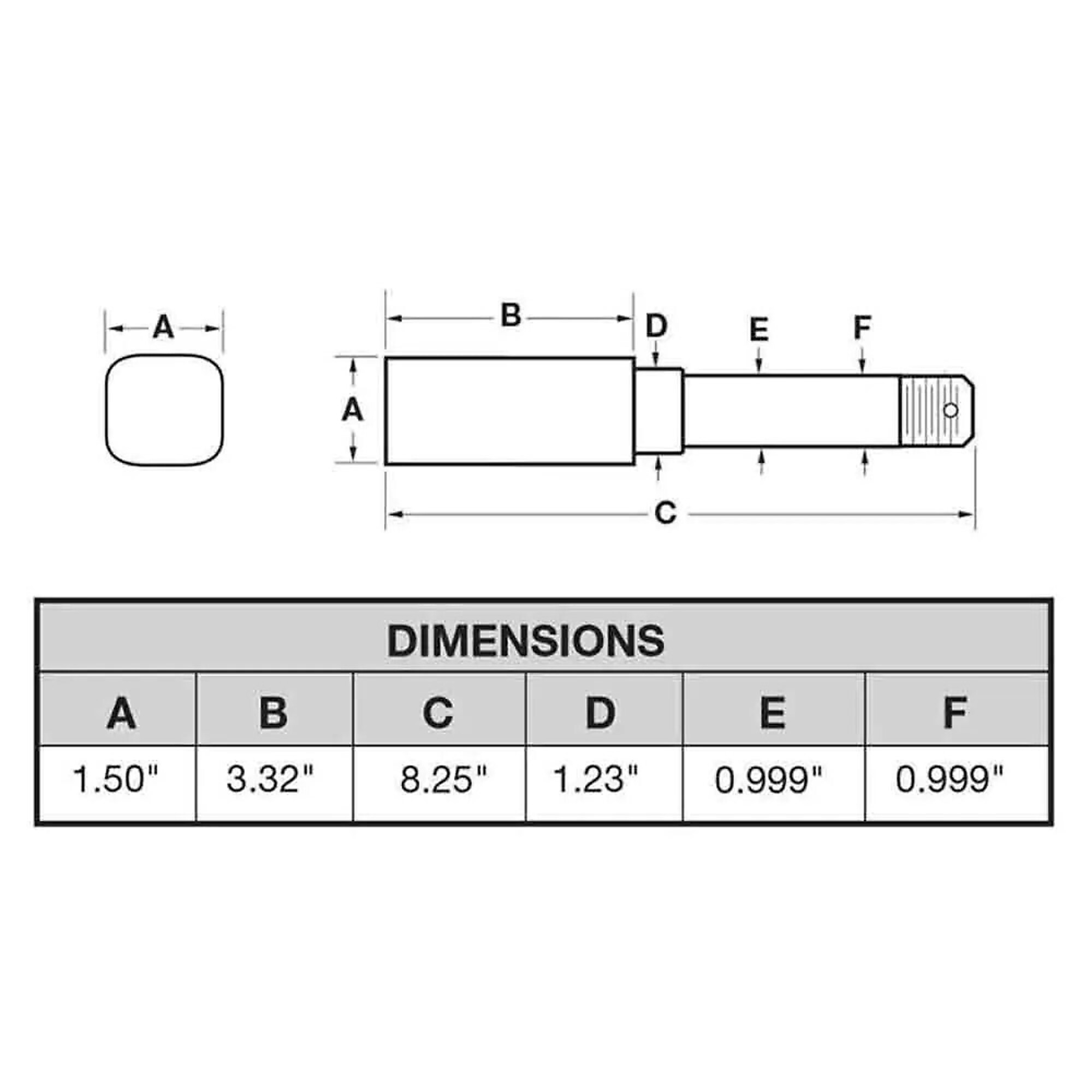

  • Spindles feature a SQUARE 1-1/2 inch stock diameter with a bearing surface of 1 inch
  • Hubs have pre-installed pressed in races
  • Bearings included - (4) L-44643 1 inch inside dimension
  • Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

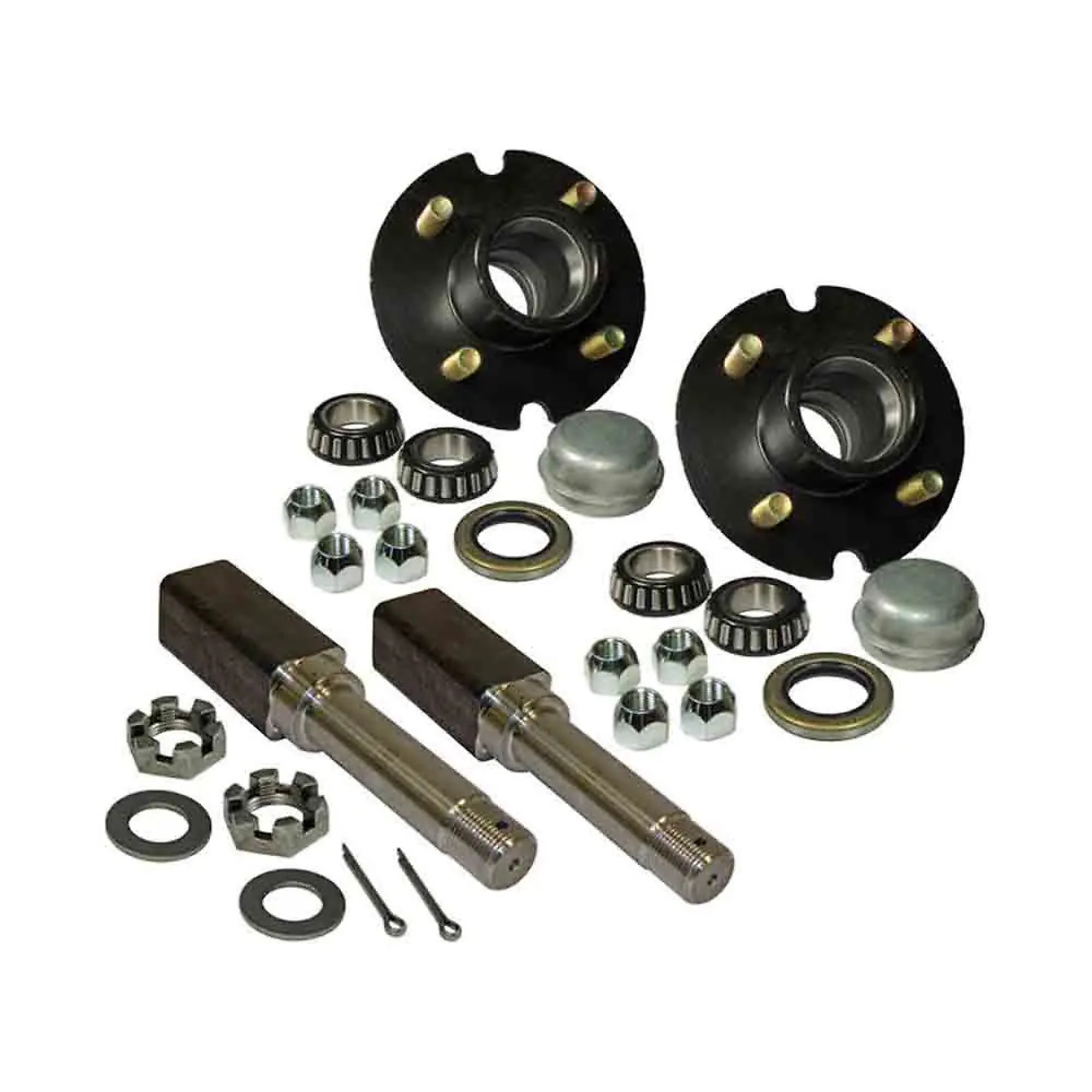

Easily build your own axle with this 2,000 lb. rated assembly. This kit includes (2) - 4-bolt on 4in. bolt center hubs for 2,000 lb. axles, (2) - 1in. straight spindles, (2) castle nuts, (2) cotter pins, (8) 1/2-20 lug nuts, (2) 1.987 O.D. x 1.249 I.D. grease seals, (4) L-44643 1in. I.D. inner/outer bearings and (2) 1.986 O.D. x 1.16in. depth, dust caps.

What's Included

    (2) Hubs with caps/seals/bearings (2) spindles

Features + Benefits

  • Hubs have a 4-bolt pattern on 4 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.
  • Spindles feature a SQUARE 1-1/2 inch stock diameter with a bearing surface of 1 inch
  • Hubs have pre-installed pressed in races
  • Bearings included - (4) L-44643 1 inch inside dimension
  • Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

Key Specs

AttributeSpecification

item#

6972943

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

23.0 LB

Weight Capacity

2,000 lb

Product Type

Parts

Axle Tube Type

Square

Studs (qty.)

4

Bolt Circle Pattern

4 in
AttributeSpecification

Seal Size ID

1.25 in

Bearing Size ID

1 in

Double-Lip

Yes

Springs Included

No

Hubs Included

Yes

Brakes Included

No

Product Weight

23.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
