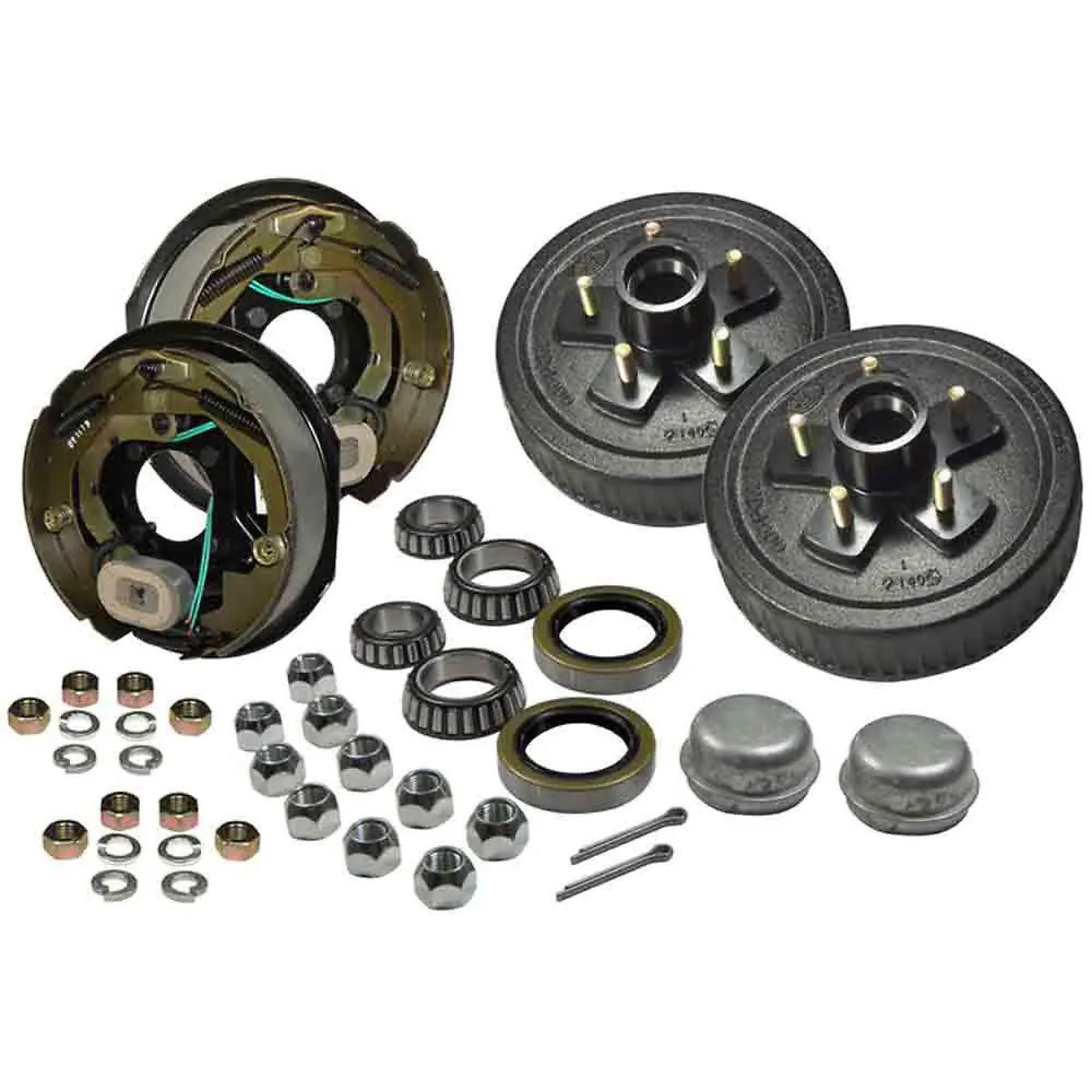

Rigid Hitch, Electric Drum Brake Kit, Pair, Left and Right Sides, 10in, 5-Bolt on 5in Circle, Model# BPH1003EPR

Item# 6973313
Rigid Hitch, Electric Drum Brake Kit, Pair, Left and Right Sides, 10in, 5-Bolt on 5in Circle, Model# BPH1003EPR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, Electric Drum Brake Kit, Pair, Left and Right Sides, 10in, 5-Bolt on 5in Circle, Model# BPH1003EPR

Click or Tap image to Zoom

$286.38

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

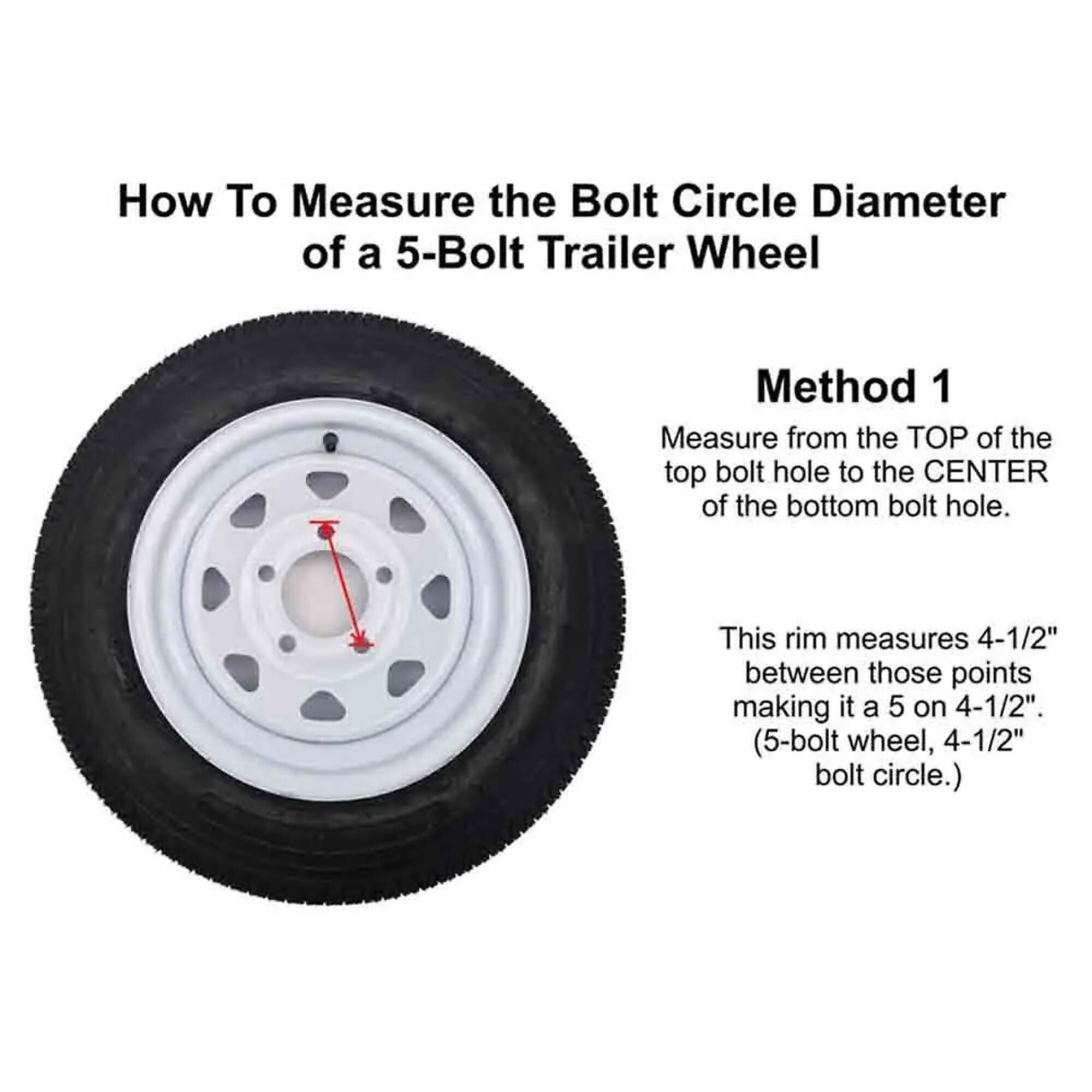

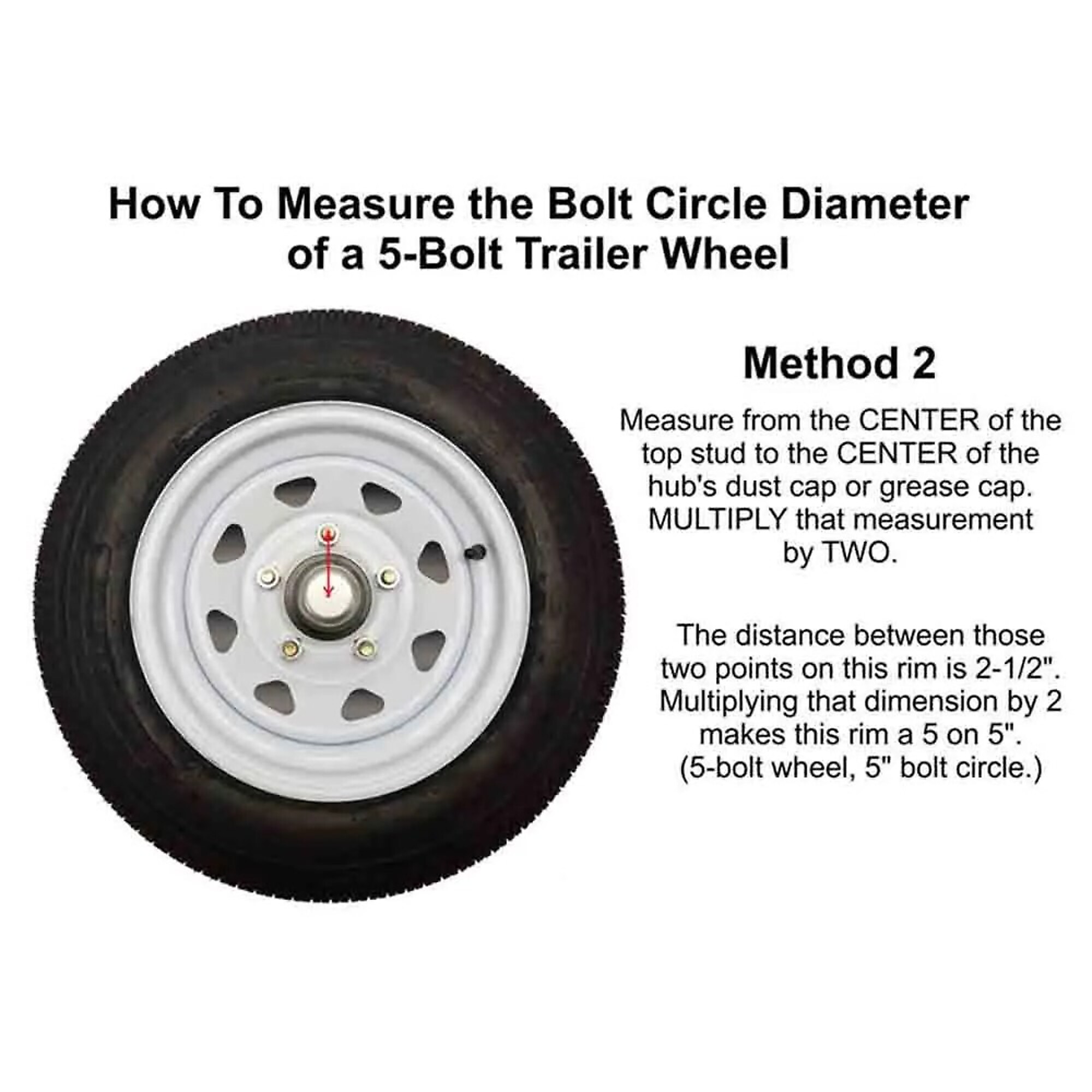

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 5" bolt circle hub is correct. * * *
  • This also includes a 4-bolt electric backing plate that mounts directly onto your axle's flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (8)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.
  • Also included are the bearings & seals. (2) Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (2) L-68149 inner bearings (1.378" I.D), (2) L-44649 outer bearings (1.0625" I.D), (2) cotter pins, (2) dust caps and 10-Pack 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nuts or grease are not included in this assembly.
  • The 10" x 2-1/2" hub/drum has a 5 bolt on 5" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This hub/drum assembly contains everything you need to replace your hub/drums brakes on your trailer. This assembly works for a spindle that has a 1-3/8in. inner bearing surface to a 1-1/16in. bearing surface.

What's Included

    (2) 10" Hub Drums (2) Backing Plate

Features + Benefits

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 5" bolt circle hub is correct. * * *
  • This also includes a 4-bolt electric backing plate that mounts directly onto your axle's flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (8)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.
  • Also included are the bearings & seals. (2) Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (2) L-68149 inner bearings (1.378" I.D), (2) L-44649 outer bearings (1.0625" I.D), (2) cotter pins, (2) dust caps and 10-Pack 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nuts or grease are not included in this assembly.
  • The 10" x 2-1/2" hub/drum has a 5 bolt on 5" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

Key Specs

AttributeSpecification

item#

6973313

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

68.0 LB

Drum Size

10 in

Brake Assembly

Left and Right

Fits Axle Capacity

3,500 lb

Fits Wheel Size Max.

14 in

Fits Wheel Size Min.

12 in

Bolt Pattern

5 on 4-1/2
AttributeSpecification

Included (qty.)

Set

Brake Type

Electric Drum

Inner Bearing Size

1.37 in

Outer Bearing Size

1.06 in

Hubs Included

No

Brake Lines

No

Brake Component

Free Backing

Product Weight

68.0000 lb

Dimensions L x W x H (in.)

16.0 x 6.0 x 15.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
