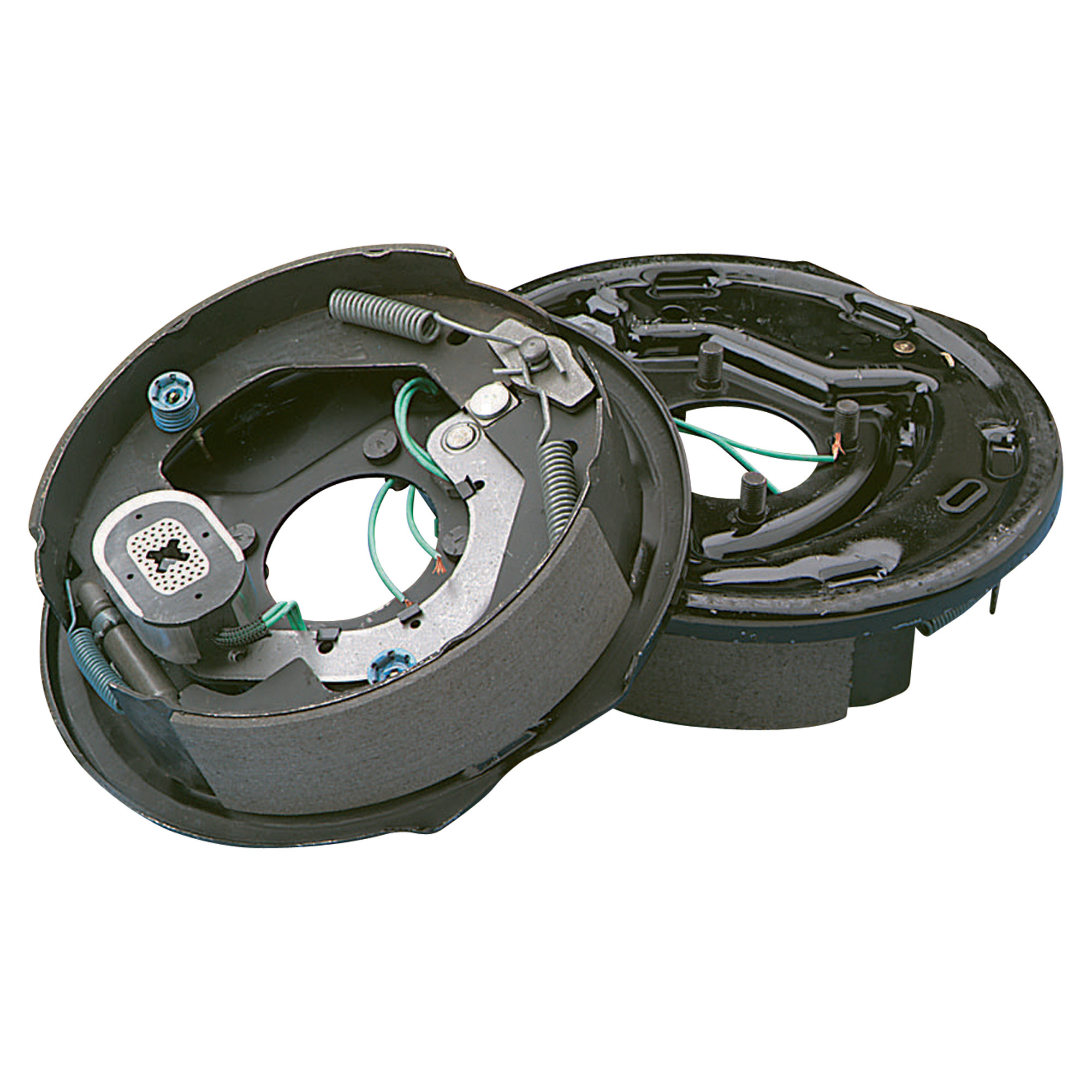

Dexter Electric Brakes, Pair, 12in., Model# K23-86806

Item# 21508
"Dexter Electric Brakes, Pair, 12in., Model# K23-86806"
Top Seller
Dexter Electric Brakes, Pair, 12in., Model# K23-86806

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dexter Electric Brakes, Pair, 12in., Model# K23-86806

Click or Tap image to Zoom

$189.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Fit on 5200-7000-lb. capacity axles.
  • This pair of Dexter Electric Brakes fit on 5200-7000-lb. capacity axles.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This pair of Dexter Electric Brakes fit on 5200-7000-lb. capacity axles.

What's Included

    (1) Pair of brakes

Features + Benefits

  • Fit on 5200-7000-lb. capacity axles.
  • This pair of Dexter Electric Brakes fit on 5200-7000-lb. capacity axles.

Key Specs

AttributeSpecification

item#

21508

Brand

Dexter

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.0 LB

Drum Size

12 in

Fits Axle Capacity

7,000 lb
AttributeSpecification

Included (qty.)

Pair

Brake Type

Electric Drum

Brake Lines

No

Product Weight

lb

Dimensions L x W x H (in.)

13.875 x 13.875 x 6.75 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Does is right and left or they are both same?

    1 answer

    1. The electric brakes will come with a brake magnet at the bottom of the brake. The magnet actuating arm will curve either to the left (LH) or right (RH) from the top pivot point of the brake arm down to the magnet. If the arm curves to the left, it is a left-hand brake. If it curves to the right, it is a right-hand brake. In addition, the primary shoe is always to the front of the trailer and the brake wires always exit the rear of the brake backing plate.

      Helpful?

  2. what are the mounting plate bolt centers diagonally and what is the diameter of the central hole, in the mounting plate, for the axle hub?

    1 answer

    1. The center hole is 3 1/4". It has 5 studs with the bolt circle pattern of 3.5", 4" and 6".

      Helpful?

  3. Do these brakes work in reverse

    1 answer

    1. The brakes do function while moving in reverse.

      Helpful?

  4. what is the bolt pattern of part#21508-1456

    1 answer

    1. These electric brakes have 5 studs and the bolt circle pattern is: 3.5, 4, 6.

      Helpful?

  5. For a tandem axle trailer, would I need 2 pair?

    1 answer

    1. For a tandem axle trailer we do recommend using 2 pairs of electric brakes.

      Helpful?

  6. Are these self adjusting?

    1 answer

    1. Drum brakes are self adjusting but the only way they work is to apply brakes while vehicle is in reverse and wheels are turning backwards.

      Helpful?

  7. What is the width of the brake shoes

    1 answer

    1. The width of the brake shoes are 1 1/2'' - 2''

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
