Dexter 6-Hole Brake Drum, 12in., Model# 86753

Item# 21504

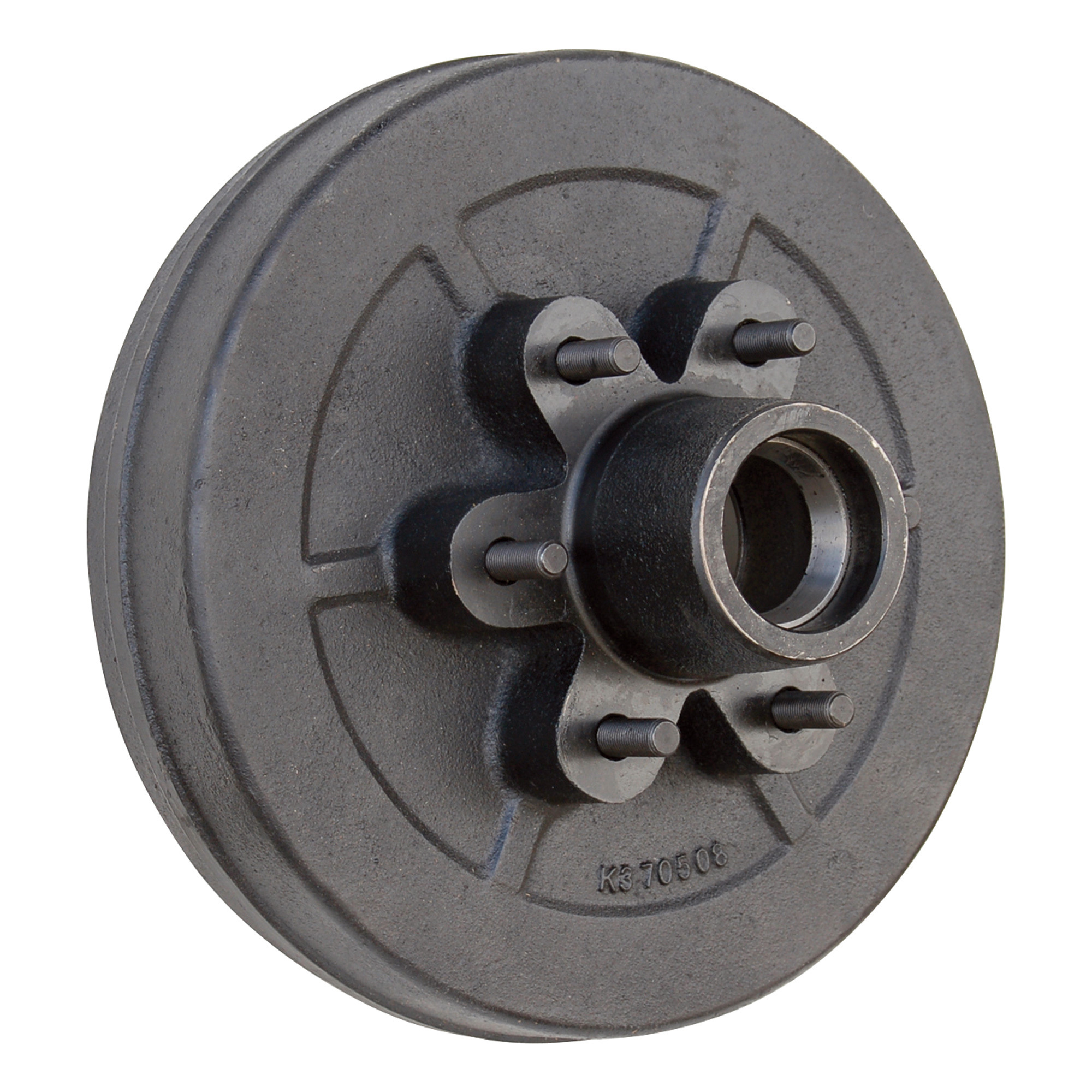

Dexter 6-Hole Brake Drum, 12in., Model# 86753

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dexter 6-Hole Brake Drum, 12in., Model# 86753

Click or Tap image to Zoom

$254.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • One-piece design includes hub and brake drum
  • 1 3/4in. inner bearing
  • 1 1/4in. outer bearing
  • 2.25in. seal

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Dexter 6-Hole Brake Drum fits on 5200-7000-lb. capacity axles.

What's Included

    (1) Brake drum

Features + Benefits

  • One-piece design includes hub and brake drum
  • 1 3/4in. inner bearing
  • 1 1/4in. outer bearing
  • 2.25in. seal

Key Specs

AttributeSpecification

item#

21504

Brand

Dexter

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

39.0 LB

Drum Size

12 in
AttributeSpecification

Fits Axle Capacity

7,000 lb

Included (qty.)

Single

Brake Type

Drum Brake Hubs

Inner Bearing Size

1.75 in

Outer Bearing Size

1.25 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Are these pre packed with grease

    1 answer

    1. The brake drum will come prepacked with grease.

      Helpful?

  2. What is the maximun tire size you can use with these drums?

    1 answer

    1. The brake drum will work with wheel sizes 14.5" -16.5".

      Helpful?

  3. Can these drums be used with ez lube zerk fittings?

    1 answer

    1. This drum can be used with the EZ Lube spindles. EZ Lube spindles are compatible with all idler hub, brake hub, drum assemblies. The only difference is the seal and grease cap. If you will need a new grease cap and seal then you would purchase this from the EZ Lube Manufacturer directly.

      Helpful?

  4. What is the stud size? thread pitch?

    1 answer

    1. The studs are ½”-20 thread.

      Helpful?

  5. does this drum hub fit a spindle length of 3.5 inch

    1 answer

    1. This drum requires a 4 1/2" long spindle. See recommended axles below.

      Helpful?

  6. What is the bolt circle diameter on this drum?

    1 answer

    1. The bolt circle pattern for this drum is 5.5".

      Helpful?

  7. Bolt pattern on the backing plate that bolts to the spindle plate? Most are 4 bolt, but your 80113 spindle has 5 holes? Are the 2 compatable?

    1 answer

    1. This brake drum is compatible with the spindle, model number 80113.

      Helpful?

  8. What type of spindle does it fit

    how long of a spindle will this fit?

    1 answer

    1. The spindle to fit the tow zone 6 hole brake drum would need to have a 1 3/4" (inch) inner bearing and a 1 1/4" (inch) outer bearing size.

      Helpful?

  9. does the 6-hole 12" brake drum include bearings and seals

    1 answer

    1. Yes, this brake drum will include both bearings and seals.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
