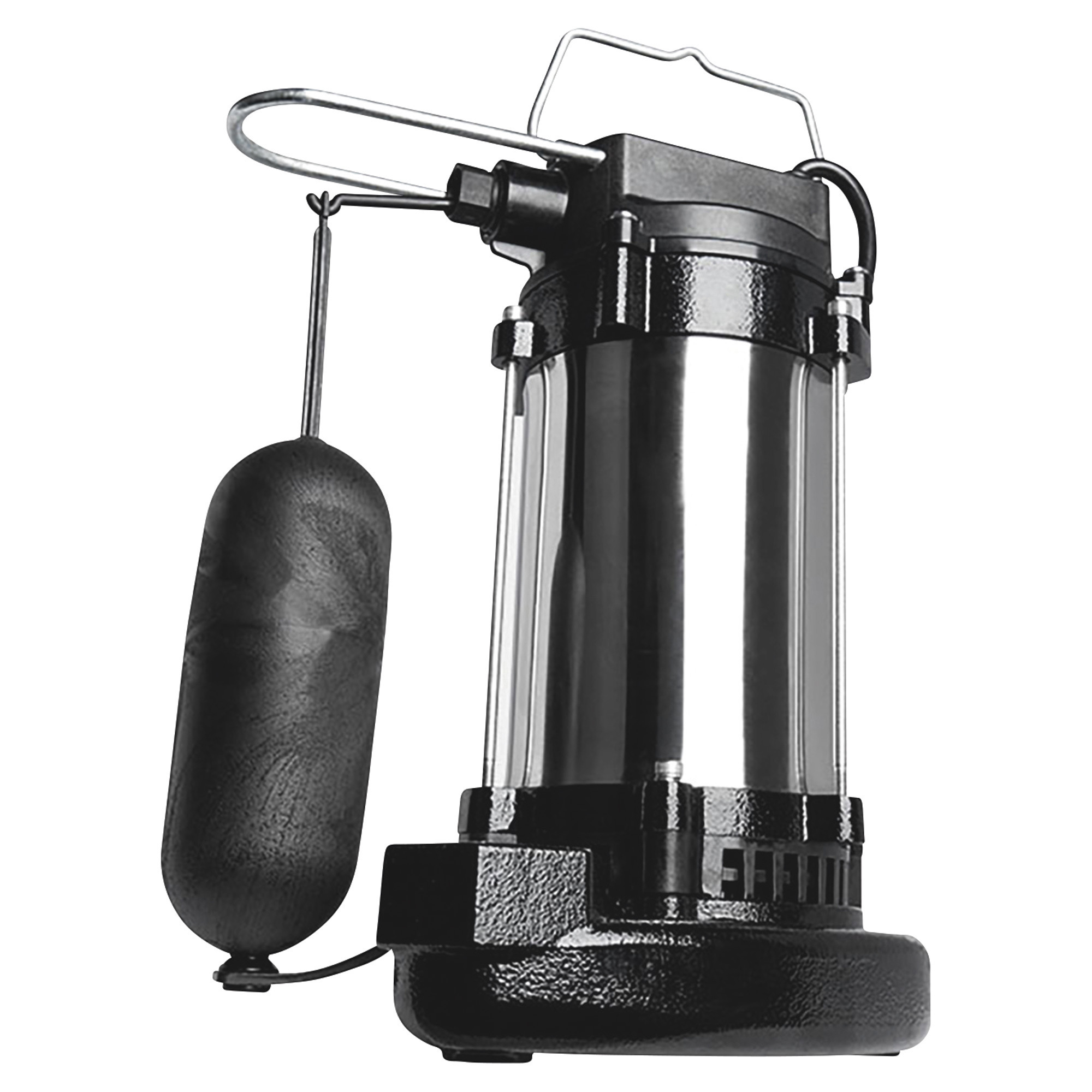

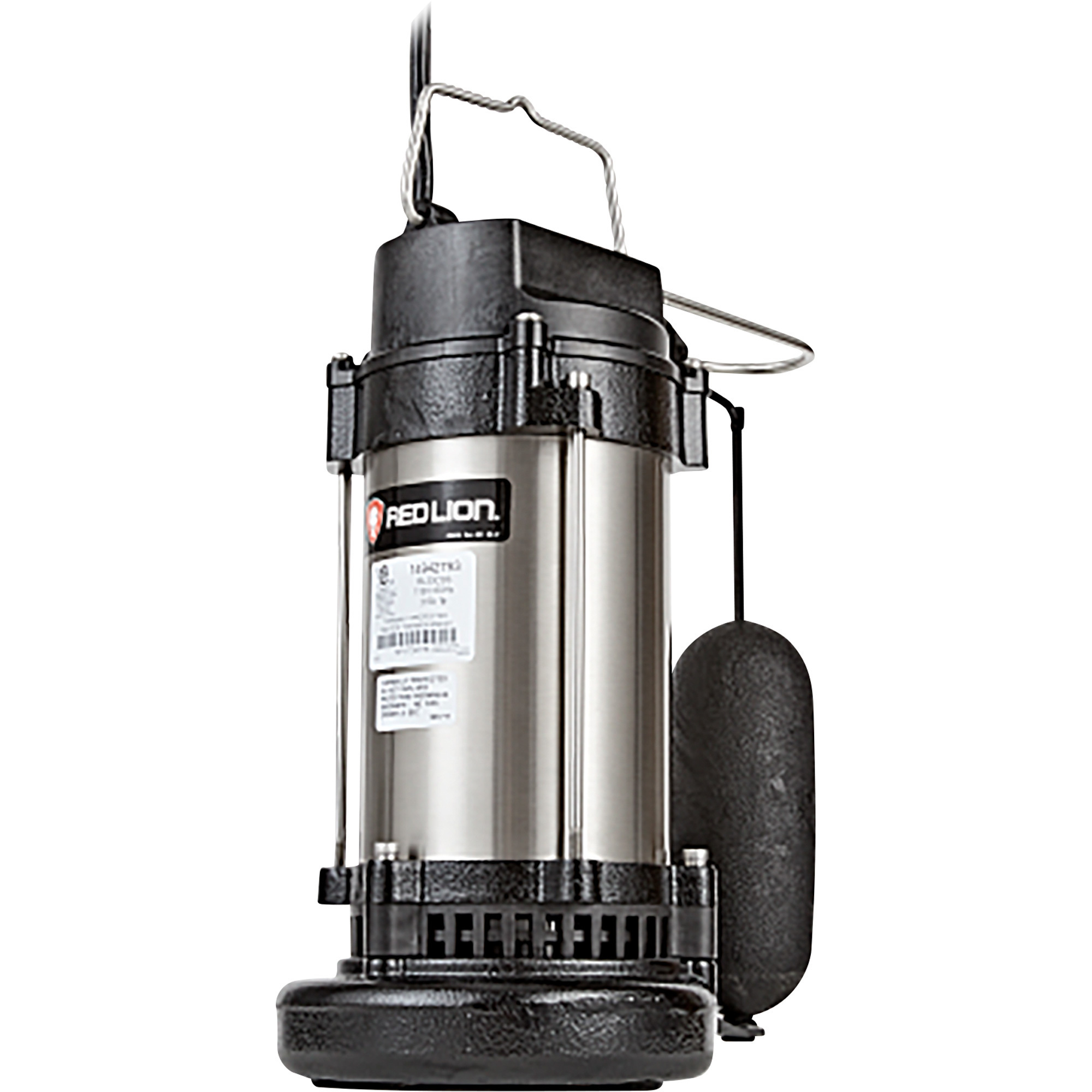

Red Lion CSS Series Stainless Steel Submersible Sump Pump, 4500 GPH, 3/4 HP, 1 1/2in. Port, Model# RL75CSS

Item# 107837
"Red Lion CSS Series Stainless Steel Submersible Sump Pump, 4500 GPH, 3/4 HP, 1 1/2in. Port, Model# RL75CSS"
Top Seller
Red Lion CSS Series Stainless Steel Submersible Sump Pump, 4500 GPH, 3/4 HP, 1 1/2in. Port, Model# RL75CSS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Red Lion CSS Series Stainless Steel Submersible Sump Pump, 4500 GPH, 3/4 HP, 1 1/2in. Port, Model# RL75CSS

Click or Tap image to Zoom

$319.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Energy-efficient 3/4 HP motor with 300 Grade stainless steel construction
  • Pumps up to 4500 GPH @ 0ft.; 4000 GPH @ 10ft.
  • Long-lasting carbon-ceramic seals
  • Installation-friendly snap-action float switch creates a smaller pump footprint for flexibility and ease of use in reduced-diameter sump pits
  • Cast iron motor cover will not expand or retract, offering superior seal protection when compared to plastic motor covers

See full description

Complete Your Solution

  • Red Lion CSS Series Stainless Steel Submersible Sump Pump, 4500 GPH, 3/4 HP, 1 1/2in. Port, Model# RL75CSS
  • JGB Enterprises Discharge Hose, 1 1/2in. x 25ft., Model# A008-0246-1625
  • West Chester Protective Gear Men's PVC Coated Work Gloves, Black, Large, Model# 12000-L
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all four:

$389.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Red Lion® Stainless Steel Submersible Sump Pump provides maximum pump life in applications with high-metal or mineral content. It pumps at a maximum flow rate of 4500 GPH and the elevated suction design minimizes clogs caused by debris and eliminates air lock. A removable volute makes maintenance quick and easy if ever needed. 1 1/2in. NPT discharge port. 3-year limited warranty.

What's Included

    (1) Sump pump

Downloads

Product Manual

Features + Benefits

  • Energy-efficient 3/4 HP motor with 300 Grade stainless steel construction
  • Pumps up to 4500 GPH @ 0ft.; 4000 GPH @ 10ft.
  • Long-lasting carbon-ceramic seals
  • Installation-friendly snap-action float switch creates a smaller pump footprint for flexibility and ease of use in reduced-diameter sump pits
  • Cast iron motor cover will not expand or retract, offering superior seal protection when compared to plastic motor covers
  • O-ring seal system maximizes seal that barricades the capacitor from water exposure to help protect pump and extend pump life
  • Metal-attached tie-bolts minimize wear to maximize motor seal integrity
  • Elevated suction design minimizes clogs caused by debris and eliminates air lock to minimize maintenance
  • Removable volute makes maintenance quick and easy if ever needed

Key Specs

AttributeSpecification

item#

107837

Brand

Red Lion

Manufacturer's Warranty

3 year limited warranty

Ship Weight

23.0 LB

Max. Flow

4,500 GPH

Port Size

1.5 in

Volts

115

Solar Powered

No

Watts

650

Amps

5.5
AttributeSpecification

Vertical Lift

0.5 ft

Solids Capacity

0.5 in

Power Cord Length

120 in

Discharge Flow @ 0 Ft.

4,000 GPH

Discharge Flow @ 10 Ft.

4,000 GPH

Housing Material

Stainless Steel

Horsepower

0.75

Product Weight

23.3000 lb

Dimensions L x W x H (in.)

11.4 x 8.5 x 14.6 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. how to adjust float action

    1 answer

    1. To adjust the float you would need to physically reposition the tether point on the float switch cord. This will allow you to set the water level you want the float to activate and deactivate at. You would raise or lower the attachment point of the cord on the pump body.

      Helpful?

  2. What size is the pit?

    1 answer

    1. This sump pump must be installed in a suitable gas-tight basin that is at least 18" in diameter and 24" deep, and vented in accordance with local plumbing codes.

      Helpful?
