RDS Aluminum Auxiliary Fuel Tank Toolbox Combo, 41 Gallon, Rectangular, Diamond Plate, Model# 72773

Item# 3490118
"RDS Aluminum Auxiliary Fuel Tank Toolbox Combo, 41 Gallon, Rectangular, Diamond Plate, Model# 72773"
RDS Aluminum Auxiliary Fuel Tank Toolbox Combo, 41 Gallon, Rectangular, Diamond Plate, Model# 72773

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

RDS Aluminum Auxiliary Fuel Tank Toolbox Combo, 41 Gallon, Rectangular, Diamond Plate, Model# 72773

Click or Tap image to Zoom

$1199.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Gravity feed diesel
  • Low-profile design works well with fifth wheels
  • Built-in baffles reduce fuel sloshing during transport
  • Rust-free aluminum construction protects fuel from contamination
  • Sight gauge allows you to quickly determine fuel level

See full description

Complete Your Solution

  • RDS Aluminum Auxiliary Fuel Tank Toolbox Combo, 41 Gallon, Rectangular, Diamond Plate, Model# 72773
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits 1999-Current Ford, 2011-Current Chevrolet and GMC and Dodge 1999-2012, Model# 011025
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits Chevy/GMC 1999-2010, Model# 011029
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits 2013-Current Dodge Diesel Passenger Trucks, Model# 011408
Price for all four:

$1492.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This sturdy 41-Gal. RDS Aluminum Auxiliary Fuel Tank/Toolbox Combo provides extra fuel storage that allows for increased driving range. The auxiliary tank can be used as additional capacity for diesel truck fuel tank when connected with the RDS diesel install kit (sold separately). This combo tank includes a fuel cap, drain fittings, manual sight gauge, fuel filler shroud for safety, and baffles to reduce sloshing. The toolbox has a linked stainless steel lock that also secures fuel fill to prevent tampering. Two cylinders hold the crowned lid open. Aluminum diamond plate. Meets DOT standards. Made in the USA

What's Included

    (1) Fuel tank toolbox combo

Downloads

Product Manual

Features + Benefits

  • Gravity feed diesel
  • Low-profile design works well with fifth wheels
  • Built-in baffles reduce fuel sloshing during transport
  • Rust-free aluminum construction protects fuel from contamination
  • Sight gauge allows you to quickly determine fuel level
  • Large 2in. fill spout allows for faster fillups
  • 3/8in. FPT drain plug
  • 100% pressure tested and leakfree
  • Includes vent
  • Secure fill compartment helps prevent theft
  • Extra fuel capacity allows for increased driving range
  • Toolbox lid will need to be approx. 1 1/4in. from the back bed to open properly
  • Diesel install kits (Item#s 3490901, 3490902 and 43748), are also available (sold separately)
  • It is the user's responsibility to comply with local, state and federal requirements pertaining to safe transportation, loading and discharging of tank contents
  • Not intended to be used for gasoline

Key Specs

AttributeSpecification

item#

3490118

Brand

RDS

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

143.0 LB

Capacity

41 Gal

Shape

Rectangle

Material

Aluminum
AttributeSpecification

Finish

Diamond Plate

Inlet Port

2 in

Outlet Port

2 in

Mounting Hardware Included

Yes

DOT Approved

Yes

Product Weight

90 lb

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Does this use bottom drain or siphon?

    The description on the compare list shows: Suction tube, manual sight gauge, baffles, return, drain fittings.

    Does the suction tube mean the fuel siphons to the main tank? And what is the manual sight gauge, is there a view port or does this mean dipping the tank with a gauging stick?

    1. This tank would use the bottom 3/8" drain port if used in an auxiliary application. It would require auxiliary conversion kits #3490901, #3490902, or #43748 depending on which make, model, and year truck you have. The sight gauge is a view port built into the fuel cap.

      Helpful?

    2. It is gravity fed, you will need to purchase the kit separately. The manual site gauge is similar to one you would see on a lawn mower, its a metal rod with a float.

      Helpful?

    3. This tank is set up for bottom drain / gravity feed into the vehicle tank. There is an additional fitting at the top of the top to install top siphon tube if you wish but no kit that I know of to do it, so you will have to design and source the parts yourself.

      Helpful?

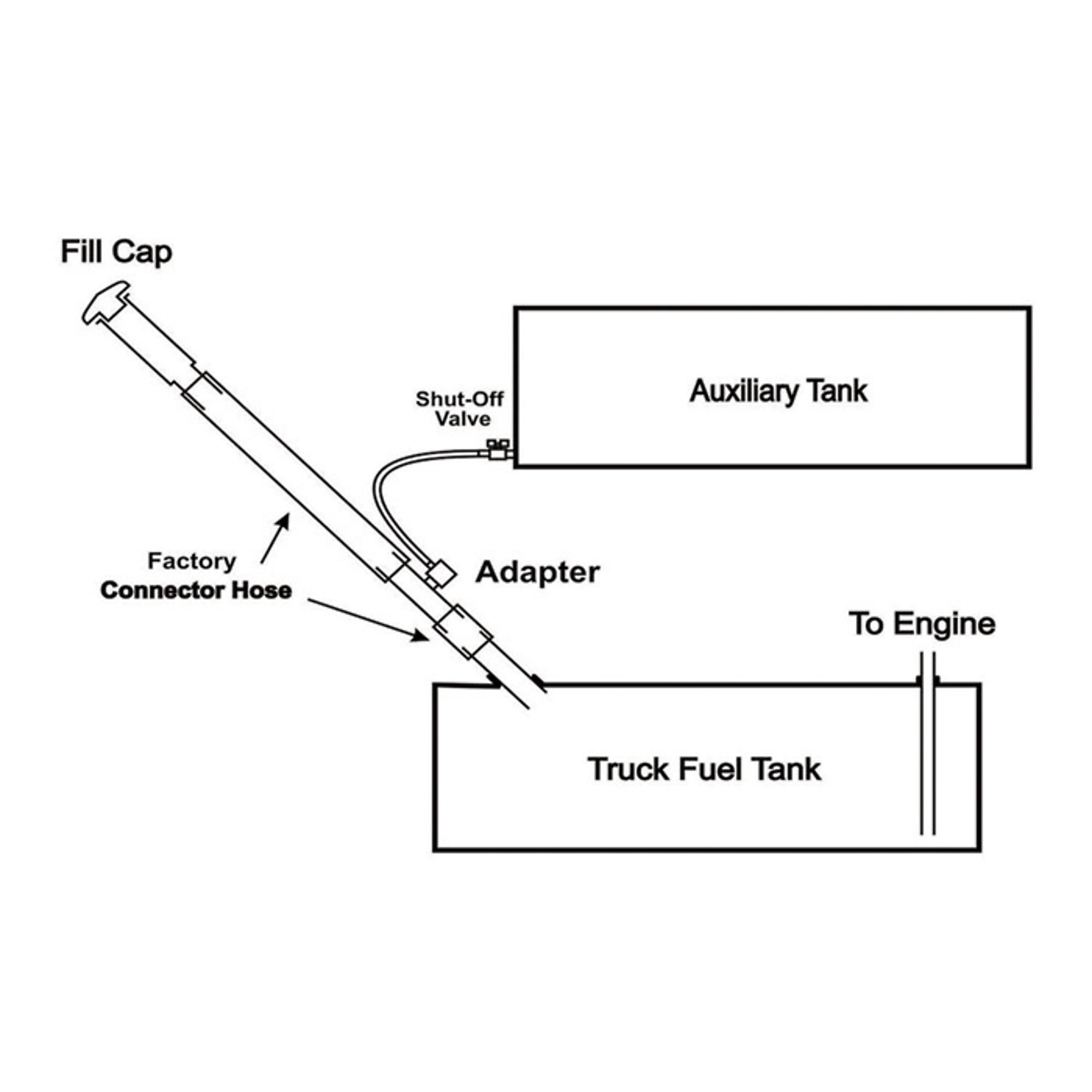

    4. This is a drain tube which can be plumbed into your vehicle fuel filler neck. There is also a vent tube that is used at the top of the tank. The fuel gauge is located on the Filler cap of the tank itself.

      Helpful?

    5. This unit would use the bottom drain port if used in an auxiliary application. It would require item numbers 3490901, 3490902 or 43748 depending on which make, model and year of truck you have. The sight gauge is a view port built into the fuel cap.

      Helpful?

  2. Does this tank/box come with the drain/hook-up tubes?

    1. The tank has a 3/8" drain that can be used for auxiliary conversion for diesel gravity feed. It does not include any hook-up tubes. Please see our item #3490901, #3490902, or #43748 for auxiliary conversion kits that can be used.

      Helpful?

    2. no, you need to buy a kit for a gravity feed

      Helpful?

    3. No plumbing hoses are included with the tank. You will need to purchase the appropriate kit for your model vehicle.

      Helpful?

    4. The tank has a 3/8" drain. The tank does not include hook up tubes. Our item numbers 3490901 (Model number 011025) and 3490902 (Model number 011029) shown below are the diesel installation kits available for these tanks.

      Helpful?

  3. Is this available in black powder coat?

    1. No, it is not available in black powdercoat.

      Helpful?

    2. This RDS fuel tank combo- 41 gallon is not available in a powder coat finish.

      Helpful?

  4. Can the tank be placed against front of the truck bed and the lid open fully without interference or will the box have to be set back from bed front

    1. No, it requires 1 1/4 inches between the front of the bed and the back of the tank for the lid to function correctly.

      Helpful?

    2. The RDS Toolbox Combo would need to be installed about 1 1/2 inches from a solid back surface to allow proper opening of the lid.

      Helpful?

  5. can I put a pump on this like the other slip tanks so I can fill up other trucks

    1. This tank does not have a 2" fitting to install a pump. Please see our item #3490117 for a similar tank/toolbox combo that can have a pump installed.

      Helpful?

    2. A pump can not be put on this tank to fill up other trucks, I will list a tank below that will accept a pump to transfer diesel fuel.

      Helpful?

  6. does this have to hook into the fuel tank?

    1. You can install this tank without hooking into the vehicle fuel system. That is what I did as I did not want to hook into my vehicle until my extended warranty has exprired to avoid any possible issues should a fuel related problem arise. I use the Northern Tool Roughneck Portable 12V Fuel Transfer Pump Kit — 10 GPM, Manual Nozzle, Hose to fill my vehicle but the filter end has to be modified as it is too wide to fit into the Auxiliary tank filler neck.

      Helpful?

    2. The RDS Fuel Tank Toolbox Combo does not require it to be hooked into your trucks fuel tank.

      Helpful?

  7. Is the 18” width at the top or bottom or taper?

    1 answer

    1. The width of the box across the top is 18 inches. The width across the bottom is 12 inches at the taper.

      Helpful?

  8. what pump would we order for this

    1 answer

    1. This is an auxiliary fuel tank and is not intended for use as a transfer tank with a pump. This would be used with a diesel install kit like our item #3490901, #3490902, or #43748.

      Helpful?

  9. How many gallons of fuel does it hold?

    1 answer

    1. The fuel tank has a 41 gallon capacity.

      Helpful?

  10. How many inches wide is on the bottom of tank?

    My truck is Dodge Ram 2500, 2010, mega cab, short bed
    I have only 15 1/2 " to tire bump. If your tank is 18" on the bottom - it will not fit in.
    I'm looking for box/tank that will fit on my truck and the tank to be around 50 GA

    1 answer

    1. The measurements for the tank and toolbox combo are as follows;

      Total Length = 55", Width at Top = 18", Width at Base = 12", Total Height = 21 3/4"

      The measurement for the toolbox portion are as follows;

      Height = 9", Length = 48", Width = 18"

      Helpful?
