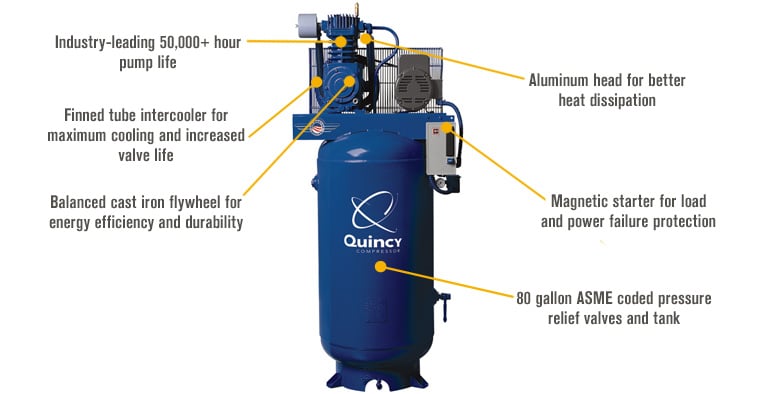

Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gallon, 2-Stage, 230V, 1 Phase, Model# 2020040716

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Factory shippedStore Pickup:
Not Available
- Mounted and wired magnetic starter
- Splash lubrication
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- Pump RPM: 890
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Quincy QT1-7.5 Splash Lubricated Reciprocating Air Compressor -- 80-Gallon, Model# 471CS80VCB
Downloads

Features + Benefits

- Mounted and wired magnetic starter
- Splash lubrication
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- Pump RPM: 890
- Motor RPM: 1725
- 2-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- ASME-coded pressure relief valves and tanks
- UL & CSA approval on all electrical components
- Additional charge for liftgate shipping option
- One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).
Key Specs
| Attribute | Specification |
|---|---|
item# | 35239003 |
Brand | Quincy Compressor |
Manufacturer's Warranty | 12 months parts/12months labor |
Ship Weight | 643.0 LB |
Horsepower | 7.5 HP |
Air Tank Size | 80 Gal |
Volts | 230 |
CFM at 90 PSI | 24.3 |
Max. PSI | 175 |
Stage | 2 |
Amps | 40 |
Duty Cycle | 100 % |
Motor RPM | 1,725 |
| Attribute | Specification |
|---|---|
Working Pressure | 135-175 PSI |
Motor Phase | 1 |
Pump Life | 50,000 hr |
Pump Material | Cast Iron |
Air Outlet Size | 3/4 in. NPT |
CFM at Max. PSI | 22.6 |
Oil Required | Yes |
Lubrication System | Splash |
Drain Type | Manual |
Tank Orientation | Vertical |
Product Weight | 593.0000 lb |
Dimensions L x W x H (in.) | 35.0 x 28.0 x 77.0 in |
