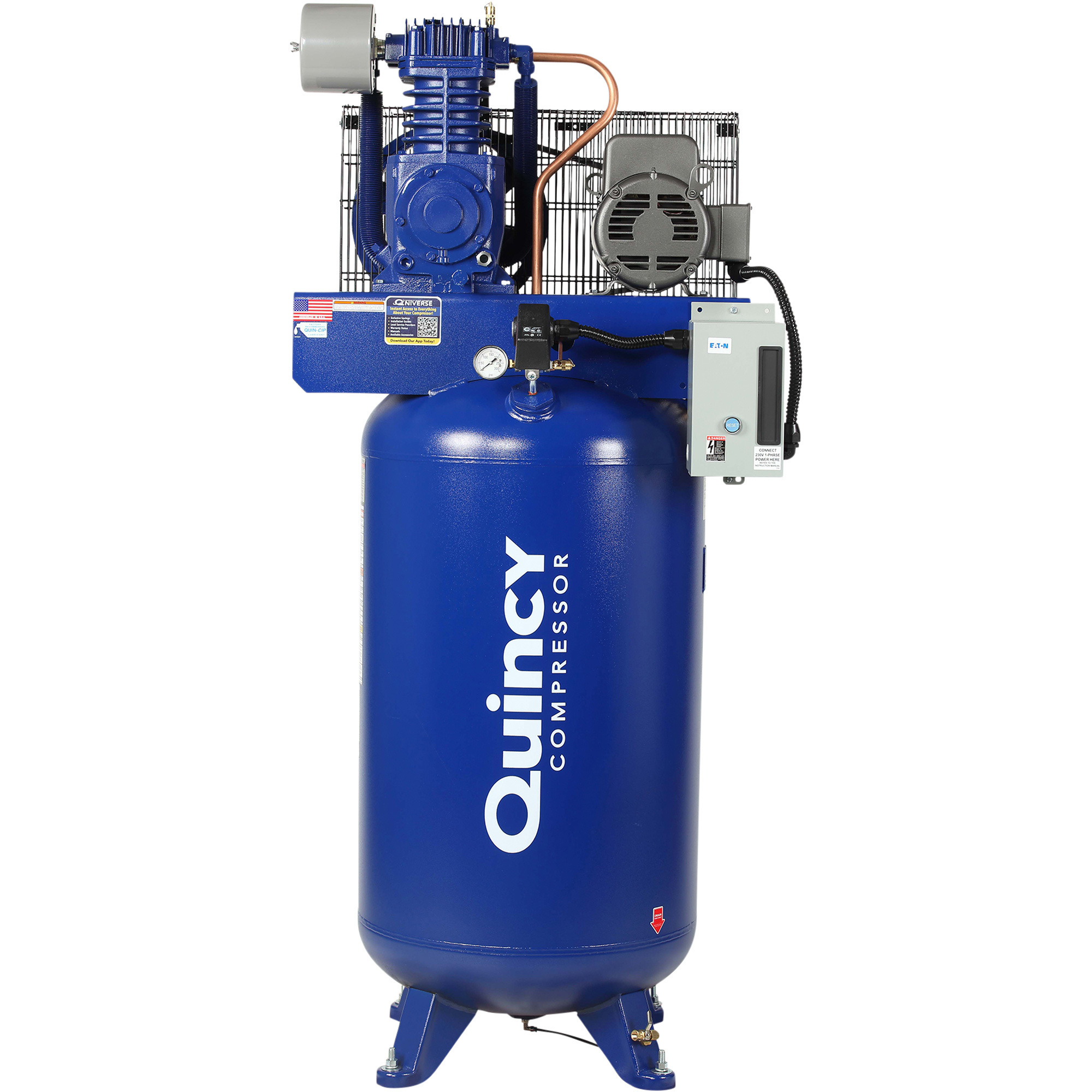

Quincy QT-5 Splash Lubricated Reciprocating Air Compressor, 5 HP, 230 Volts, 3 Phase, 80-Gallon Vertical, Model# 253DS80VCB23

Item# 51747
Quincy QT-5 Splash Lubricated Reciprocating Air Compressor, 5 HP, 230 Volts, 3 Phase, 80-Gallon Vertical, Model# 253DS80VCB23

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QT-5 Splash Lubricated Reciprocating Air Compressor, 5 HP, 230 Volts, 3 Phase, 80-Gallon Vertical, Model# 253DS80VCB23

Click or Tap image to Zoom

  • Industrial-duty motor

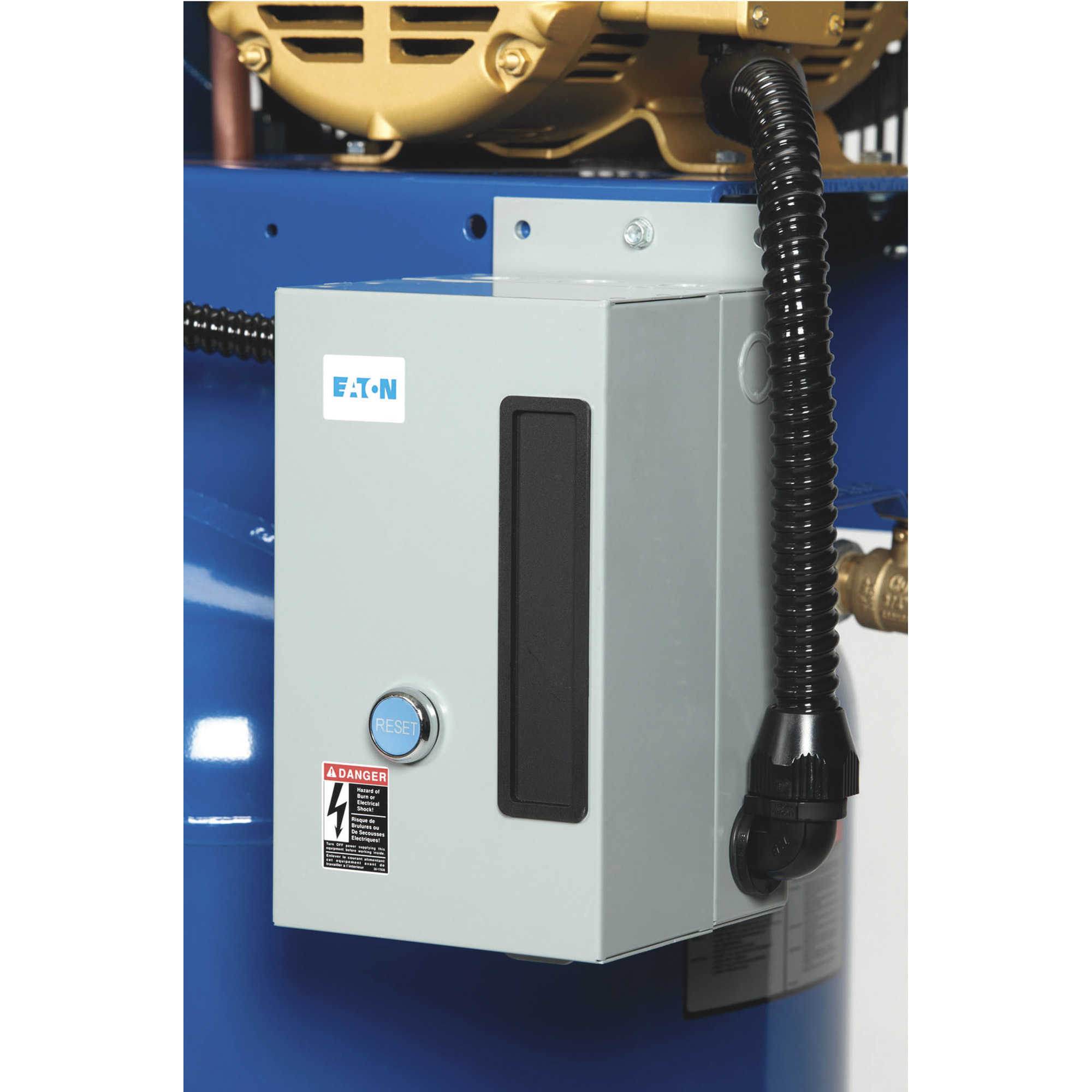

  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 942

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower than the average air compressor. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. Purchase an extended warranty kit (Item# 42637) at the same time (on the same receipt) as your Quincy air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included).

What's Included

    (1) 5 HP, 80-gallon vertical air compressor

Features + Benefits

  • Industrial-duty motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 942
  • 2-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Ships in heavy-duty protective crate with oil in the pump

Key Specs

AttributeSpecification

item#

51747

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

680.0 LB

Horsepower

5 HP

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

17.7

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

28

Duty Cycle

100%

Motor RPM

1,750
AttributeSpecification

Working Pressure

175 PSI

Motor Phase

3

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

17.4

Noise Level

78dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Drain Type

Manual

Product Weight

680.0000 lb

Dimensions L x W x H (in.)

37.0 x 24.0 x 74.0 in
