Quincy QT Splash Lubricated Duplex Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 273DC12DC46

Item# 325043
Quincy QT Splash Lubricated Duplex Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 273DC12DC46

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

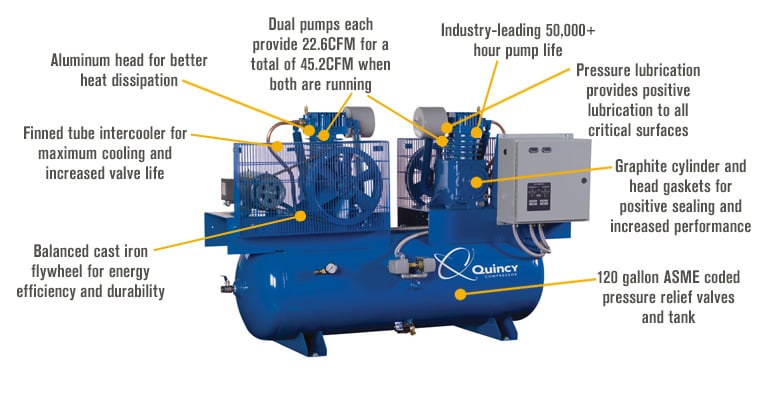

Quincy QT Splash Lubricated Duplex Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 273DC12DC46

Click or Tap image to Zoom

$9499.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 7.5 HP motor
  • 460 (240)V, 3 Phase
  • 120-gallon tank
  • QT splash-lubricated pump
  • Provides up to 175 PSI and delivers 45.2 CFM when both pump/motor systems are operating

See full description

Complete Your Solution

  • Quincy QT Splash Lubricated Duplex Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 273DC12DC46
  • Quincy Extended Support and Maintenance Kit for Quincy QT-5 and QT-7.5 Air Compressors, Model# EWK-3
Price for all two:

$9798.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Quincy QT Splash Lubricated Duplex Air Compressor is a heavy-duty industrial 2-stage duplex air compressor system that protects your business from expensive downtime! The duplex compressor includes two QT splash-lubricated compressors and two motors mounted on an ASME horizontal tank. Each system can be run independently or together, should your air demand require it. Works in applications from intermittent-duty to 100% duty requirements. 1-year limited warranty without extended warranty kit purchase. Purchase two extended warranty kits (Item# 42637, one for each compressor) at the same time (on the same receipt) as your Quincy 120-gallon duplex air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

What's Included

    (1) Quincy Compressor, QNCY 7.5 HP DUPLEX THREE PHASE, Horsepower 7.5 HP, Air Tank Size 120 Gal, Volts 460 Model# 473DC12DC46

Features + Benefits

  • 7.5 HP motor
  • 460 (240)V, 3 Phase
  • 120-gallon tank
  • QT splash-lubricated pump
  • Provides up to 175 PSI and delivers 45.2 CFM when both pump/motor systems are operating
  • 50,000-hour pump life
  • Solid-state circuitry control panel with two I.E.C.-rated magnetic starters and auxiliary contacts
  • Thermal overload protection
  • One 120 VAC control transformer
  • Automatic alternation with lead/lag
  • Green LED Power On indicators
  • Compressor Run indicators
  • Test/off/run rocker switches
  • Lead select/auto switch
  • Hour meters
  • Red LED motor fault indicators
  • Fault/shutdown alarm contacts for start/stop operation
  • Single point incoming power connection
  • Comes with oil in the compressor pumps, ready for hookup

Key Specs

AttributeSpecification

item#

325043

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1310.0 LB

Air Tank Size

120 Gal

Volts

460

CFM at 90 PSI

30

Motor Phase

3

Stage

2
AttributeSpecification

Horsepower

7.5 HP

Max. PSI

175

Duty Cycle

100 %

Pump Life

50,000 hr

Pump Material

Cast Iron

CFM at Max. PSI

45.2

Oil Required

Yes

Product Weight

lb

Dimensions L x W x H (in.)

78.0 x 28.0 x 55.0 in

Reviews

Questions & Answers

Questions

  1. What size breaker would this unit require?

    1 answer

    1. The manufacturer does not give a breaker size for this compressor. It does have the 2 separate motors and compressors. Each one pulling 11 amps for a total 22 amps of draw.
