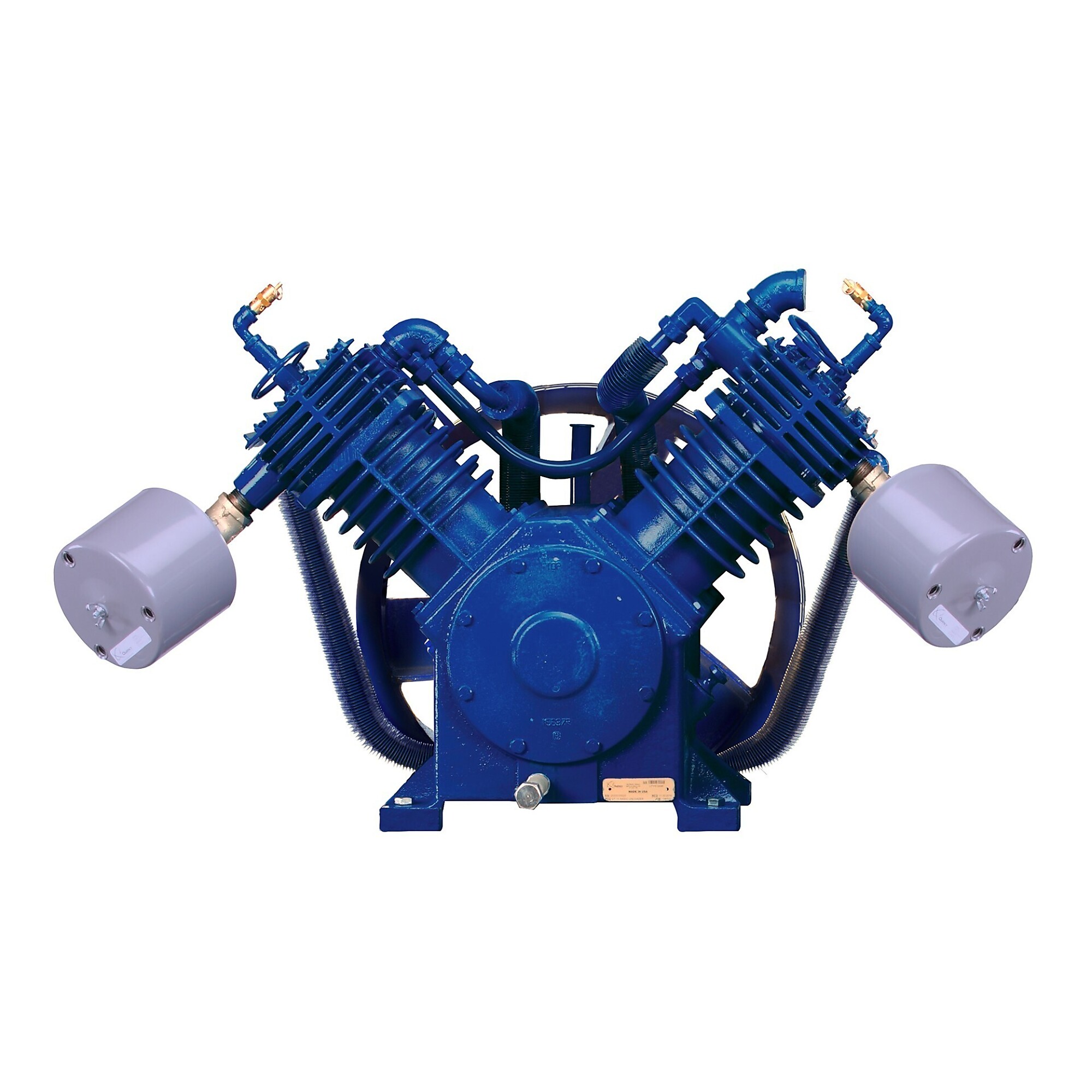

Quincy QT-2 Cast Iron Two-Stage Pump, Model# 2020040401

Item# 7513394
New
Quincy QT-2 Cast Iron Two-Stage Pump, Model# 2020040401

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QT-2 Cast Iron Two-Stage Pump, Model# 2020040401

Click or Tap image to Zoom

$3779.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • QT-2 Pump
  • Cast Iron
  • Industrial Two-Stage
  • 4.5“ low pressure bore and a 2.5“ high pressure bore, with a 3.5 “ stroke
  • 400-1200 RPM

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QT-2 cast iron industrial two stage pump is for a 4-cylinder air-cooled splash lubricated compressor, with up to 175 psi continuous pressure capability.  It has a 4.5“ low pressure bore and a 2.5“ high pressure bore, with a 3.5 “ stroke.  This compressor can be run anywhere between 400 and 1200 RPM.  This pump is directional, meaning it must run CCW when looking at it from the flywheel side.  Comes with a B-section 2 groove 18.9“flywheel.

What's Included

    (1) Quincy QT-2 Cast Iron Two-Stage Pump, Model# 2020040401

Features + Benefits

  • QT-2 Pump
  • Cast Iron
  • Industrial Two-Stage
  • 4.5“ low pressure bore and a 2.5“ high pressure bore, with a 3.5 “ stroke
  • 400-1200 RPM

Key Specs

AttributeSpecification

item#

7513394

Brand

Quincy Compressor

Manufacturer's Warranty

3 month limited warranty

Ship Weight

305.0 LB

Material

Cast Iron
AttributeSpecification

Stage

2

Recommended Use

Air Compressor

Max. PSI

175

Product Weight

265.0000 lb

Dimensions L x W x H (in.)

42.0 x 30.0 x 24.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
