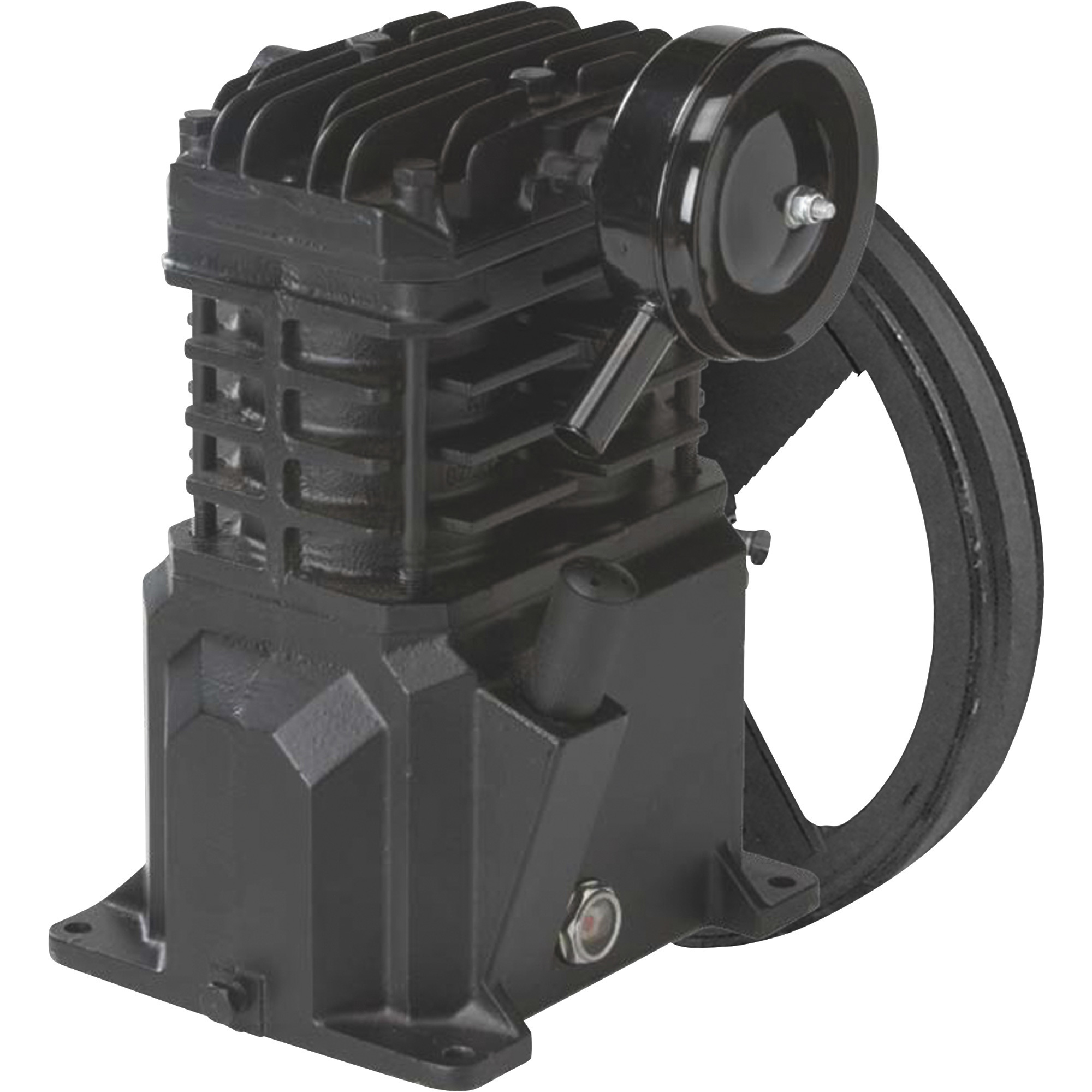

Campbell Hausfeld Cast Iron, Single-Stage Air Compressor Pump, Model# VT4823

Item# 54522
Campbell Hausfeld Cast Iron, Single-Stage Air Compressor Pump, Model# VT4823

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Cast Iron, Single-Stage Air Compressor Pump, Model# VT4823

Click or Tap image to Zoom

$209.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • VT style pump is the benchmark for single-stage compressor performance and durability
  • Solid cast iron cylinders for rugged performance, cooler operation and long life
  • Drivetrain utilizes automotive style pistons, a ductile iron crankshaft and oversized tapered roller bearings for years of reliable service
  • Advanced valve plate design uses stainless steel reed valves and Viton O-ring seals to provide troublefree performance
  • Deep finned aluminum head provides maximum pump cooling

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld VT4800 Cast Iron, Single-Stage Air Compressor Pump with solid cast iron cylinders operates up to 35% quieter and 60°(F) cooler than aluminum pumps with cast iron sleeves. The VT style pump is the benchmark for single-stage compressor performance and durability.

What's Included

    (1) Pump with flywheel, breather and air filter

Downloads

Product Manual

Features + Benefits

  • VT style pump is the benchmark for single-stage compressor performance and durability
  • Solid cast iron cylinders for rugged performance, cooler operation and long life
  • Drivetrain utilizes automotive style pistons, a ductile iron crankshaft and oversized tapered roller bearings for years of reliable service
  • Advanced valve plate design uses stainless steel reed valves and Viton O-ring seals to provide troublefree performance
  • Deep finned aluminum head provides maximum pump cooling
  • Easy-to-read oil level sight gauge
  • Removable air filter provides easy maintenance and maximum airflow
  • 2-piece connecting rods for easy maintenance
  • Easy fill oil port for easy maintenance
  • Thick head flange provides superior seal on head gasket
  • Rated for 5,000 hours (based on bearing B-10 life)

Key Specs

AttributeSpecification

item#

54522

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 month limited warranty

Ship Weight

34.2 LB

Stage

1
AttributeSpecification

Max. Horsepower

2

Max. PSI

135

Product Weight

lb

Dimensions L x W x H (in.)

12.0 x 9.5 x 13.5 in

Reviews

Questions & Answers

26 Reviews This action will navigate to reviews.

Questions

1–10 of 27 Questions
Sort by:

  1. What rotation is this pump and what is the maximum rpm it can be turned at

    1. The flywheel on this pump rotates counterclockwise. Its maximum RPM rating is 1100.

      Helpful?

    2. The VT4823 pump turns counter clockwise and can be run up to 1100 RPM. It's most efficient around 1.8 HP and 800 RPM.

      Helpful?

  2. will a 1/2hp motor run this?

    1. I am running them on a 3 HP motor. I think a 1/2 HP would struggle if it could turn it at all.

      Helpful?

    2. This compressor pump requires a 1 to 2 horsepower electric motor to operate.

      Helpful?

  3. What rpm and horse power should the electric  drive motor be to drive

    1 answer

    1. This air compressor pump has a minimum RPM rating of 900, a maximum of 1200, and a 2-horsepower rating.

      Helpful?

  4. What is the break in process for this pump?

    1 answer

    1. The starting process for this pump can be found on page 13 of the manual. Below are the steps:
      1. Check oil level per the Lubrication Section of the manual.
      2. Open the bottom tank drain valve. Turn the outlet valve to open air flow.
      3. Plug unit in.
      4. Move the pressure switch to the AUTO position to run the
      unit.
      5. Run the unit for thirty (30) minutes at zero (0) psi (under no load) to break in pump parts.
      6. Move the pressure switch lever or knob to OFF and turn tank drain valve to shut off air flow. The compressor is now ready for use.
      7. Change oil after first fifty (50) hours of operation. Then perform oil changes every three (3) months.

      Helpful?

  5. Can I get replacement valves or a valve repair kit with gaskets needed for this compressor?

    1 answer

    1. Please contact the manufacturer direct for replacement part pricing and availability.

      Helpful?

  6. What type belt does this pulley use ? the ribbed or V belt ?

    1 answer

    1. This unit would use a V-Belt. The specific V-Belt would be determined by the specifications of your Air Compressor.

      Helpful?

  7. Is it 2 cylinders

    1 answer

    1. The model VT4823 is a two cylinder single stage pump.

      Helpful?

  8. Is this 110 voltage? What size of air tank is it for?

    1 answer

    1. This pump is single belt drive supplied by a 15 amp 1-2 HP 230 volt electric motor. Smallest recommended tank size will be 20 gallons.

      Helpful?

  9. What size air outlet

    1 answer

    1. The inlet diameter is 1/2" NPT. The outlet diameter is 3/8" NPT.

      Helpful?

  10. WHAY IS CFM RATING AT 40 PSI AND 90 PSI?

    1 answer

    1. The CFM is 5.5 CFM at 90 PSI. The manufacturer does not have a rating at 40 PSI. The CFM rating will be higher at a lower PSI and lower CFM at a higher PSI.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
