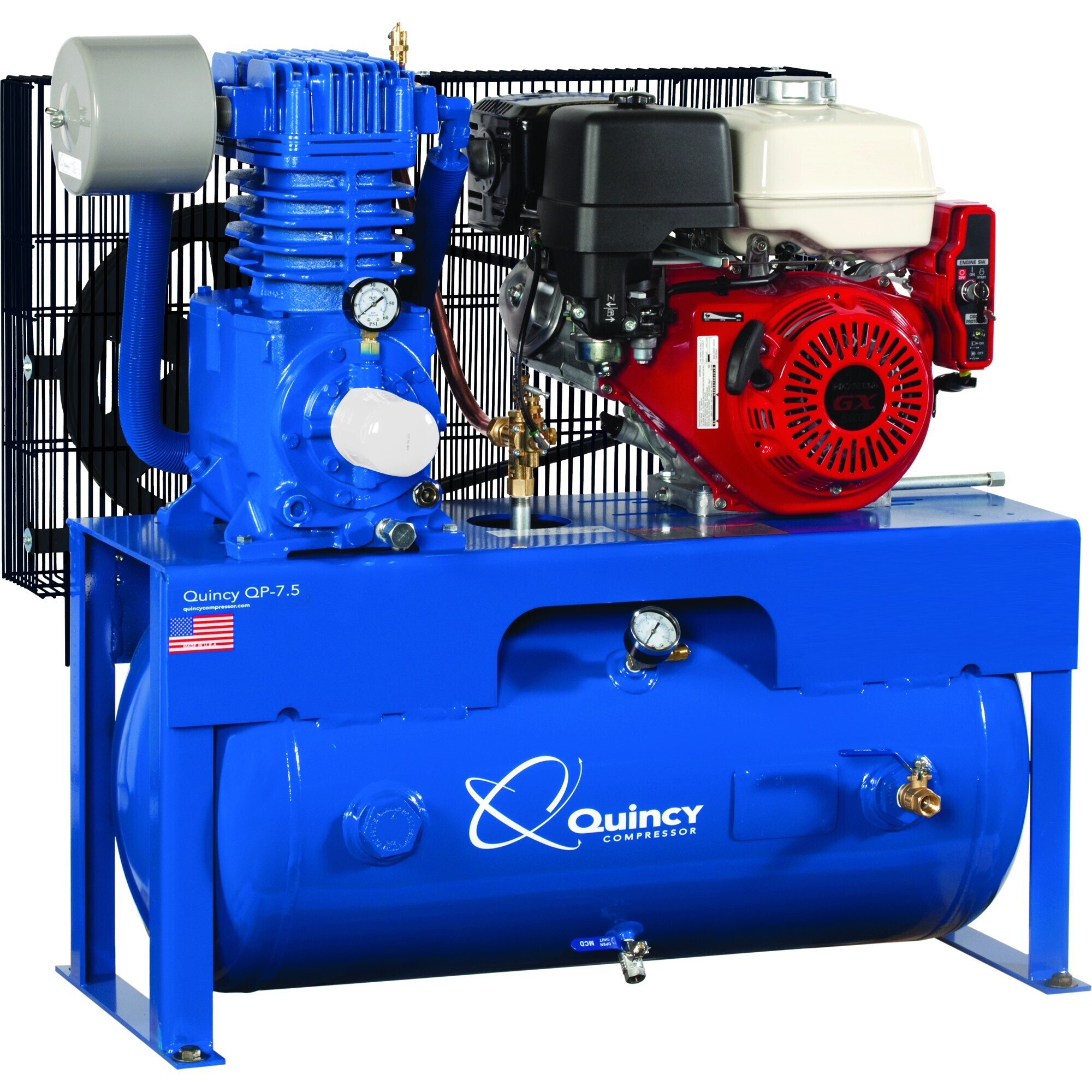

Quincy Compressor, QP 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G513H30HCE

Item# 5775585
Quincy Compressor, QP 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G513H30HCE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QP 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G513H30HCE

Click or Tap image to Zoom

$4699.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 13 Hp Honda Engine
  • QP heavy-duty cast iron fully pressure lubricated system
  • High-quality Gerotor oil pump
  • Provides up to 15% longer pump life than traditional splash lubricated compressors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating air compressors are designed for tougher applications where traditional splash lubricated compressors just are not enough. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. QP pump delivers up to 15% longer life than splash lubricated pumps. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 60,000-hour pump life rating. One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit (Item# 42625) at the same time (on the same receipt) as your Quincy air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor). Extend the warranty to a 4th and 5th year on the pump and package warranty to 3 years with purchase of extended plus warranty kit (Item# 44810). U.S.A.

What's Included

    (1) Quincy QP 13-HP 30-Gallon Two-Stage Air Compressor (13 HP Honda) Horizontal

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 13 Hp Honda Engine
  • QP heavy-duty cast iron fully pressure lubricated system
  • High-quality Gerotor oil pump
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • Belt drive
  • ASME certified 30-gallon tank with manual tank drain
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • OSHA Complant Totally Enclosed Belt Guard

Key Specs

AttributeSpecification

item#

5775585

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

565.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

24.7

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Duty Cycle

100 %

Motor RPM

867

Working Pressure

135 – 175 psi (machine loads at 135 psi and unloads at 175 psi) PSI
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

1/2 in. NPT

CFM at Max. PSI

23.6

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Engine Model

Honda

Product Weight

515.0000 lb

Dimensions L x W x H (in.)

42.0 x 21.0 x 40.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
