Prince Hydraulic Control Valve, 8 GPM, 6-Spool, Model# MB61BBBBBB5C1

Item# 204611
"Prince Hydraulic Control Valve, 8 GPM, 6-Spool, Model# MB61BBBBBB5C1"
Prince Hydraulic Control Valve, 8 GPM, 6-Spool, Model# MB61BBBBBB5C1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Hydraulic Control Valve, 8 GPM, 6-Spool, Model# MB61BBBBBB5C1

Click or Tap image to Zoom

$789.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 2,000-3,500 PSI adjustable main relief

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

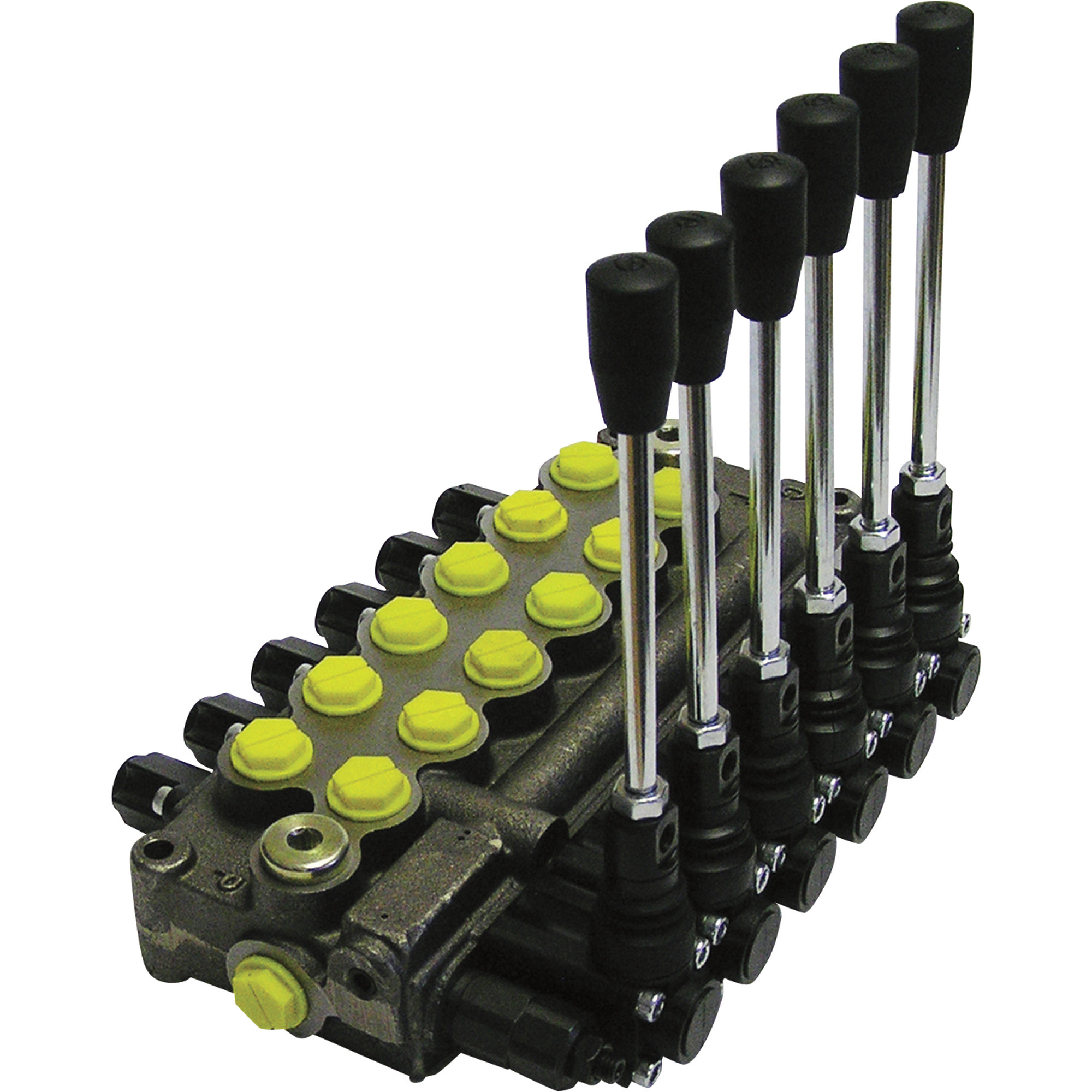

This Prince hydraulic control valve features a compact design that is ideal for small tractors and other low flow operations. SAE #8 ports eliminate leakage, enclosed handles eliminate exposure to elements. 4-way, 3-position spring center; can be converted to closed center or Power Beyond. 3,500 max. PSI. 2,000-3,500 PSI adjustable main relief, factory set to 2,500 PSI.

What's Included

    (1) Hydraulic control valve

Features + Benefits

  • 2,000-3,500 PSI adjustable main relief

Key Specs

AttributeSpecification

item#

204611

Brand

Prince

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.4 LB

GPM

8

Working Port

#8 SAE in
AttributeSpecification

Max. PSI

3,500

Spool (qty.)

6

Directional Control

4-way, 3-position

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can a spool be added to make it 7?

    1 answer

    1. We do not currently offer this in a 7 spool configuration.

      Helpful?

  2. Can the handles be fliped so the valve can be mounted with the hose going down?

    1 answer

    1. The handles for this control valve cannot be reversed. They are designed to be installed either vertically or horizontally.

      Helpful?

  3. can the handle assemblies be removed to allow joystick linkages. and are all the spool valves identical. thanx

    1 answer

    1. The handle assemblies can be removed to add a joy stick kit and all the spool valves are identical.

      Helpful?

  4. does each spoll have load checks?

    1 answer

    1. This valve has one load check.

      Helpful?

  5. What are the measurements of the valve?

    1 answer

    1. The dimensions of the valve are 7.67" L X 10.99" W X 3.37" H.

      Helpful?

  6. Can the levers be repositioned so they will be going in the same direction as the valve housing?They would be laying horizontally in the photo.

    1 answer

    1. Yes, you are able to move the handles down to a horizontal position.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
