Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220909

Item# 4865829
"Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220909"
Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220909

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220909

Click or Tap image to Zoom

$189.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

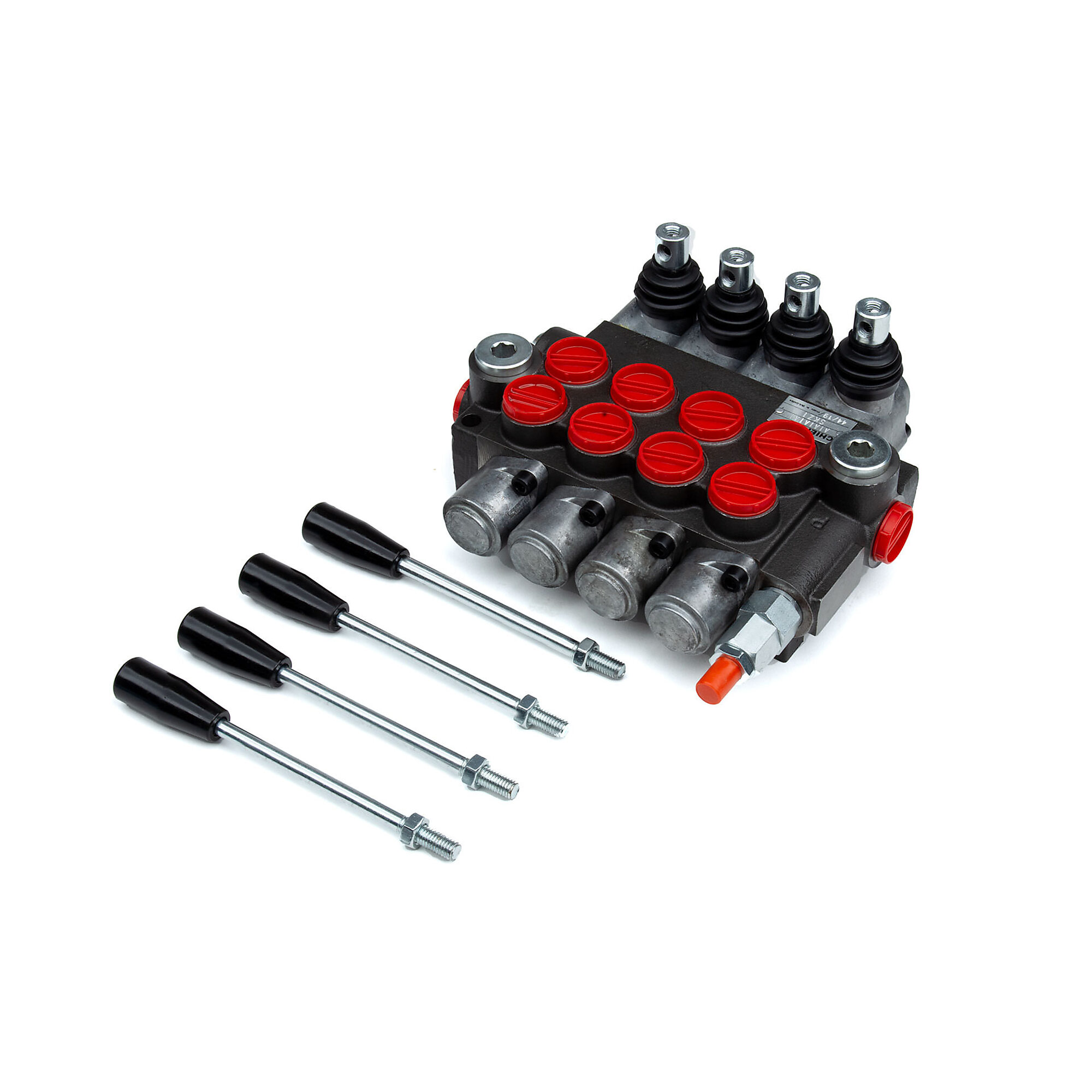

This Chief G Series 10 gpm directional control valve features a tandem spring center, used for double-acting cylinders that hold in neutral. Constructed from durable cast-iron and packaged complete with an easy-grip handle, this valve handles the toughest use with an adjustable relief range of 1500 - 3625 psi, factory set to 2600 psi. Featuring 4 spools and 4-way, 3 position, tandem center, with spring center to neutral action.

What's Included

    (1) Valve

Features + Benefits

  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

Key Specs

AttributeSpecification

item#

4865829

Brand

Chief

Ship Weight

20.0 LB

GPM

10

Working Port

#8 SAE in

Max. PSI

3,625

Spool (qty.)

4

Directional Control

4-way, 3-position
AttributeSpecification

Body Material

Cast Iron

Inlet Port

#10 SAE in

Outlet Port

#8 SAE in

Max. Release Pressure

3,625 PSI

Min. Release Pressure

1,500 PSI

Product Weight

20.0000 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Do these valves hold in center position

    1 answer

    1. The center position is a tandem spring center that holds double-acting cylinders in neutral.

      Helpful?

  2. One of the 4 valves is not holding pressure in the neutral position.  Is there any adjustments?

    1 answer

    1. The relief is adjustable on this valve. It comes set at approximately 2600 PSI.  The adjustable range is approximately 1500-3625psi.

      Helpful?

  3. I have this same exact valve but mine does not have any markings for inlet and outlet ports. So, is the inlet port on the same side as the pressure control or on the other side?

    1 answer

    1. The inlet port would typically be on the right side. You would want to look for the port labeled "P" for confirmation of the inlet port.

      Helpful?

  4. Is this valve bank open center or closed center? Thanks,

    1 answer

    1. The valve is an open center valve. A closed center plug part number BA220913 can be purchased separately. We no longer sell parts through Northern Tool. To order, please contact our sister company Jacks Small Engine at the following link. https://jackssmallengines.com/

      Helpful?
