Buyers Products, Directional Control Valve, GPM 30 Working Port 3/4 in, Max. PSI 3500 Model# HV11AG2ED0

Item# 4901586
Buyers Products, Directional Control Valve, GPM 30 Working Port 3/4 in, Max. PSI 3500 Model# HV11AG2ED0

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, Directional Control Valve, GPM 30 Working Port 3/4 in, Max. PSI 3500 Model# HV11AG2ED0

Click or Tap image to Zoom

$339.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Rated at 30 GPM and working pressure of 2500 PSI (maximum 4000 PSI ).
  • Built-in load checks to prevent reverse flow when shifting.
  • Adjustable relief valve (factory-set at 2000 PSI /10 GPM).
  • Minimal leakage and smooth operation provided by precision-machined and ground spools.
  • External spool seals can be easily replaced without having to disassemble the valve.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

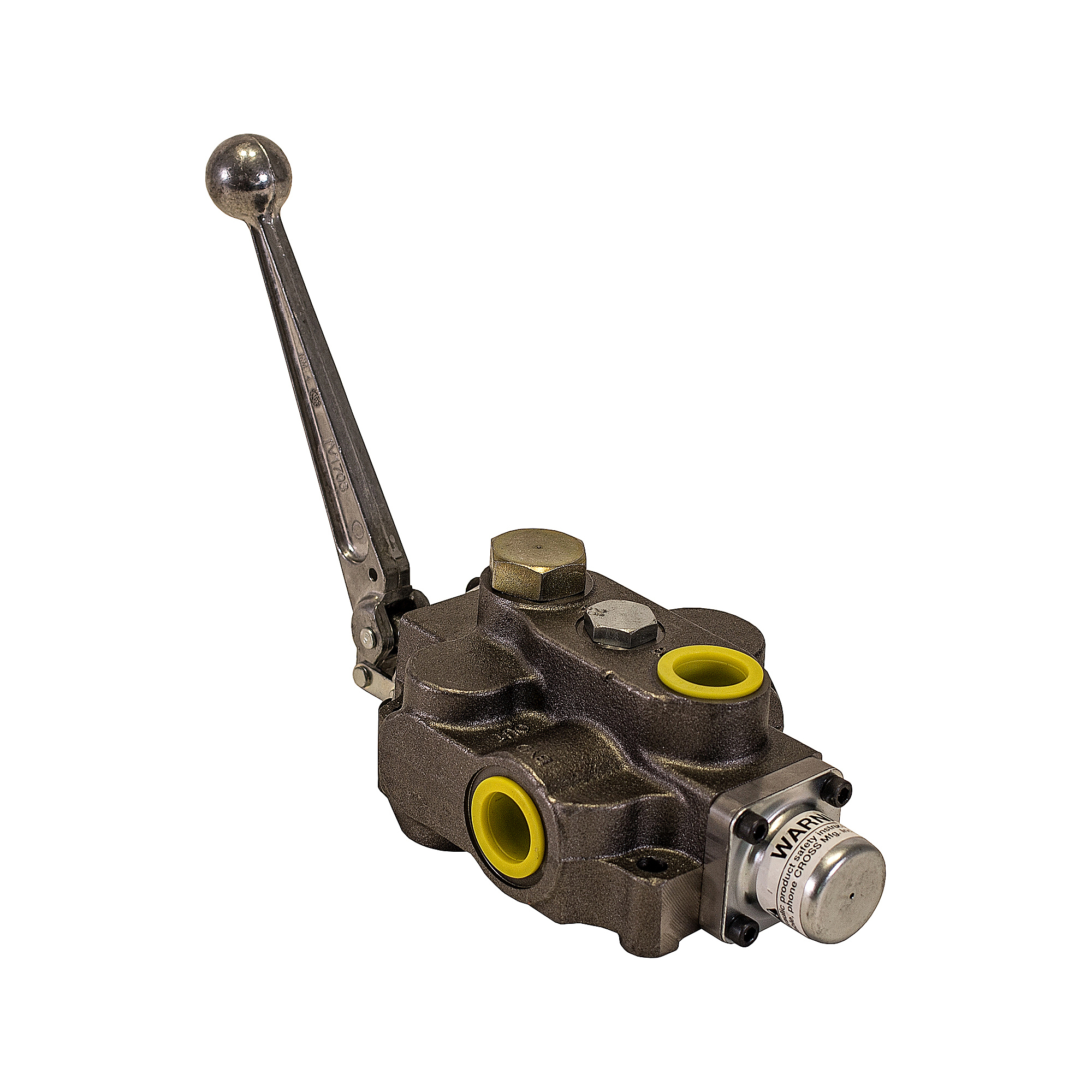

The 1 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, with plenty of force for the job, the control valve has a max flow of 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI). The integral relief valve is adjustable (factory-set at 2000 PSI/10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.

What's Included

    (1) Directional Control Valve

Features + Benefits

  • Rated at 30 GPM and working pressure of 2500 PSI (maximum 4000 PSI ).
  • Built-in load checks to prevent reverse flow when shifting.
  • Adjustable relief valve (factory-set at 2000 PSI /10 GPM).
  • Minimal leakage and smooth operation provided by precision-machined and ground spools.
  • External spool seals can be easily replaced without having to disassemble the valve.

Key Specs

AttributeSpecification

item#

4901586

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.15 LB

GPM

30
AttributeSpecification

Working Port

3/4 in

Max. PSI

3,500

Spool (qty.)

1

Product Weight

13.1500 lb

Dimensions L x W x H (in.)

11.2 x 7.8 x 3.62 in

Reviews

Questions & Answers

Questions

  1. how many ports for hoses ?

    1 answer

    1. The valve will come with (1) 3/4"-12 SAE ORB working port, (1) 3/4"-12 SAE ORB inlet port and (1) 3/4"-12 SAE ORB outlet port.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
