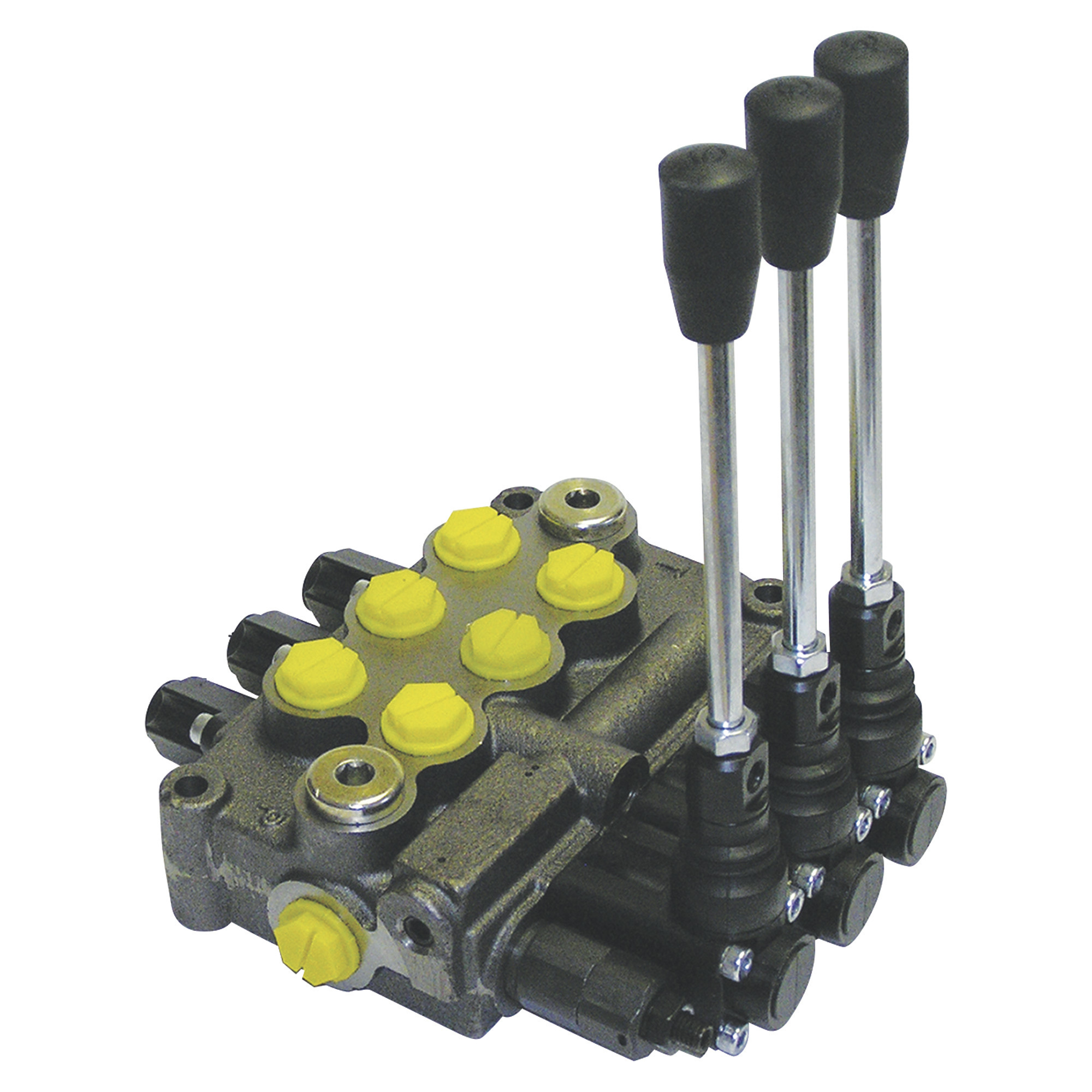

Prince Hydraulic Control Valve, 8 GPM, 3-Spool, Model# MB31BBB5C1

Item# 204608
Prince Hydraulic Control Valve, 8 GPM, 3-Spool, Model# MB31BBB5C1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Hydraulic Control Valve, 8 GPM, 3-Spool, Model# MB31BBB5C1

Click or Tap image to Zoom

$440.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2,000-3,500 PSI adjustable main relief

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Prince hydraulic control valve features a compact design that is ideal for small tractors and other low flow operations. SAE #8 ports eliminate leakage, enclosed handles eliminate exposure to elements. 4-way, 3-position spring center; can be converted to closed center or Power Beyond. 3,500 max. PSI. 2,000-3,500 PSI adjustable main relief, factory set to 2,500 PSI.

What's Included

    (1) Hydraulic control valve

Features + Benefits

  • 2,000-3,500 PSI adjustable main relief

Key Specs

AttributeSpecification

item#

204608

Brand

Prince

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.94 LB

GPM

8

Working Port

#8 SAE in
AttributeSpecification

Max. PSI

3,500

Spool (qty.)

3

Directional Control

4-way, 3-position

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Do the two outboard spools have floats

    The two outboard spools have to have floats

    1. The control valve does not have floats.

      Helpful?

    2. I looked-up the specs on this valve, it does not have a float on any lever. You might look at stacked valves to get the combination of floats that you want.

      Helpful?

  2. can this be turned where hoses will come out the bottom

    1 answer

    1. This valve can be mounted upside down so the hoses come out the bottom.

      Helpful?

  3. where is this valve made?

    1 answer

    1. This item is manufactured in South Korea.

      Helpful?

  4. Does this valve have detents?

    1 answer

    1. The valve would not have detents.

      Helpful?

  5. CAN THIS VALVE BE USED WITH SINGLE ACTION CYLINDER thanks

    MB31BBB5C1

    1 answer

    1. No, This is not recommended. Please see our product recommendation below.

      Helpful?

  6. To perform the change / adaption listed below, what is needed to order the parts or provide for them upon initial ordering

    can be converted to closed center or Power Beyond

    1 answer

    1. This hydraulic valve has a plug included to convert it to a closed center.
      Our parts department, at 1-800-222-5381, option 3, can order the Power Beyond plug.

      Helpful?

  7. Can i switch the levers to make them point down, instead these are pointed up.

    1 answer

    1. The levers can not be made to point downward on a control valve. You could mount the valve upside down.

      Helpful?
