Powermatic Wood Planer 15HH, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V, No Digital Readout

Item# 84648
Powermatic Wood Planer 15HH, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V, No Digital Readout

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Planer 15HH, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V, No Digital Readout

Click or Tap image to Zoom

$4398.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 1-piece welded steel stand has built-in lockable casters
  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4in. port positions collection hose away from the work area while providing efficient chip and dust collection
  • Table locks firmly in place, preventing movement during cutting
  • Standard equipment: 3 HP TEFC motor with magnetic controls

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Wood Planer 15HH, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V, No Digital Readout
  • JET Dust Collector, Model# DC-650
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$5031.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

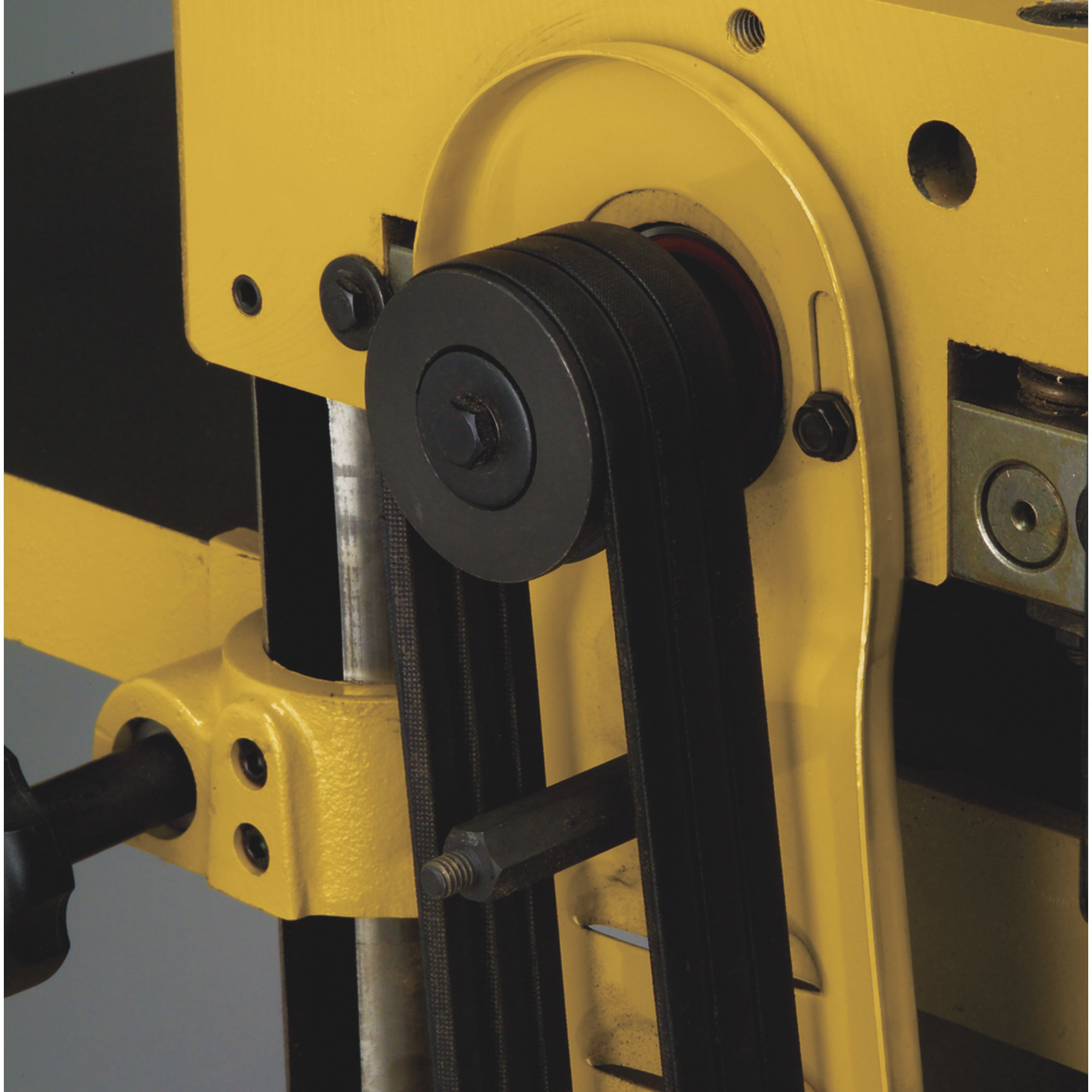

The Powermatic 15HH Planer with a helical cutterhead provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. 3 V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4in. dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8in. maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The 1-piece welded steel stand has built-in lockable casters for easy movement around the shop.

What's Included

    (1) Powermatic 15HH Planer, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V

Downloads

Product Manual

Features + Benefits

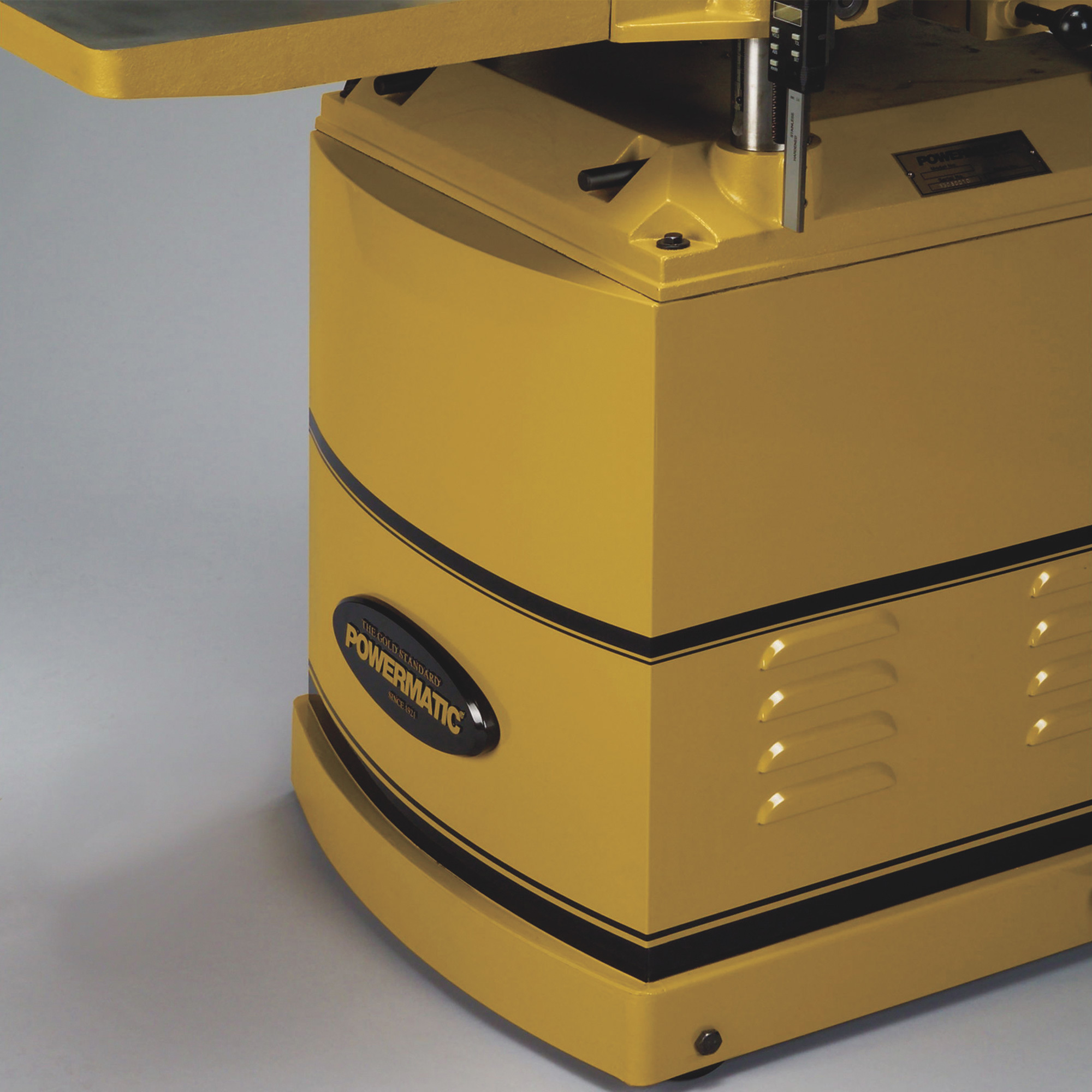

  • 1-piece welded steel stand has built-in lockable casters
  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4in. port positions collection hose away from the work area while providing efficient chip and dust collection
  • Table locks firmly in place, preventing movement during cutting
  • Standard equipment: 3 HP TEFC motor with magnetic controls
  • Closed stand with built-in casters
  • 4in. diameter dust port
  • Cast iron extension tables

Key Specs

AttributeSpecification

item#

84648

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

582.0 LB

Product Type

Planers

Max. Cutting Depth

0.25 in

Knives (qty.)

74
AttributeSpecification

Cutterhead Speed

4,500 rpm

Volts

230

Amps

30

Helical Head

Yes

Product Weight

582.0000 lb

Dimensions L x W x H (in.)

48.0 x 28.0 x 43.5 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Does it have a depth stop?

    1 answer

    1. The wood planer does not have a depth stop.

      Helpful?

  2. Does this unit have the Byrd cutting head?

    1 answer

    1. The wood planer will come with a helical cutter head with 74 (4) sided carbide knife inserts.

      Helpful?

  3. Does this unit have built in rollers for moving around my shop or do I need to purchase a separate item? And if so what do you call it? Thx.

    1 answer

    1. This planer has built in wheels to move it around. It also has a brake to lock it in place when in use.

      Helpful?

  4. How wide of a board will it plan

    1 answer

    1. The max width the unit can work with is 14-7/8".

      Helpful?
