Powermatic Wood Planer, 4-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Item# 84798
Powermatic Wood Planer, 4-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Planer, 4-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Click or Tap image to Zoom

$9897.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 1300-lb. cast iron construction for solid performance without vibration
  • 2 feed speeds: 20/30 FPM to accommodate rough and fine finish work
  • Segmented infeed roller with sectional chipbreaker allows multiple board planing
  • 4-knife head offers 19,200 cuts per minute and one of the widest capacities in its class
  • Roller bearing-mounted feed rollers for long life

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Wood Planer, 4-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$9925.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

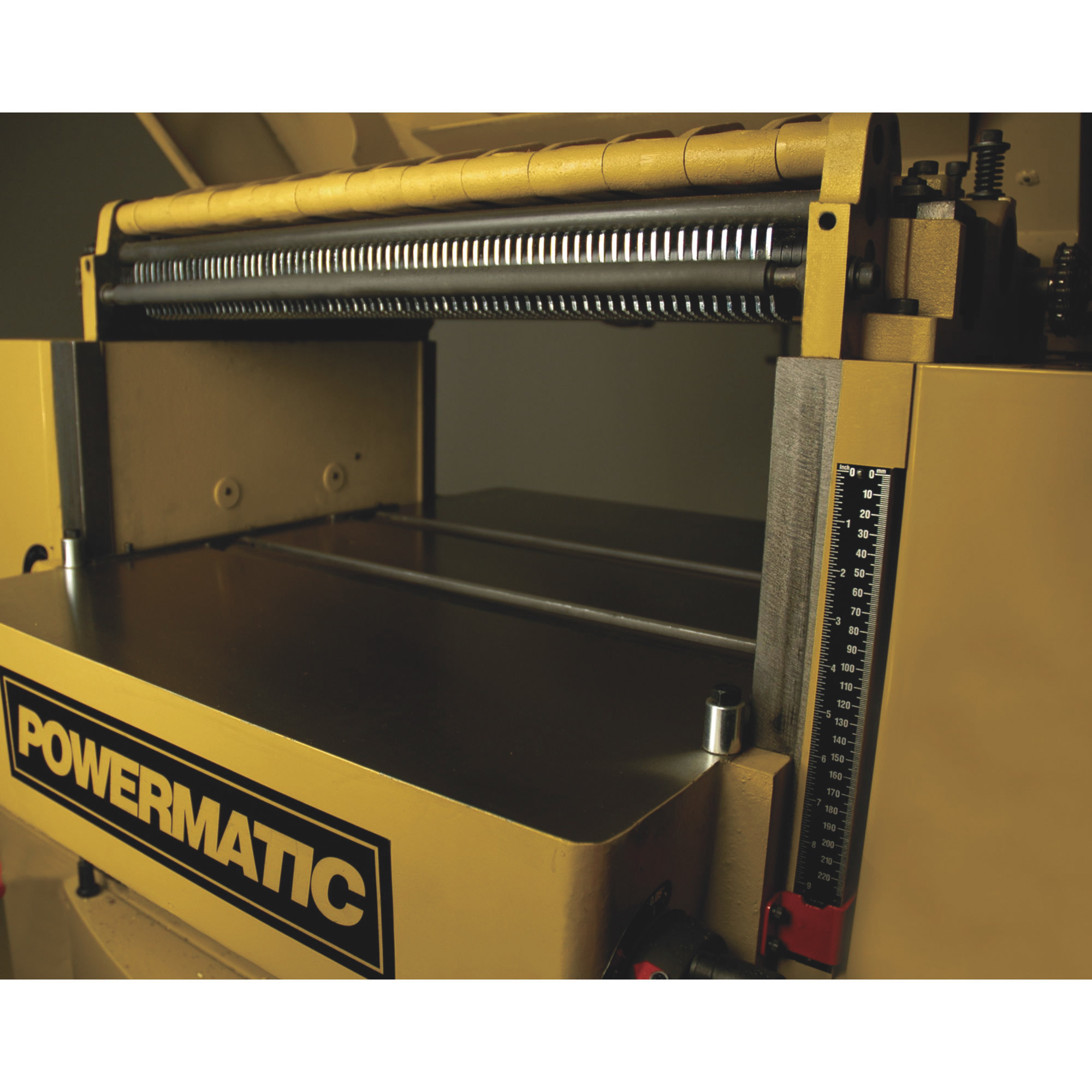

The Powermatic Planer is a heavy-duty 1300-lb. cast iron unit that offers rock solid rigidity and accurate planing. The hood comes standard with a 5in. dust port for easy attachment to any dust collection system. The cutterhead is complete with 4 high-speed steel knives and turns at 4800 RPM, producing 19,200 cuts per minute. The anti-kickback fingers and pressure bar are located close to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to ensure a smooth finish yet provide positive feeding. The 2-speed gearbox with machined detents is quickly changed upfront when switching from rough to finish work. You can easily raise the massive ribbed cast iron, ground-finished table 1/16 with each turn of the hand wheel. This planer comes standard with the following: dust collection chute with 5in. port, adjustable foot pads, knife setting gauge, tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches). This planer is perfect for the small to medium shop with continuous planing requirements.

What's Included

    (1) Powermatic Planer, 4-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Downloads

Product Manual

Features + Benefits

  • 1300-lb. cast iron construction for solid performance without vibration
  • 2 feed speeds: 20/30 FPM to accommodate rough and fine finish work
  • Segmented infeed roller with sectional chipbreaker allows multiple board planing
  • 4-knife head offers 19,200 cuts per minute and one of the widest capacities in its class
  • Roller bearing-mounted feed rollers for long life
  • Adjustable bed rollers allow smooth feeding of rough or finished workpieces
  • Oversized cast iron table travels on 2 large lead screws for heavy-duty support
  • Standard equipment: dust collection chute with 5in. port, adjustable foot pads, knife setting gauge, tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches)

Key Specs

AttributeSpecification

item#

84798

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1350.0 LB

Product Type

Planers

Max. Cutting Depth

0.188 in

Knives (qty.)

4
AttributeSpecification

Cutterhead Speed

4,800 rpm

Volts

230

Amps

50

Helical Head

No

Product Weight

582.0000 lb

Dimensions L x W x H (in.)

42.0 x 49.0 x 59.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. What's the width

    1 answer

    1. The overall width is 49".

      Helpful?

  2. What ountry is it made in?

    1 answer

    1. This item is manufactured in Taiwan.

      Helpful?

  3. How many running feet per hour will go through this machine?

    1 answer

    1. The planer lists to be able to do 20-30 feet per minute (1200 to 1800 feet per hour), depending on speed you are using.

      Helpful?

  4. What size will it plan up to

    1 answer

    1. This planer can handle a max board width of 22" and thickness up to 9-1/4".

      Helpful?

  5. What is the bed size

    1 answer

    1. The bed size is 32-1/2" x 24".

      Helpful?
