Powermatic 12in. Jointer with Helical Head, 3 HP, 1 PH, 230V, Model# 1285

Item# 84667
Powermatic 12in. Jointer with Helical Head, 3 HP, 1 PH, 230V, Model# 1285

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic 12in. Jointer with Helical Head, 3 HP, 1 PH, 230V, Model# 1285

Click or Tap image to Zoom

$10,447.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

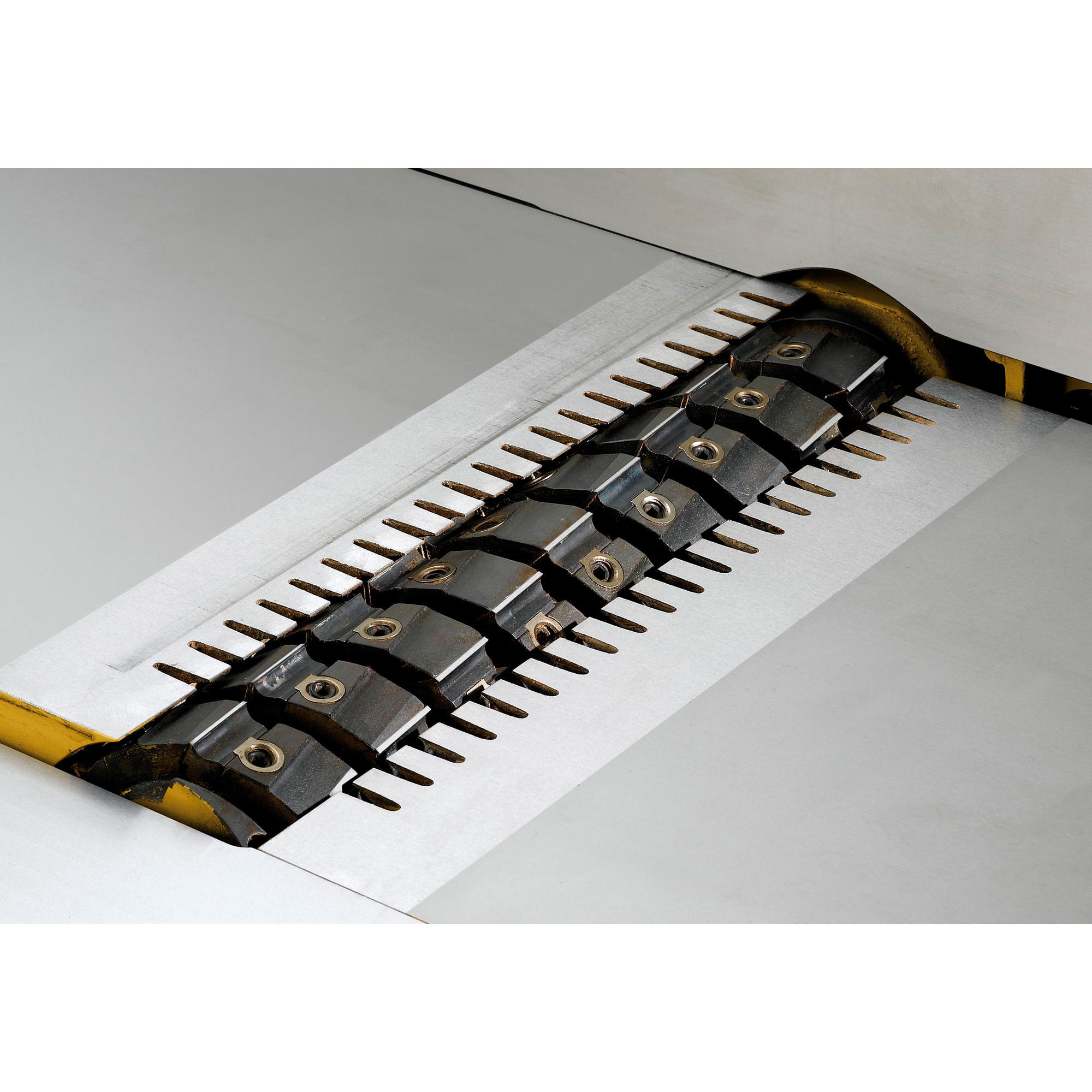

  • Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments

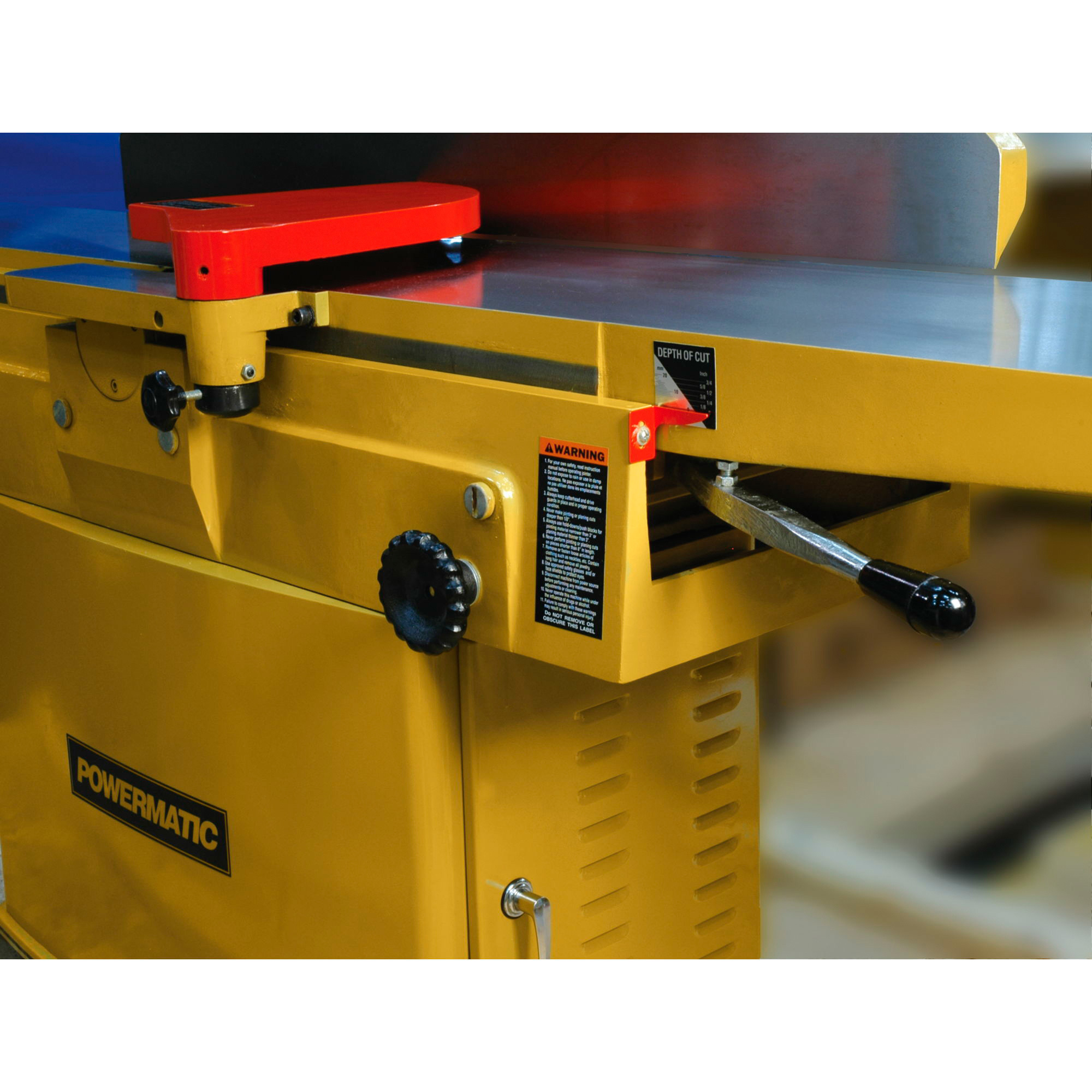

  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Large 84in. x 12in. table surface for heavy-duty work
  • Table "lips" on both sides of cutterhead aid in noise reduction

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic 12in. Jointer with Helical Head offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle setup at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The helical system makes fast work of knife changing and never needs adjustment.

What's Included

    (1) Powermatic 12in. Jointer with Helical Head, 3 HP, 1 PH, 230V, Model# 1285

Downloads

Product Manual

Features + Benefits

  • Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Large 84in. x 12in. table surface for heavy-duty work
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • Full-size rabbeting ledge supports large workpieces for rabbets up to 3/4in. deep
  • 3HP motor provides plenty of power

Key Specs

AttributeSpecification

item#

84667

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

762.0 LB

Product Type

Jointers
AttributeSpecification

Max. Cutting Depth

0.75 in

Cutters (qty.)

44

Amps

30

Product Weight

762.0000 lb

Dimensions L x W x H (in.)

25.0 x 73.0 x 46.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
