Powermatic Drill Press, Model# PM2820

Item# 108589
Powermatic Drill Press, Model# PM2820

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Drill Press, Model# PM2820

Click or Tap image to Zoom

$3035.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Gear-driven power transfers torque consistently and efficiently for a wide range of materials
  • Electronic variable speed means torque is not lost using either the higher or low-speed settings
  • Low-speed setting ranges 150-870 RPM and the high-speed setting ranges 600-3600 RPM
  • Highly-visible digital readout gives users control
  • Designed for a range of materials and applications

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

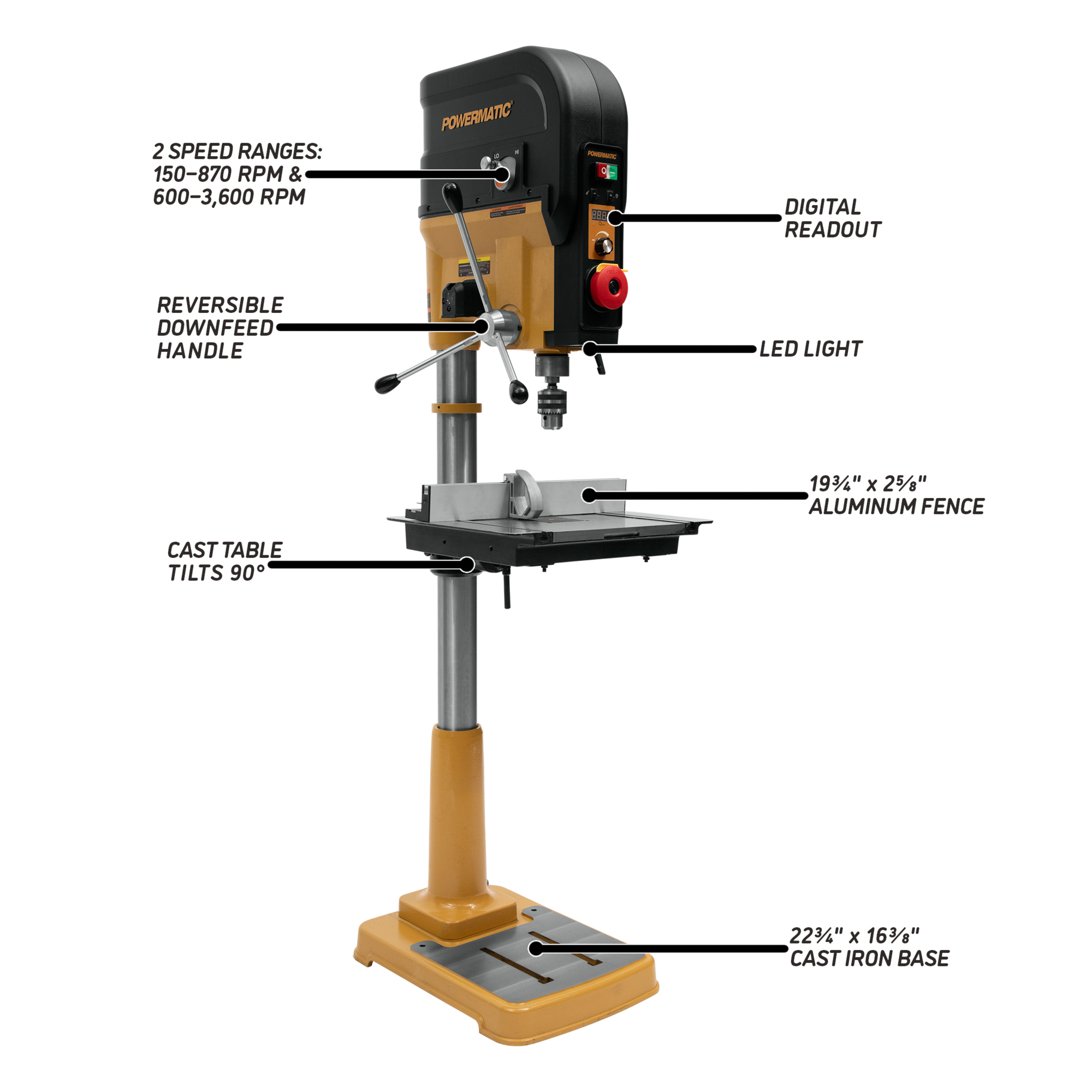

Gear up for the ultimate in performance with the Powermatic PM2820EVS Drill Press. Gear-driven power transfers torque consistently and efficiently for any project a wide range of materials. With a removable table with 45° rotation, it has capacity for projects large and small. A high-visibility laser pinpoints the drilling location for total accuracy. Powermatic has added a patented depth stop make countersinking easy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability. Integrated LED light reduces shadows for project visibility.

What's Included

    (1) PM2820EVS Drill Press with 1 HP, 1-phase 120V electric motor

Features + Benefits

  • Gear-driven power transfers torque consistently and efficiently for a wide range of materials
  • Electronic variable speed means torque is not lost using either the higher or low-speed settings
  • Low-speed setting ranges 150-870 RPM and the high-speed setting ranges 600-3600 RPM
  • Highly-visible digital readout gives users control
  • Designed for a range of materials and applications
  • Standing on an oversized cast base for outstanding stability for the 20in. swing

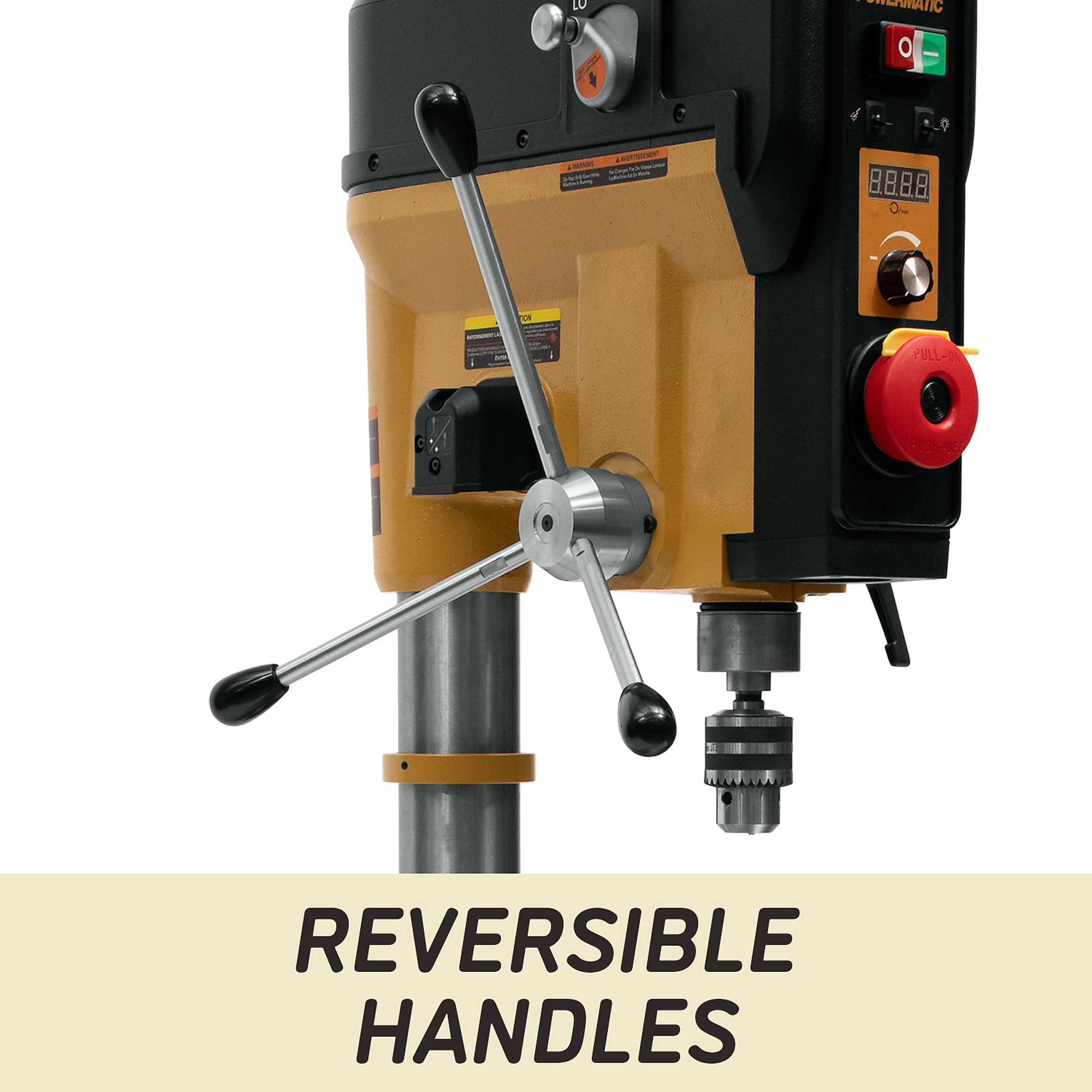

  • Handles can be reversed for left or right sided operation
  • Large cast table adjusts to a range of positions and tilts to a full 90° position
  • Includes the most versatile table in the drill press market
  • Allows insert to be removed for better access to oversized pieces
  • Features patented integrated depth stop for efficient drilling

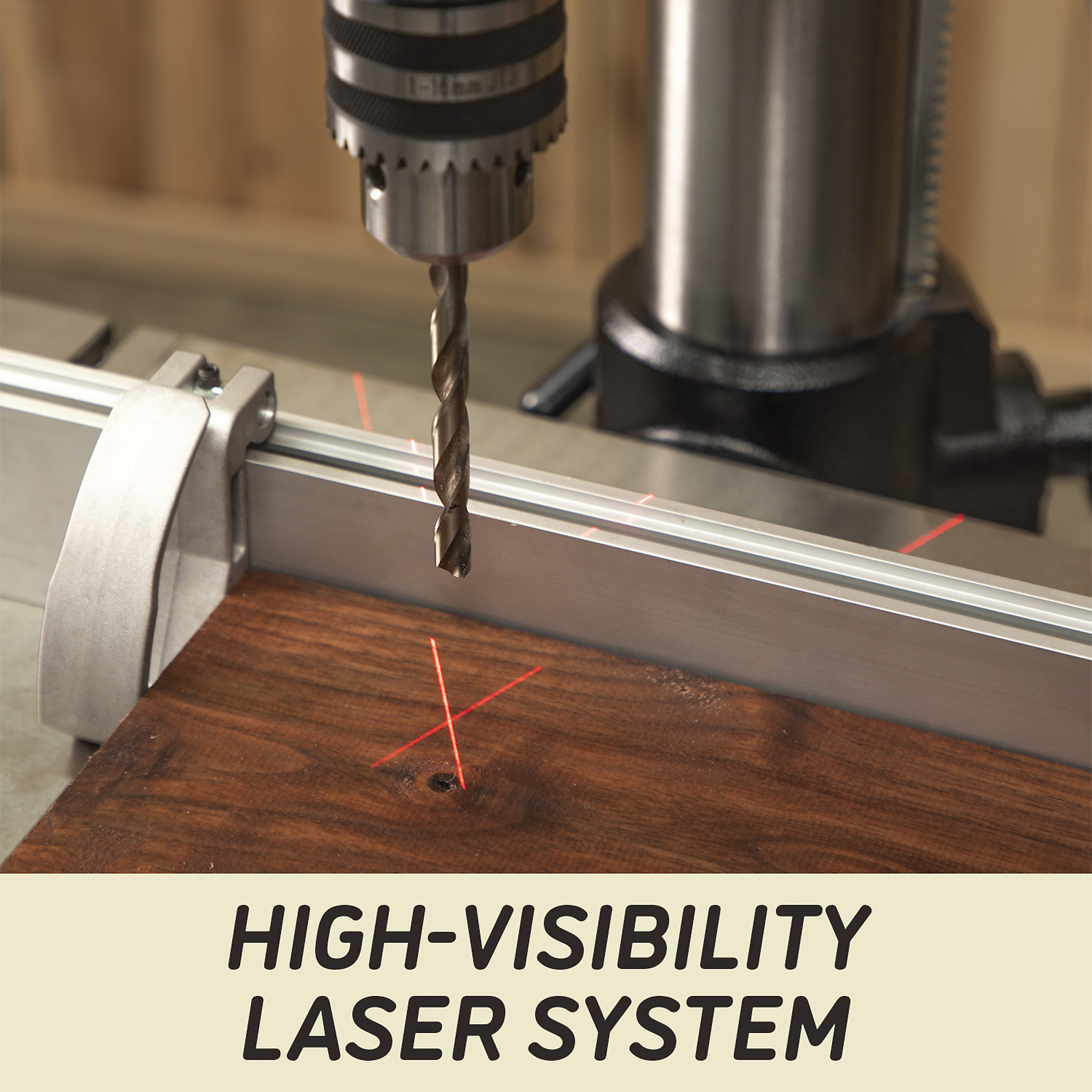

  • Laser cross hairs provide precise tool point indication for accuracy

Key Specs

AttributeSpecification

item#

108589

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

412.0 LB

Chuck Size

0.625 in

Horsepower

1

Horsepower

1

Volts

120

Volts

120
AttributeSpecification

Product Type

Woodworking Drill Presses

Disc Table Tilt

90 °

Chuck Size

0.625 in

Light Included

Yes

Table Length

20-1/2 in

Table Width

15-1/2 in

Product Weight

412 lb

Product Weight

412 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
