JET Floor Drill Press with Clutch Speed Change and Power Downfeed, Electronic Variable Speed, 20in., 2 HP, 115V, Model# JDPE-20EVSC-PDF

Item# 108569
1 of 10 reviewers received a sample product or took part in a promotion

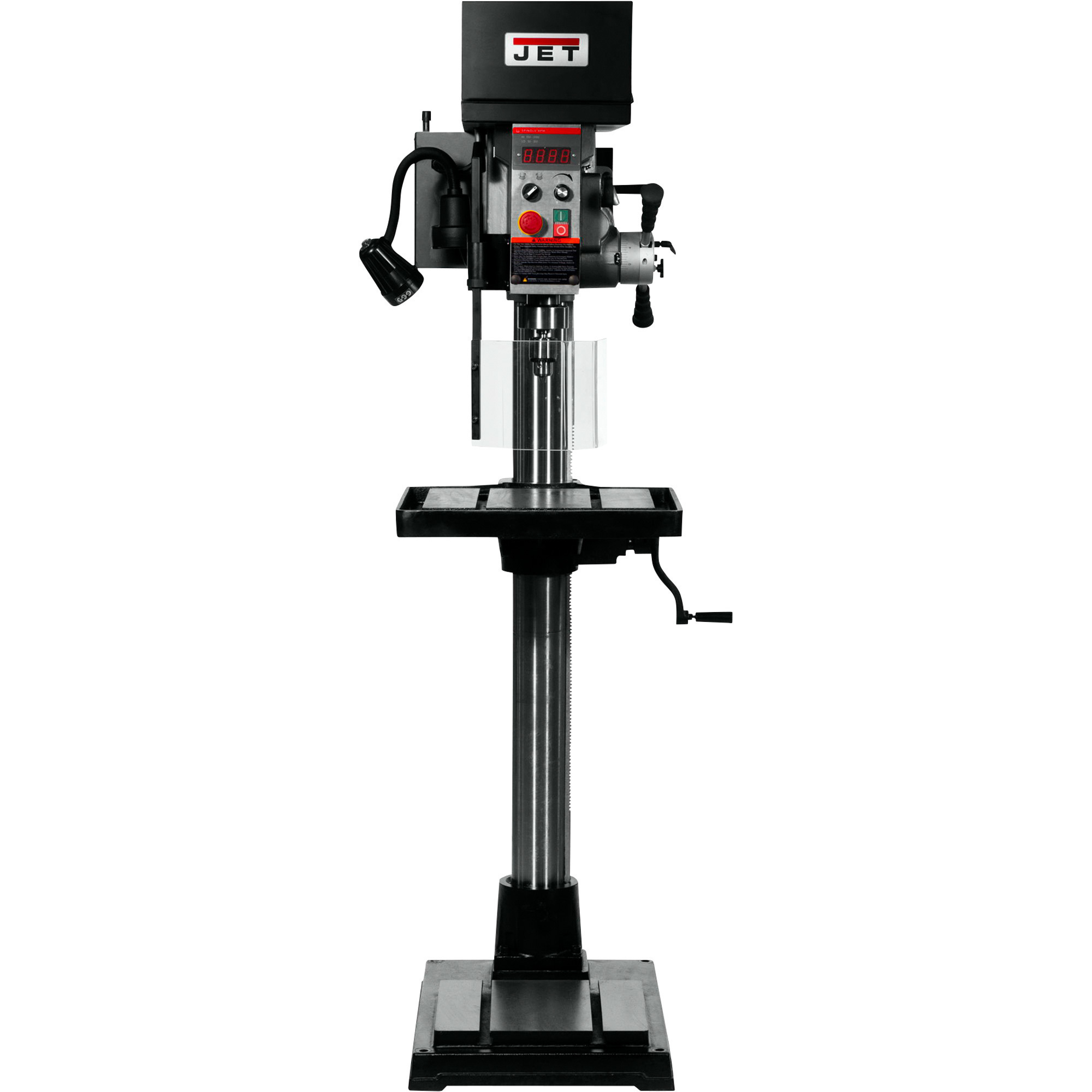

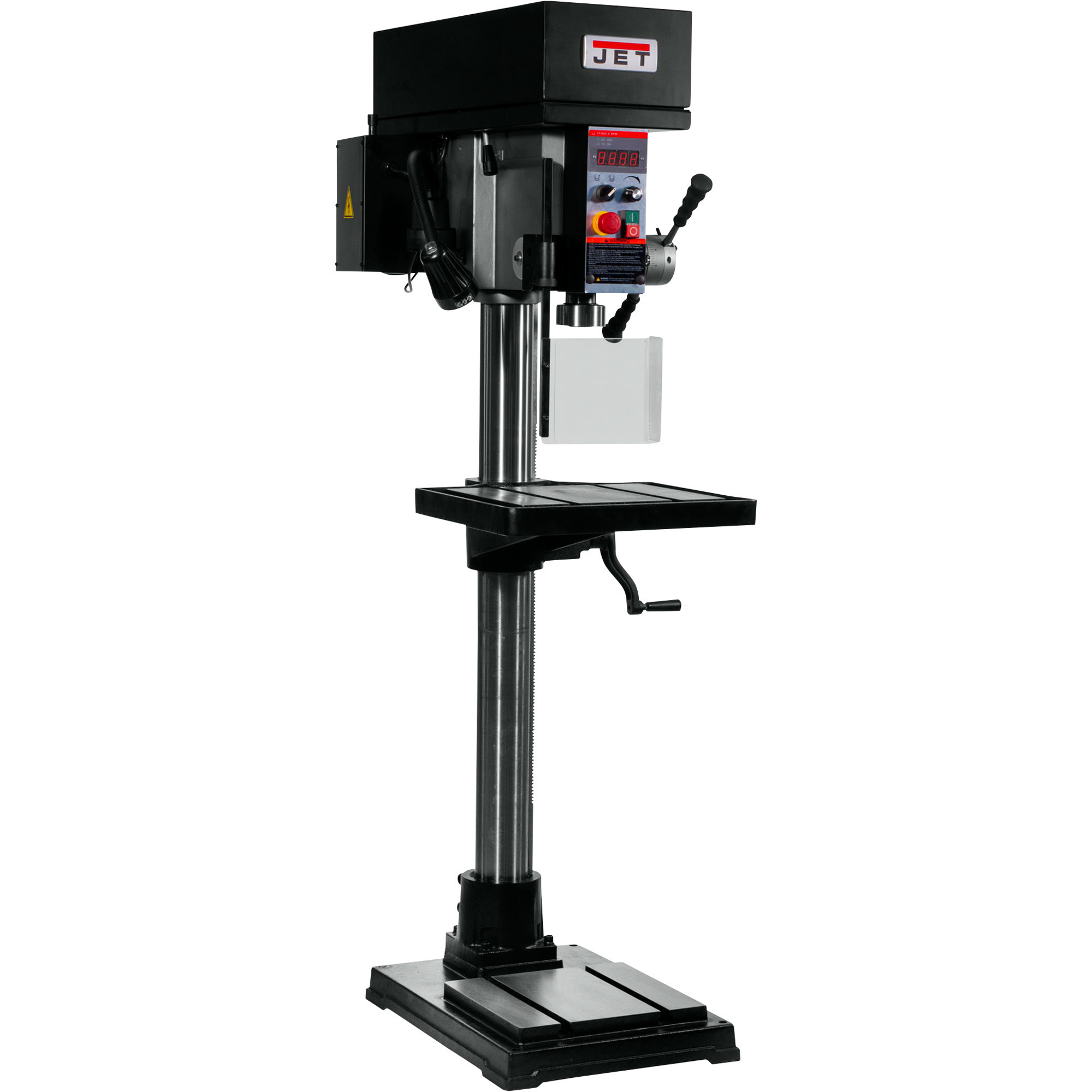

JET Floor Drill Press with Clutch Speed Change and Power Downfeed, Electronic Variable Speed, 20in., 2 HP, 115V, Model# JDPE-20EVSC-PDF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Floor Drill Press with Clutch Speed Change and Power Downfeed, Electronic Variable Speed, 20in., 2 HP, 115V, Model# JDPE-20EVSC-PDF

Click or Tap image to Zoom

$6139.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Single-phase, 115V, 2 HP motor produces high torque at all speeds in both forward and reverse
  • 3-speed power downfeed for heavy drilling applications
  • Clutch speed-change system makes it easy to change drilling speeds
  • Delivers various spindle speeds from 280-2000 RPMs
  • Front mounted LED spindle RPM readout

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The 20in. JET Electronic Variable-Speed Floor Drill Press with Power Downfeed produces high torque at all speeds in both forward and reverse to handle a wide range of operations. Speed can be changed using a clutch system. Features a 5in. vertical stroke. Engineered to maximize output, this EVS drill press includes a three-speed power downfeed for heavy drilling applications and is capable of running from 280 to 2000 RPMs. Includes floor stand. CSA/US Certified.

What's Included

    (1) Drill press

Downloads

Product Manual

Features + Benefits

  • Single-phase, 115V, 2 HP motor produces high torque at all speeds in both forward and reverse
  • 3-speed power downfeed for heavy drilling applications
  • Clutch speed-change system makes it easy to change drilling speeds
  • Delivers various spindle speeds from 280-2000 RPMs
  • Front mounted LED spindle RPM readout
  • LED machine lamp delivers extra light for more precise drilling
  • Spindle guard protects user from flying debris
  • Emergency stop allows for immediate shut off
  • Heavy casted column prevents failures, prolonging the life of the machine
  • Casted head offers more accuracy and rigidity
  • Spindle is supported by high-quality ball bearings, reducing rotational friction while increasing load support
  • Large 16.5in. x 18.5in., precision-ground T-slot production table
  • 1/2in. drill chuck and arbor
  • 5in. vertical stroke
  • Drilling capacity in cast iron: 1 1/4in.
  • Drilling capacity in mild steel: 1 1/8in.
  • Max. spindle distance is 32.6in.
  • 19 11/16in. swing

Key Specs

AttributeSpecification

item#

108569

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

582.0 LB

Horsepower

2 HP

Volts

115

Max. Speed

2,000 rpm

360 Degree Head Swivel

No

Product Type

Drill Press

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

1-1/4 in

Chuck Size

1/2 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

32.66 in

Swing

19.687 in

Product Weight

lb

Dimensions L x W x H (in.)

32.59 x 22.63 x 70.39 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

24 months parts/24months labor
