Klutch 13in. Floor-Mount Drill Press, 3/4 HP, 120V

Item# 49383
Top Seller
Klutch 13in. Floor-Mount Drill Press, 3/4 HP, 120V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 13in. Floor-Mount Drill Press, 3/4 HP, 120V

Click or Tap image to Zoom

$399.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • 5/8in. chuck capacity with 1in. maximum drilling capacity
  • 3-1/4in. vertical stroke
  • 13in. swing adds versatility
  • 45° table tilt offers a multitude of drilling angles
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch 13in. Floor-Mount Drill Press, 3/4 HP, 120V
  • Klutch Cross-Slide Drill Press Vise, 4in. Jaw Width
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$542.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 13in. Floor-Mount Drill Press is the perfect choice for drilling metal or wood. Features power, accuracy and versatility packed into a sturdy floor mount base. Has a powerful 3/4 HP, 120V motor with 16 speeds that generates 260–3,410 RPM. 4.6 Amps. CE certified.

What's Included

    (1) Drill press (1) Chuck key (1) 3mm Allen key (1) 4mm Allen key (1) Wedge

Downloads

Product Manual
Play Item Video

INDUSTRIAL-GRADE TOOL

The Klutch® 13 INCH DRILL PRESS is an essential tool for any serious WOODWORKER or METALWORKER, offering the power to drill through various materials with precision and ease

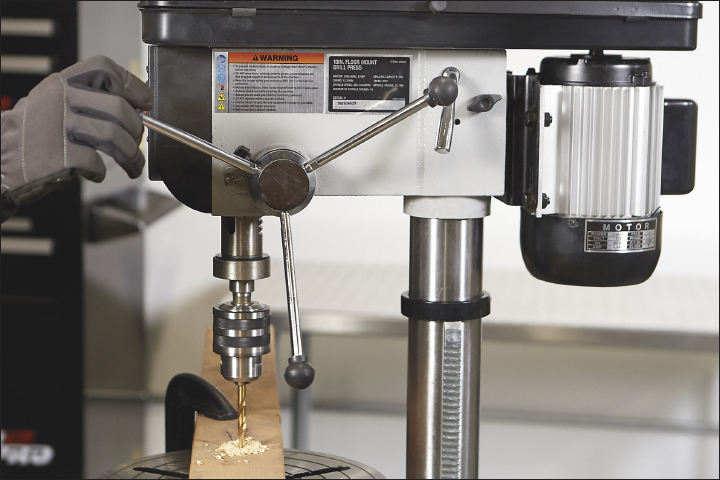

FLEXIBLE OPERATION

Adjustable speed settings allow operators to choose the perfect speed for different materials, ENHANCING TOOL VERSATILITY and PROJECT OUTCOMES

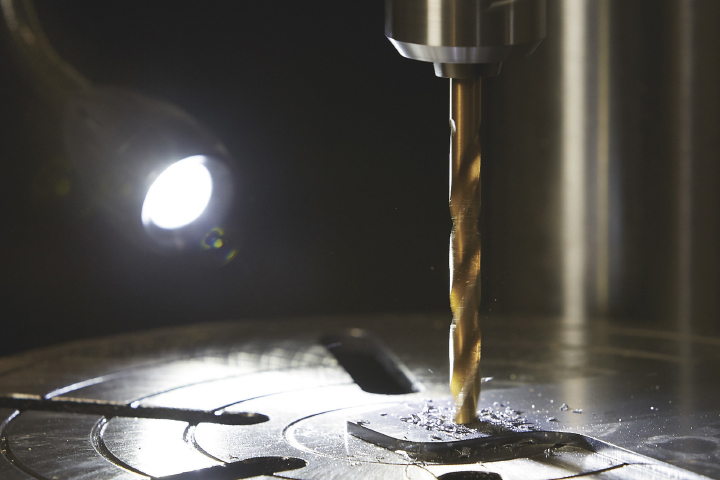

PRECISION DRILLING

With its DEPTH LOCK and BALL KNOB HANDLE, this machine delivers precise adjustments that stay consistent, ensuring accurate drilling results hole after hole

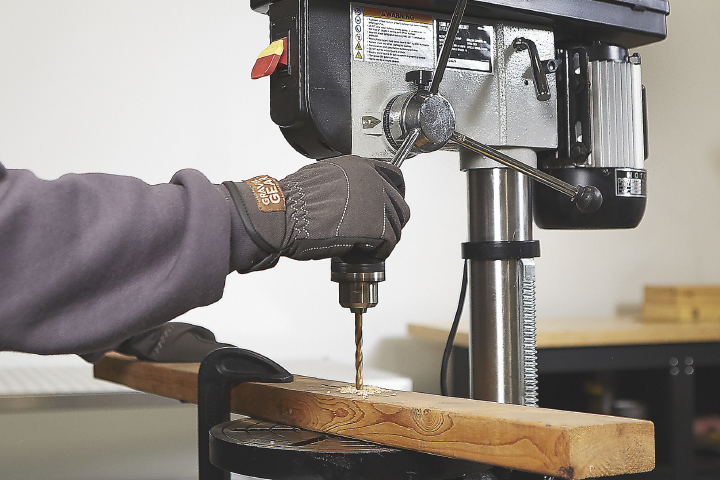

USER-FRIENDLY FEATURES

The inclusion of a gooseneck LED light and built-in CHUCK KEY STORAGE MAXIMIZES EFFICIENCY and convenience, keeping essential tools within reach and your WORKSPACE CLEARLY VISIBLE

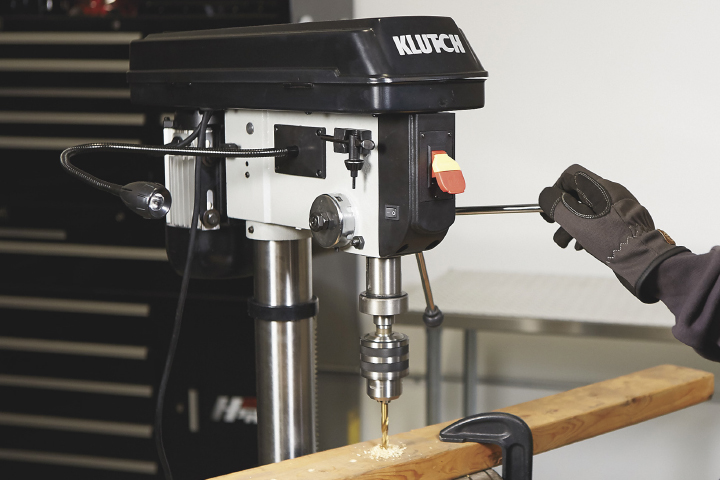

ROBUST DESIGN

Designed to stand the test of time, its FLOOR-MOUNT SETUP provides a solid base that reduces vibration and increases the accuracy of each drill

Features + Benefits

  • 5/8in. chuck capacity with 1in. maximum drilling capacity
  • 3-1/4in. vertical stroke
  • 13in. swing adds versatility
  • 45° table tilt offers a multitude of drilling angles
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole
  • Roomy 11-3/8in. dia. worktable
  • 22-7/8in.L x 13in.W x 62-1/4in.H overall size
  • Built-in chuck key storage keeps the chuck close at hand and easy to find
  • Includes a gooseneck LED light to illuminate your work surface
  • Chuck holds drill bits down to 3mm dia.; 1.8ft.L, 18AWG3 power cord
  • 16 speeds under 60 Hz power: 260 RPM, 370 RPM, 420 RPM, 560 RPM, 580 RPM, 600 RPM, 770 RPM, 820 RPM, 840 RPM, 900 RPM, 1,520 RPM, 1,640 RPM, 1,820 RPM, 2,290 RPM, 2,450 RPM, 3,410 RPM; 16 speeds under 50 Hz power: 220 RPM, 310 RPM, 350 RPM, 470 RPM, 480 RPM, 500 RPM, 640 RPM, 680 RPM, 700 RPM, 750 RPM, 1,270 RPM, 1,370 RPM, 1,520 RPM, 1,910 RPM, 2,040 RPM, 2,840 RPM

Key Specs

AttributeSpecification

item#

49383

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

110.0 LB

Horsepower

0.75 HP

Volts

120

Max. Speed

3,410 rpm

360 Degree Head Swivel

No

Speeds (qty.)

16

Product Type

Drill Press
AttributeSpecification

Vertical Stroke

3-1/4 in

Drilling Capacity

1 in

Chuck Size

5/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

No

Draw Bar

Yes

Swing

13 in

Product Weight

lb

Dimensions L x W x H (in.)

22.875 x 13.0 x 62.25 in

Reviews

Questions & Answers

68 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. The description says the stand is not included?

    Does this mean I would only be purchasing the drill, and the floor stand would be additional?

    1. Yes, you do get the stand! You do get the drilling head, with motor. You do get the long tubular vertical shaft and movable work surface. You do get the heavy metal "foot" that holds up the vertical shaft, drilling head and motor.  The foot and shaft comprise what you call the stand. The entire assembly does rest on the floor, and probably should be bolted to the floor for safety.

      Helpful?

    2. The floor is the stand. Free standing unit as opposed to a benchtop unit..

      Helpful?

    3. It does come with a stand and a work plate. But not a vice, thats extra

      Helpful?

    4. You get the whole thing as shown - included column and floor stand.

      Helpful?

    5. no it comes with stand

      Helpful?

    6. The stand is included with the Klutch 13in. Floor Mount Drill Press.

      Helpful?

  2. how do I keep the table from rotating?

    I looked for a key way or a set screw. Ended up putting a clamp on it.

    1. There is a clamp on the table that you tighten, to lock it in place.

      Helpful?

    2. There is a locking clamp with screw similar to what attaches table assembly to the column

      Helpful?

    3. The table itself and it's support can be locked by tightening them with the threaded handles on each.

      Helpful?

    4. There is a factory pinch clamp on the column arm.

      Helpful?

    5. The table locking handle is on the swivel mount underneath the table on the right side as you face the drill press.

      Helpful?

  3. What the drilling capacity? it says 1inch that is what?

    1. That is the whole size in the product rest plate. yes it is one inch. I can not use my 1.5" spindle sander

      Helpful?

    2. 1" is the largest diameter bit that can be used.

      Helpful?

    3. This drill press has a maximum drilling capacity of 1". It can handle a 1" diameter drill bit as long as the bit's shank is 5/8" diameter or less.

      Helpful?

  4. I just bought a Klutch 17" drill press and it comes with a "wedge". Can you tell me what the wedge is used for?

    1. The wedge is called a Drift Key there are 4 common size of Drift keys not all drill presses use them, they are also used on Lathes and some older mills it depends on the type of tool or Morse taper chucks, the Chuck this comes with will hold a 1/16" bit you can change the chuck to hold a micro drill bit by buying a smaller chuck knowing the Mores tapper on that chuck or adding a small taper adaptor. So technically you could drill with a 1/64" drill bit or even smaller. But you have to buy other parts that are aftermarket to do it.
      You could also put in a larger chuck and drill larger then 1" drill bits. but you need a bigger chuck.
      @ some point you will reach the drill presses limits in power and the belts will slip. Most of your Asian drill presses do not have tapered chucks they use a straight shank all of witch you beat on with a dead blow hammer. The straight shank kind will slip in the mores will not slip when drilling large holes. This makes this a really good drill press for that reason.
      This is suitable for metal work or wood working.
      Use a Vice and or always clamp your part down and vice down. A part could swing and hit you or sheet metal will cut you badly if the drill bit locks up in it.
      Wear Safety glasses always!

      Helpful?

    2. to remove the chuck if you have to. i stored mine in the top of the press under the belt drives.

      Helpful?

    3. The wedge included with this unit is used to assist in removing the drill chuck.

      Helpful?

  5. what are they refering to for the 13" swing

    1. 13" is the largest size circle you could drill the center of because if it was bigger it would hit the vertical post that the drill head is mounted to.

      Helpful?

    2. The 13" swing refers to the distance from the center of the drill press chuck to the vertical support column.

      Helpful?

    3. It means from the center of the drill chuck to the closest part of the column is the swing. The column is the post that the table rides up and down on and the drill motor head is sitting on top of.

      Helpful?

  6. Where is this press made?

    1. China

      Helpful?

    2. This drill press is manufactured in China according to Northern Tool specifications.

      Helpful?

  7. Drill chuck removal

    How do you remove the drill chuck from the quill?

    1. With the wedge that was shipped with the drill press. lower the chuck shaft and rotate it by hand until you see the top of the chuck shaft. insert the wedge and tap it to force the chuck out of the tapered fitting.

      Helpful?

    2. The chuck can be removed by tapping on the top of the chuck with a piece of wood. It is held on by friction.

      Helpful?

  8. what is the column width (exact, please) OD Thanks!

    1. 2.83-2.837" OD is what mine measures

      Helpful?

    2. The column has an outside diameter of 72mm or 2.835".

      Helpful?

  9. What's the smallest drill bit usable?

    1. I’ve had a 1/16” chucked in it fine

      Helpful?

    2. The smallest recommended drill bit for this drill press would be a 1/16" Twist Drill Bit.

      Helpful?

  10. Depth Lock

    Does this drill press have a depth lock that I can set so I can drill numerous holes the same depth?

    THANKS

    1. Yes

      Helpful?

    2. This drill press has a threaded depth lock.

      Helpful?
