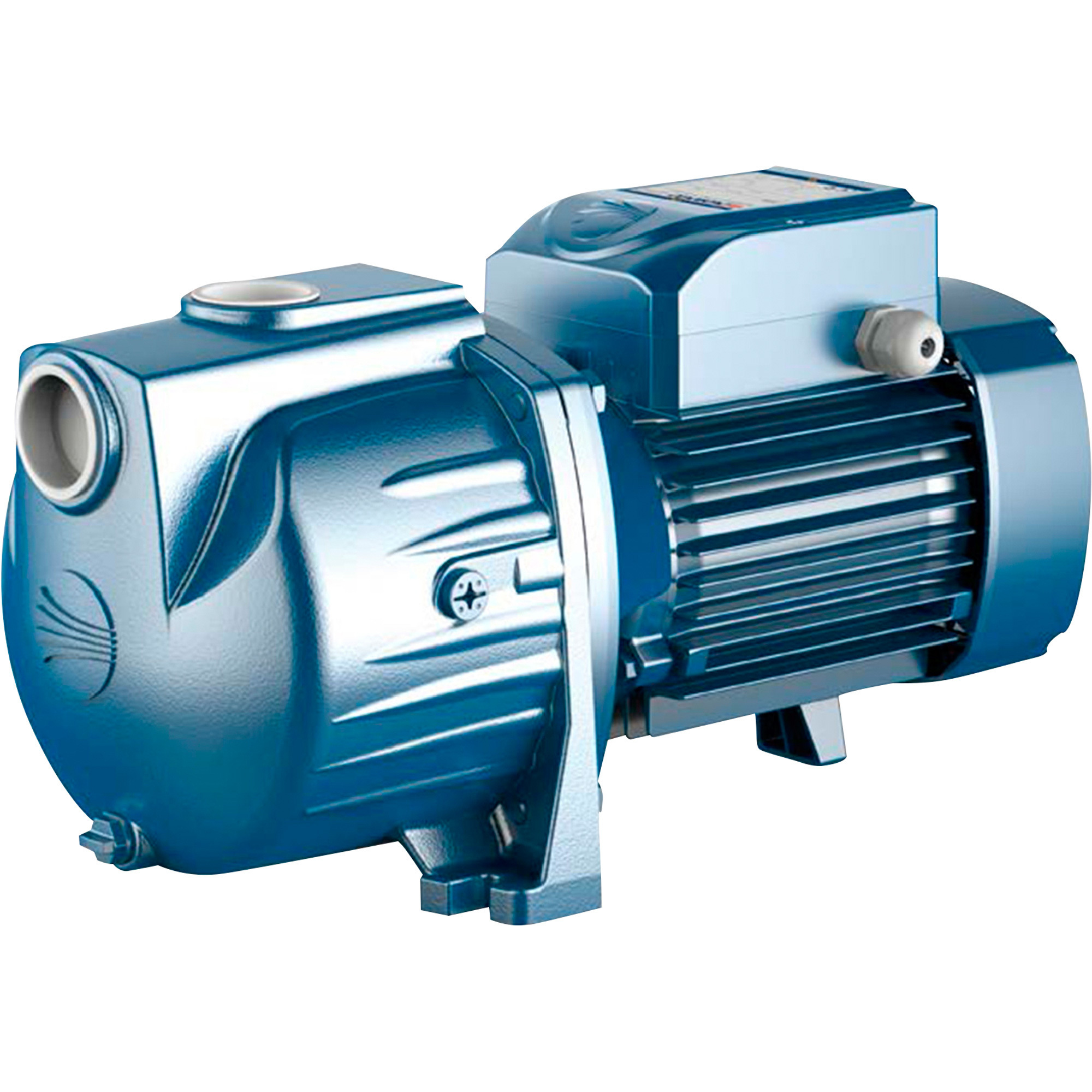

Pedrollo Self-Priming Sprinkler/Booster Pump, 6340 GPH, 2 HP, 115 Volts, Model# SKRm2 V.115 2HP

Item# 88552
Pedrollo Self-Priming Sprinkler/Booster Pump, 6340 GPH, 2 HP, 115 Volts, Model# SKRm2 V.115 2HP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pedrollo Self-Priming Sprinkler/Booster Pump, 6340 GPH, 2 HP, 115 Volts, Model# SKRm2 V.115 2HP

Click or Tap image to Zoom

$585.50

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Lifts up to 45 sprinklers
  • Electric motor with thermal overload protection
  • Cast iron pump body with durable electro epoxy coating treatment

See full description

Complete Your Solution

  • Pedrollo Self-Priming Sprinkler/Booster Pump, 6340 GPH, 2 HP, 115 Volts, Model# SKRm2 V.115 2HP
  • Strongway Wheeled Sprinkler, 1in. Head with 3 Nozzles, 8in. Rubber Tires
  • Strongway Tripod Sprinkler with Round Base, 1in. Head with 3 Nozzles, 120ft. Dia. Coverage
Price for all three:

$788.48

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Pedrollo Self-Priming Sprinkler/Booster Pump delivers enough power for up to 45 sprinklers. Recommended for use in domestic and civil applications such as irrigation of gardens with the use of sprinklers.

What's Included

    (1) Sprinkler/booster pump

Downloads

Product Manual

Features + Benefits

  • Lifts up to 45 sprinklers
  • Electric motor with thermal overload protection
  • Cast iron pump body with durable electro epoxy coating treatment

Key Specs

AttributeSpecification

item#

88552

Brand

Pedrollo

Manufacturer's Warranty

2 year limited warranty

Ship Weight

64.0 LB

Max. Flow

6,340 GPH

Horsepower

2 HP

Port Size

1.5 in
AttributeSpecification

Self-Priming

Yes

Volts

115

Max. PSI

51 PSI

Max. Total Head

118 ft

Max. Suction Lift

29 ft

Product Weight

64.0000 lb

Dimensions L x W x H (in.)

18.31 x 8.31 x 9.5 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. What is the current draw at 115 volts on this motor?

    1 answer

    1. The amperage draw at 115 volt is 22 amps. At 230 volt it is 11 amps.

      Helpful?

  2. I assume the on/off switch will be tied to the hard wire being have a switch? What gauge wire and is a ground needed? Can a plug be used?

    1 answer

    1. The manufacturer does recommend that the pump be hardwired. It is recommended to use 12 gauge wire with a 20 amp breaker. The wiring will need to be grounded. It can be wired with plug if meets the specifications needed.

      Helpful?

  3. What is the smallest diameter tubing thst csn be used to sprinklers

    1 answer

    1. It is recommended to use 1.5 inch pipe. Altering the diameter of the pump's discharge can lead to various outcomes based on the application and extent of reduction.
      1. Increased pressure: Smaller pipe diameter can elevate pressure at the discharge end, beneficial for boosting liquid pressure but could cause issues if excessive.
      2. Reduced flow rate: Decreased pipe diameter lowers liquid flow rate, potentially problematic if a specific liquid volume needs to be delivered within a set timeframe.
      3. Increased velocity: Smaller pipes raise liquid velocity, increasing turbulence and potentially accelerating wear on both the pump and the pipe.
      4. Reduced efficiency: Diminished discharge pipe diameter may decrease pump efficiency, impacting overall performance.

      Helpful?

  4. How long is the power cord?

    1 answer

    1. The pump would need to be hardwired. It can be wired for 110 volt or 230 volt.

      Helpful?
