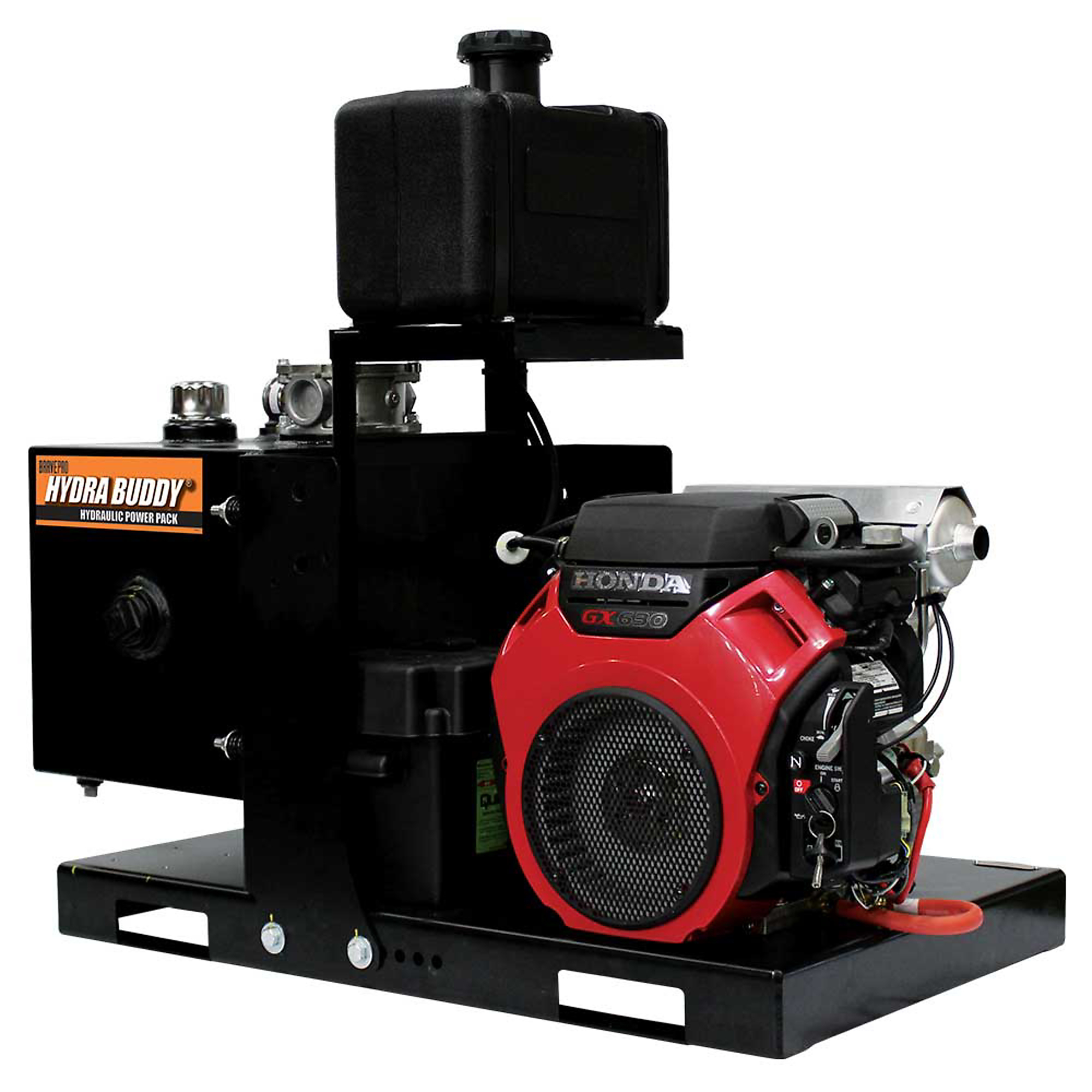

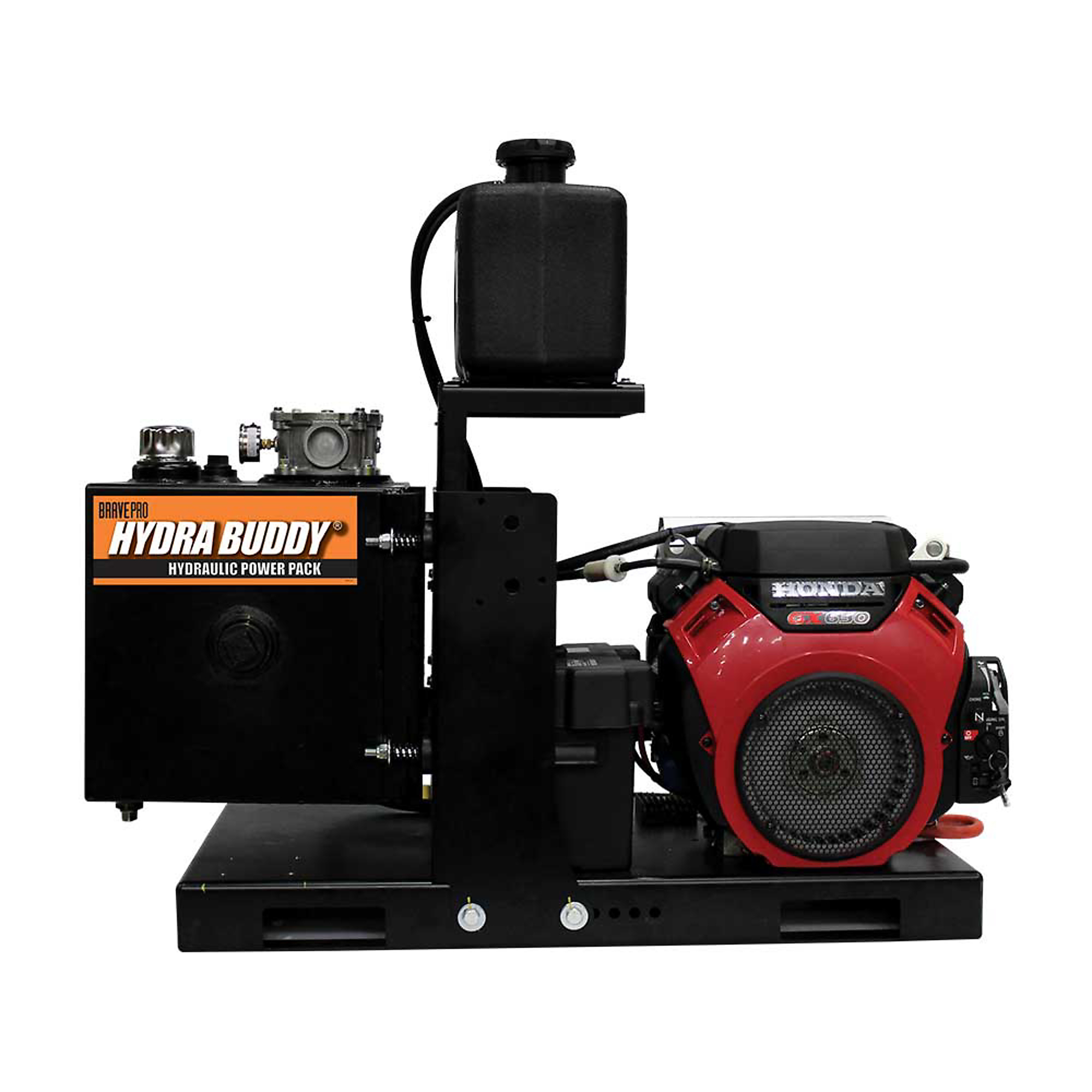

BravePro Hydraulic Power Pack, Honda GX630 Electric Start, 14 GPM, 2000 PSI, 3600 RPM, Model# HBHS620GXE

Item# 73358
BravePro Hydraulic Power Pack, Honda GX630 Electric Start, 14 GPM, 2000 PSI, 3600 RPM, Model# HBHS620GXE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BravePro Hydraulic Power Pack, Honda GX630 Electric Start, 14 GPM, 2000 PSI, 3600 RPM, Model# HBHS620GXE

Click or Tap image to Zoom

$6589.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Skid frame design allows for moving of the power unit with forklift equipment
  • 14 GPM flow with Zinga in-tank filter element
  • Relief valve plumbed and factory set to 2000 PSI

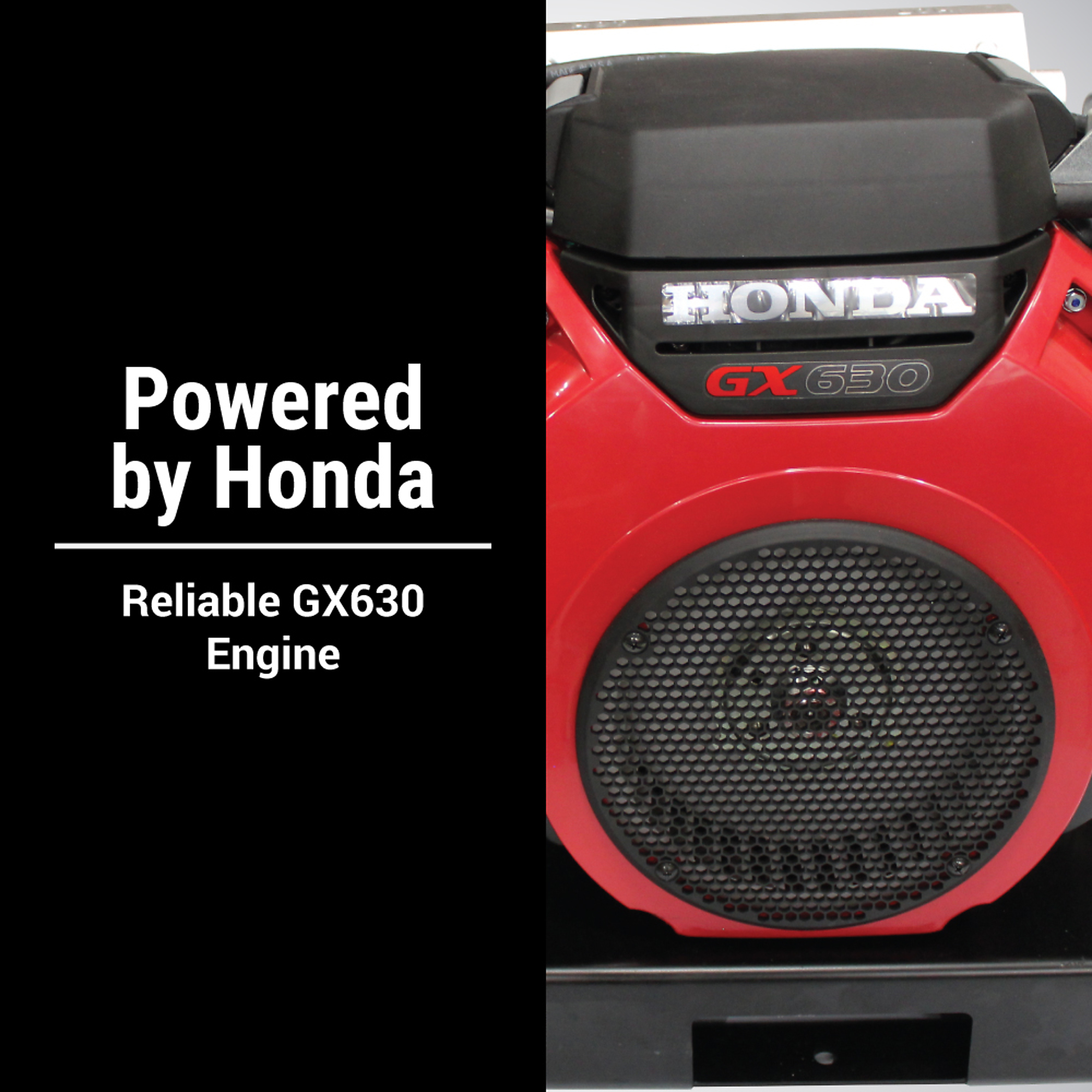

  • Dependable Honda GX630 Series commercial engine delivers 20.8 HP at 3,600 RPM
  • Optional 12V DC heat exchanger kit with wiring harness is ideal for continuous-duty applications

See full description

Complete Your Solution

  • BravePro Hydraulic Power Pack, Honda GX630 Electric Start, 14 GPM, 2000 PSI, 3600 RPM, Model# HBHS620GXE
  • BravePro, VALVE KIT, Model# 1158287.FOR
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all three:

$7268.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This self-contained BravePro® Hydraulic Power Pack with Honda GX Series Commercial Engine is compact and offers portable hydraulic power for remotely powering hydraulic equipment. The unit can be mounted into equipment as a primary hydraulic power source. Applications include agriculture, construction, trades, lifting, jacking, equipment repair, fabrication work, and a variety of other attachments and implements to save tractor time and reduce fuel cost. Note: This Hydraulic Power Pack is designed to work in an open center hydraulic system. The pump provided is a fixed displacement gear pump that will deliver flow whenever the engine is running. Not intended to be plumbed into a closed center hydraulic system.

What's Included

    (1) Hydraulic power pack

Downloads

Product Manual

Features + Benefits

  • Skid frame design allows for moving of the power unit with forklift equipment
  • 14 GPM flow with Zinga in-tank filter element
  • Relief valve plumbed and factory set to 2000 PSI
  • Dependable Honda GX630 Series commercial engine delivers 20.8 HP at 3,600 RPM
  • Optional 12V DC heat exchanger kit with wiring harness is ideal for continuous-duty applications
  • The following optional kits include ISO 7241-1 Series A interchange quick disconnects
  • Optional quick disconnect loop hose kit ideal for starting unit (warmup) when not plumbed into any hydraulic system
  • Optional directional control valve kit is ideal for frame-mounted directional control valve
  • Optional quick disconnect kit for easy installation and removal of hoses
  • Great for remote operation of a variety of hydraulic controlled attachments
  • Can be mounted into equipment as a primary hydraulic power source
  • Offers fuel savings over use of the original equipment power source
  • Reduces wear on existing equipment hydraulic power source
  • Drainzit hose for quick, clean engine oil changes

Key Specs

AttributeSpecification

item#

73358

Brand

BravePro

Manufacturer's Warranty

2 year limited warranty

Ship Weight

368.0 LB

Max. Flow Rate

14 GPM

Max. PSI

2,000

Max. RPM

3,600

Power Source

Gas
AttributeSpecification

Port Outlet Size

7/8 in

Thread Type

Other

Reservoir Capacity

19.2 Gal

Horsepower

20.8

Action

Double Acting

Product Weight

368.0000 lb

Dimensions L x W x H (in.)

48.0 x 24.5 x 43.0 in

Reviews

Questions & Answers

Questions

1–10 of 10 Questions
Sort by:

  1. What are the dimensions of thid

    1 answer

    1. The dimensions would be 48.0 x 24.5 x 43.0 in.

      Helpful?

  2. What's the lowest outdoor temperature this unit can work and start at?

    1 answer

    1. The BravePro Hydraulic Power Pack (Model HBHS620GXE) with the Honda GX engine is designed to operate in a wide range of temperatures. However, it is generally recommended to use it in temperatures above 0°F (-18°C) to ensure optimal performance and prevent potential issues with the engine and hydraulic system.

      Helpful?

  3. Can you adjust the flow rate or is it only at 14gpm?

    1 answer

    1. The GPM flow rate is not adjustable on the power pack.

      Helpful?

  4. How do you order the heat exchanger for your hydraulic power unit?

    1 answer

    1. The hydraulic cooler kit model number M1158293A.1 can be purchased through the manufacturer directly.

      Helpful?

  5. can the fuel tank be temporarily removed for shipping purposes?

    1 answer

    1. The fuel tank is welded on and would not be able to be removed for transportation purposes.

      Helpful?

  6. Does the engine have electric start?

    1 answer

    1. The engine on this unit has electric start.

      Helpful?

  7. We have a height restiction where we plan to mount this HPU, and the fuel tank adds significantly to the height of the unit. If we were to remove the tank, can the Honda motor draw fuel from a tank located below the level of the HPU? Thanks.

    1 answer

    1. You can hook into a remote tank however it cannot be more than 20 inches above or below the carburetor float bowl.

      Helpful?

  8. Is there any way I Can I change the psi to 2650 ?

    1 answer

    1. This unit does not have an option for a higher psi.

      Helpful?

  9. can you put a multi spool control valve on it? Say 5?

    1 answer

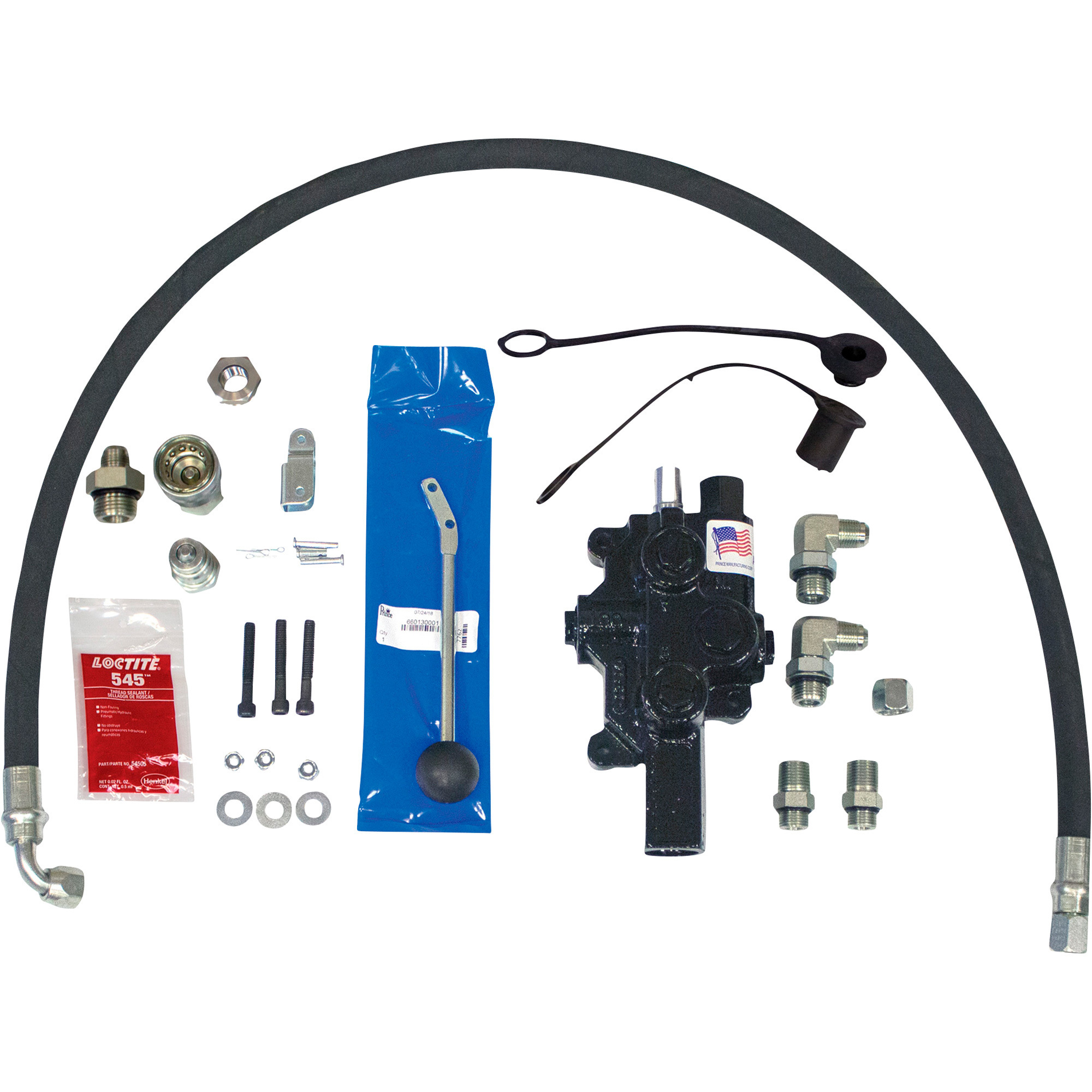

    1. The recommended valve kit model 1158287 (item 108334) is a 3 position 4 way directional control valve with integral relief valve.

      Helpful?

  10. is this an open center hyd system or closed hyd system?

    1 answer

    1. This hydraulic power pack does not have a directional valve installed. This can power pack can be hooked up to a closed, open, or tandem center hydraulic system.

      Helpful?
