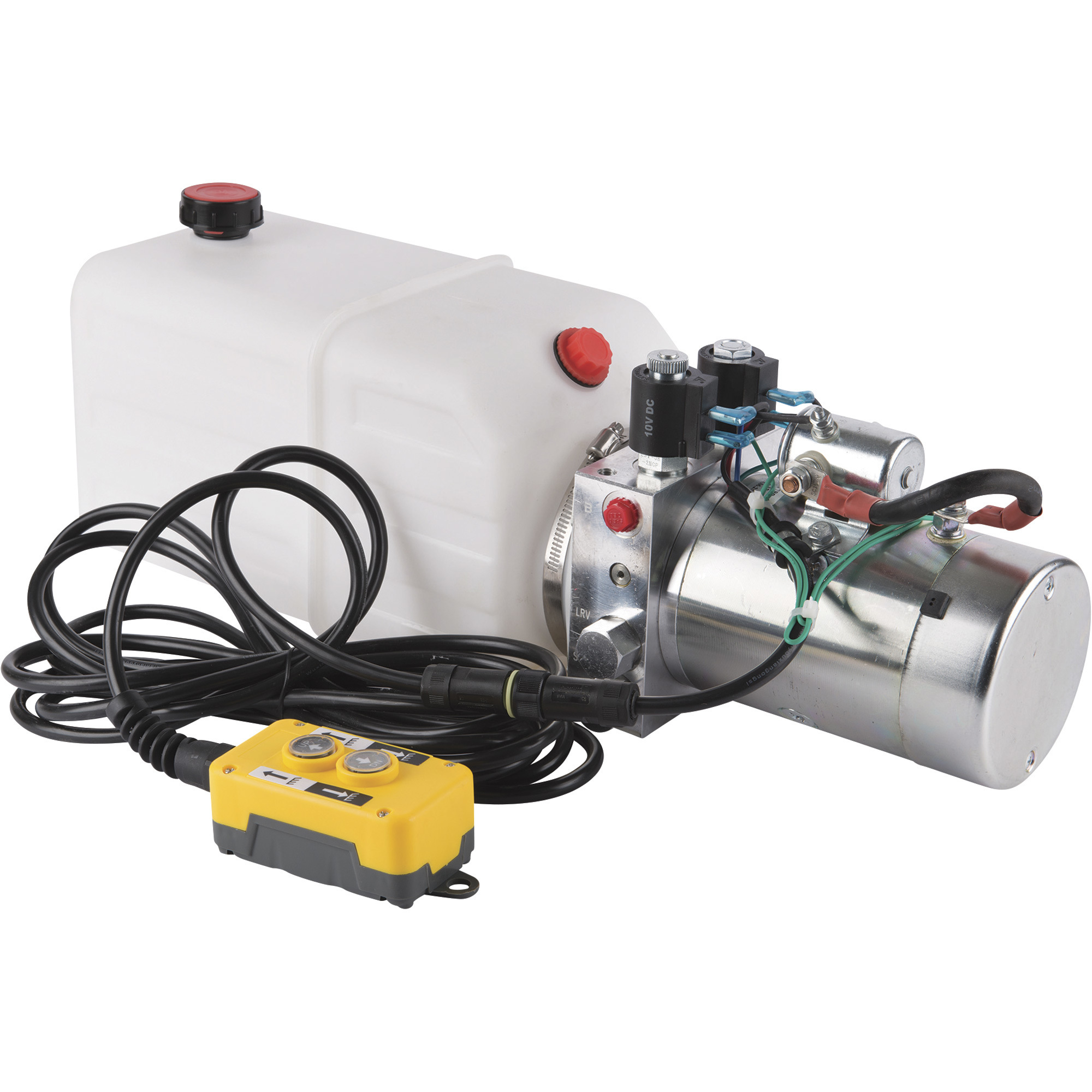

NorTrac Dump Trailer Power Unit with 12V DC Motor for Double-Acting Cylinder, 1.1-Gal. Reservoir

Item# 53460
"NorTrac Dump Trailer Power Unit with 12V DC Motor for Double-Acting Cylinder, 1.1-Gal. Reservoir"
NorTrac Dump Trailer Power Unit with 12V DC Motor for Double-Acting Cylinder, 1.1-Gal. Reservoir

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Dump Trailer Power Unit with 12V DC Motor for Double-Acting Cylinder, 1.1-Gal. Reservoir

Click or Tap image to Zoom

$569.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 08/10/26

  • Store Pickup:

    Not available - online only
  • Heavy-duty 12V motor with double-acting cylinder delivers the power and performance you need for power-up/power-down circuits with load holding on both A and B ports
  • Pressure-balanced pump for smooth operation
  • Electric pendant control for easy operation
  • 1.1-gallon reservoir tank
  • Generates 3,000 max. RPM and delivers a 1.5 GPM flow rate

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The NorTrac Dump Trailer Power Unit with 12V DC Motor operates a double-acting cylinder for power-up/power-down circuits with load holding on both A and B ports. This 2 HP power unit is ideal for dump truck/trailer or tipper applications.

What's Included

    (1) Double-acting dump trailer power unit

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Heavy-duty 12V motor with double-acting cylinder delivers the power and performance you need for power-up/power-down circuits with load holding on both A and B ports
  • Pressure-balanced pump for smooth operation
  • Electric pendant control for easy operation
  • 1.1-gallon reservoir tank
  • Generates 3,000 max. RPM and delivers a 1.5 GPM flow rate
  • 2.1cc displacement

Key Specs

AttributeSpecification

item#

53460

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.4 LB

Max. Flow Rate

1.5 GPM

Max. PSI

3,190

Max. RPM

3,000
AttributeSpecification

Power Source

Battery

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

1.1 Gal

Volts

12

Horsepower

2

Action

Double Acting

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. What is the maximum capacity of this motor to lift a load? My dump truck usually carries loads of 4-6 tons. Can it lift it with no issues?

    1 answer

    1. The weight capacity is determined by the hydraulic system the power unit is used with. This unit can generate up to 3,000 maximum RPM and up to 1.5 GPM. Please check the requirements of the hydraulic system.

      Helpful?

  2. does this operate two separate circiuts?

    1 answer

    1. This power unit is designed for use with a double-acting cylinder which means it can provide power for raising and lowering the cylinder. It does not operate two separate circuits.

      Helpful?

  3. if it takes 15 secs to extend and then 15 seconds to pull, will it only do this twice? before needing to "cool"

    1 answer

    1. To prevent the unit from overheating, allowing it to cool would be recommended.

      Helpful?

  4. can I install a 600 psi relief valve intead of the 3000 psi relief?

    1 answer

    1. The parts needed for a 600 PSI relief valve would be available through the manufacturer directly as a separate purchase. Northern Tool not not currently offer this as an option for this unit.

      Helpful?

  5. Does this unit have a float option

    1 answer

    1. This power unit has a load hold feature. It does not have a float option.

      Helpful?

  6. Are there bolts on back to attach unit?

    1 answer

    1. At the bottom of the aluminum adapter there are two 3/8"-16 bolt holes which are 14 mm deep. You will need two bolts to attach it.

      Helpful?

  7. Is there a wireless remote available for this pump?

    1 answer

    1. A wireless remote is not available for this pump.

      Helpful?

  8. What are the demenions of the complete unit?

    1 answer

    1. The overall dimensions are 16.65" L x 7.09" W x 7.98" H.

      Helpful?

  9. How long is the remote control cord?

    1 answer

    1. This power unit includes a remote that is 20' 7" long. This length also includes the length of remote control box/unit.

      Helpful?

  10. What is the Duty cycle for this Unity.

    The trailer I'm using this on, has two cylinders, (3 in. with 18" travel), just wanted to make sure it could fully extend cylinders with out overheating.

    Thanks
    Bob

    1 answer

    1. This dump trailer pump has a 10% duty cycle. The motor can run for one minute then needs to cool for nine minutes.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
