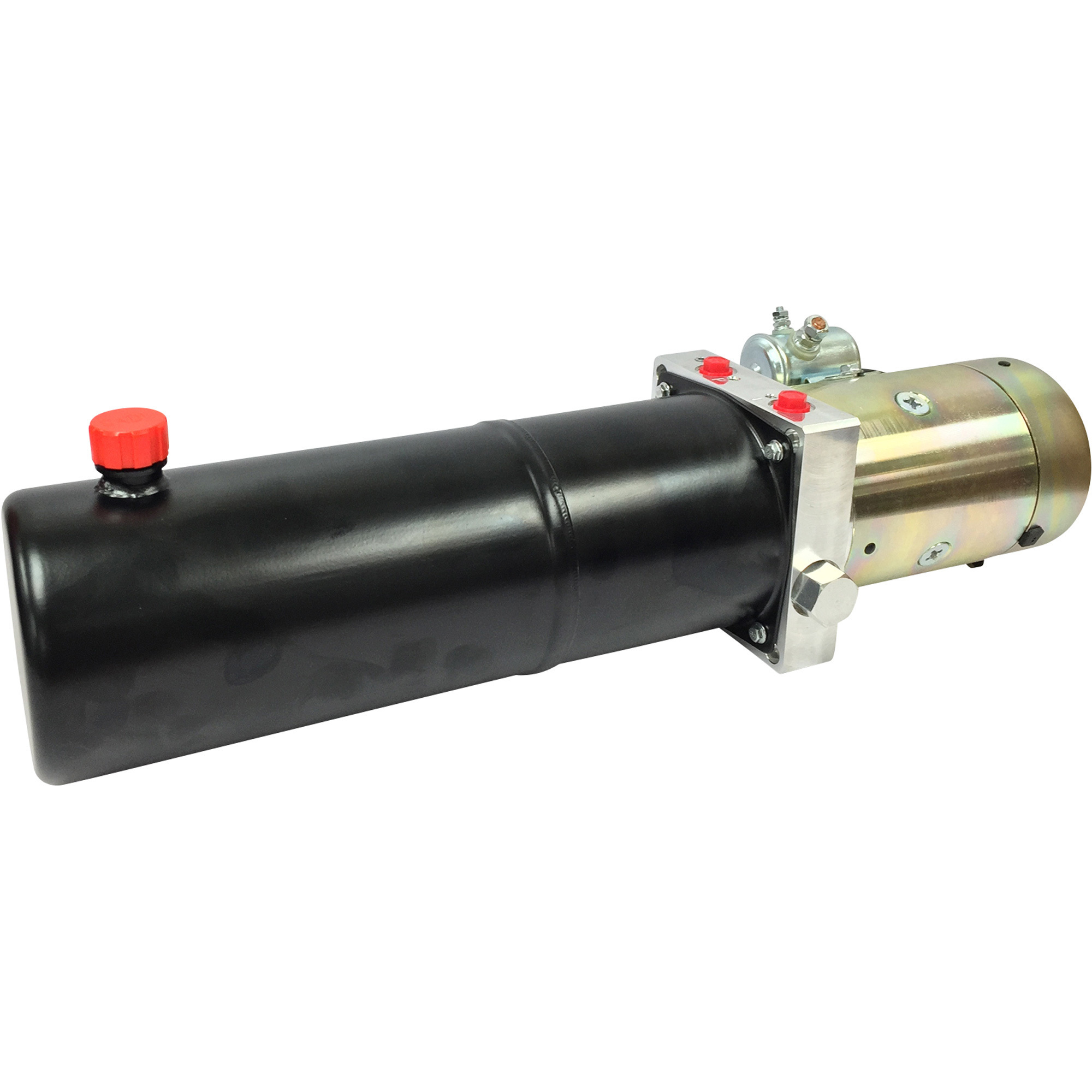

NorTrac 12 Volt DC Power Unit with Pressure and Return Ports Only, 2 HP, 1.5 GPM, 3000 max. RPM, 2900 max. PSI

Item# 110024
NorTrac 12 Volt DC Power Unit with Pressure and Return Ports Only, 2 HP, 1.5 GPM, 3000 max. RPM, 2900 max. PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac 12 Volt DC Power Unit with Pressure and Return Ports Only, 2 HP, 1.5 GPM, 3000 max. RPM, 2900 max. PSI

Click or Tap image to Zoom

$449.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • 2 HP, 12V DC single phase electric motor
  • High-efficiency, pressure balanced pump
  • Delivers fast cycle times
  • High-power density
  • Built tough for long lasting life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 2 HP heavy-duty NorTrac® 12 Volt DC Power Unit with Pressure and Return Port is ideal for use with snow plows with remote valve manifolds, asphalt pavers, truck and trailer combos, construction equipment, agricultural machinery and other specialty applications where the control valve is remotely mounted.

What's Included

    (1) DC power unit

Features + Benefits

  • 2 HP, 12V DC single phase electric motor
  • High-efficiency, pressure balanced pump
  • Delivers fast cycle times
  • High-power density
  • Built tough for long lasting life
  • 1.5 GPM flow rate
  • 3000 max. RPM and 2900 max. PSI
  • 0.92 gallon tank
  • 22in.L x 7in.W x 6.2in.H

Key Specs

AttributeSpecification

item#

110024

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

31.0 LB

Max. Flow Rate

1.5 GPM

Max. PSI

2,900

Max. RPM

3,000
AttributeSpecification

Port Outlet Size

9/16 in

Reservoir Capacity

0.92 Gal

Volts

12

Horsepower

2

Product Weight

31.0000 lb

Dimensions L x W x H (in.)

22.0 x 7.0 x 6.22 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. How to fill the hydraulic fluid

    1 answer

    1. A filler/breather cap is located at the top of the reservoir. Remove the cap by turning it counterclockwise (CCW), then add oil to the reservoir until it reaches the recommended fill level. Once the reservoir is filled, reinstall the filler/breather cap by turning it clockwise (CW) until securely tightened.

      Helpful?

  2. What r the dimensions of the hole unit

    1 answer

    1. The overall dimensions are 4.84" W x 21.65" L x 6.69" H.

      Helpful?

  3. Where Does the fluid return through

    1 answer

    1. Fluid returns through the T-port. The T-port is the closer of the two top ports shown in the photo on the product web page.

      Helpful?

  4. What is the duty cycle of this power unit?

    1 answer

    1. This power unit can run 30 seconds on and 300 seconds off when operating at full pressure.

      Helpful?

  5. Does this unit provide fluid pressure in both directions?

    0 answers

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
