NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer, Honda GX630 V-Twin OHV Engine, 4000 PSI, 4 GPM, 200-Gal. Water Tank

Item# 157595
"NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer, 4000 PSI, 4 GPM, Honda Engine, 200-Gal. Water Tank"
Top Seller
NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer, Honda GX630 V-Twin OHV Engine, 4000 PSI, 4 GPM, 200-Gal. Water Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer, Honda GX630 V-Twin OHV Engine, 4000 PSI, 4 GPM, 200-Gal. Water Tank

Click or Tap image to Zoom

$9999.99

  • Shipping:

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Honda GX630 V-Twin engine
  • CAT 67DX pump delivers 4,000 PSI of proven reliability
  • 200-gallon water tank
  • 100ft. nonmarking hose
  • 2 hose reels: first reel fits up to 100ft. 3/4in. garden hose (not included); second reel includes 100ft., 3/8in. gray nonmarking high-pressure hose

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer, Honda GX630 V-Twin OHV Engine, 4000 PSI, 4 GPM, 200-Gal. Water Tank

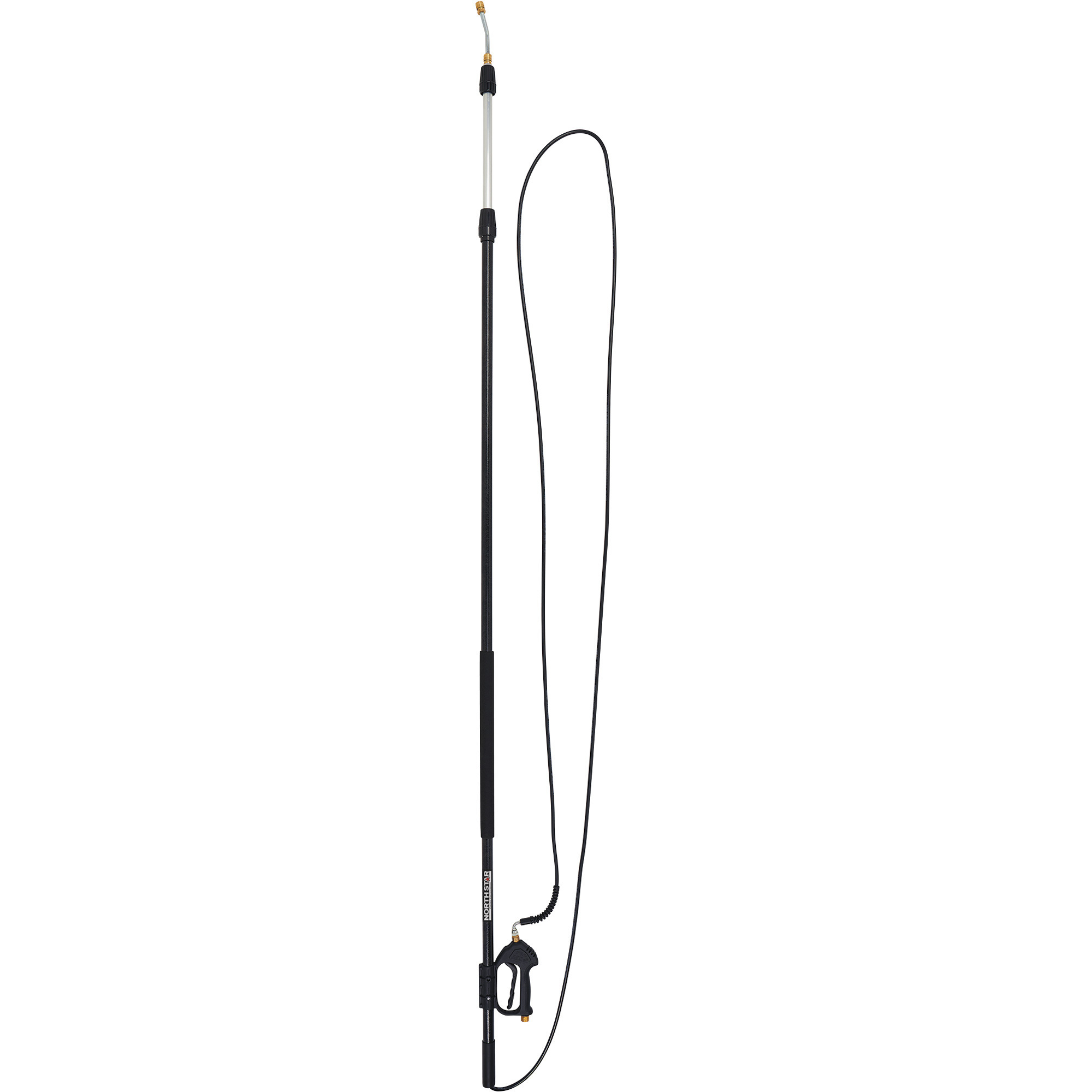

  • NorthStar Telescoping Pressure Washer Wand, 4000 PSI, 10.5 GPM, 8ft.–24ft.L, Fiberglass/Aluminum
  • NorthStar Rotating Pressure Washer Turbo Nozzle, 4.0 Orifice, 3000-5100 PSI, Model# NYR51K40BP
  • Cat Pumps Pressure Washer Pump Oil, 21 Oz.
Price for all four:

$10,361.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar Trailer-Mounted Hot Water Pressure Washer with self-contained 200-gallon water tank delivers hot water washing anywhere! Perfect for remote jobsites with no electricity or running water. Honda GX630 V-Twin engine powers CAT pump to deliver hot water at 4,000 PSI for effective cleaning. Horizontal shaft engine is engineered for long life. CAT direct drive pump has brass manifold and ceramic plungers. Coil assembly is fully encased in a custom-molded ceramic fiber refractory combustion chamber with low-thermal conductivity and resistance to thermal shock. Parker Hannifin Racor fuel filter and water separator prevents burner ignition problems. Diagnostic lights signal operation of key components. Rear hose entry spray gun with split lance keeps the hose out of the way for easy handling. Some assembly required. Note: color of outer burner wrap is now black, not silver.

This item is not for sale in the state of Alaska. Customers are responsible for checking local codes and regulations prior to purchase.
Note: this item is too large for a liftgate. Customer is required to provide a dock or forklift to unload.

What's Included

    (1) NorthStar Trailer-Mounted Hot Water Commercial Pressure Washer with Honda GX630 V-Twin OHV Engine (1) Gun with 4ft. quick-connect lance (1) 100ft. gray nonmarking hose (5) Quick-connect nozzles (2) Hose reels

Downloads

Product Manual

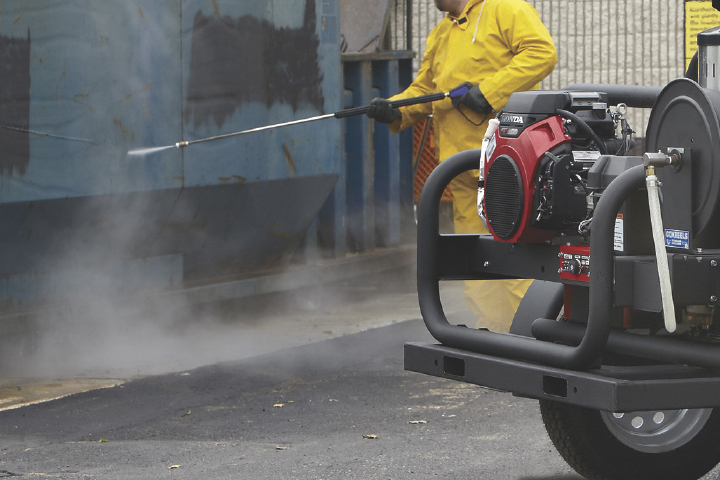

REMOTE CLEANING SOLUTION

Designed for versatility and mobility, this pressure washer brings POWERFUL HOT WATER CLEANING to any jobsite, regardless of electricity or water access, making it perfect for industrial and commercial use

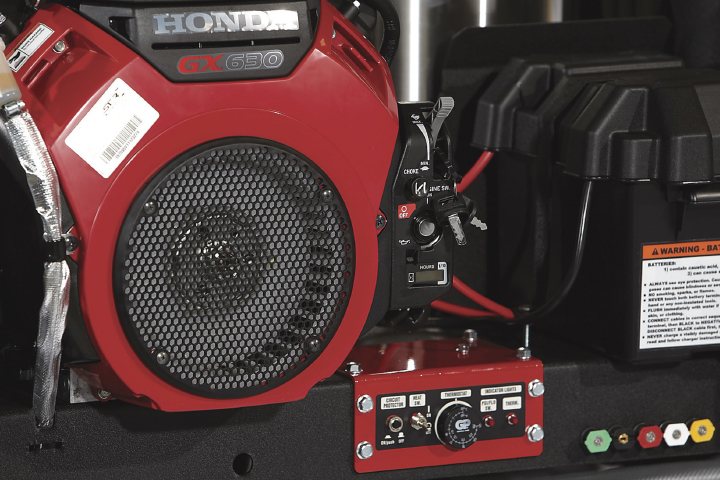

ROBUST ENGINE AND PUMP COMBINATION

The HONDA GX630 ENGINE paired with the reliable CAT 67DX pump delivers consistent 4,000 PSI for deep cleaning and effective sanitization

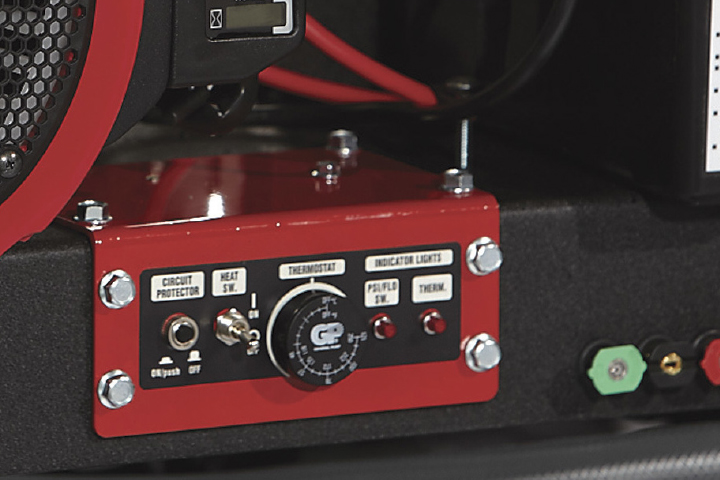

SAFETY AND EFFICIENCY

Equipped with ADVANCED SAFETY FEATURES like DIAGNOSTIC LIGHTS and a fuel filter/water separator, it operates efficiently, minimizing downtime and maintenance

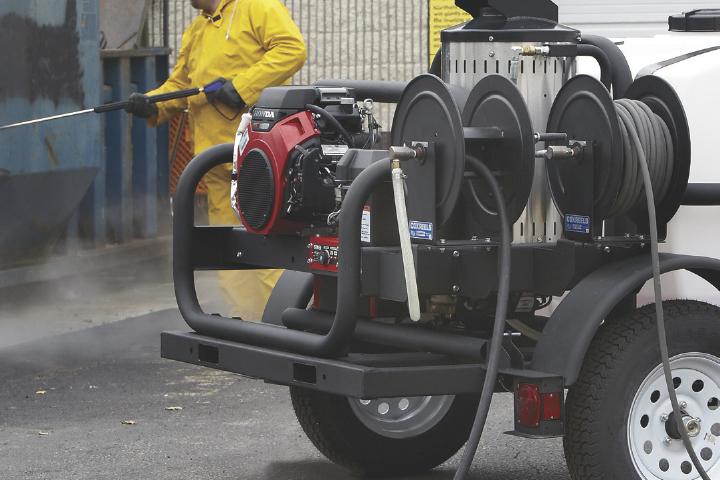

BUILT TO LAST

Engineered with durability in mind, it features HIGH-QUALITY COMPONENTS such as a brass manifold, ceramic plungers and a rugged heating coil, ensuring longevity and performance

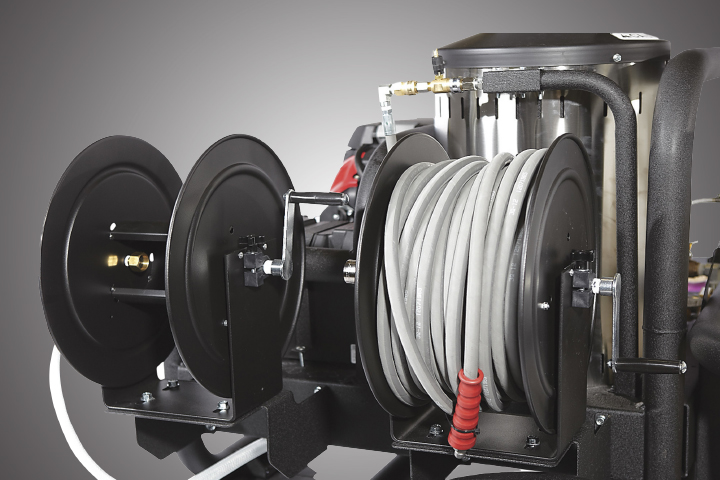

FULLY EQUIPPED FOR PROFESSIONAL USE

This trailer-mounted unit includes DUAL HOSE REELS, a large water tank and an EXTENSIVE HOSE LENGTH, ensuring you have everything you need for comprehensive cleaning task

Features + Benefits

  • Honda GX630 V-Twin engine
  • CAT 67DX pump delivers 4,000 PSI of proven reliability
  • 200-gallon water tank
  • 100ft. nonmarking hose
  • 2 hose reels: first reel fits up to 100ft. 3/4in. garden hose (not included); second reel includes 100ft., 3/8in. gray nonmarking high-pressure hose
  • Pressure switch burner control
  • 1/2in. schedule 80 heating coil with stainless steel wrap
  • 3,500-lb. capacity trailer has lights, torsion axle suspension, fenders and jack with caster
  • Storage box to organize tools and spare parts
  • Horizontal shaft engines last 5x as long as vertical shaft engines
  • Forged brass manifold gives improved strength over cheaper aluminum
  • Easy Start stops pressure build-up during start-up
  • Adjustable pressure for job versatility
  • Sight glass lets you quickly check pump oil
  • Contact with water or oil will not damage insulation; upon drying the insulation regains its original shape
  • Uses 1/2in. schedule 80 extra-heavy pipe
  • Adjustable thermostat
  • Diagnostic indicator lights signal proper operation of key components
  • 22mm quick connection makes it easy to use multiple attachments
  • Extras: safety release, cast iron sleeves

Key Specs

AttributeSpecification

item#

157595

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1460.0 LB

Pressure

4,000 PSI

Flow

4 GPM

Engine Brand

Honda

Engine Model

GX630 V-twin

Engine Displacement

630 cc

Fuel Type

Gasoline

Pump

CAT

Drive Style

Direct

Number of Tips Included

5

Adjustable Pressure

Yes

Gross Torque

29.2 ft-lbs.

Start Type

Electric and Recoil

Engine Oil Included

No
AttributeSpecification

Engine Oil Type

SAE 30 Motor Oil

Fuel Capacity

4 Gal

Max. Inlet Water Temp

140 °F

Max. Outlet Water Temp

210 °F

Orifice Size

4

Chemical Injector

Yes

Hose Length

100 ft

Coupler Size

3/8 in

Wheel Diameter

15 in

Nozzle Type

0°, 15°, 25°, 40° and Soap

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

SAE 30 Nondetergent

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

961.0000 lb

Dimensions L x W x H (in.)

129.0 x 75.75 x 60.0 in

Reviews

Questions & Answers

58 Reviews This action will navigate to reviews.

Questions

1–10 of 100 Questions
Sort by:

  1. how do you lower the pressure, by lowering motor rpms, nozzles or is their an adjustment on this unit somewhere, thx...

    1. Never adjust the unloader without having pressure gauges attached to your wand, so you can determine exactly what pressure your adjusting to, if not you could have a failure causing serious bodily injury or even death.

      Helpful?

    2. You can adjust the pressure on this NorthStar Pressure Washer by tightening or loosening the unloader valve found on the pump. You can also adjust by using different nozzle with a wider spray pattern for lower pressure, or narrower for higher pressure. The pump is designed to run only when the engine RPM at full throttle, and should never be run at lower RPM.

      Helpful?

    3. Typically by the red knob on the side of the pump but lowering the motor rpms will decrease the pressure. I would not recommend this procedure to operate.

      Helpful?

  2. is trailer highway rated & can be taged?

    1. This NorthStar hot water pressure washer and trailer is highway rated. We will send out separately a certificate of origin that can be used to get tags if your state requires them.

      Helpful?

    2. Yes it is. Around two weeks after purchase a title arrives in the mail ready to be taken to the courthouse to get your tag!

      Helpful?

    3. it can be tagged and should be fine for pulling on highway with no problem

      Helpful?

  3. Is there a drain valve on the water tank # 157595

    1. Yes there is a ball valve on the bottom of the tank

      Helpful?

    2. The tank on this pressure washer has a drain valve.

      Helpful?

  4. How is this item packed for shipping?

    1. The washer/trailer is shipped via freight. It comes with a light weight steel frame around the entire unit with the trailer tongue and tool box unattached. It took me about 45 minutes to an hour to unpack and assemble (using air tools)

      You will need a raised loading dock and forklift (with 48") forks to unload.

      Helpful?

    2. Our NorthStar Pressure Washer comes crated and will only need the tongue of the trailer installed along with the jack stand.

      Helpful?

  5. How long does it take for this unit to heat the water to at least 180 F?

    1. As soon as the water goes through the heater it is heated. I would say around 8 seconds to travel through the hose to the gun!

      Helpful?

    2. This NorthStar Hot Water Pressure Washer will have the water heated to 210 degrees in a matter of seconds. You may, when you first turn it on have some cold water, but almost instantaneously you will have water at 210 degrees.

      Helpful?

  6. are the hose reels self retracting or manual wind. Thanks

    1. Manual wind.

      Helpful?

    2. The hose reels that are included on this trailer are manual rewind.

      Helpful?

  7. On this unit can you change the pump to get more gallons per minute so i can clean driveways effectively with a surface cleaner.

    On this unit can you change the pump to get more gallons per minute so i can clean driveways effectively with a surface cleaner.

    Thanks, Roger

    1. you should not have to change the pump if you open the unloader all the way

      Helpful?

    2. With a hot pressure washer your cleaning efficiency is much higher than with a cold water unit. Also, most surface cleaners cannot handle the higher temperatures. The pump GPM cannot be altered.

      Helpful?

  8. Water Tank

    how long can you wash befor the water runs out on that 200 gallon tank

    1. This pressure washer provides 4 gallons per minute at 4000 psi. So if you were running at full pressure, you would have approximately 50 minutes of continuous washing on one full tank of water. It is possible to hook this unit up to a hose from an external water source for unlimited continuous use.

      Helpful?

    2. The pump on the pressure washer is a 4 GPM pump so:

      200 Gallons divided by 4 Gallons Per Minute (200/4) = 50 Minutes.

      50 minutes of spraying time.

      Helpful?

  9. Hello, i have a question, exist this equipment with Disel?

    1 answer

    1. At this time, we do not offer this pressure washer with a diesel engine.

      Helpful?

  10. does this unit have direct drive pump or belt drive

    1 answer

    1. This pressure washer features a direct drive pump.

      Helpful?
