NorthStar Hot Water Commercial Pressure Washer Skid with 2 Wands, 4000 PSI, 7 GPM, Kohler Engine

Item# 157598
"NorthStar Hot Water Commercial Pressure Washer Skid with 2 Wands, 4000 PSI, 7 GPM, Kohler Engine"
On Sale
NorthStar Hot Water Commercial Pressure Washer Skid with 2 Wands, 4000 PSI, 7 GPM, Kohler Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Hot Water Commercial Pressure Washer Skid with 2 Wands, 4000 PSI, 7 GPM, Kohler Engine

Click or Tap image to Zoom

$7999.99
Reg $8999.99Save $1000.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Horizontal shaft engines last 5x as long as vertical shaft engines
  • 7 GPM/4,000 PSI from 1 gun or 3.5 GPM/4,000 PSI from both guns
  • Uses 1/2in. schedule 80 extra-heavy pipe

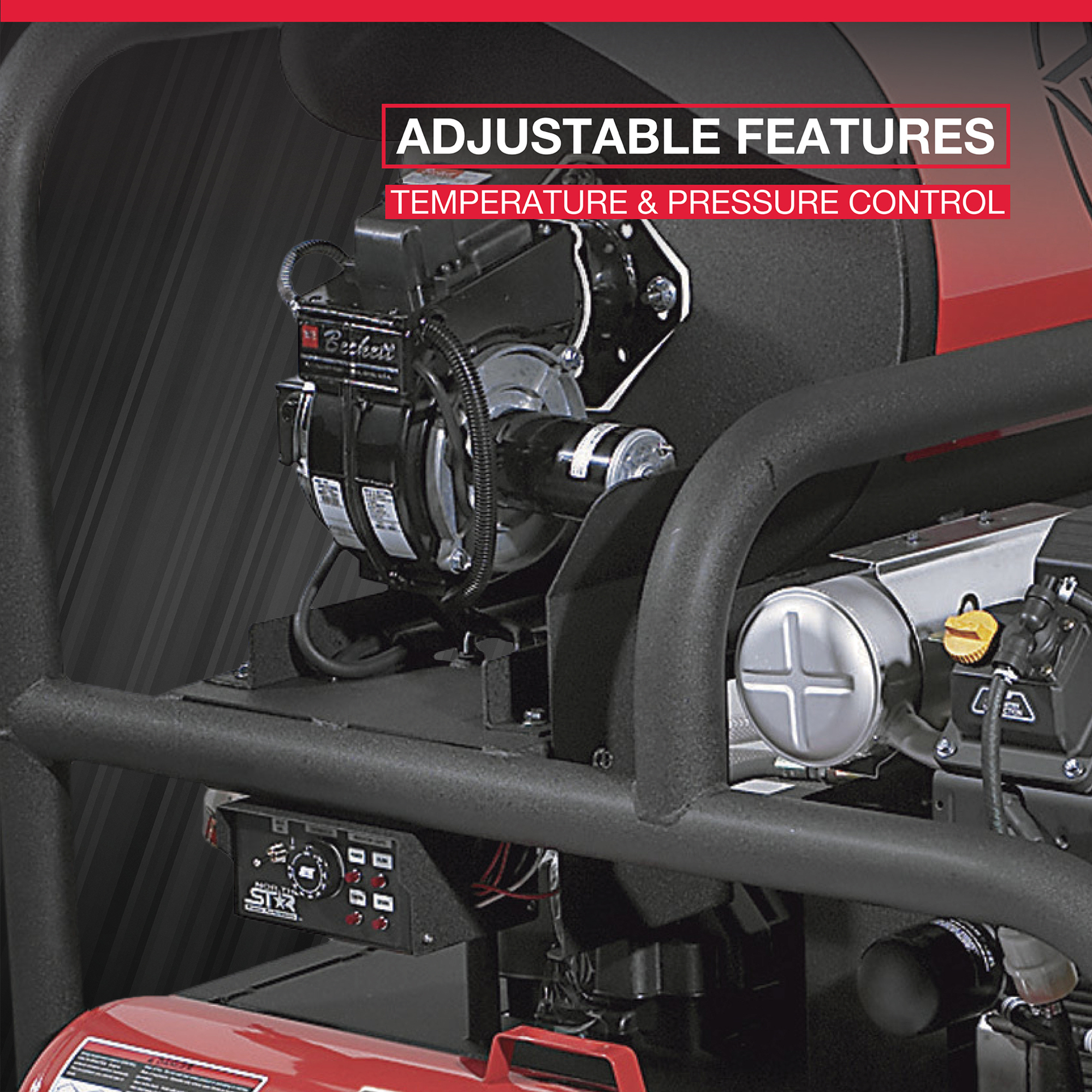

  • Adjustable temperature
  • Pump has brass manifold, ceramic plungers and safety relief

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Hot Water Commercial Pressure Washer Skid with 2 Wands, 4000 PSI, 7 GPM, Kohler Engine
  • MAG 1 Pressure Washer Pump Oil, 30W, Universal Use, 32oz.
  • NorthStar Pressure Washer Pump Freeze Guard, 12 Oz.
  • Valley Industries Quick-Connect Pressure Gauge, 5,000 PSI, 3/8in.
Price for all four:

$8057.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar Hot Water Pressure Washer Skid with 2 Wands lets you spray hot water anywhere with no decrease in PSI, even when you use both guns! Commercial-grade 23.5 HP Kohler Command Pro V-Twin horizontal-shaft engine is engineered for long life. Industrial belt drive pump has brass manifold, ceramic plungers and safety relief for long life in extreme conditions. Parker Hannifin Racor fuel filter and water separator prevents burner ignition problems. Diagnostic lights signal operation of key components. Rear hose entry spray gun with split lance keeps the hose out of the way for easy handling.

What's Included

    (1) Pressure washer (2) 50ft. hoses (2) 4ft. lances (15) Nozzles

Downloads

Product Manual

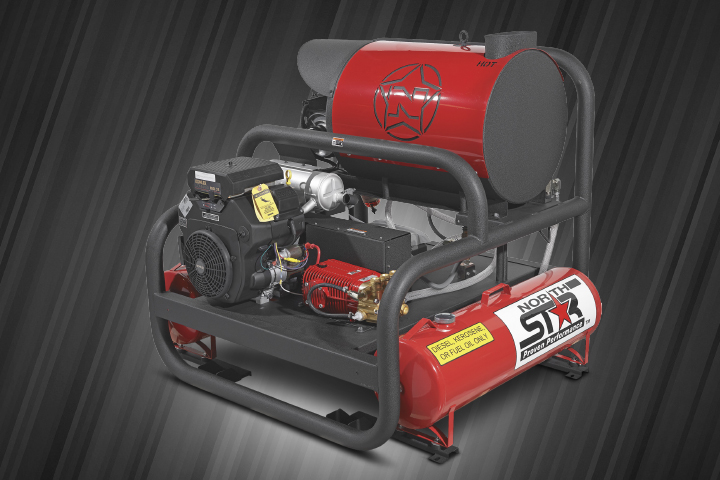

FUEL EFFICIENCY AND SAFETY

Equipped with a Parker Hannifin Racor fuel filter and water separator, it ensures reliable operation and PREVENTS BURNER IGNITION ISSUES

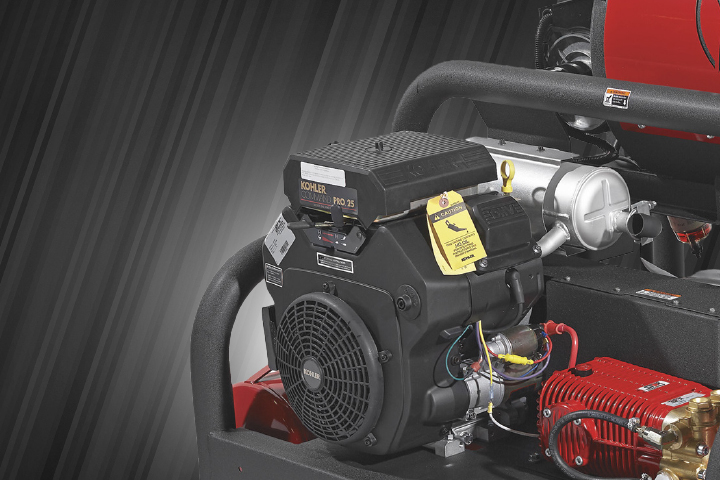

ENGINEERED TO LAST

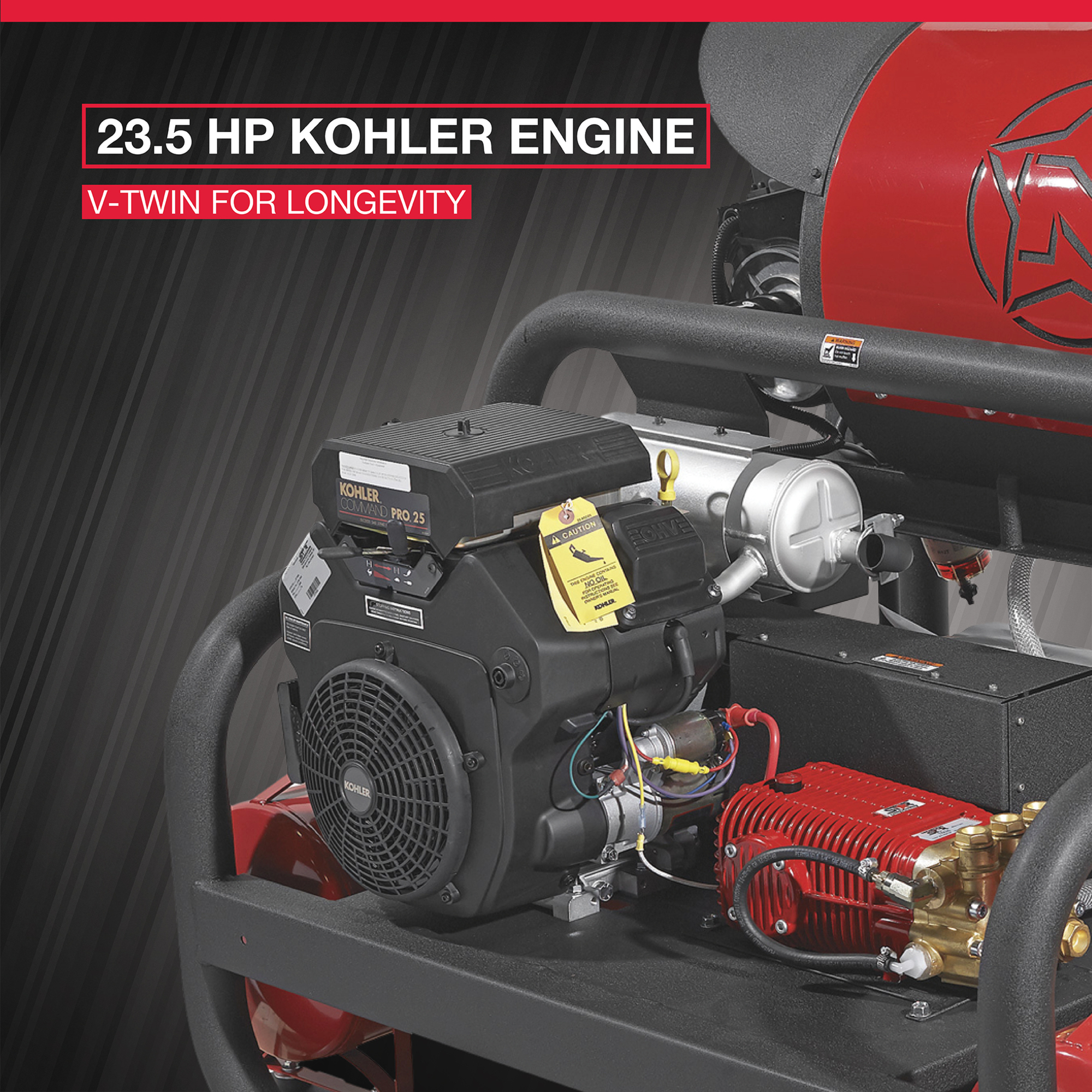

The heart of this machine is its 23.5 HP KOHLER COMMAND PRO ENGINE, built to deliver consistent power and withstand the test of time

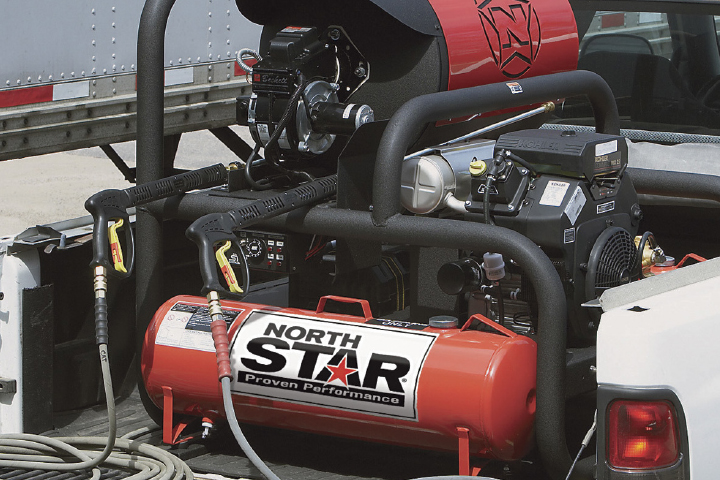

UNMATCHED DURABILITY

Featuring an industrial BELT DRIVE PUMP with a BRASS MANIFOLD and CERAMIC PLUNGERS, this washer is designed for the toughest cleaning tasks

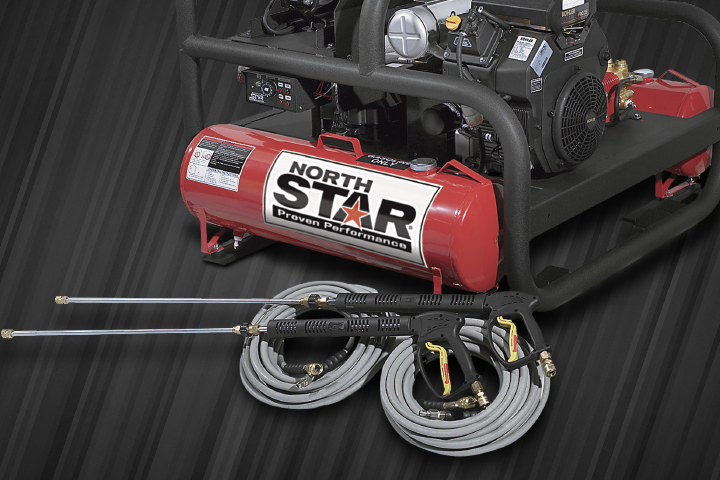

EASE OF USE AND CONTROL

Designed with the user in mind, it features a rear hose-entry spray gun for comfortable handling and ADJUSTABLE TEMPERATURE FOR VERSATILE CLEANING

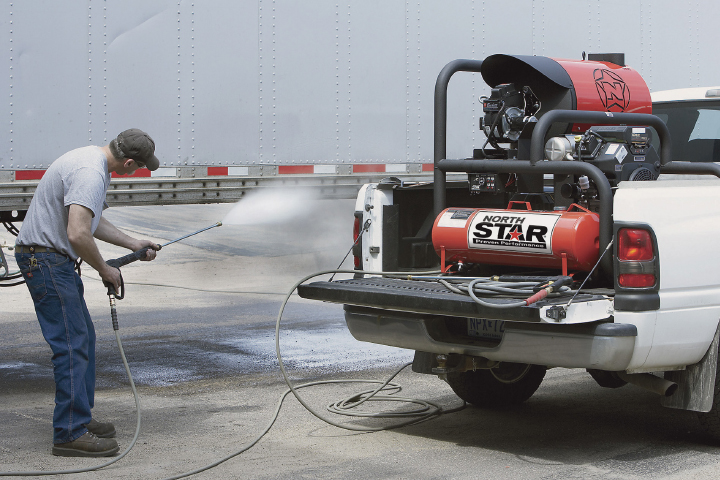

VERSATILE CLEANING POWER

Experience the ultimate cleaning efficiency with the NorthStar Skid, capable of RUNNING TWO GUNS SIMULTANEOUSLY AT 4,000 PSI, perfect for demanding jobs

Features + Benefits

  • Horizontal shaft engines last 5x as long as vertical shaft engines
  • 7 GPM/4,000 PSI from 1 gun or 3.5 GPM/4,000 PSI from both guns
  • Uses 1/2in. schedule 80 extra-heavy pipe
  • Adjustable temperature
  • Pump has brass manifold, ceramic plungers and safety relief
  • Forged brass manifold gives improved strength over cheaper aluminum
  • Easy Start stops pressure buildup during startup
  • Adjustable pressure for job versatility
  • Sight glass lets you quickly check pump oil
  • 22mm quick connect makes it easy to use multiple attachments
  • 12V DC automotive or marine battery not included
  • Water tank and trailer not included

Key Specs

AttributeSpecification

item#

157598

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

800.0 LB

Pressure

4,000 PSI

Flow

7 GPM

Engine Model

Command Pro V-twin

Engine Displacement

725 cc

Fuel Type

Gasoline

Pump

Northstar

Drive Style

Belt

Adjustable Pressure

Yes

Gross Torque

38.4 ft-lbs.

Engine Oil Included

No

Engine Oil Type

SAE 30 Motor Oil
AttributeSpecification

Fuel Capacity

15 Gal

Max. Inlet Water Temp

140 °F

Max. Outlet Water Temp

200 °F

Orifice Size

3.5

Chemical Injector

Yes

Hose Length

50 ft

Coupler Size

3/8 in

Nozzle Type

0°, 15°, 25°, 40° and Soap

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

Universal Tractor Transmission

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

800.0000 lb

Dimensions L x W x H (in.)

45.5 x 54.25 x 46.25 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Water Tank

    Does this unit hold water without a separate tank? I noticed the pictures showed the unit in a truck bed without an extra water tank.

    1. needs a water tank. 200 gal min.

      Helpful?

    2. The unit will need a water supply. It does not have a holding tank. It does run water through the heater tank to heat the water.

      Helpful?

  2. Well, this unit fit in the back of a pick up truck

    1 answer

    1. This pressure washer measures 45.5" long x 54.25" wide x 46.25" high. It can fit in the bed of a pickup truck, but it’s recommended to measure your vehicle first to ensure a proper fit.

      Helpful?

  3. Is electric start available?

    1 answer

    1. At this time, electric start is not available for this pressure washer. Modifying the unit to accommodate electric start will void the warranty.

      Helpful?

  4. Does thus skid have a wetstream or can is there a way to hook a steam attachment to it

    1 answer

    1. This product was not designed to produce steam or have a steam attachment added. Wet steam requires a minimum of 250 degrees F. This machine produces a maximum water temperature of 200 degrees F.

      Helpful?

  5. Does it have to have a tank or can you use a water hose. Also can you use the hot water system with a surface cleaner?

    1 answer

    1. Water must be supplied to the pressure washer by an external water tank which is provided by the user. The tank needs to be 200 gallons or larger. It is best to check the maximum rated temperature of the surface cleaner prior to use with this machine.

      Helpful?

  6. Does this machine suck water itself or does it require a pump from tank to machine?

    1 answer

    1. The water supply is gravity tank fed. The water tank is not included. A 200 gallon tank or larger is recommended. Make sure the supply water flow rate is always 20% higher than the pressure washers flow rate. The flow rate must be at least 8.4 gallons per minute. The water will also need to be clean and particle free. The line from the tank to the pump should not exceed 6 feet. The recommended hose diameter of 3/4".

      Helpful?

  7. What temperature does this machine heat water to?

    1 answer

    1. The NorthStar 2-gun Hot Water Pressure Washer Skid features a max output water temperature of 200 degrees Fahrenheit.

      Helpful?

  8. will using 1 gun damage the unit or set off the pressure relief

    1 answer

    1. The unit can be used with one gun or both. If using one gun you need to be sure to use a #7 nozzle to ensure the rated flow and psi are achieved. When using both guns you will use a #3.5 nozzle on each gun. These instructions can be found on pages 22 and 23 of the product manual.

      Helpful?

  9. Smaller engine/less gpm.

    I was interested in this unit, but was wondering if you have a 18 or 20 hp set up. Looking for the same style skid that will be better on fuel and will be around 4to5 gpm.

    Thanks

    1 answer

    1. This skid style pressure washer is the only unit available with 2 guns. Click the links below to view two other skid style units rated at 18hp, one has a Honda gas engine and the other has a Kohler diesel engine.

      Helpful?

  10. Can the unit be plumbed back into the water tank, to avoid damage during the times of gun trigger not pulled?

    1 answer

    1. This pressure washer skid includes a safety relief valve and instructions in the manual for connection of a return line to the tank. A return line to the tank is required.

      Helpful?
