NorthStar Tow-Behind Trailer Sprayer, 55-Gal. Tank, 7 GPM, 150 Max. PSI, 160cc Honda GX160 Engine

Item# 2827272
Top Seller
NorthStar Tow-Behind Trailer Sprayer, 55-Gal. Tank, 7 GPM, 150 Max. PSI, 160cc Honda GX160 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Tow-Behind Trailer Sprayer, 55-Gal. Tank, 7 GPM, 150 Max. PSI, 160cc Honda GX160 Engine

Click or Tap image to Zoom

$2199.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 55-Gallon Tank Capacity: Provides extended spraying time with fewer refills for acreage, agricultural and property maintenance applications
  • Honda GX160 Engine: Commercial-grade engine delivers dependable power for demanding spraying tasks
  • Hypro 4101XL Pump: Delivers up to 7 GPM and 150 PSI for reliable broadcast and spot spraying performance
  • 32ft. Broadcast Spray Width: Dual broadcast nozzles provide wide coverage to help reduce application time on large areas
  • Broadcast and Spot Spraying Capability: Includes dual broadcast nozzles and an adjustable spray gun for versatile application options

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The NorthStar Tow-Behind Trailer Sprayer is designed for agricultural, acreage and property maintenance applications. Powered by a Honda GX160 engine and Hypro 4101XL pump, it delivers up to 7 GPM and 150 PSI for reliable broadcast and spot spraying performance. The 55-gallon polyethylene tank pairs with a venturi agitation system to help maintain consistent chemical mixtures, while dual broadcast nozzles provide up to 32ft. of spray coverage. An adjustable pressure regulator, pressure gauge and versatile spray gun with adjustable cone-to-stream pattern allow precise application control. The tow-behind design features turf-friendly tires, a heavy-duty frame and integrated lifting handle for convenient transport and operation.

What's Included

    (1) Trailer sprayer

Downloads

Product Manual

EFFICIENT LAND MANAGEMENT

Maximize your property’s POTENTIAL with PRECISE, WIDE-COVERAGE SPRAYING, ideal for AGRICULTURAL LANDS, ORCHARDS or LARGE GARDENS

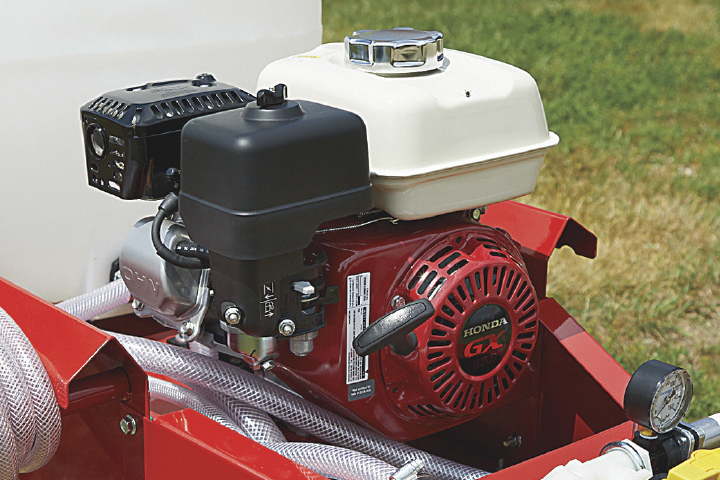

ENGINEERED FOR RELIABILITY

Equipped with a ROBUST HONDA GX160 ENGINE and a HIGH-PERFORMANCE PUMP, it delivers consistent pressure and flow for all types of liquids

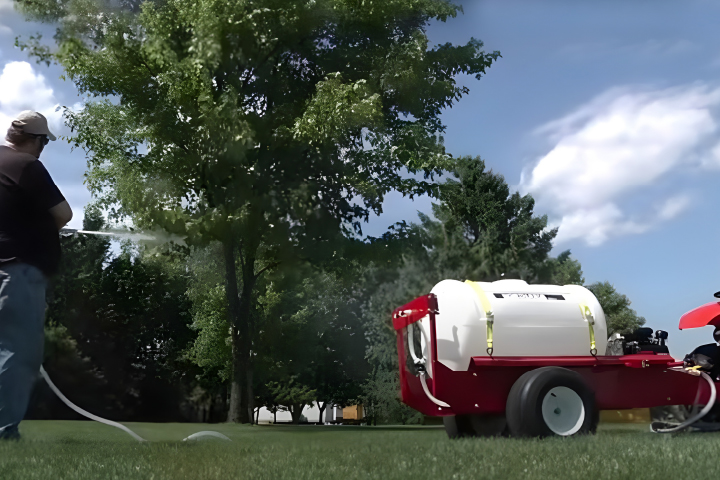

BUILT TO LAST

The RUGGED POWDER-COATED STEEL CART and CHEMICAL-RESISTANT TANK ensure LONGEVITY and DURABILITY, standing up to harsh elements and chemicals

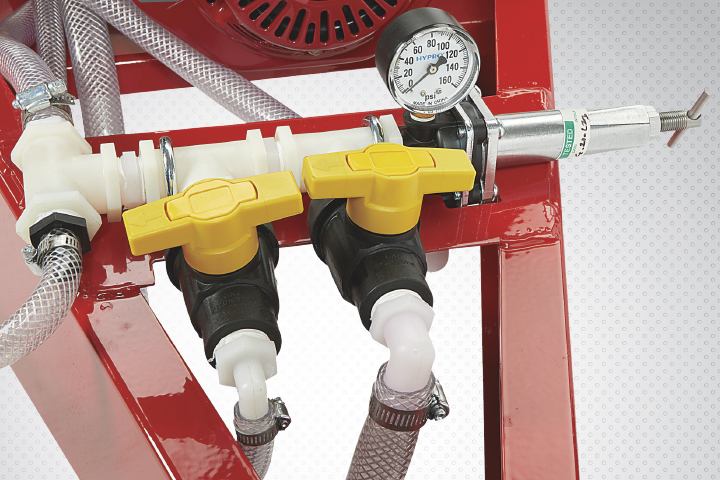

CONVENIENCE AND SAFETY

Boasts left and right BOOM SHUTOFF VALVES and a 30 FEET SPRAY HEIGHT CAPABILITY for targeted application, minimizing drift and waste

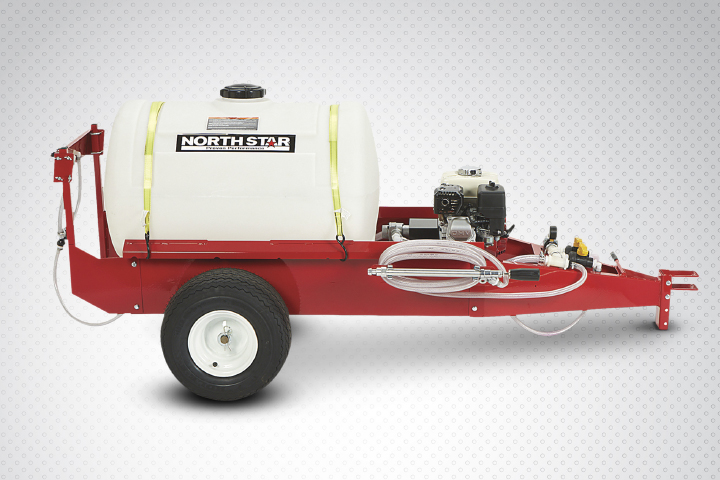

USER-FRIENDLY DESIGN

Simplified operation with INTUITIVE CONTROLS, ADJUSTABLE FEATURES and CLEAR TANK MARKINGS in GALLONS and LITERS for accurate mixing

Features + Benefits

  • 55-Gallon Tank Capacity: Provides extended spraying time with fewer refills for acreage, agricultural and property maintenance applications
  • Honda GX160 Engine: Commercial-grade engine delivers dependable power for demanding spraying tasks
  • Hypro 4101XL Pump: Delivers up to 7 GPM and 150 PSI for reliable broadcast and spot spraying performance
  • 32ft. Broadcast Spray Width: Dual broadcast nozzles provide wide coverage to help reduce application time on large areas
  • Broadcast and Spot Spraying Capability: Includes dual broadcast nozzles and an adjustable spray gun for versatile application options
  • Adjustable Cone-to-Stream Spray Gun: Twist-handle spray gun adjusts from off to cone to stream spray patterns for precise application control
  • Adjustable Pressure Regulator: Allows operators to fine-tune spraying pressure for varying application requirements up to 150 PSI
  • Pressure Gauge: Provides real-time system pressure monitoring for accurate spray control equipped
  • Venturi Agitation System: Helps maintain uniform chemical mixtures for flowable, wettable powder, emulsified and water-dispersible formulations
  • 4 Interchangeable Agitator Tips: Includes 1/8in., 5/32in., 3/16in. and 1/4in. tips to balance agitation effectiveness and spray pressure based on application requirements
  • Adjustable Agitation Performance: Venturi agitator can generate up to 19.5 GPM outlet flow for enhanced tank mixing performance
  • Broadcast Valve Control: Allows operators to quickly direct flow to the broadcast nozzles when treating larger areas
  • Clear-Bowl Y-Line Strainer: Helps prevent debris from entering the pump and allows quick inspection and cleaning
  • Suction Line Ball Valve: Allows strainer servicing and cleaning without draining the entire tank
  • Vented Fill Cap: Allows airflow into the tank while helping prevent chemical escape during operation
  • Turf-Friendly Tires: Wide-tread tires help reduce turf damage during transport across lawns and properties
  • Integrated Lifting Handle: Provides a convenient handhold for positioning and maneuvering the sprayer when needed
  • Heavy-Duty Tow-Behind Design: Adjustable hitch mounting positions help keep the sprayer level behind a variety of tow vehicles
  • Chemical-Resistant Construction: Features polyethylene, EPDM, polypropylene, stainless steel, PVC, Viton, aluminum, nylon and polyacetal components for durability with compatible chemicals
  • Included Accessories and Components: Includes spray gun, dual broadcast nozzles (1400PSL and 1400PSR), agitation system with 4 interchangeable tips, pressure gauge, pressure regulator and tow hitch assembly

Key Specs

AttributeSpecification

item#

2827272

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

238.0 LB

Tank Size

55 Gal

Flow

7 GPM

Pressure

150 PSI

Boomless

Yes

Spray Height

30 ft

Broadcast Width

32 ft
AttributeSpecification

Tank Material

Polymer

Spray Pattern

Cone, Stream, Broadcast

Spray Gun Type

Spot

Tow Behind Cart Included

Yes

Pump Type

4-roller

Engine Type

Honda GX160

Hose Length

240 in

Product Weight

238.0000 lb

Dimensions L x W x H (in.)

87.0 x 39.0 x 40.0 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 19 Questions
Sort by:

  1. I need to buy the front hitch that attaches to draw bar, the bracket across the back that holds the back spray nozzles and a spray wand hose and wand .

    1 answer

    1. The hitch is part #799426. The nozzle bracket is part #777458. The spray gun is part #777845. The gun hose is part #30160. These can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  2. Does this come with recommend oil? Do they start/run engine prior to shipment?

    1 answer

    1. This sprayer does not include oil, so the reservoir must be checked and filled before use. The engine is started at our manufacturing facility prior to shipment, so there may be some residual oil remaining from factory testing.

      Helpful?

  3. What size are the hoses

    1 answer

    1. This trailer uses a 3/4" x 16" hose, a 3/4" x 60" hose, a 3/4" x 33" hose, and a 3/4" x 22" hose. The gun hose is 1/2" x 240" long and the hose located near the boom nozzles is 1/2" x 11".

      Helpful?

  4. Can the 32 ft boom less spray pattern be reduced to accommodate driveways

    1 answer

    1. To reduce the spray width, switch to a smaller nozzle or use the valve to shut off one side.

      Helpful?

  5. how do you shut off the back sprayers when driving over concrete while engine is still running and then turn back on when over grass?

    1 answer

    1. We offer the remote switch, item 22851, which can be used to turn the broadcast nozzles on and off.

      Helpful?

  6. Can this be run without water to Ron gas out of motor to store for the winter

    1 answer

    1. We do not recommend running this unit dry as that will damage the pump. When preparing this unit for long term storage, over the winter, we recommend adding RV antifreeze to the tank and following the instructions for draining fuel from the tank and carburetor as instructed in the engine owner's manual. There are more detailed instructions for storage found on page 31 of the Product Manual which is located below the Product Summary on the web page.

      Helpful?

  7. WHAT IS THE TIRE SIZE

    1 answer

    1. This sprayer has 18 - 8.50 x 8 tires. The replacement tire assembly, part #777917, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. how do you control the drift from the lawn spraying nozzles

    1 answer

    1. To minimize spray drift, do not spray if wind speeds exceed 4 MPH.

      Helpful?

  9. Need parts for pull behind sprayer?

    1 answer

    1. Parts for this sprayer are listed on page 35 of the Product Manual located below the Product Summary on the web page. The parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  10. Can this be used with a bleach mix for softwashing?

    1 answer

    1. This sprayer is not designed for soft washing. Applying any bleach or chlorine mix would damage the pump and void the warranty.

      Helpful?
